US TYPE DROP FORGED TURNBUCKLE JAW & JAW HG-228

Material High tensile carbon steel ASTM(AISI)1045
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface Hot Dip Galv. OR as requested
Meets the performance requirements of Federal Specifications FF-T-791b,Type 1, Form 1 & ASTM F-1145; Meets or exceeds all requirements of ASME B30.26

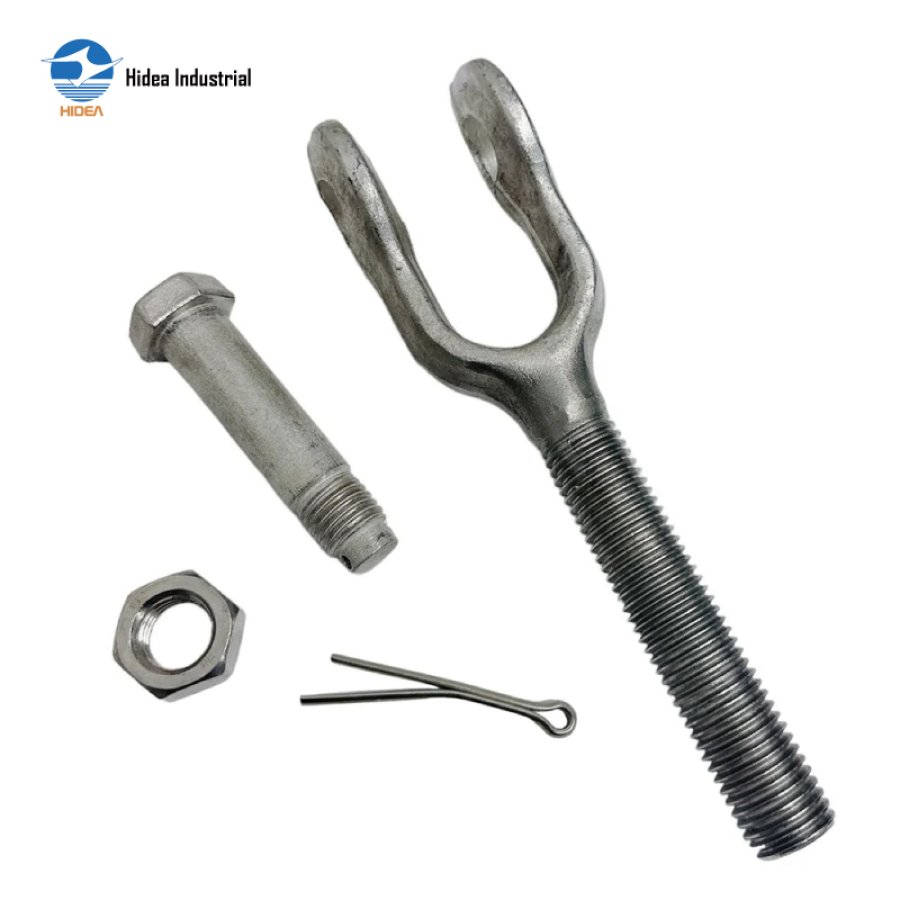

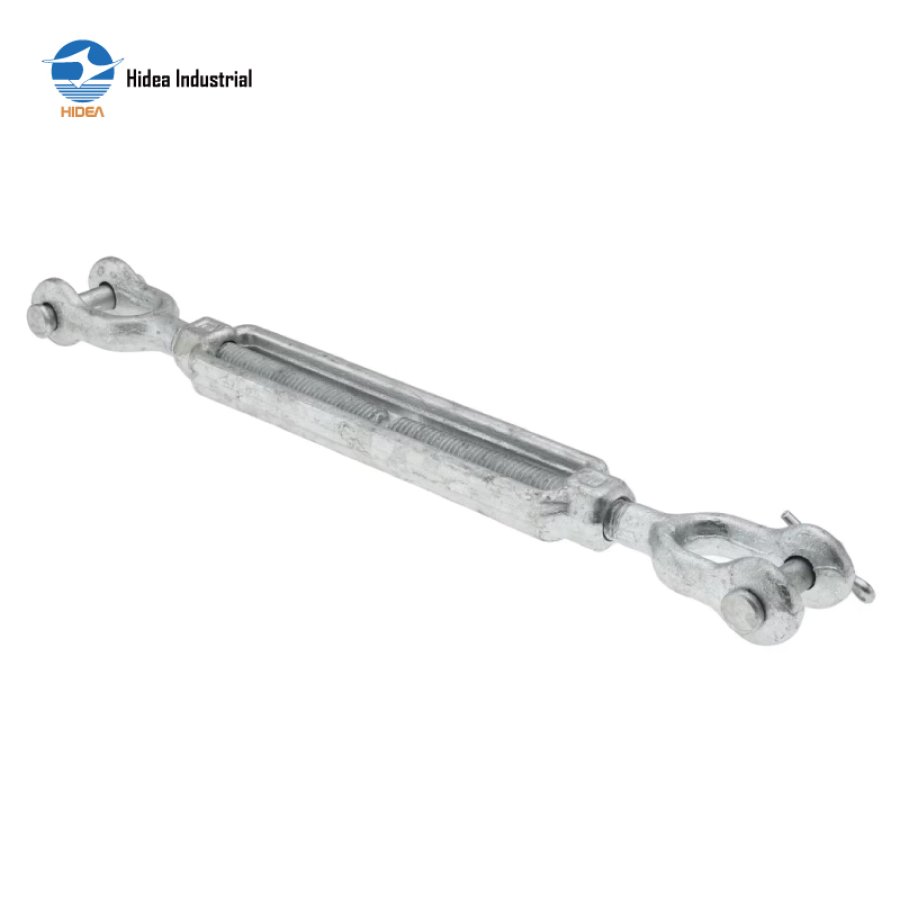

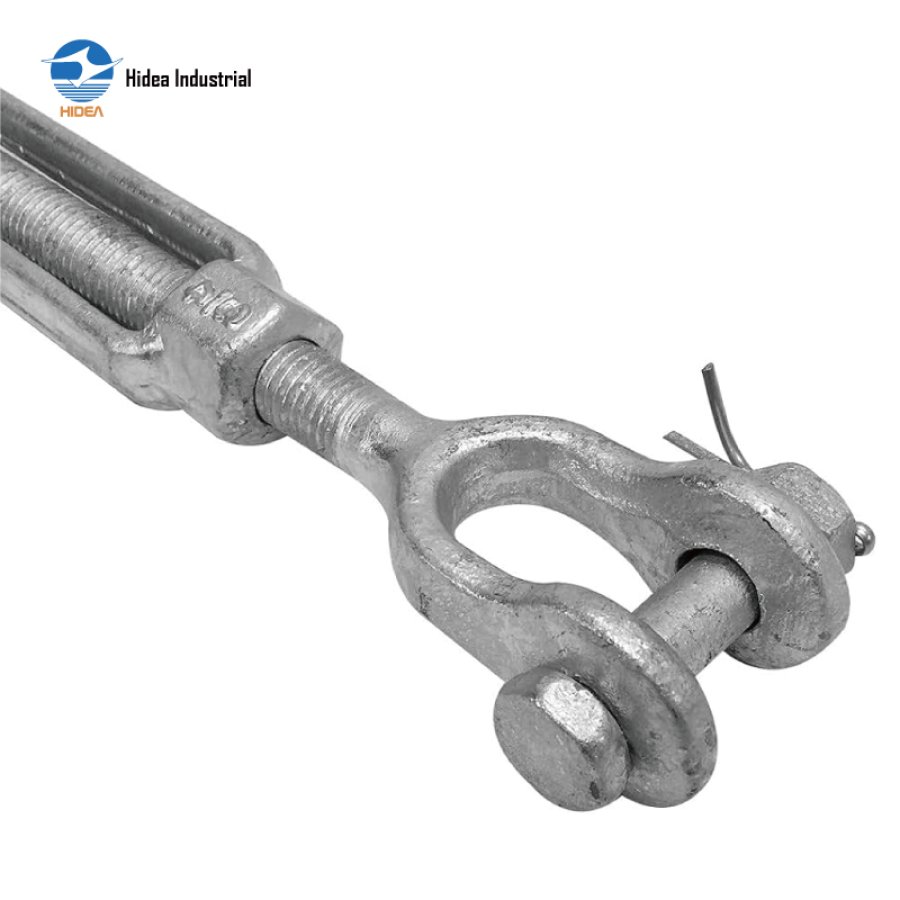

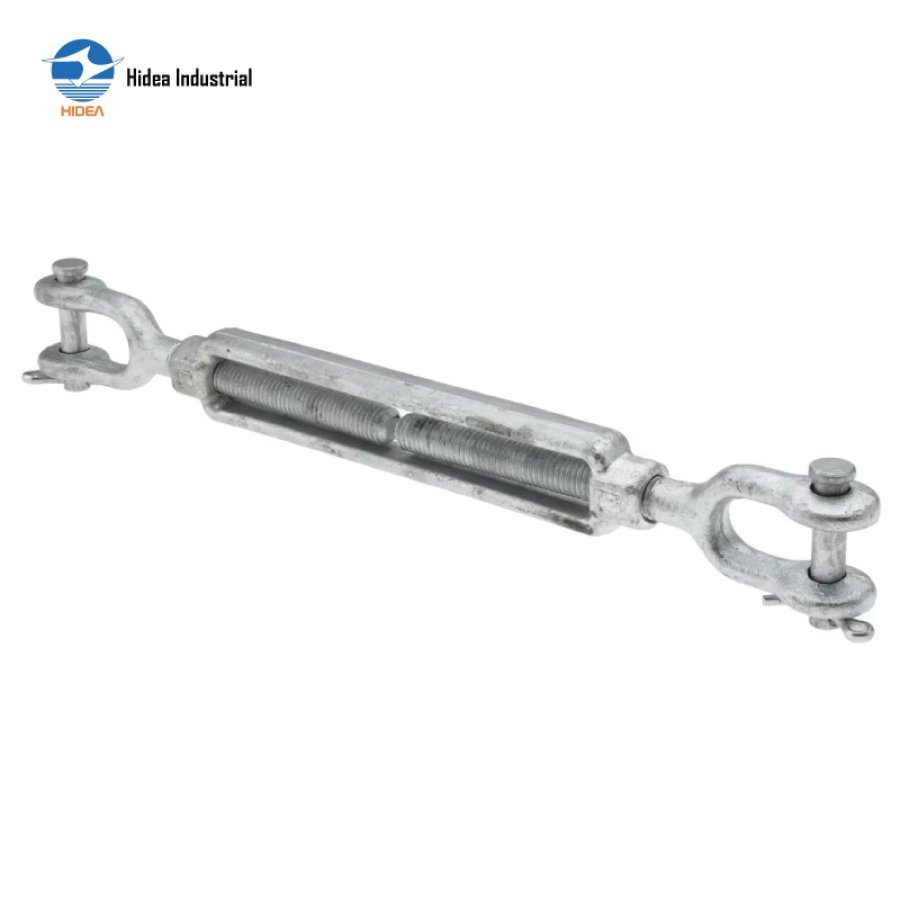

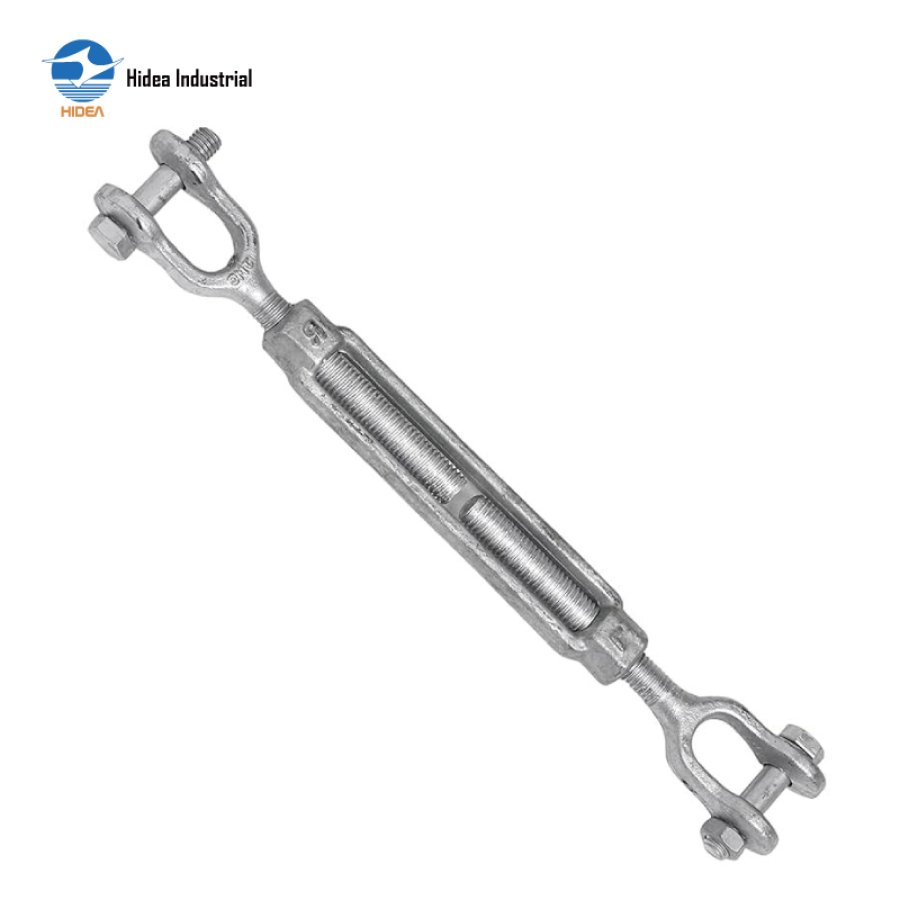

HG-228 US type drop forged turnbucle Jaw & Jaw type

Inquire Now

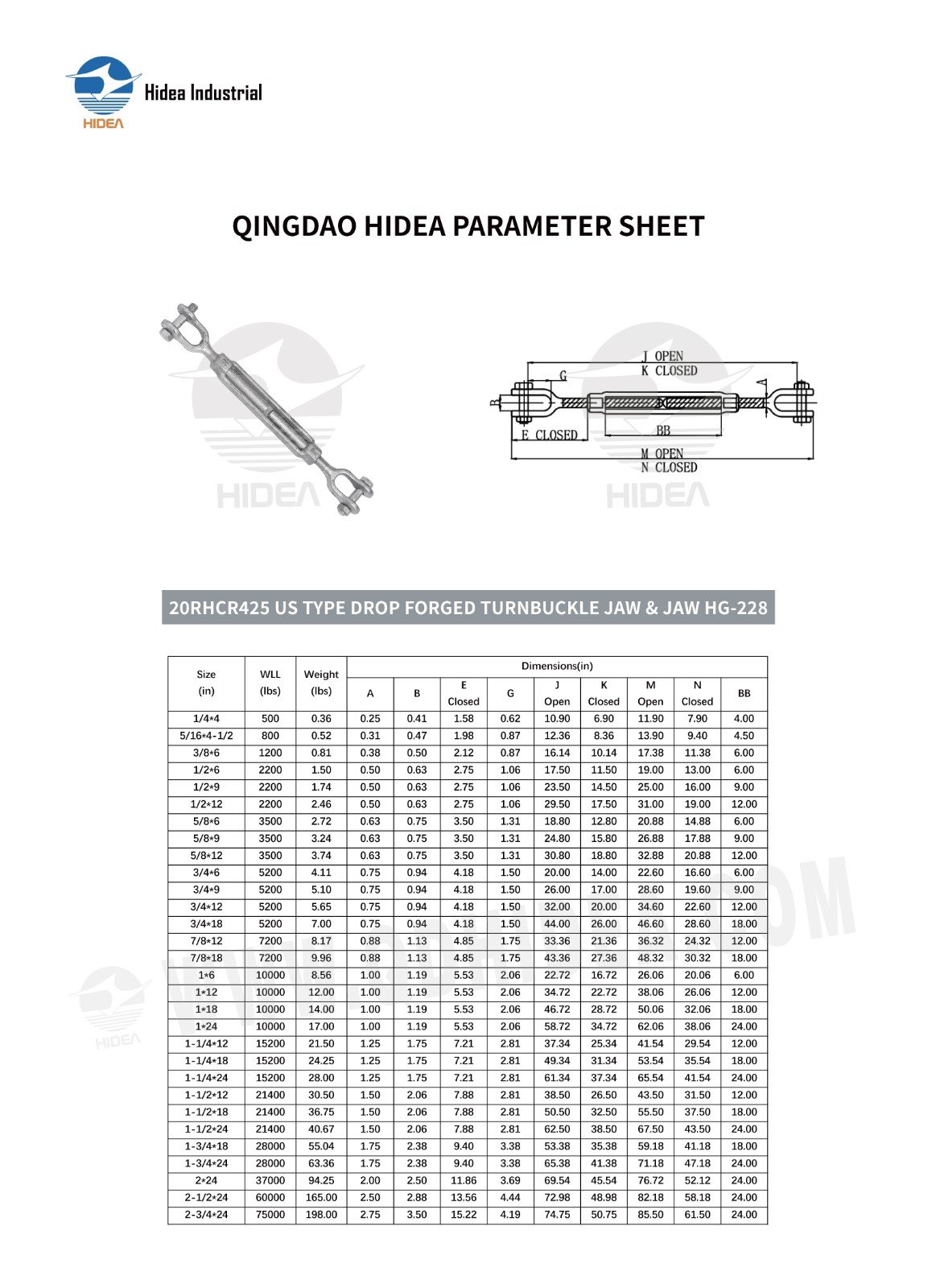

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR425 US TYPE DROP FORGED TURNBUCKLE JAW&JAW HG-228

Size (in)	WLL (Ibs)	Weight (Ibs)	Dimensions(in)
Size (in)	WLL (Ibs)	Weight (Ibs)	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	BB
*1/44**	500	0.36	0.25	0.41	1.58	0.62	10.90	6.90	11.90	7.90	4.00
*5/164-1/2**	800	0.52	0.31	0.47	1.98	0.87	12.36	8.36	13.90	9.40	4.50
*3/86**	1200	0.81	0.38	0.50	2.12	0.87	16.14	10.14	17.38	11.38	6.00
*1/26**	2200	1.50	0.50	0.63	2.75	1.06	17.50	11.50	19.00	13.00	6.00
*1/29**	2200	1.74	0.50	0.63	2.75	1.06	23.50	14.50	25.00	16.00	9.00
*1/212**	2200	2.46	0.50	0.63	2.75	1.06	29.50	17.50	31.00	19.00	12.00
*5/86**	3500	2.72	0.63	0.75	3.50	1.31	18.80	12.80	20.88	14.88	6.00
*5/89**	3500	3.24	0.63	0.75	3.50	1.31	24.80	15.80	26.88	17.88	9.00
*5/812**	3500	3.74	0.63	0.75	3.50	1.31	30.80	18.80	32.88	20.88	12.00
*3/46**	5200	4.11	0.75	0.94	4.18	1.50	20.00	14.00	22.60	16.60	6.00
*3/49**	5200	5.10	0.75	0.94	4.18	1.50	26.00	17.00	28.60	19.60	9.00
*3/412**	5200	5.65	0.75	0.94	4.18	1.50	32.00	20.00	34.60	22.60	12.00
*3/418**	5200	7.00	0.75	0.94	4.18	1.50	44.00	26.00	46.60	28.60	18.00
*7/812**	7200	8.17	0.88	1.13	4.85	1.75	33.36	21.36	36.32	24.32	12.00
7/8+18	7200	9.96	0.88	1.13	4.85	1.75	43.36	27.36	48.32	30.32	18.00
*16**	10000	8.56	1.00	1.19	5.53	2.06	22.72	16.72	26.06	20.06	6.00
*112**	10000	12.00	1.00	1.19	5.53	2.06	34.72	22.72	38.06	26.06	12.00
*118**	10000	14.00	1.00	1.19	5.53	2.06	46.72	28.72	50.06	32.06	18.00
*124**	10000	17.00	1.00	1.19	5.53	2.06	58.72	34.72	62.06	38.06	24.00
*1-1/412**	15200	21.50	1.25	1.75	7.21	2.81	37.34	25.34	41.54	29.54	12.00
*1-1/418**	15200	24.25	1.25	1.75	7.21	2.81	49.34	31.34	53.54	35.54	18.00
*1-1/424**	15200	28.00	1.25	1.75	7.21	2.81	61.34	37.34	65.54	41.54	24.00
*1-1/212**	21400	30.50	1.50	2.06	7.88	2.81	38.50	26.50	43.50	31.50	12.00
*1-1/218**	21400	36.75	1.50	2.06	7.88	2.81	50.50	32.50	55.50	37.50	18.00
*1-1/224**	21400	40.67	1.50	2.06	7.88	2.81	62.50	38.50	67.50	43.50	24.00
*1-3/418**	28000	55.04	1.75	2.38	9.40	3.38	53.38	35.38	59.18	41.18	18.00
*1-3/424**	28000	63.36	1.75	2.38	9.40	3.38	65.38	41.38	71.18	47.18	24.00
*224**	37000	94.25	2.00	2.50	11.86	3.69	69.54	45.54	76.72	52.12	24.00
*2-1/224**	60000	165.00	2.50	2.88	13.56	4.44	72.98	48.98	82.18	58.18	24.00
*2-3/424**	75000	198.00	2.75	3.50	15.22	4.19	74.75	50.75	85.50	61.50	24.00
