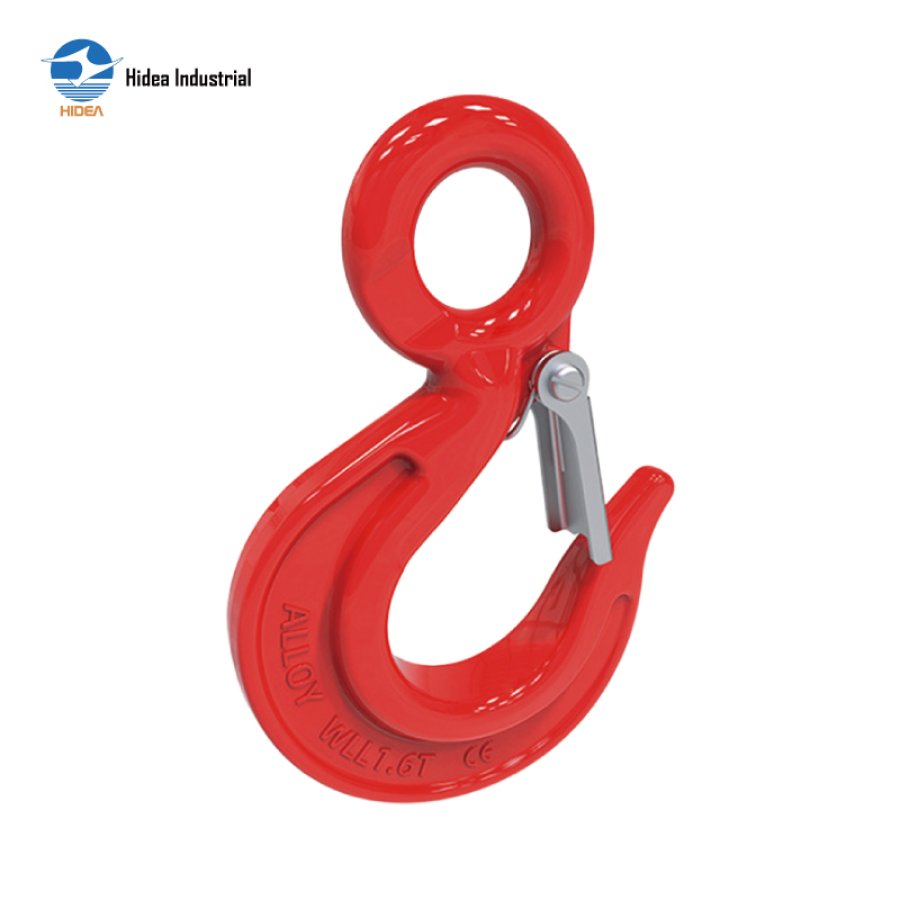

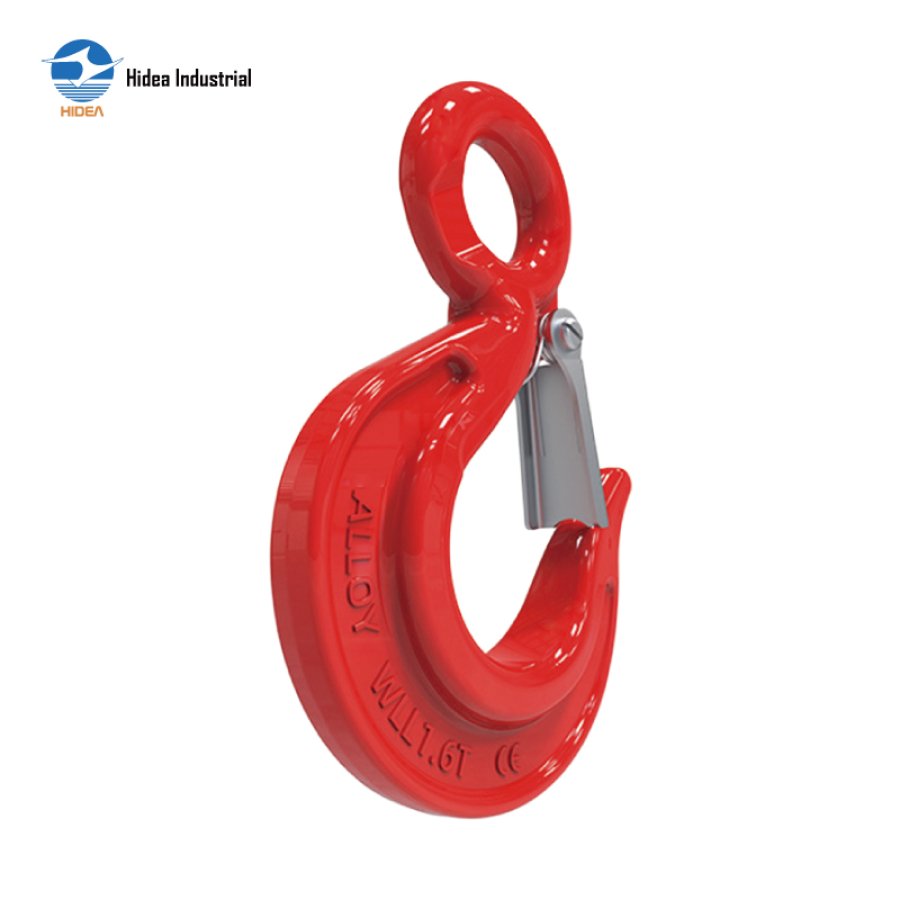

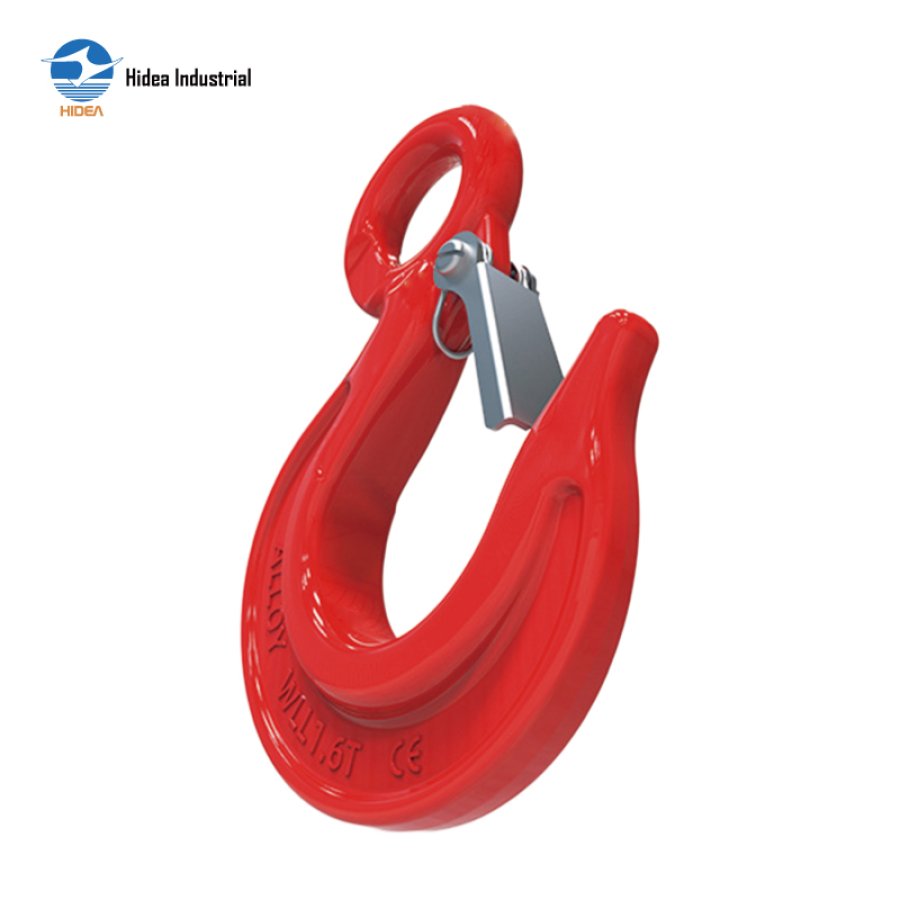

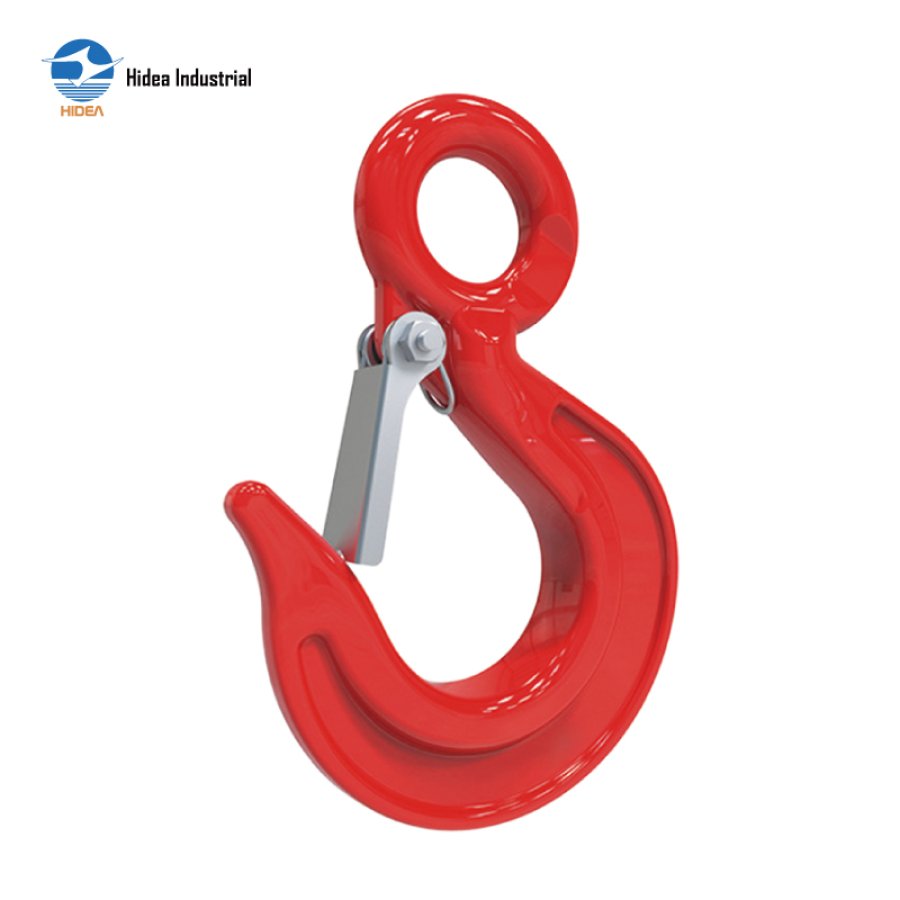

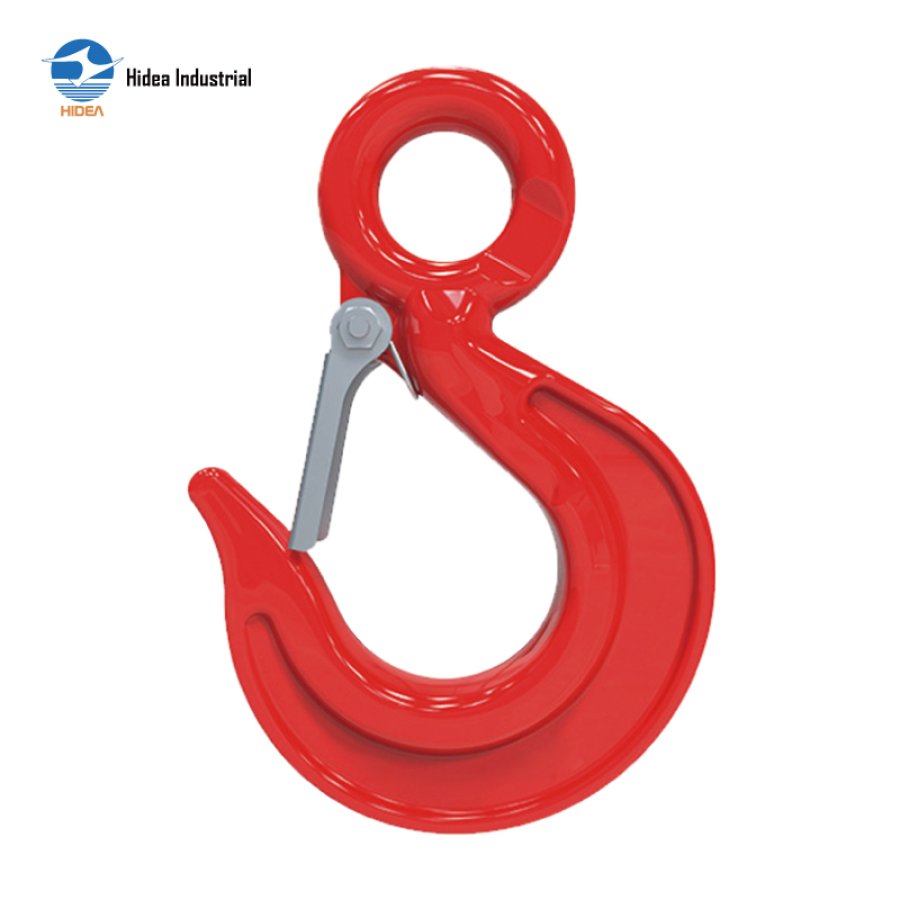

Premium Hidea Grade 80 Italian Type Eye Sling Hook with Flat Eye

G80 ITALIAN TYPE EYE SLING HOOK WITH FLAT EYE

Forged super carbon steel-Quenched and Tempered
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

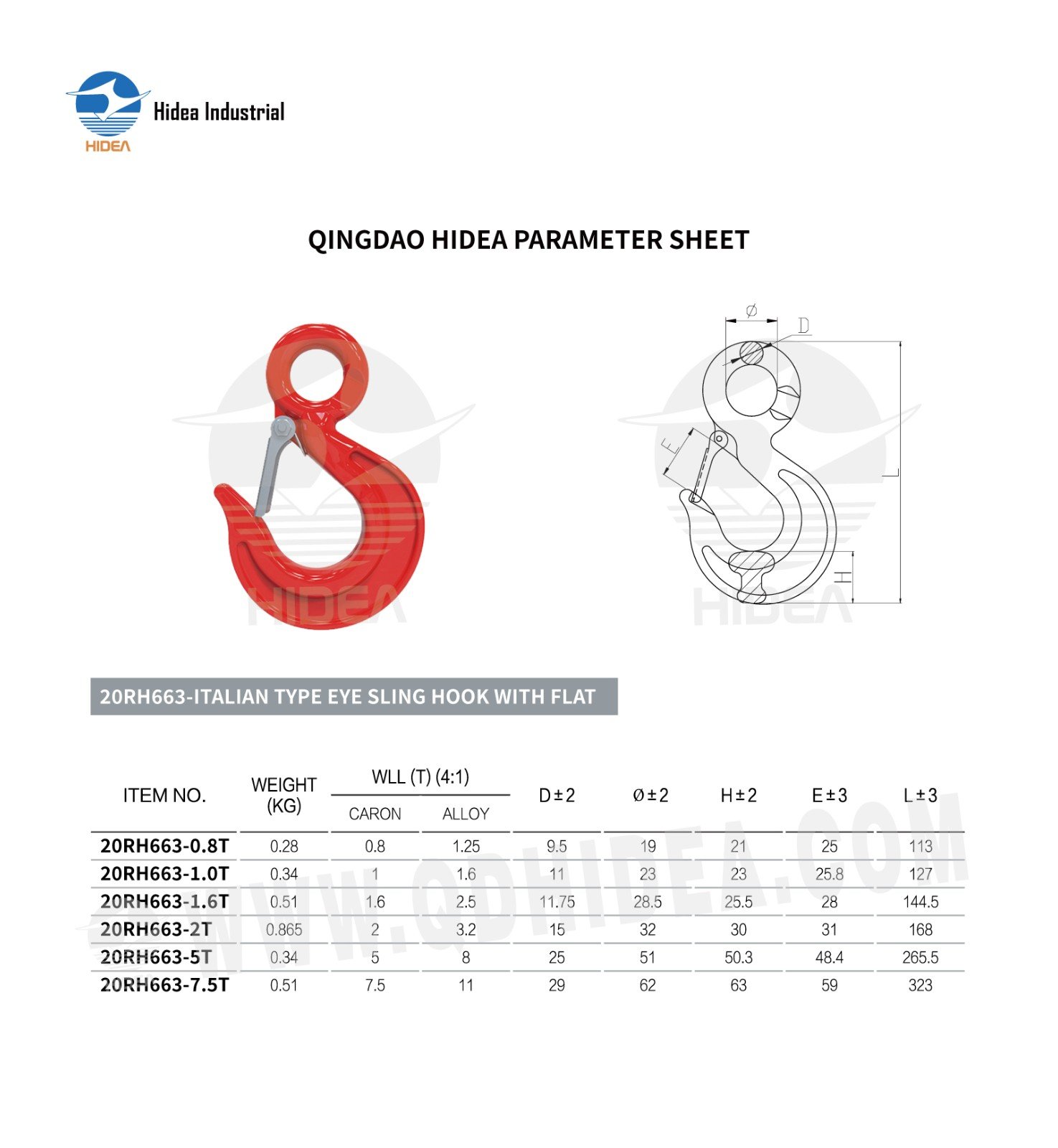

QINGDAO HIDEA PARAMETER SHEET FOR

20RH663-ITALIAN TYPE EYE SLING HOOK WITH FLAT

ITEM NO.	WEIGHT (KG)	WLL(T)(4:1)		D±2	Ø±2	H±2	E±3	L±3
ITEM NO.	WEIGHT (KG)	CARON	ALLOY	D±2	Ø±2	H±2	E±3	L±3
20RH663-0.8T	0.28	0.8	1.25	9.5	19	21	25	113
20RH663-1.0T	0.34	1	1.6	11	23	23	25.8	127
20RH663-1.6T	0.51	1.6	2.5	11.75	28.5	25.5	28	144.5
20RH663-2T	0.865	2	3.2	15	32	30	31	168
20RH663-5T	0.34	5	8	25	51	50.3	48.4	265.5
20RH663-7.5T	0.51	7.5	11	29	62	63	59	323
