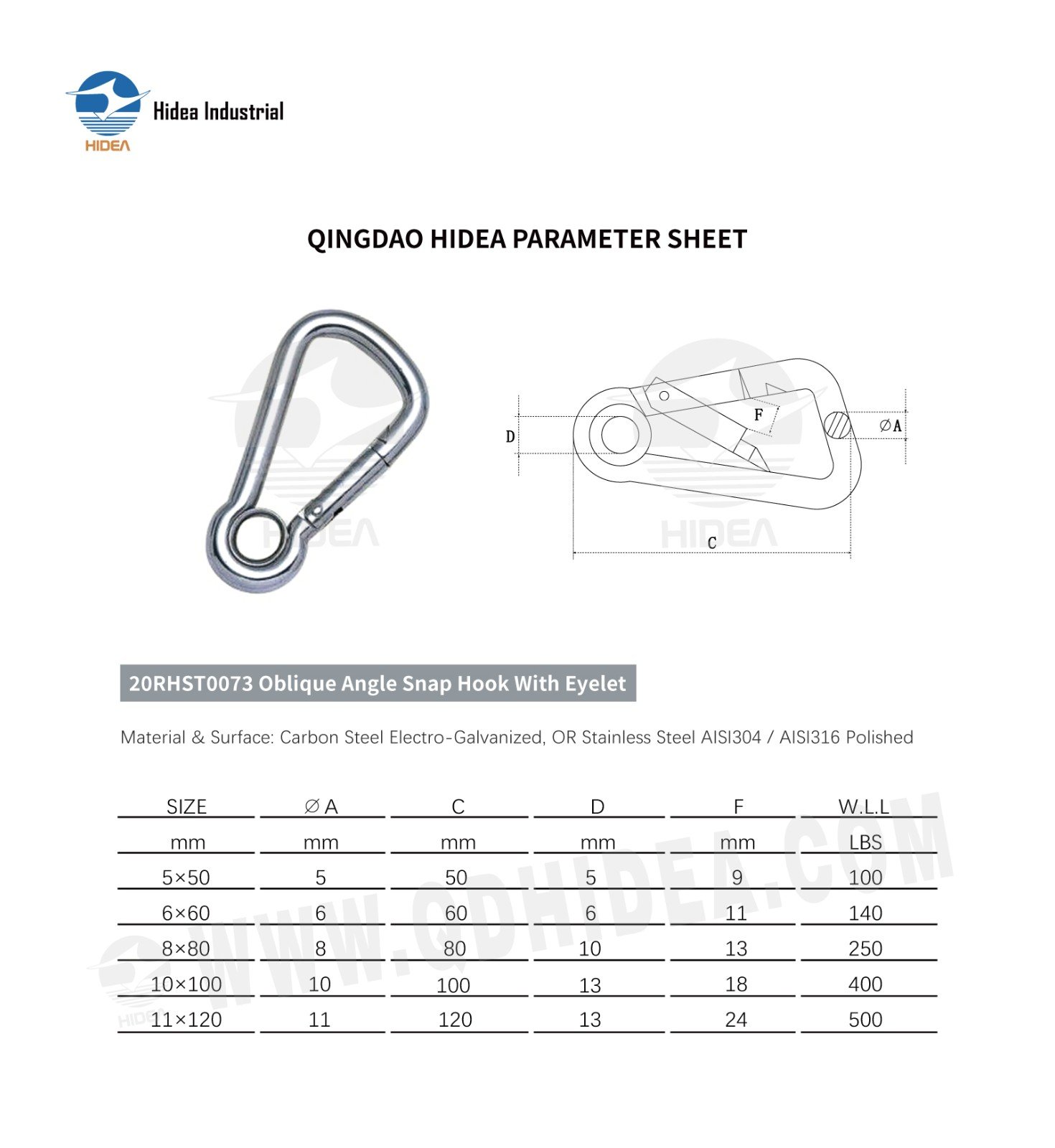

QINGDAO HIDEA PARAMETER SHEET FOR

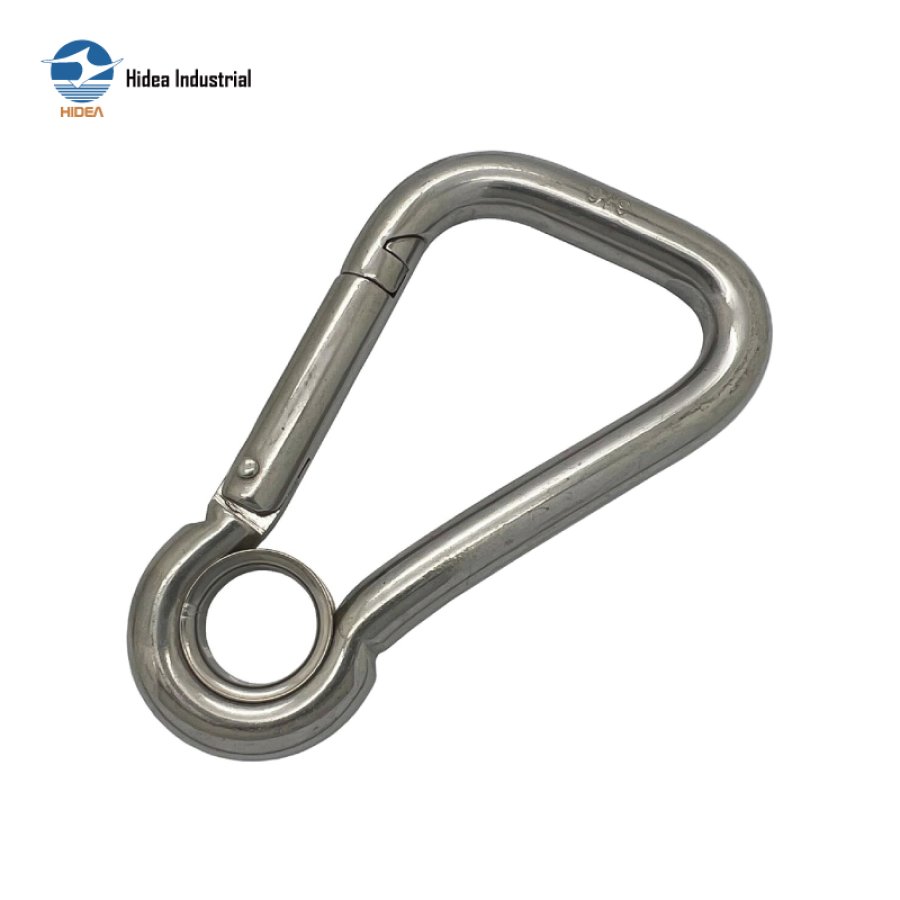

20RHST0073 Oblique Angle Snap Hook With Eyelet
| SIZE | ØA | C | D | F | W.L.L | |
| mm | mm | mm | mm | mm | LBS | |
| 5×50 | 5 | 50 | 5 | 9 | 100 | |
| 6×60 | 6 | 60 | 6 | 11 | 140 | |
| 8×80 | 8 | 80 | 10 | 13 | 250 | |
| 10×100 | 10 | 100 | 13 | 18 | 400 | |
| 11×120 | 11 | 120 | 13 | 24 | 500 | |
