Raw Material 100% high tenacity and tensile strength polyester yarns of low elongation for slings
Colors coded and application properties constructed according to standards ASME B30.9, also meeting EN1492-2, ISO4878, machinery directive 2006/42/EC, and compliant with GS, CE safety requirements

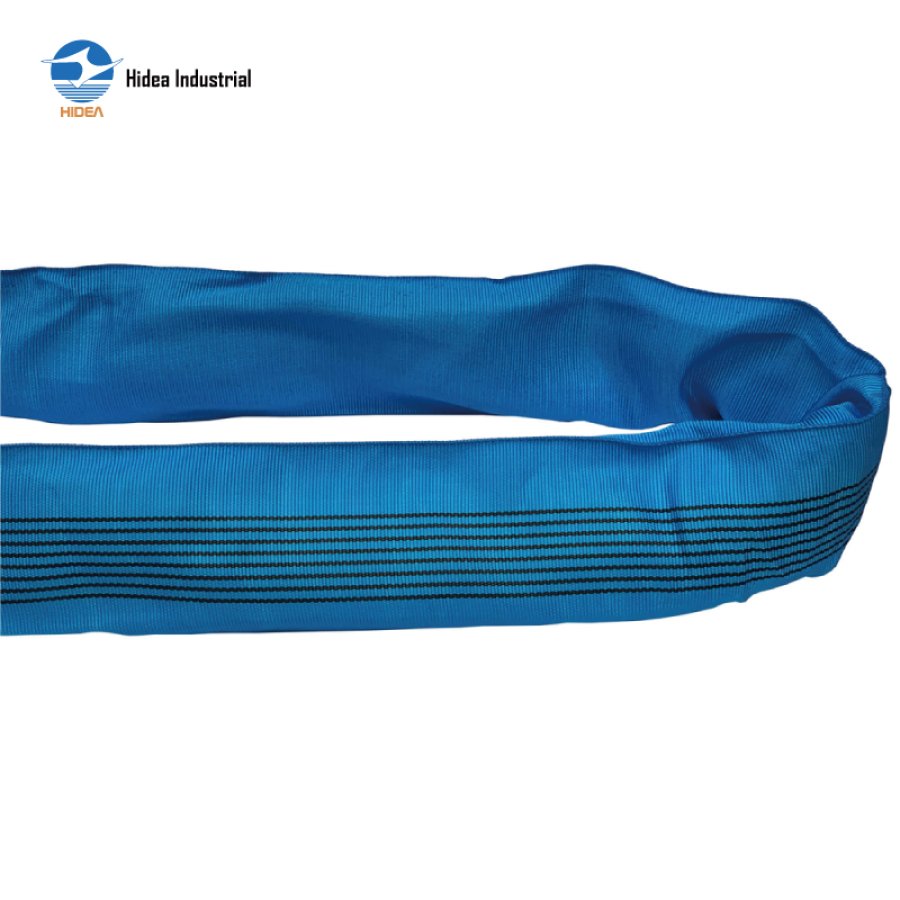

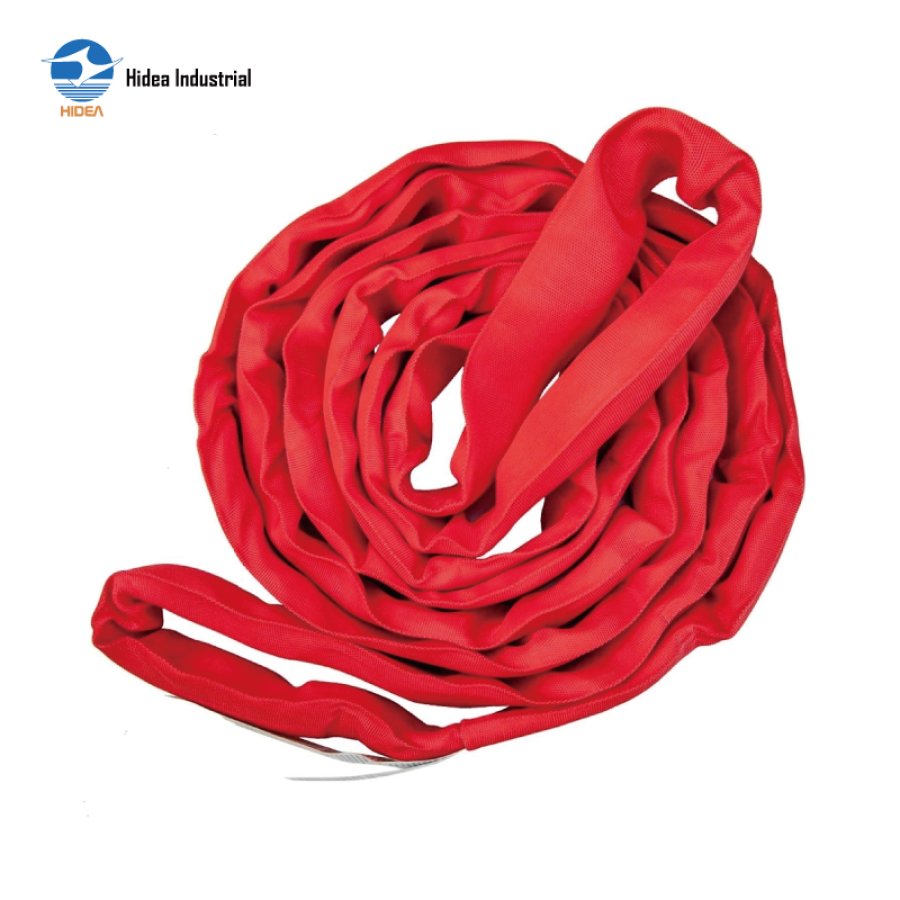

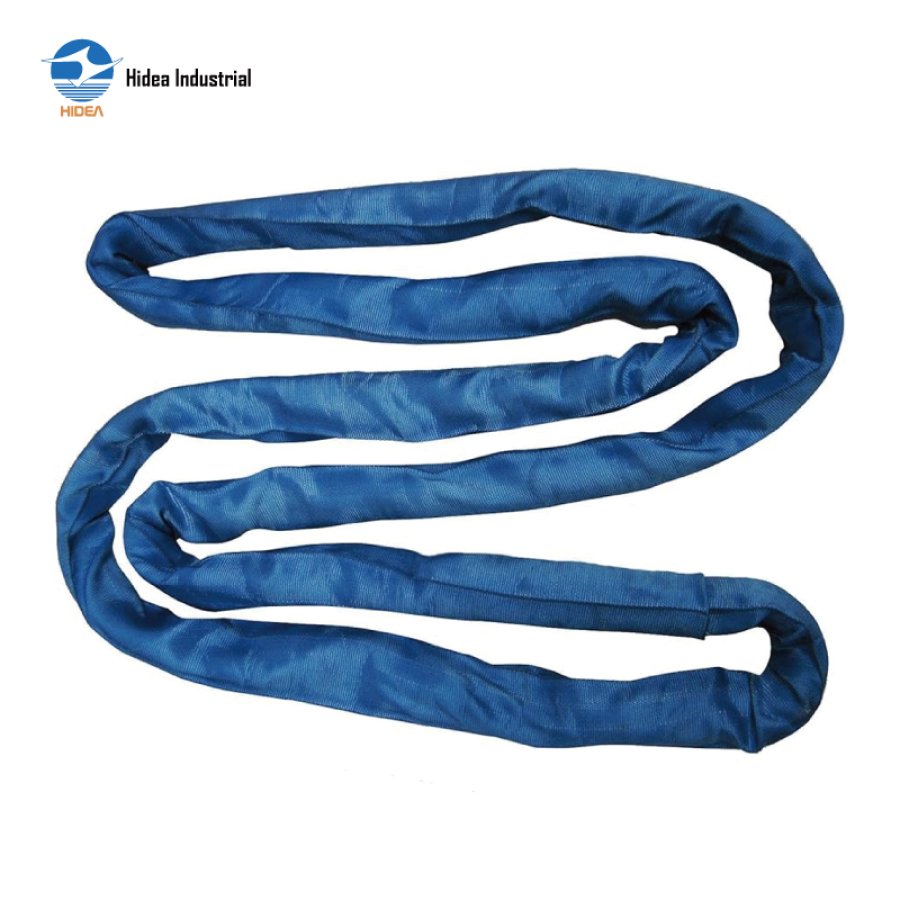

The endless round sling loop makes it a versatile and flexible style of Round Sling, maintaining all the basic webbing slings features plus more safety, loading stability and balance can be achieved by spreading sling legs,

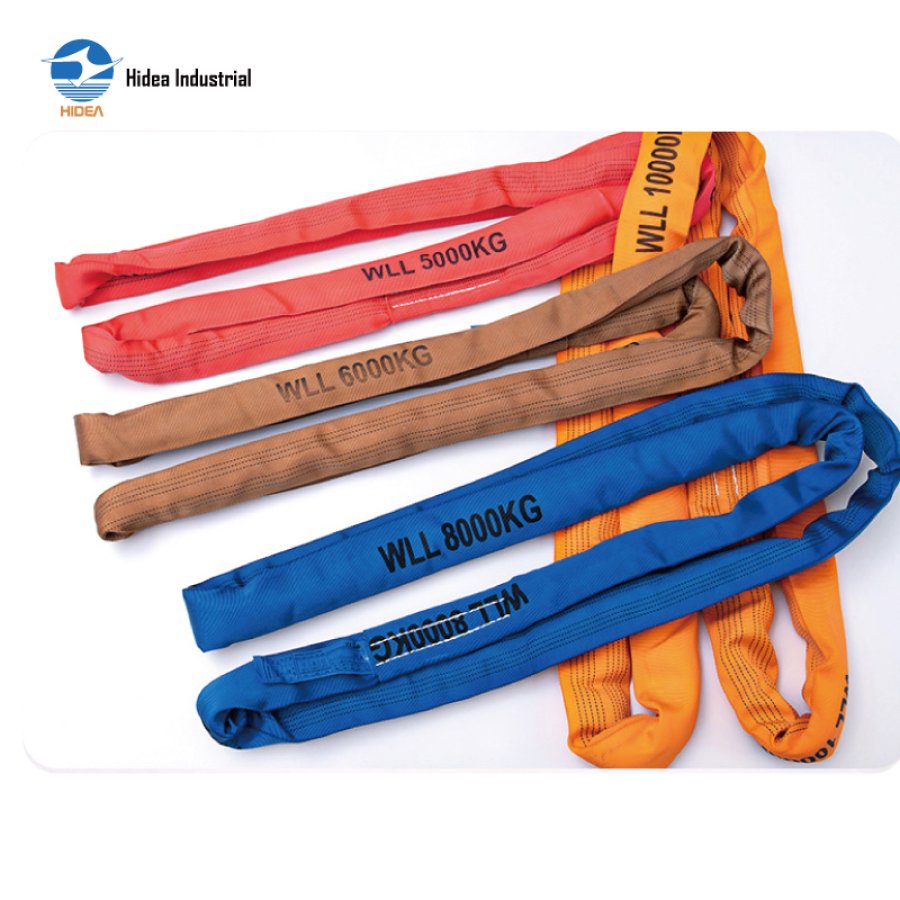

Safety Factors 6:1, 7:1 and 8:1 available upon request; clearly marked with WLL and length on surface of sling and a tag with serial number and technical data

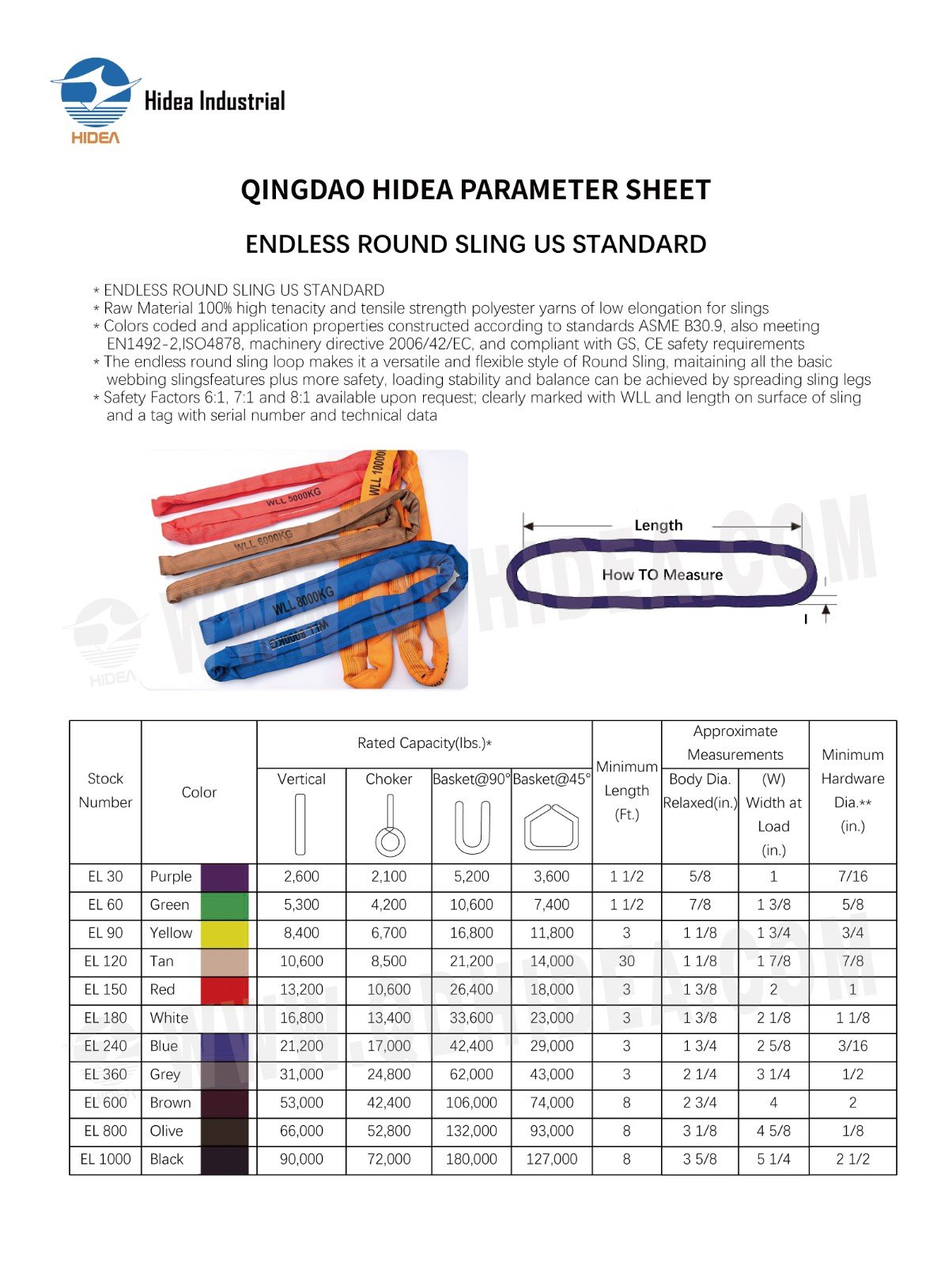

QINGDAO HIDEA PARAMETER SHEET FOR
ENDLESS ROUND SLING US STANDARD
| Stock Number | Color | Rated Capacity(lbs.)* | Minimum Length (Ft.) | Approximate Measurements | Minimum Hardware Dia.** (in.) | ||||
| Vertical | Choker | Basket@90° | Basket@45° | Body Dia. Relaxed(in. | (W) Width at Load (in.) | ||||
| EL30 | Purple | 2,600 | 2,100 | 5,200 | 3,600 | 11/2 | 5/8 | 1 | 7/16 |
| EL60 | Green | 5,300 | 4,200 | 10,600 | 7,400 | 11/2 | 7/8 | 13/8 | 5/8 |
| EL90 | Yellow | 8,400 | 6,700 | 16,800 | 11,800 | 3 | 11/8 | 13/4 | 3/4 |
| EL120 | Tan | 10,600 | 8,500 | 21,200 | 14,000 | 30 | 11/8 | 17/8 | 7/8 |
| EL 150 | Red | 13,200 | 10,600 | 26,400 | 18,000 | 3 | 13/8 | 2 | 1 |
| EL 180 | White | 16,800 | 13,400 | 33,600 | 23,000 | 3 | 13/8 | 21/8 | 11/8 |
| EL 240 | Blue | 21,200 | 17,000 | 42,400 | 29,000 | 3 | 13/4 | 25/8 | 3/16 |
| EL 360 | Grey | 31,000 | 24,800 | 62,000 | 43,000 | 3 | 21/4 | 31/4 | 1/2 |
| EL600 | Brown | 53,000 | 42,400 | 106,000 | 74,000 | 8 | 23/4 | 4 | 2 |
| EL800 | Olive | 66,000 | 52,800 | 132,000 | 93,000 | 8 | 31/8 | 45/8 | 1/8 |
| EL 1000 | Black | 90,000 | 72,000 | 180,000 | 127,000 | 8 | 35/8 | 51/4 | 21/2 |
