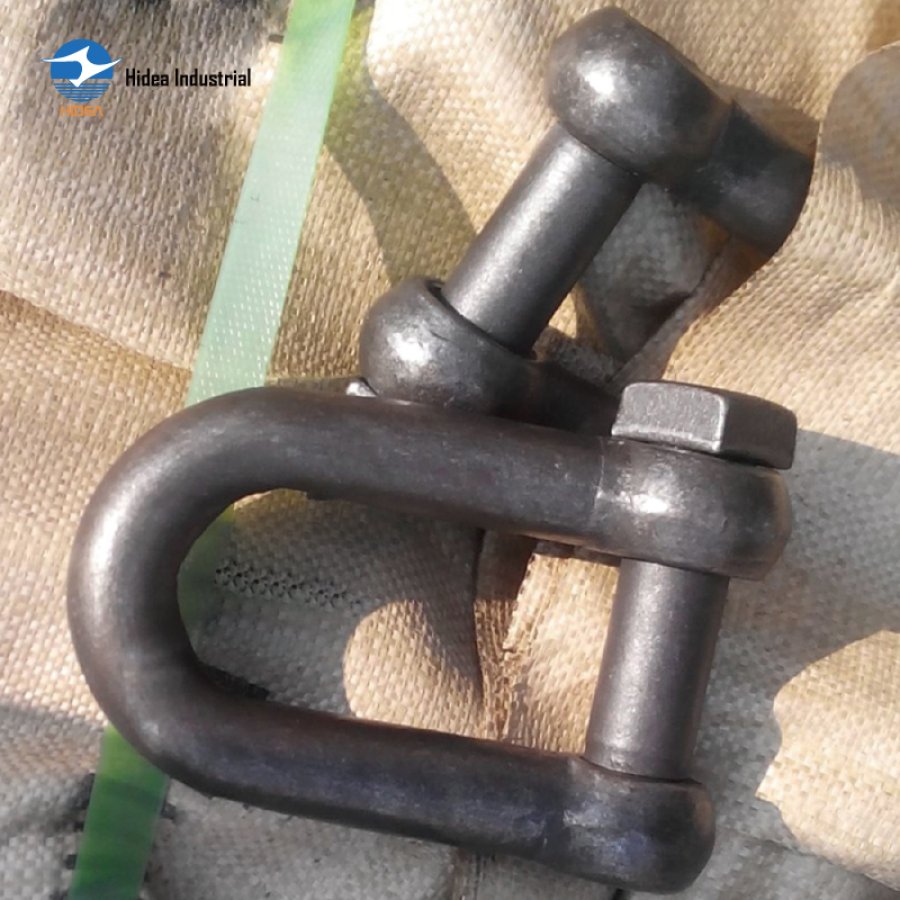

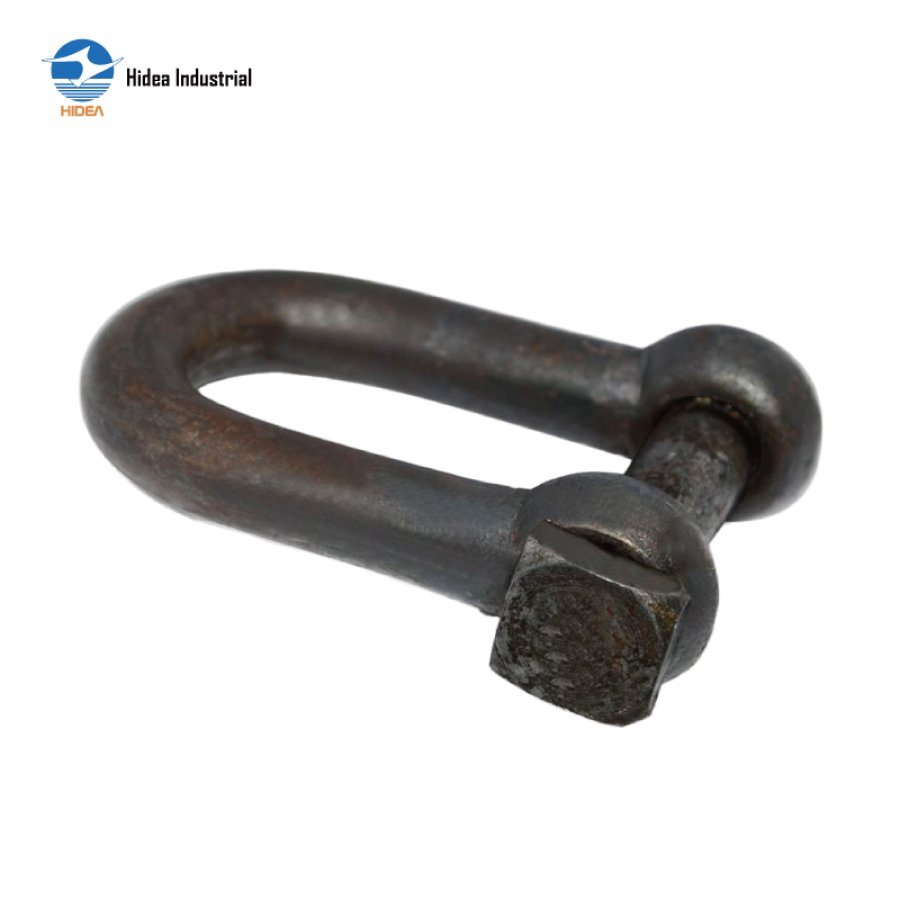

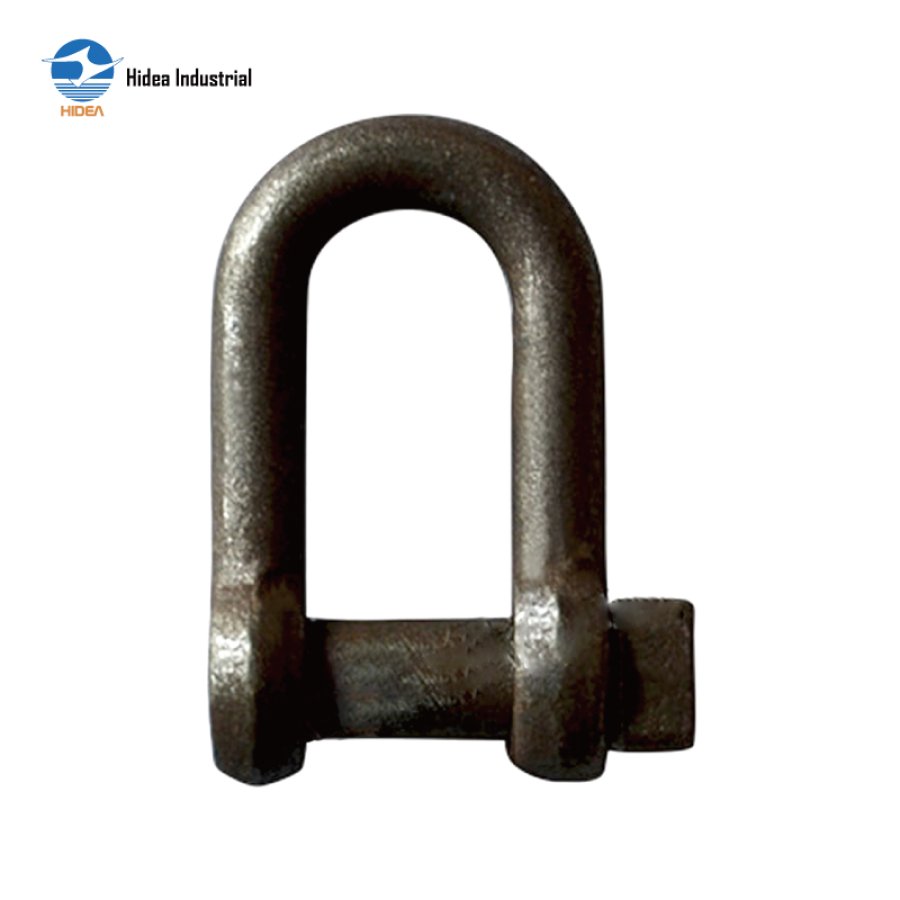

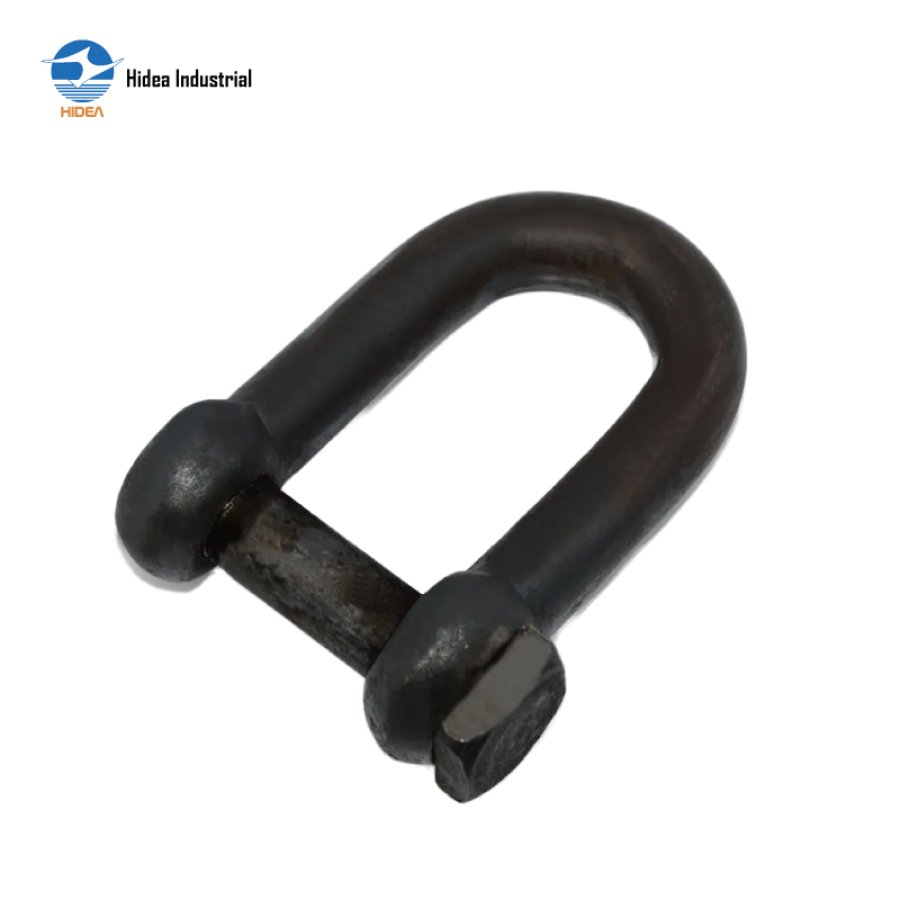

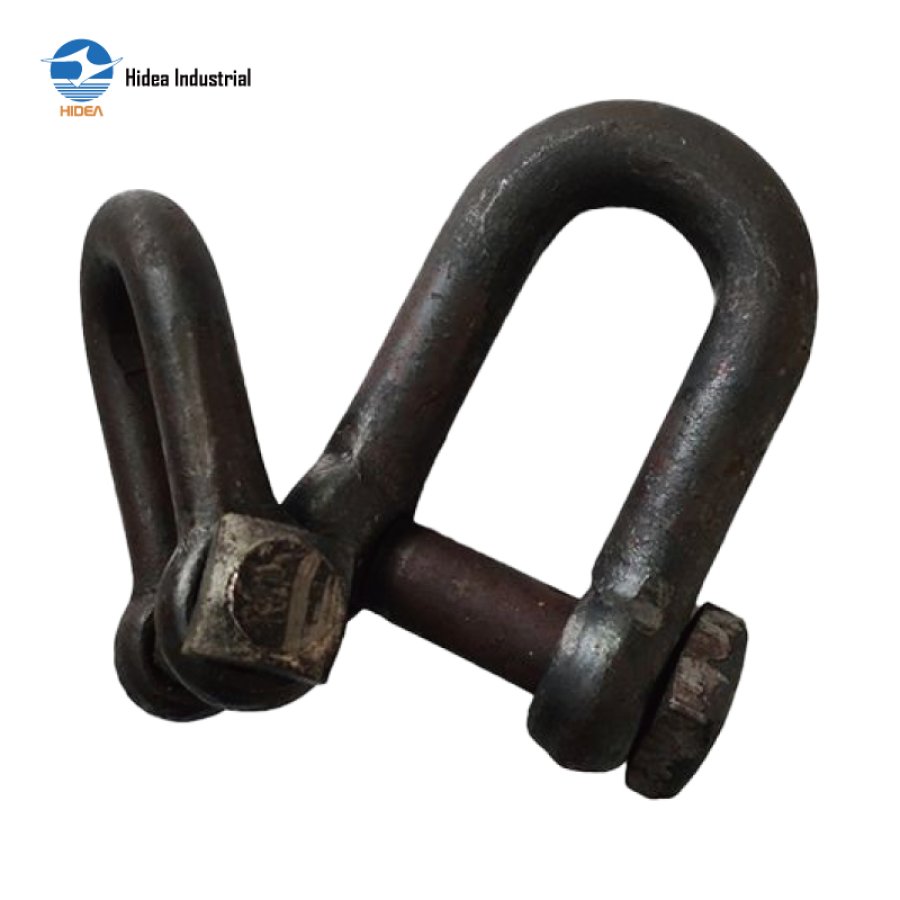

Hidea Trawling Dee Shackle with Square Head Pin: Built for Heavy-Duty Trawling

TRAWLING SHACKLE SQUARE HEAD EQUAL PIN DEE TYPE

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface Electro galvanized (EG), powder coated OR self-colored

Inquire Now

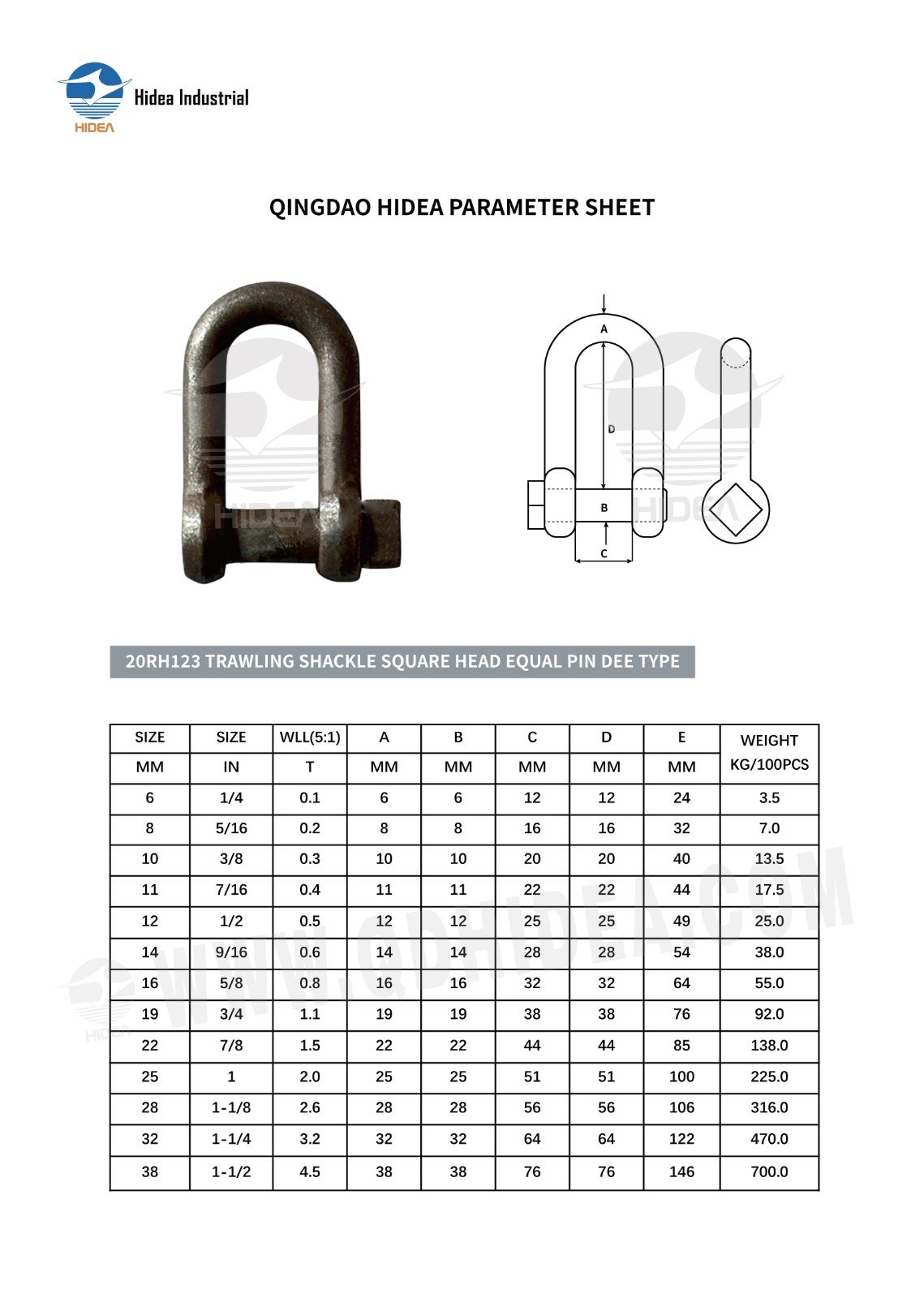

QINGDAO HIDEA PARAMETER SHEET FOR

20RH123 TRAWLING SHACKLE SQUARE HEAD EQUAL PIN DEE TYPE

SIZE	SIZE	WLL(5:1)	A	B	C	D	E	WEIGHT KG/100PCS
MM	IN	T	MM	MM	MM	MM	MM	WEIGHT KG/100PCS
6	1/4	0.1	6	6	12	12	24	3.5
8	5/16	0.2	8	8	16	16	32	7.0
10	3/8	0.3	10	10	20	20	40	13.5
11	7/16	0.4	11	11	22	22	44	17.5
12	1/2	0.5	12	12	25	25	49	25.0
14	9/16	0.6	14	14	28	28	54	38.0
16	5/8	0.8	16	16	32	32	64	55.0
19	3/4	1.1	19	19	38	38	76	92.0
22	7/8	1.5	22	22	44	44	85	138.0
25	1	2.0	25	25	51	51	100	225.0
28	1-1/8	2.6	28	28	56	56	106	316.0
32	1-1/4	3.2	32	32	64	64	122	470.0
38	1-1/2	4.5	38	38	76	76	146	700.0
