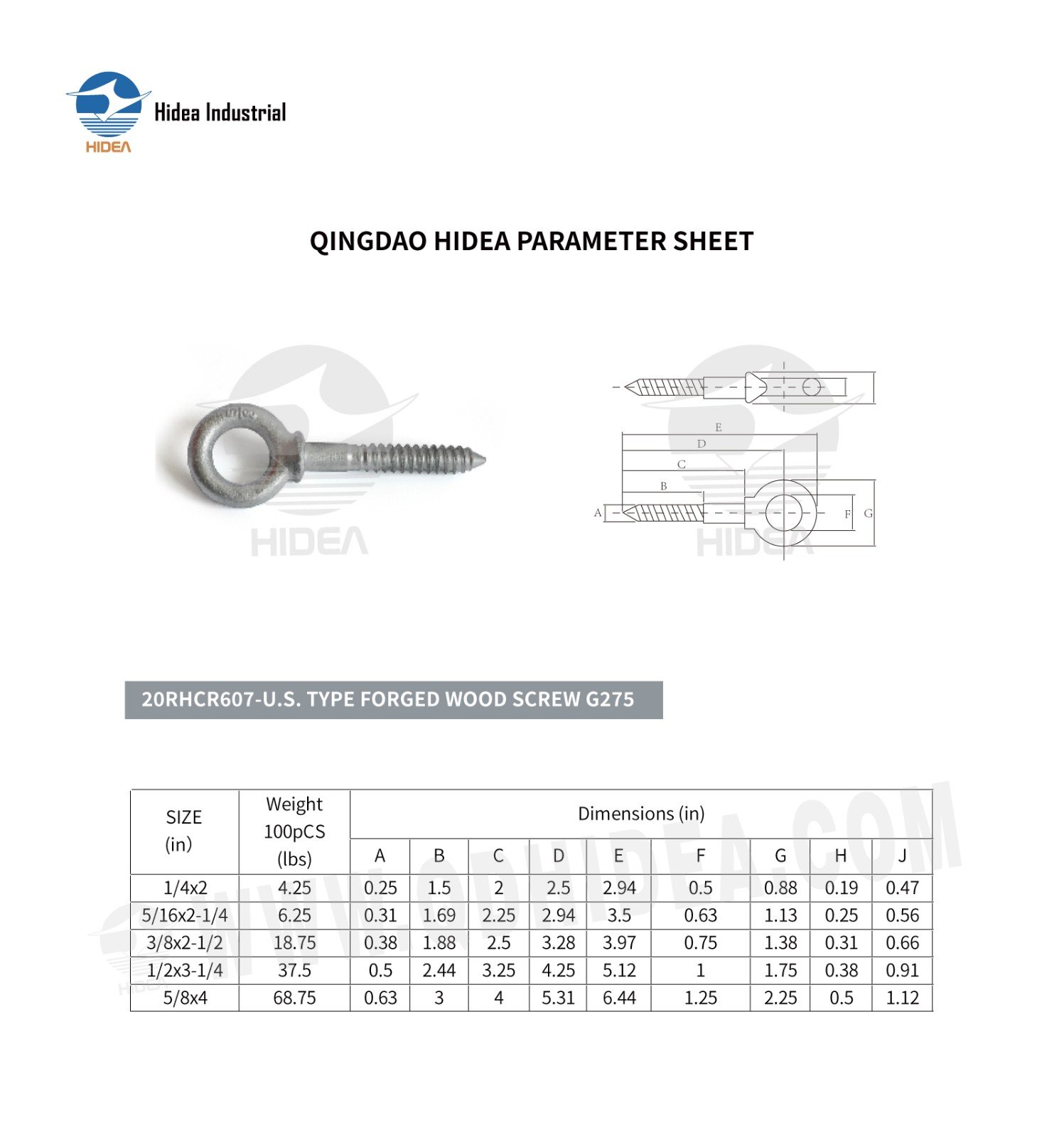

QINGDAO HIDEA PARAMETER SHEET FOR

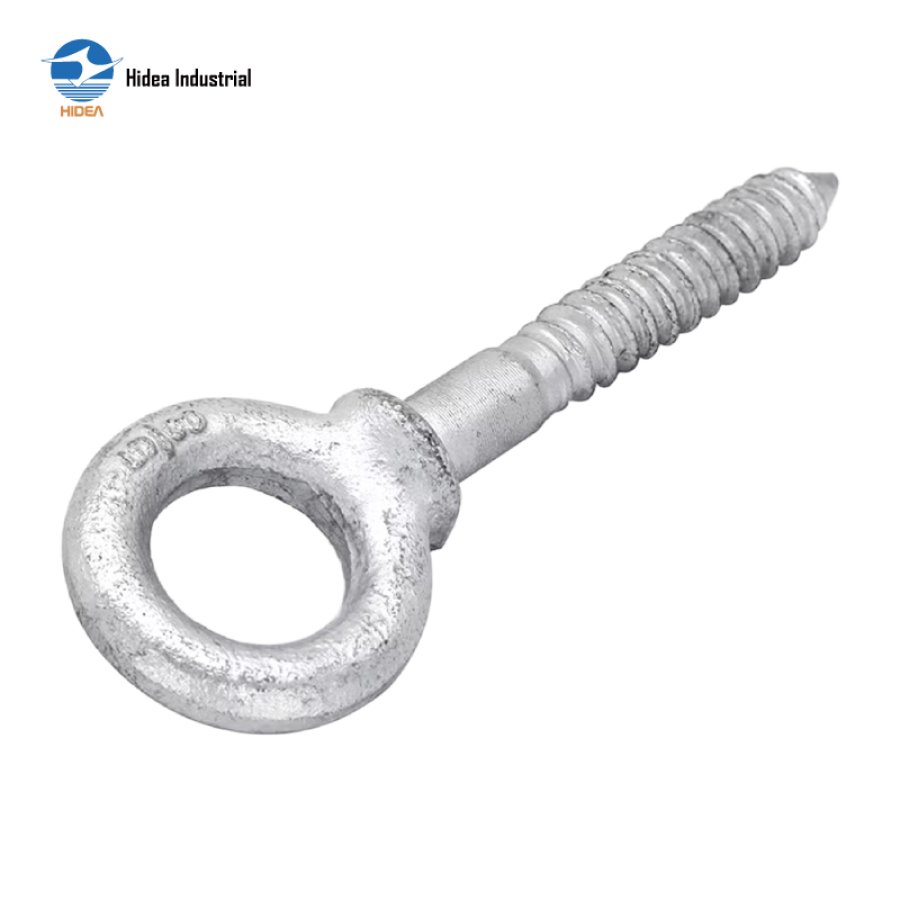

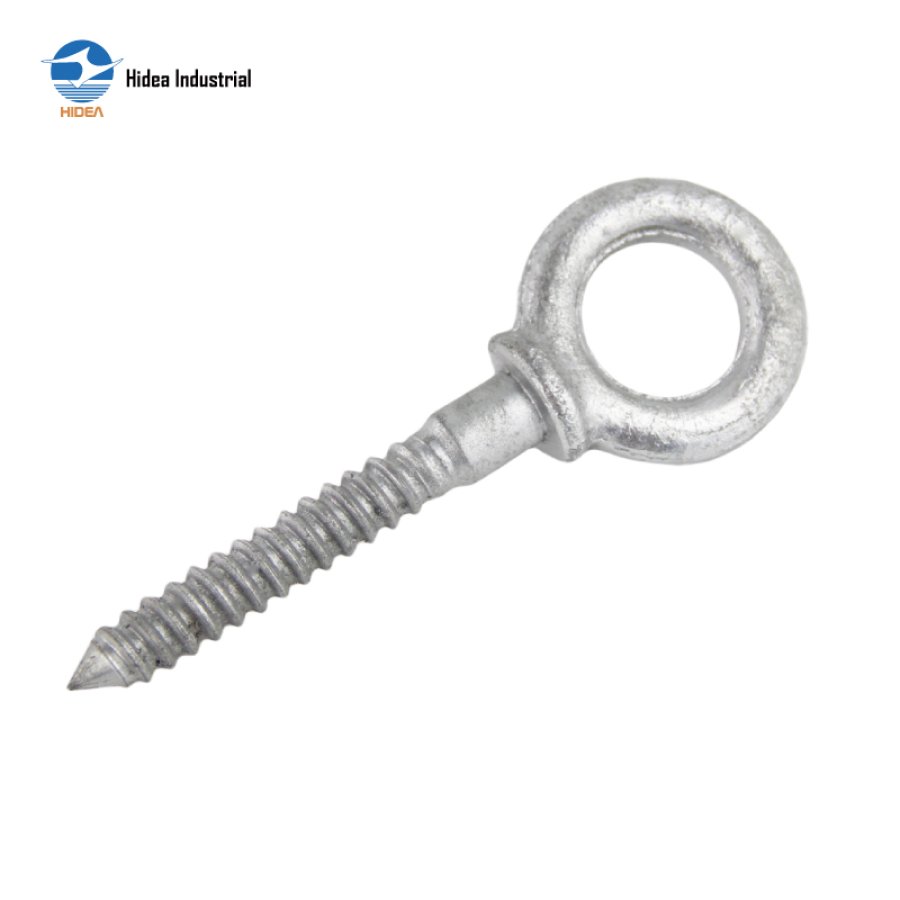

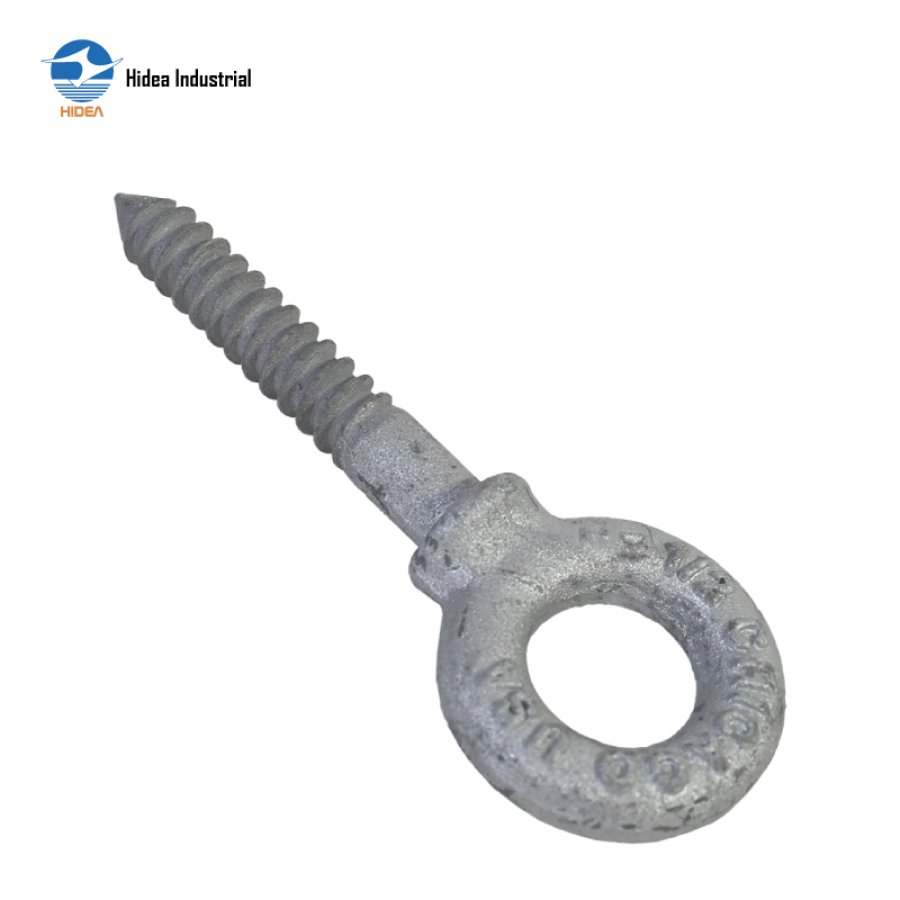

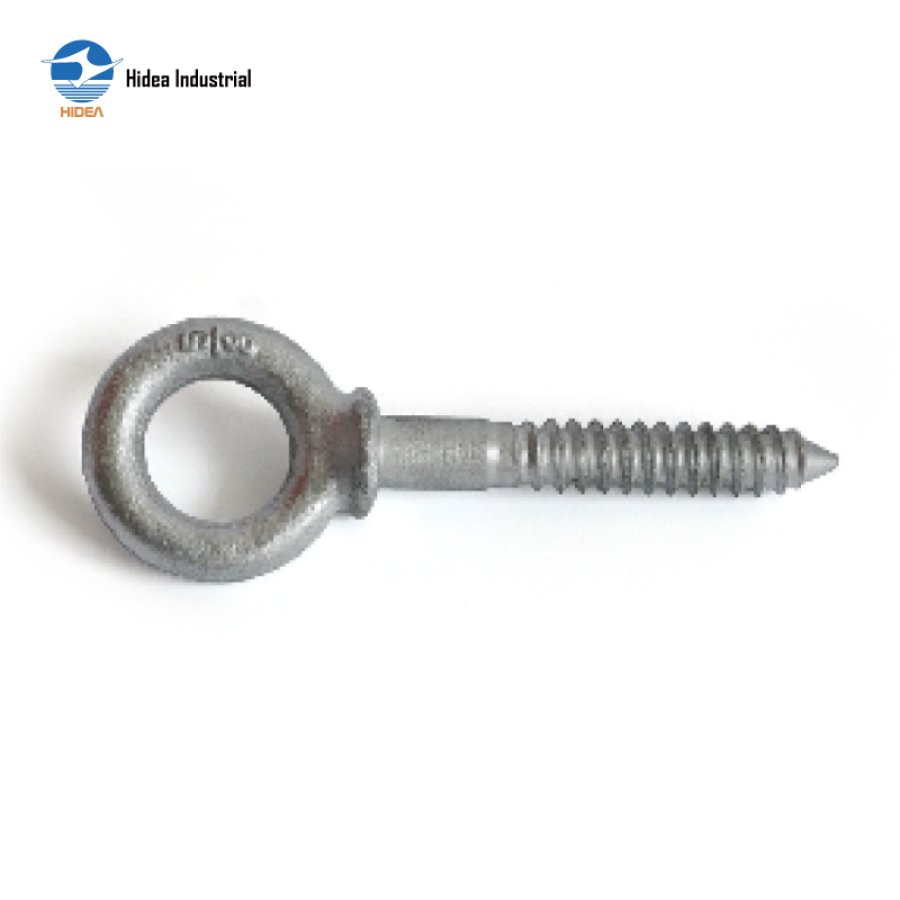

20RHCR607-U.S.TYPE FORGED WOOD SCREW G275
| SIZE (in) | Weight 100pCS (lbs) | Dimensions(in) | ||||||||
| A | B | C | D | E | F | G | H | J | ||
| 1/4x2 | 4.25 | 0.25 | 1.5 | 2 | 2.5 | 2.94 | 0.5 | 0.88 | 0.19 | 0.47 |
| 5/16x2-1/4 | 6.25 | 0.31 | 1.69 | 2.25 | 2.94 | 3.5 | 0.63 | 1.13 | 0.25 | 0.56 |
| 3/8x2-1/2 | 18.75 | 0.38 | 1.88 | 2.5 | 3.28 | 3.97 | 0.75 | 1.38 | 0.31 | 0.66 |
| 1/2x3-1/4 | 37.5 | 0.5 | 2.44 | 3.25 | 4.25 | 5.12 | 1 | 1.75 | 0.38 | 0.91 |
| 5/8x4 | 68.75 | 0.63 | 3 | 4 | 5.31 | 6.44 | 1.25 | 2.25 | 0.5 | 1.12 |
