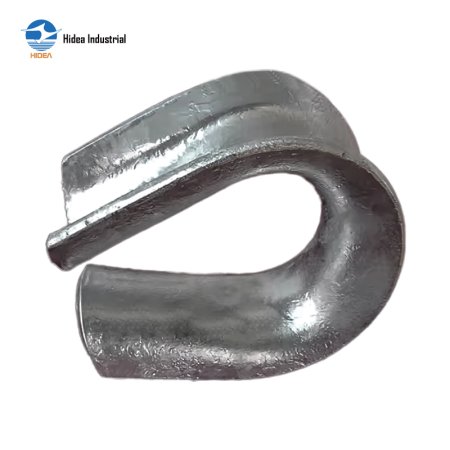

Hidea K3 Type Fiber Rope Thimble – Premium Quality and Reliable Protection for Fiber Cables

K3 FIBRE ROPE THIMBLE

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K3 Synthetic Poly Fibre rope thimbles, also K3-B, K4 and K10

Inquire Now

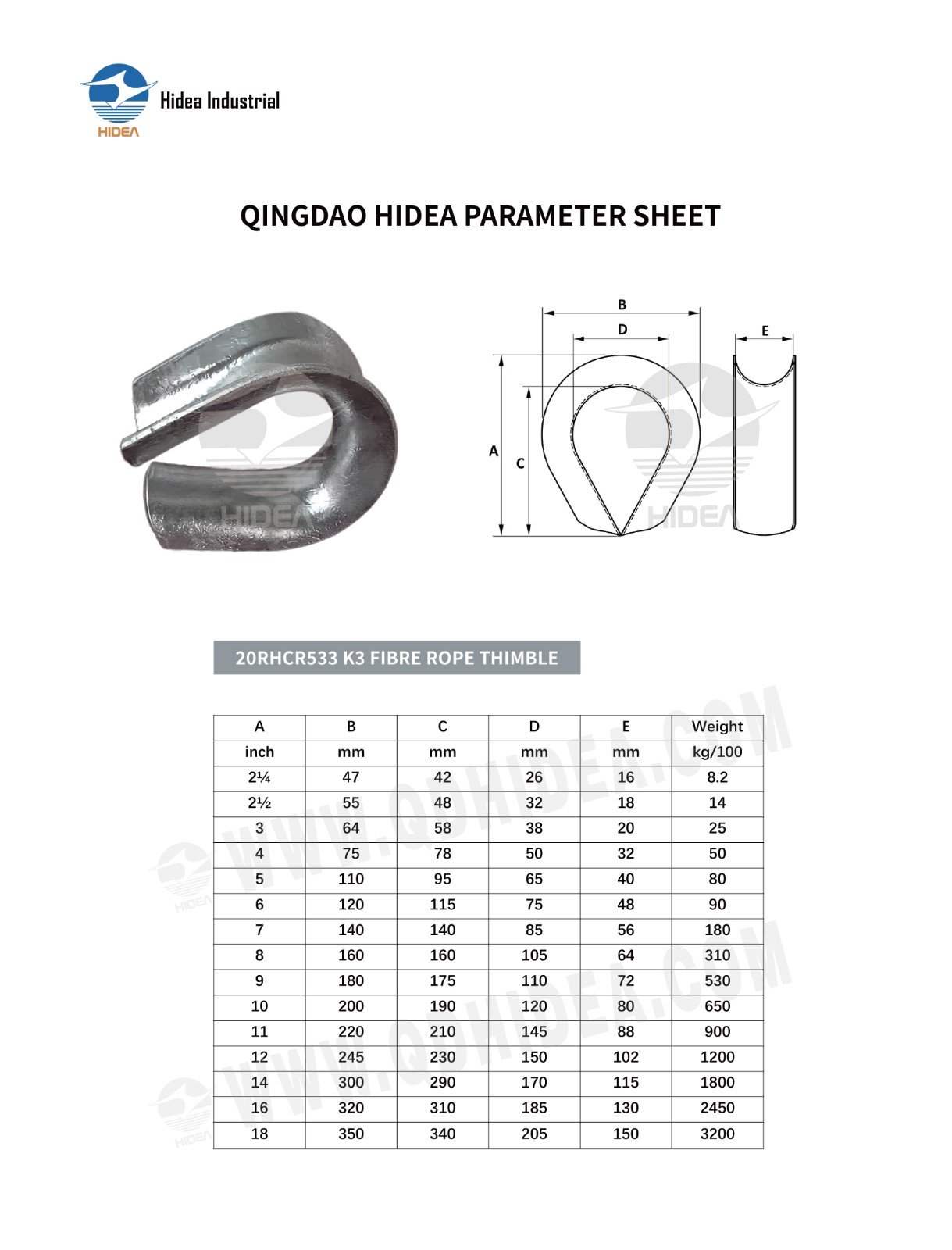

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR533 K3 FIBRE ROPE THIMBLE

A	B	C	D	E	Weight
inch	mm	mm	mm	mm	kg/100
2¼	47	42	26	16	8.2
2½	55	48	32	18	14
3	64	58	38	20	25
4	75	78	50	32	50
5	110	95	65	40	80
6	120	115	75	48	90
7	140	140	85	56	180
8	160	160	105	64	310
9	180	175	110	72	530
10	200	190	120	80	650
11	220	210	145	88	900
12	245	230	150	102	1200
14	300	290	170	115	1800
16	320	310	185	130	2450
18	350	340	205	150	3200
