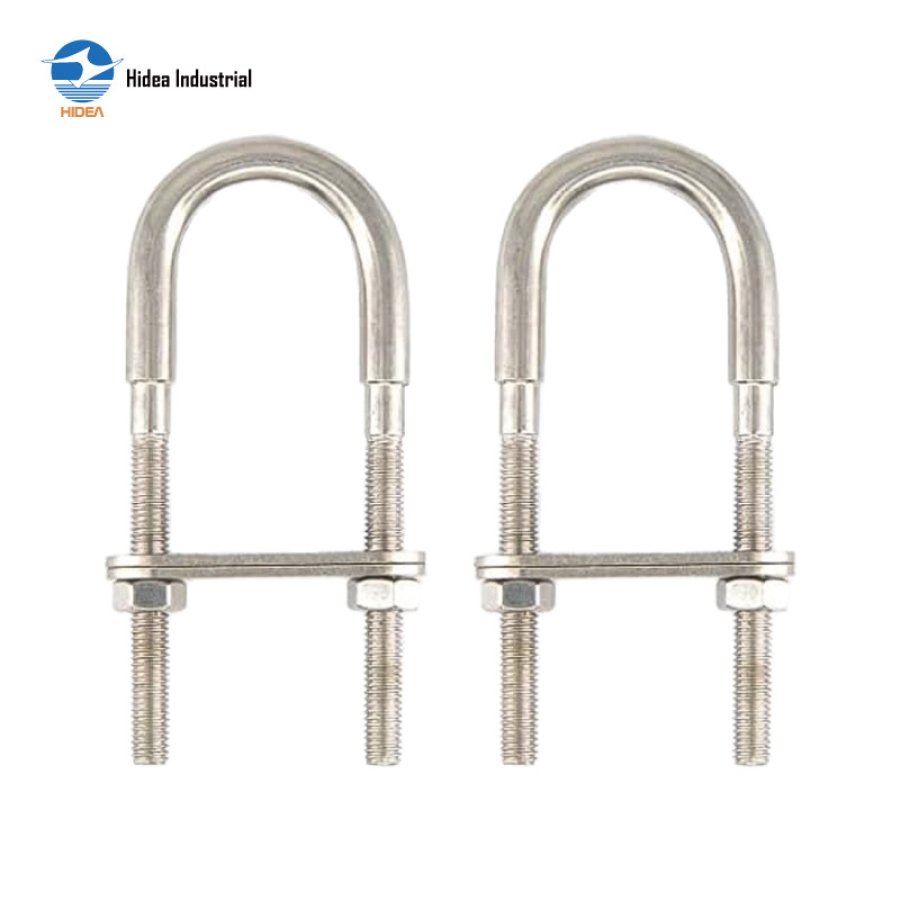

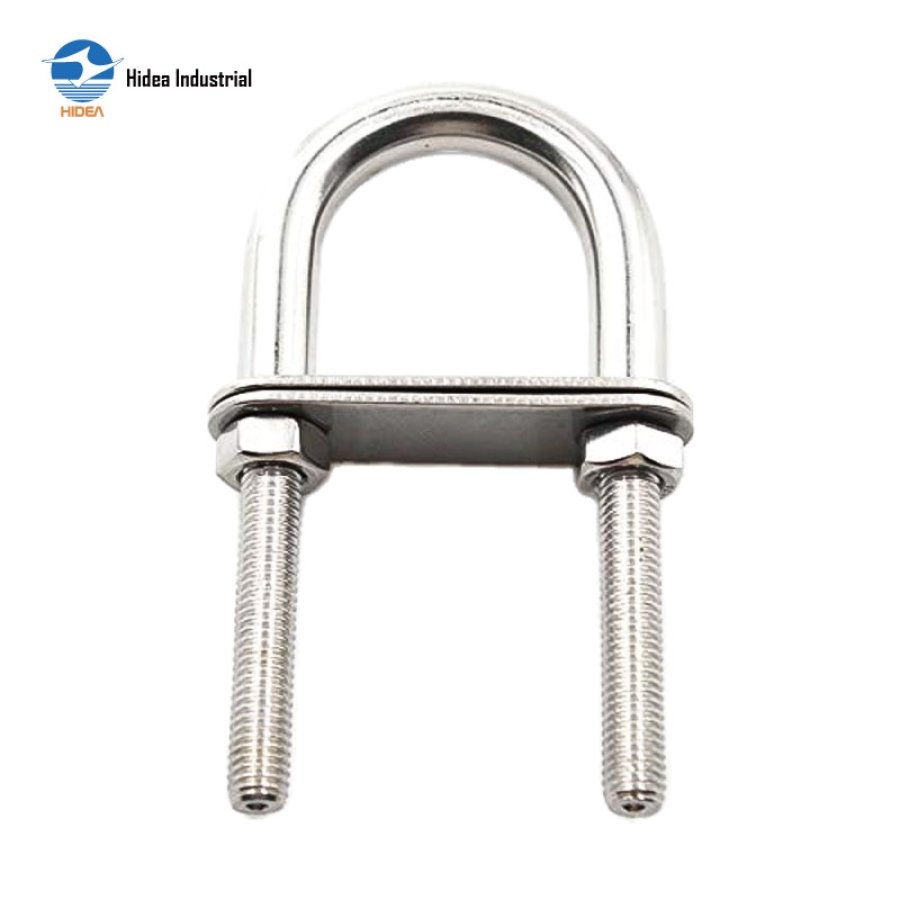

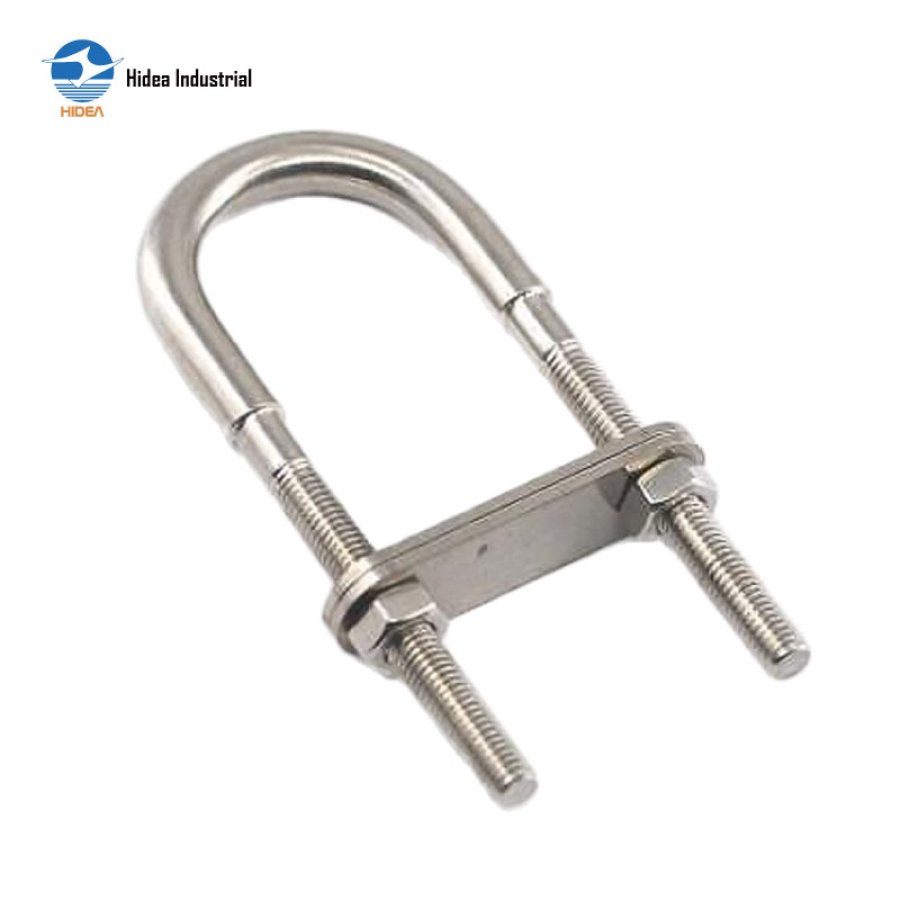

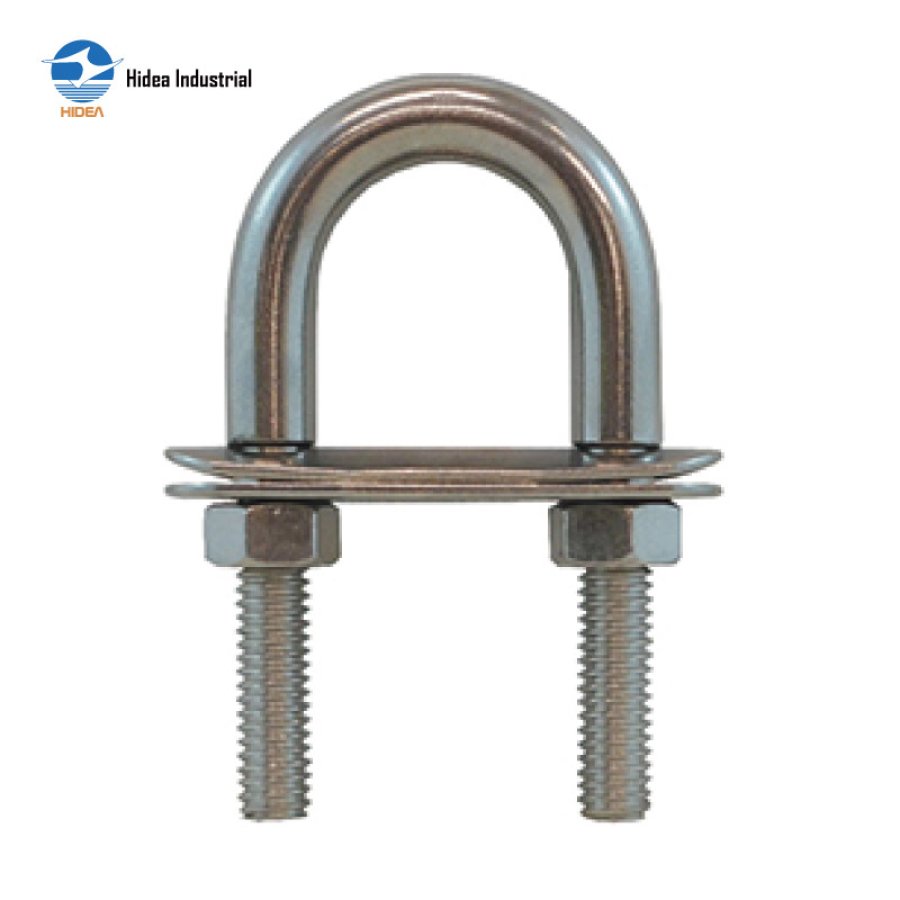

HIDEA Stainless Steel U-Bolt - Secure and Long-Lasting Fasteners

U BOLT

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

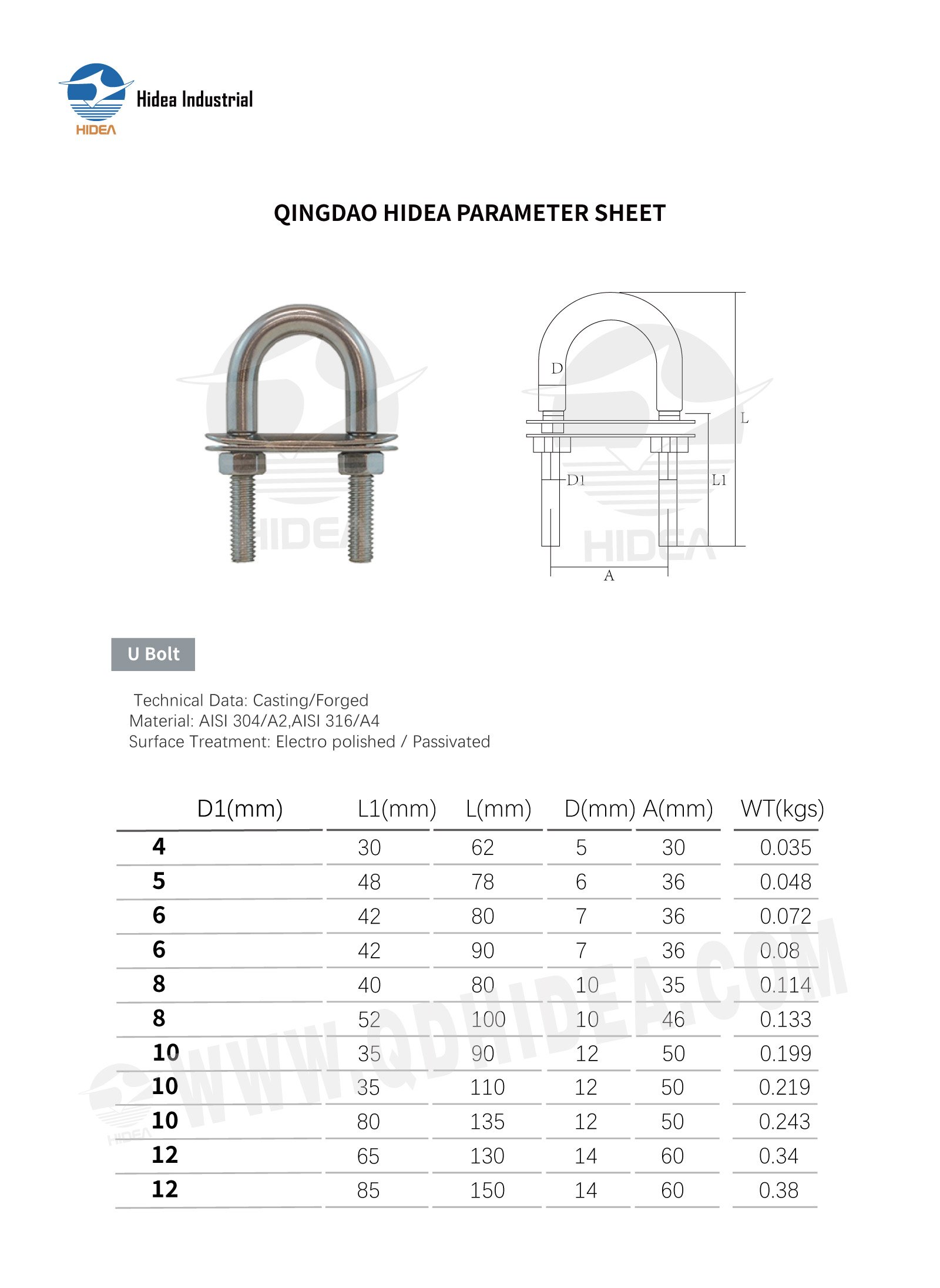

QINGDAO HIDEA PARAMETER SHEET FOR

U Bolt

D1(mm)	L1(mm)	L(mm)	D(mm) A(mm)		WT(kgs)
4	30	62	5	30	0.035
5	48	78	6	36	0.048
6	42	80	7	36	0.072
6	42	90	7	36	0.08
8	40	80	10	35	0.114
8	52	100	10	46	0.133
10	35	90	12	50	0.199
10	35	110	12	50	0.219
10	80	135	12	50	0.243
12	65	130	14	60	0.34
12	85	150	14	60	0.38
