Hidea G80 Shank Hooks: Key Features and Specifications

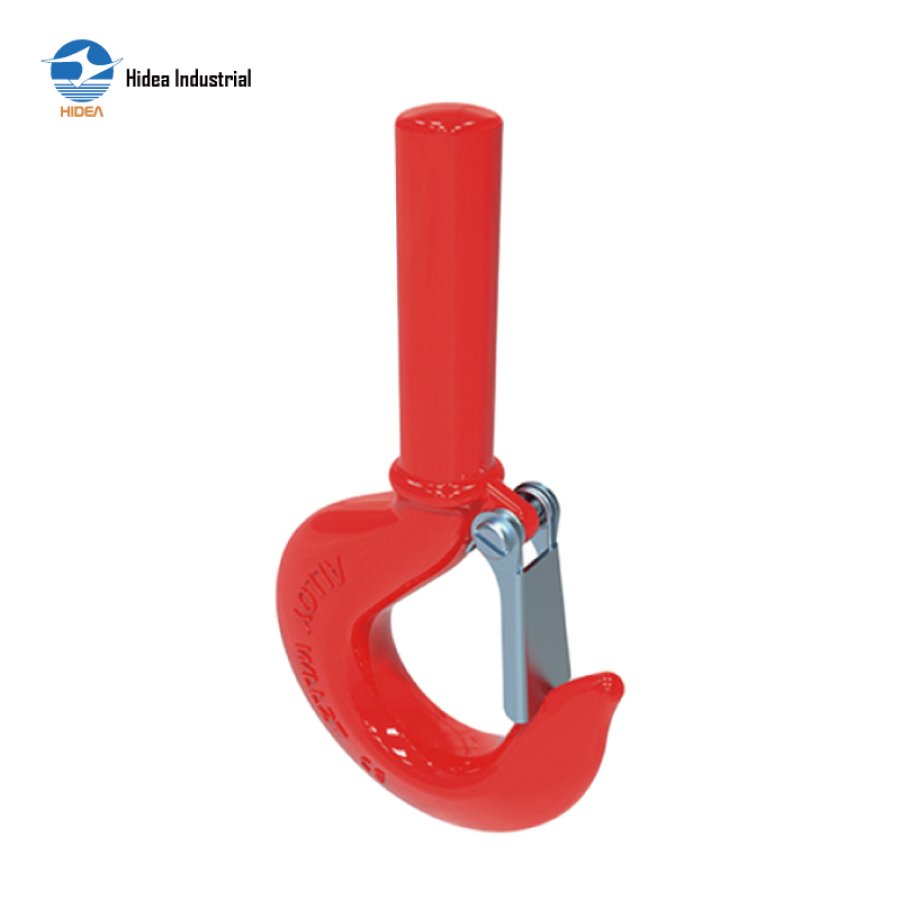

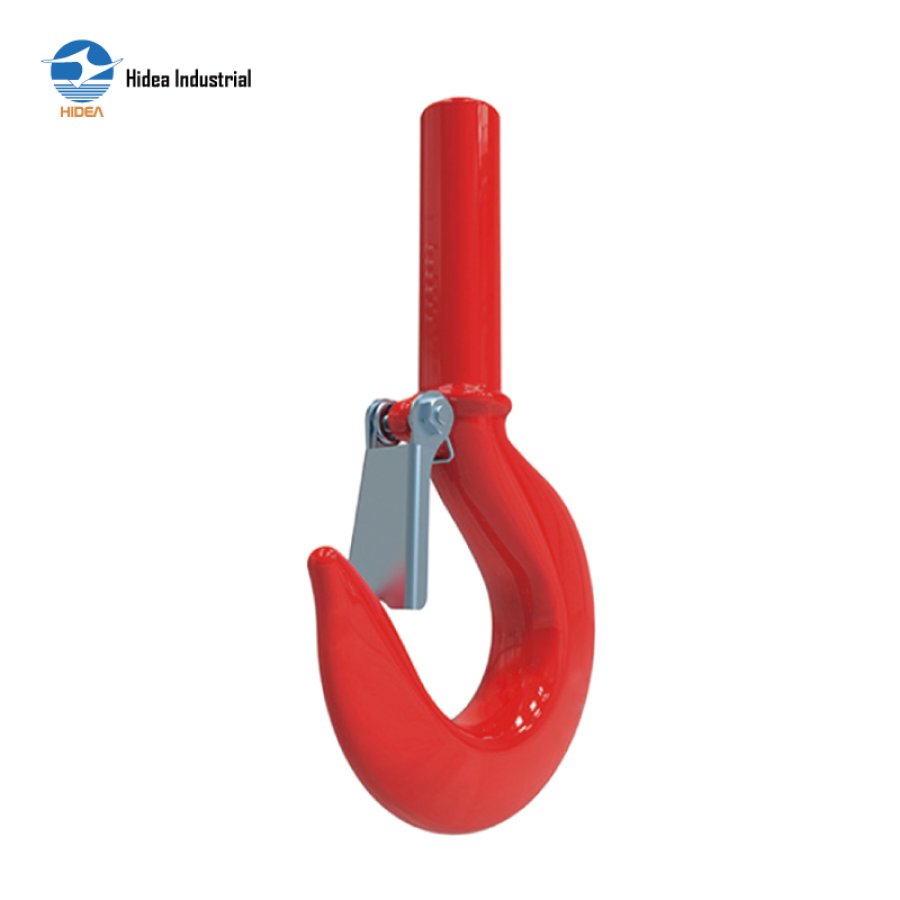

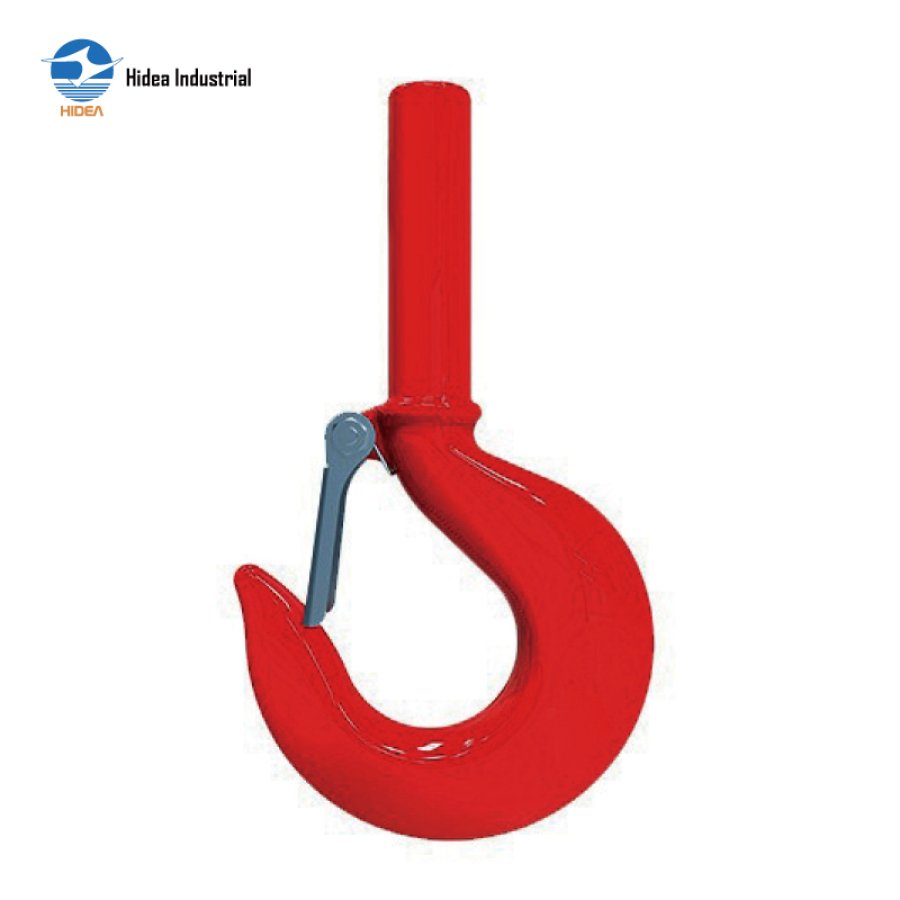

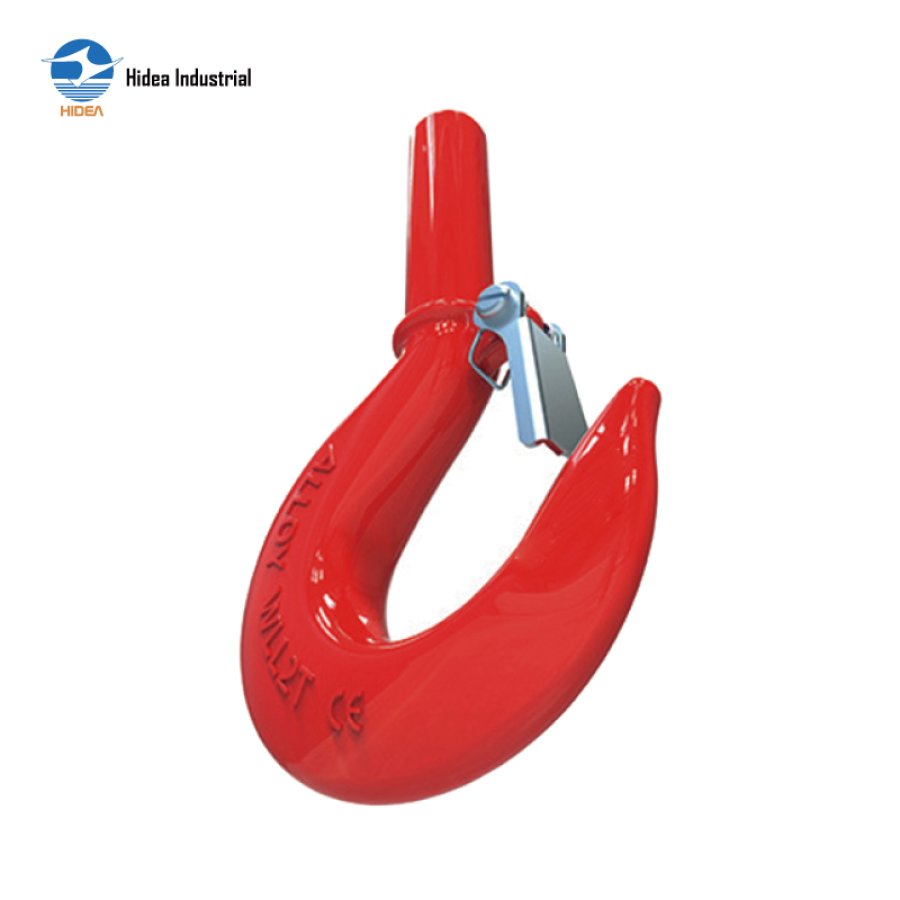

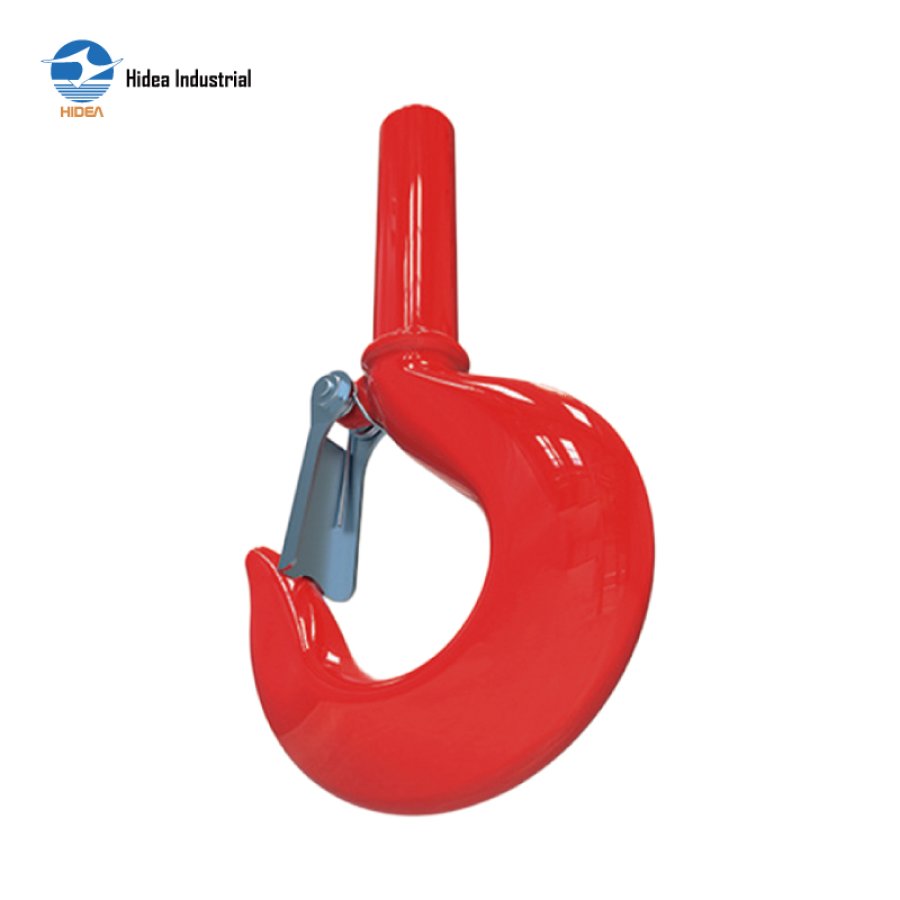

G80 SHANK HOOK

Forged super alloy steel-Quenched and Tempered
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

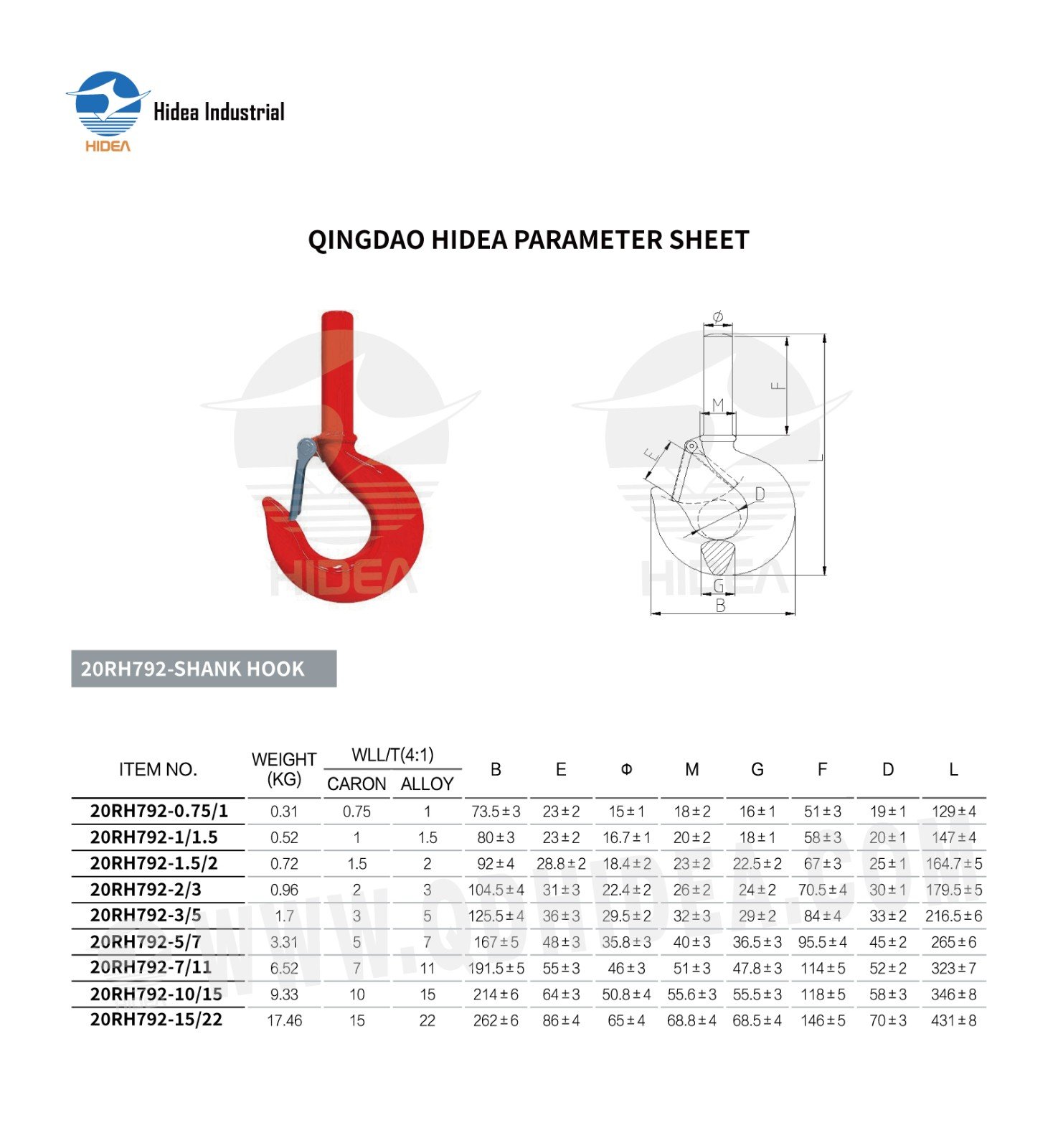

QINGDAO HIDEA PARAMETER SHEET FOR

20RH792-SHANK HOOK

ITEM NO.

WEIGHT
(KG)

WLL/T(4:1)

B

E

Ф

M

G

F

D

L

CARON

ALLOY

20RH792-0.75/1

0.31

0.75

1

73.5±3

23±2

15±1

18±2

16±1

51±3

19±1

129±4

20RH792-1/1.5

0.52

1

1.5

80±3

23±2

16.7±1

20±2

18±1

58±3

20±1

147±4

20RH792-1.5/2

0.72

1.5

2

92±4

28.8±2

18.4±2

23±2

22.5±2

67±3

25±1

164.7±5

20RH792-2/3

0.96

2

3

104.5±4

31±3

22.4±2

26±2

24±2

70.5±4

30±1

179.5±5

20RH792-3/5

1.7

3

5

125.5±4

36±3

29.5±2

32±3

29±2

84±4

33±2

216.5±6

20RH792-5/7

3.31

5

7

167±5

48±3

35.8±3

40±3

36.5±3

95.5±4

45±2

265±6

20RH792-7/11

6.52

7

11

191.5±5

55±3

46±3

51±3

47.8±3

114±5

52±2

323±7

20RH792-10/15

9.33

10

15

214±6

64±3

50.8±4

55.6±3

55.5±3

118±5

58±3

346±8

20RH792-15/22

17.46

15

22

262±6

86±4

65±4

68.8±4

68.5±4

146±5

70±3

431±8
