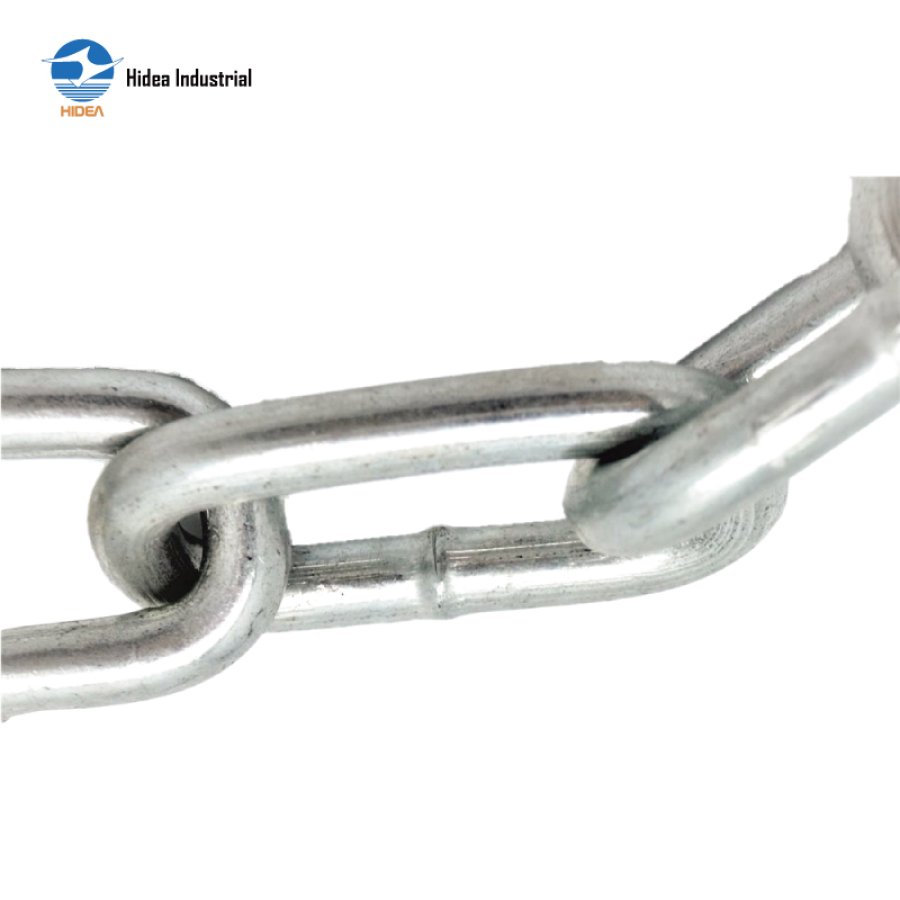

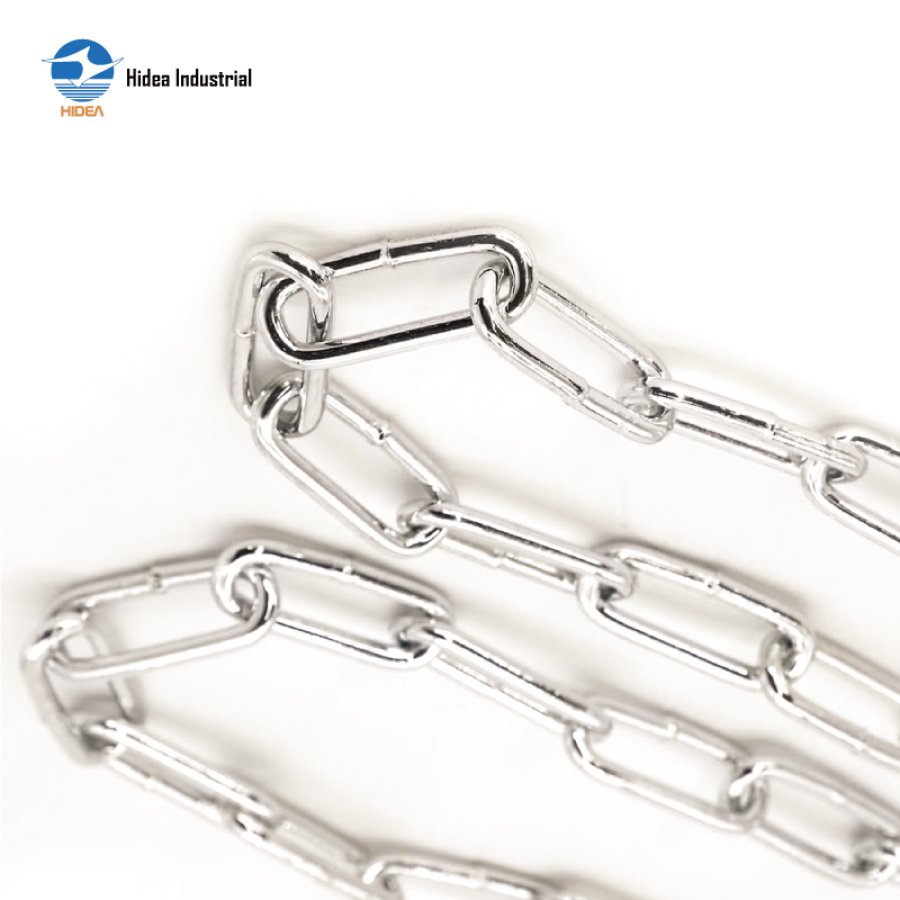

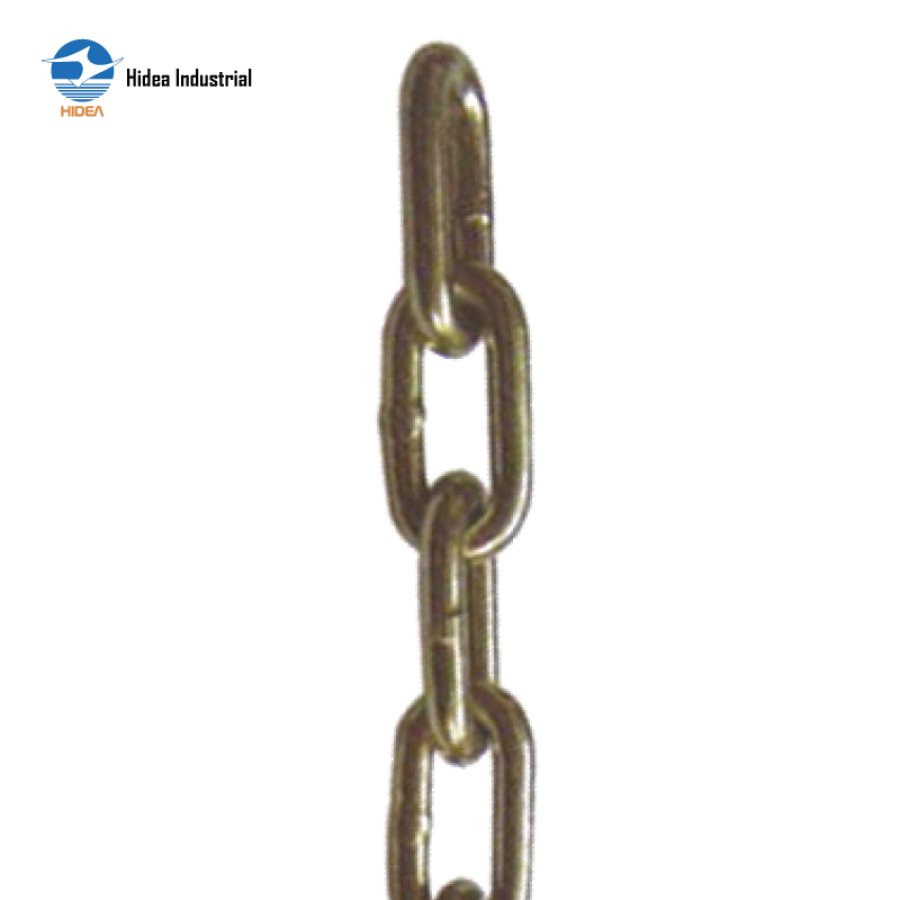

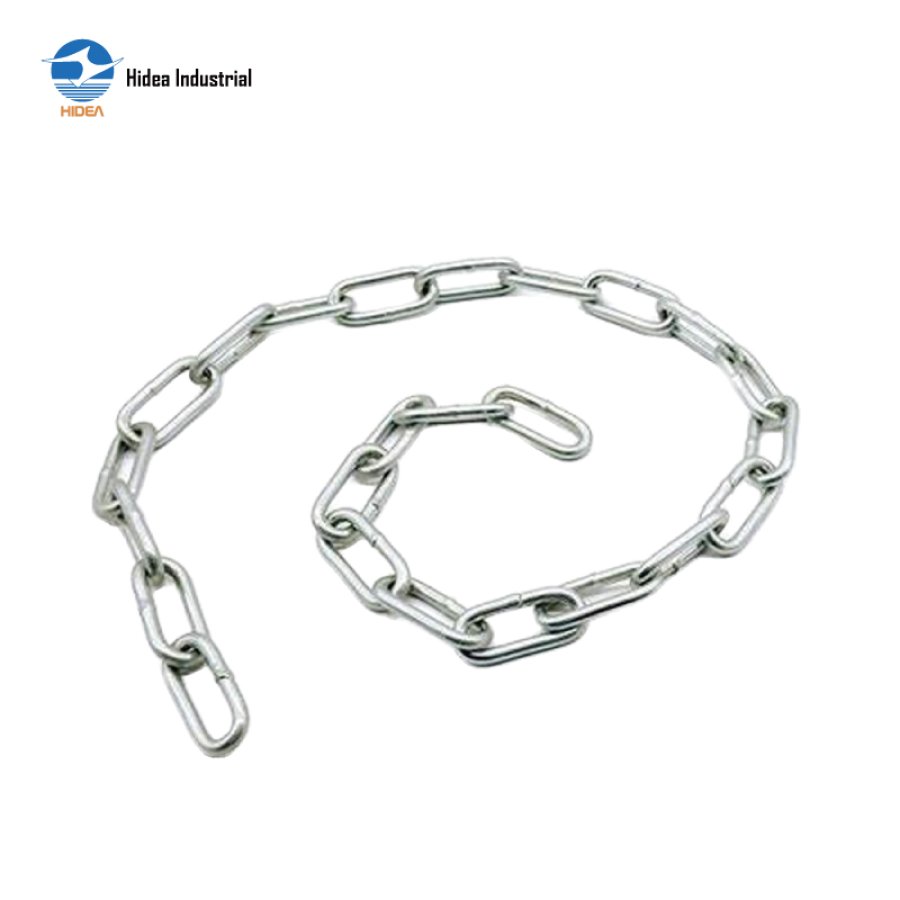

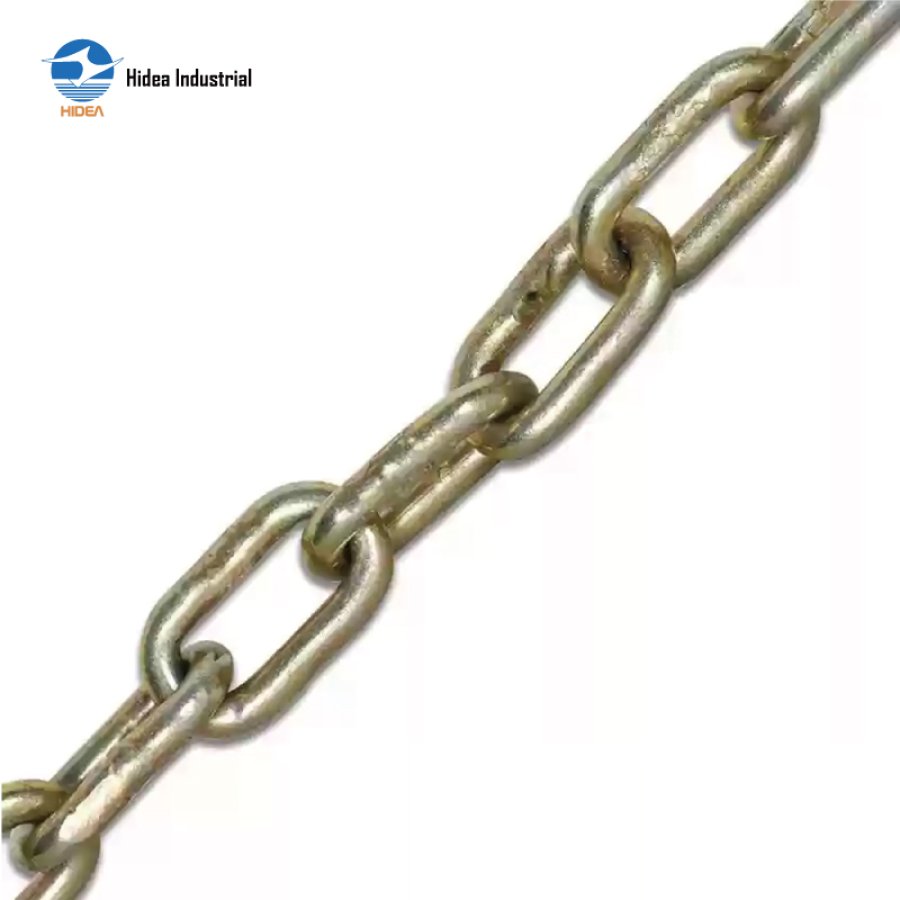

HIDEA Russian Standard Link Chain: Versatile, Durable Solutions Designed for A Wide Range of Applications

RUSSIAN STANDARD LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized or as requested
Russian Standard Link Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC143 Russian Standard Link Chain

Diameter	Inside Length	Inside Width	Breaking Load	Weight
mm	mm	mm	kn	kg/m
6	19	9	15.4	0.74
6	27	10	10	0.67
8	23	11	28.6	1.4
8	34	14	24	1.24
9	27	14	35.2	2.2
11	31	14	50.6	3.2
11	33	15	46	3.12
13	36	18	72.6	3.83
14	42	19	74	4.26
14	80	17~18	74	3.36
16	44	22	112.2	5.82
16	48	22	96	5.58
16	80	22.4~23.4	100	4.64
16	88	22	100	4.45
17.5	50	23	116	7.27
19	57	26	136	8.72
19	102	26	136	7.11
22	66	31	183	10.59
22	116	33	183	8.73
22	136	33	183	8.2
26	78	36	255	14.88
28	84	40	296	17.23
32	96	45	386	22.65
34	102	48	437	25.63
38	114	53	544	31.4
