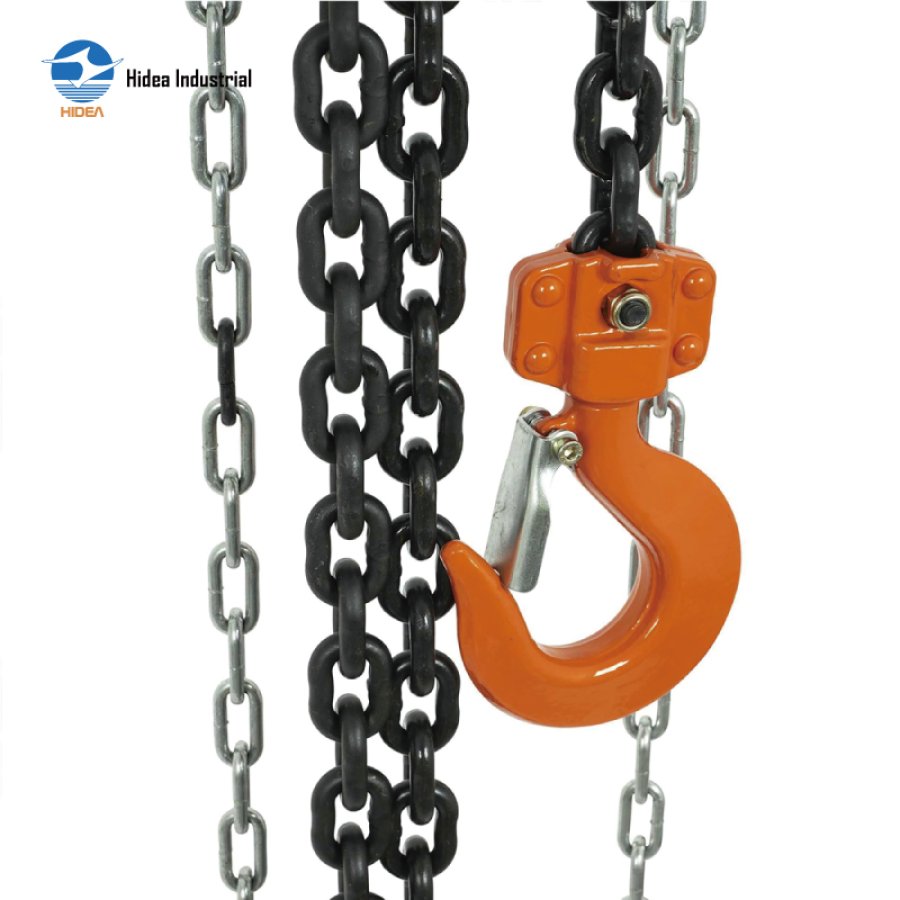

Unmatched HIDEA High Tensile Alloy Load Chains - Optimal Strength for Chain Block & Manual Lever Hoist

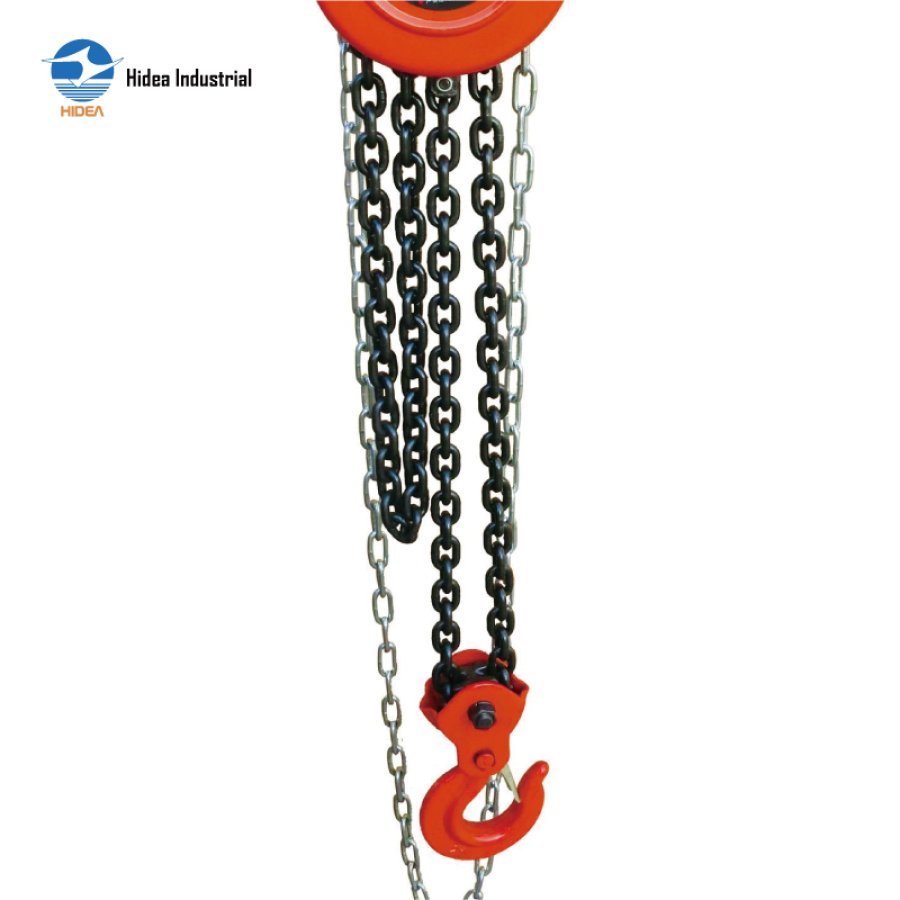

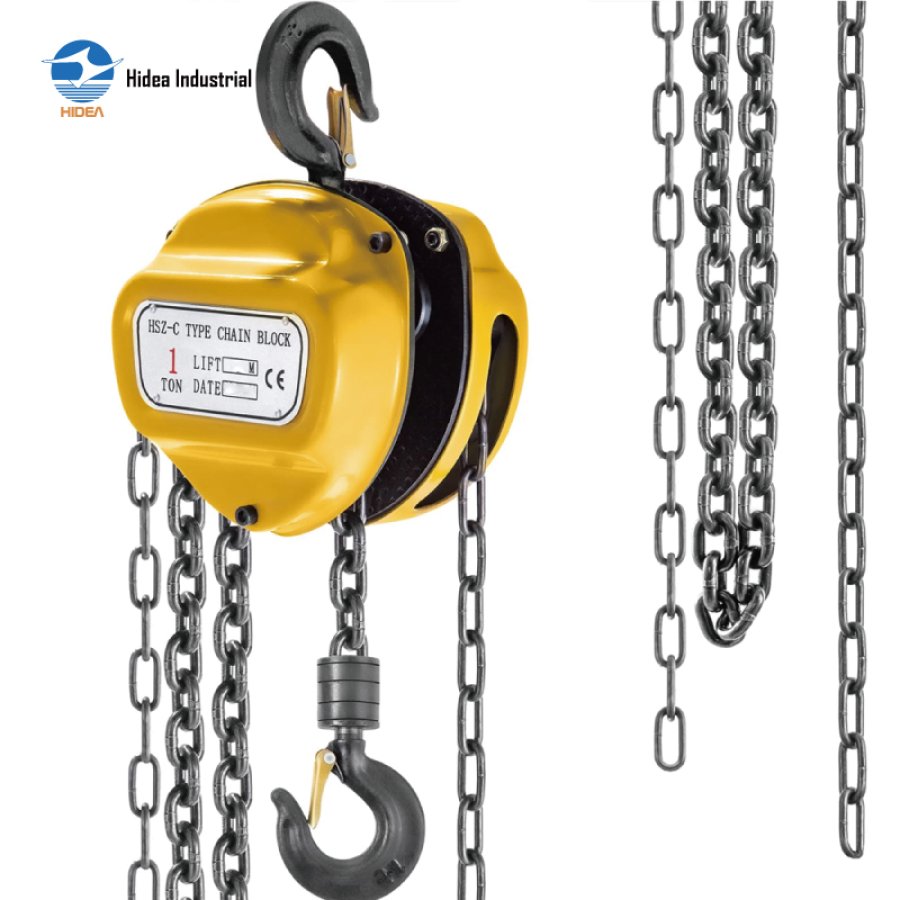

HIGH TENSILE HIGH-PRECISION CHAIN HOIST/ BLOCK

Material Super Alloy Steel

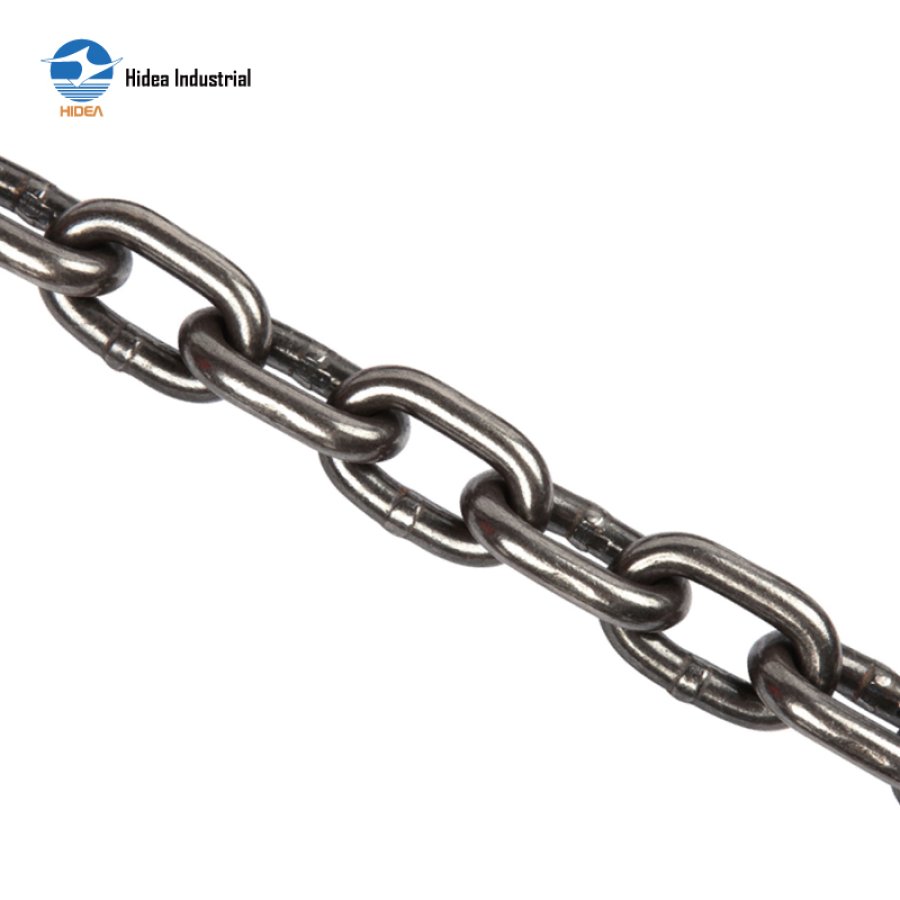

High Tensile High-precision Load Chain for Manual Lever & Chain Hoist / Block
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load

Inquire Now

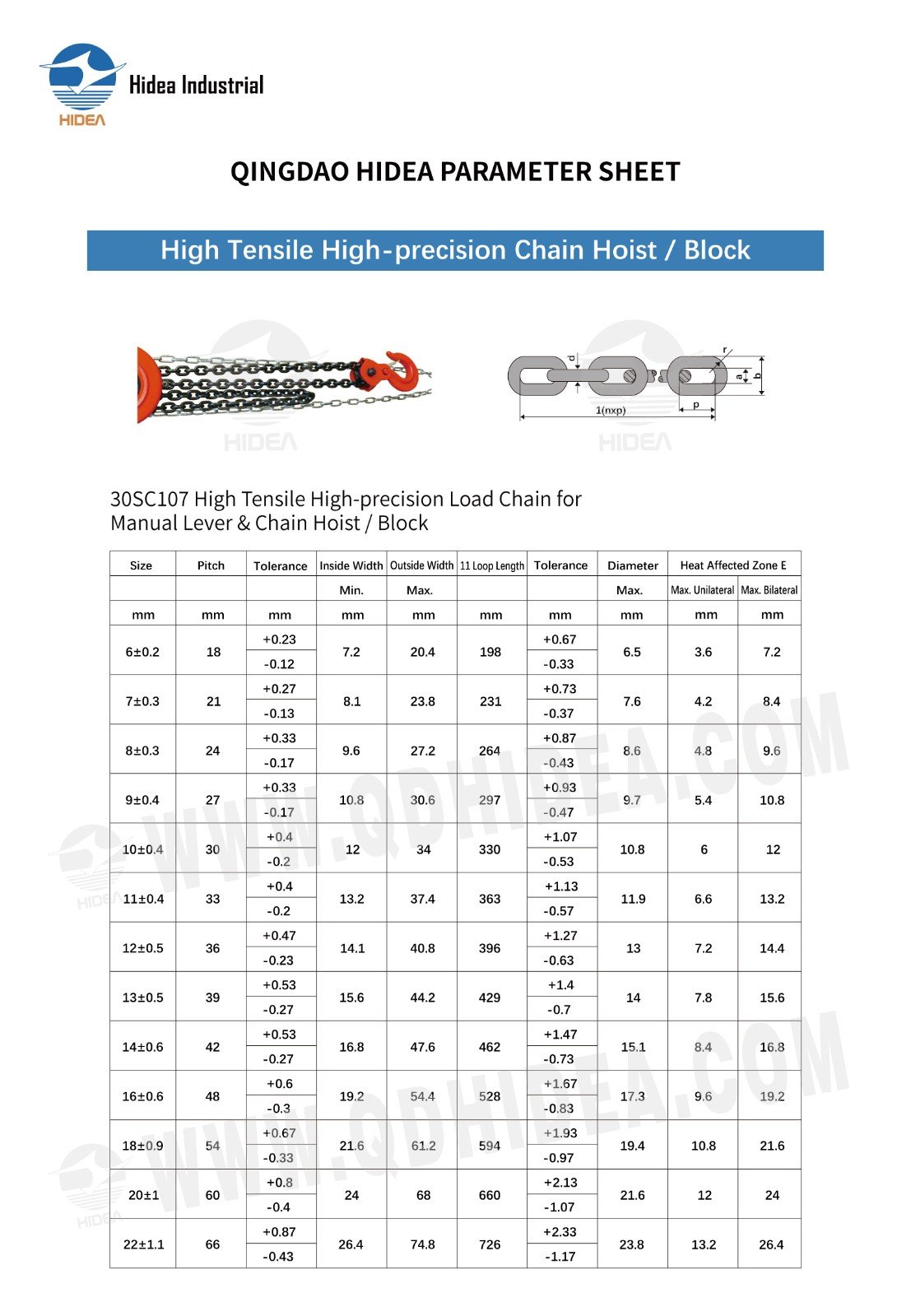

QINGDAO HIDEA PARAMETER SHEET FOR

30SC107 High Tensile High-precision Load Chain for

Manual Lever &Chain Hoist/Block

Size	Pitch	Tolerance	Inside Width	Outside Width	11 Loop Length	Tolerance	Diameter	Heat Affected Zone E
			Min.	Max.			Max.	Max.Unilateral	Max.Bilateral
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
6±0.2	18	+0.23	7.2	20.4	198	+0.67	6.5	3.6	7.2
		-0.12				-0.33
7±0.3	21	+0.27	8.1	23.8	231	+0.73	7.6	4.2	8.4
		-0.13				-0.37
8±0.3	24	+0.33	9.6	27.2	264	+0.87	8.6	4.8	9.6
		-0.17				-0.43
9±0.4	27	+0.33	10.8	30.6	297	+0.93	9.7	5.4	10.8
		-0.17				-0.47
10±0.4	30	+0.4	12	34	330	+1.07	10.8	6	12
		-0.2				-0.53
11±0.4	33	+0.4	13.2	37.4	363	+1.13	11.9	6.6	13.2
		-0.2				-0.57
12±0.5	36	+0.47	14.1	40.8	396	+1.27	13	7.2	14.4
		-0.23				-0.63
13±0.5	39	+0.53	15.6	44.2	429	+1.4	14	7.8	15.6
		-0.27				-0.7
14±0.6	42	+0.53	16.8	47.6	462	+1.47	15.1	8.4	16.8
		-0.27				-0.73
16±0.6	48	+0.6	19.2	54.4	528	+1.67	17.3	9.6	19.2
		-0.3				-0.83
18±0.9	54	+0.67	21.6	61.2	594	+1.93	19.4	10.8	21.6
		-0.33				-0.97
20±1	60	+0.8	24	68	660	+2.13	21.6	12	24
		-0.4				-1.07
22±1.1	66	+0.87	26.4	74.8	726	+2.33	23.8	13.2	26.4
		-0.43				-1.17
