Efficient and Robust Hidea G80 G-Hook

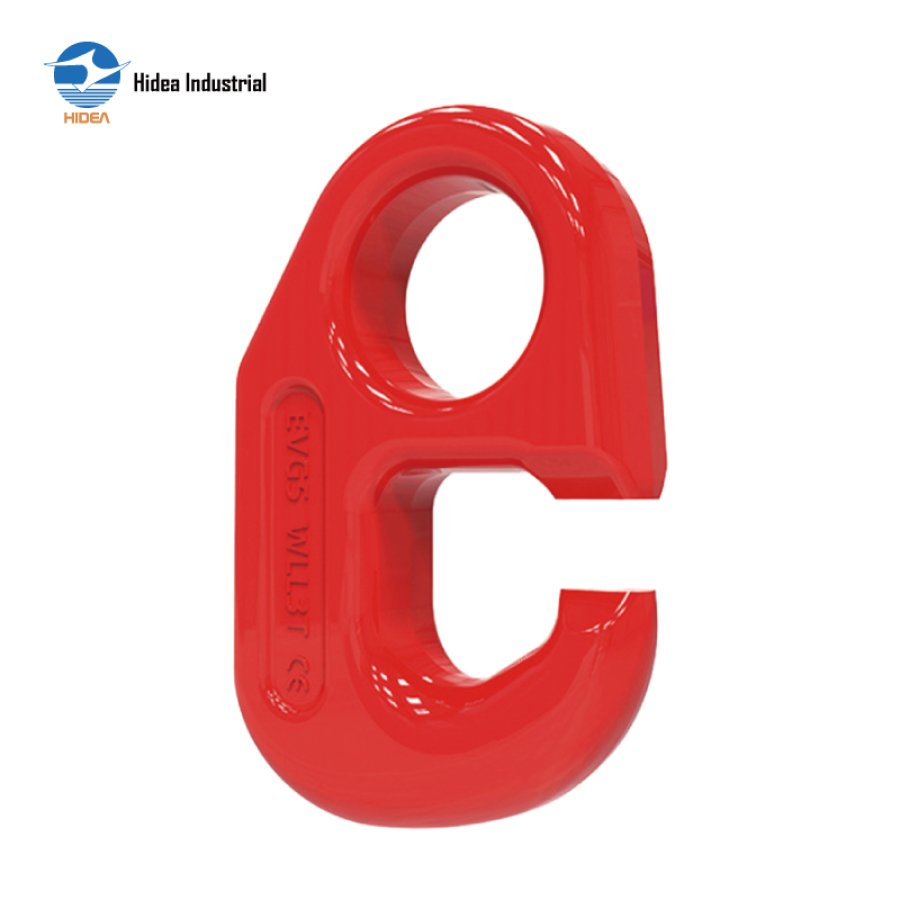

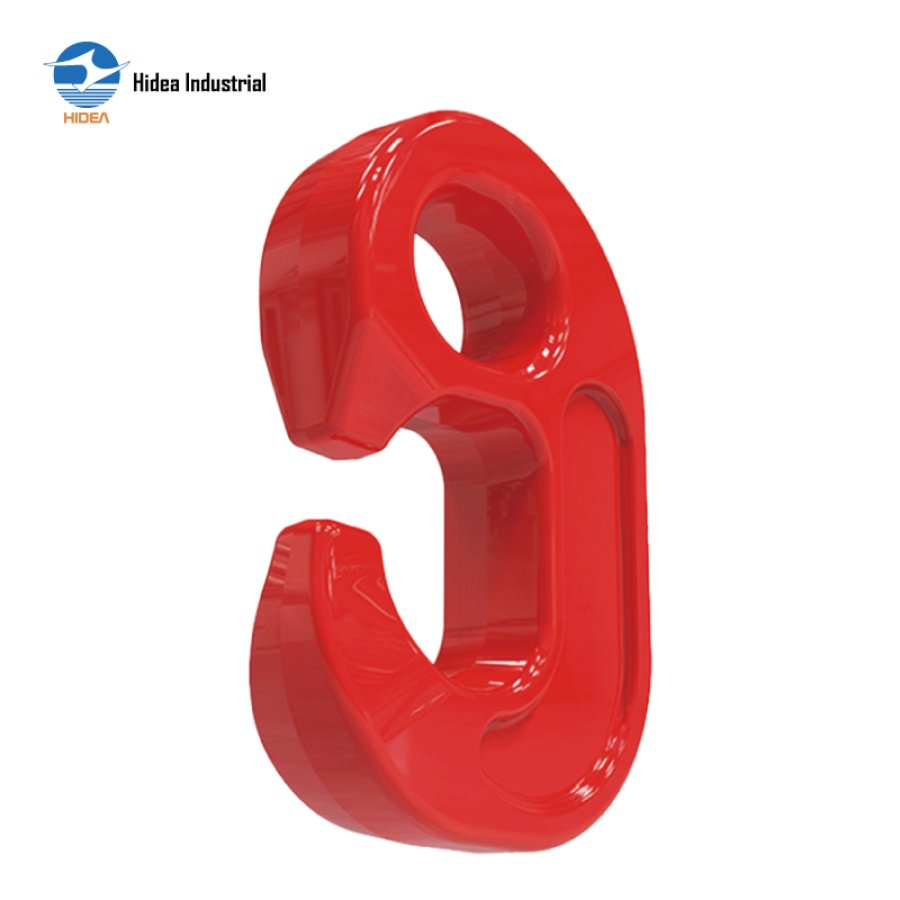

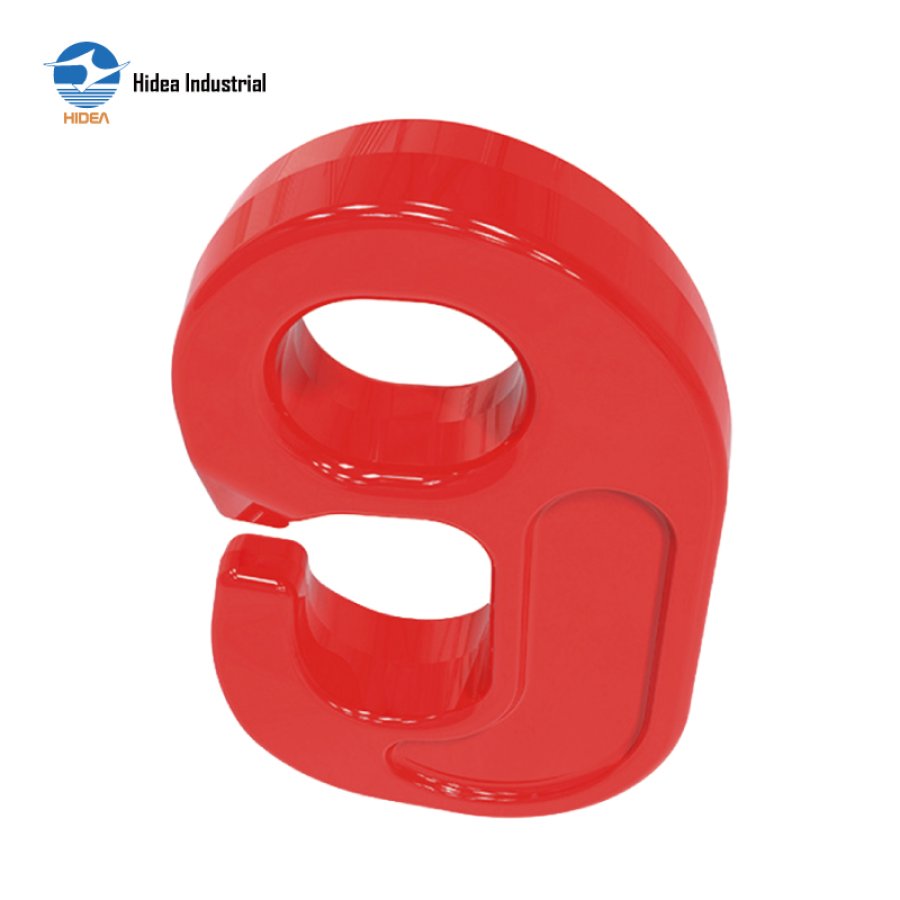

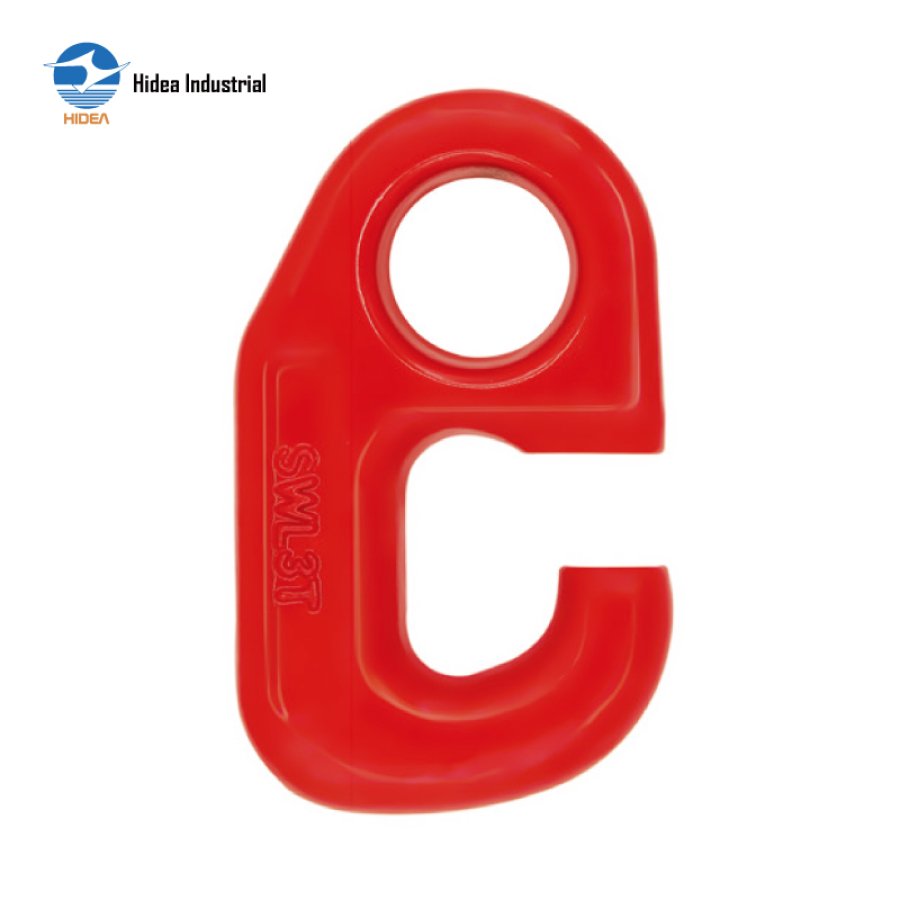

G80 G-HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

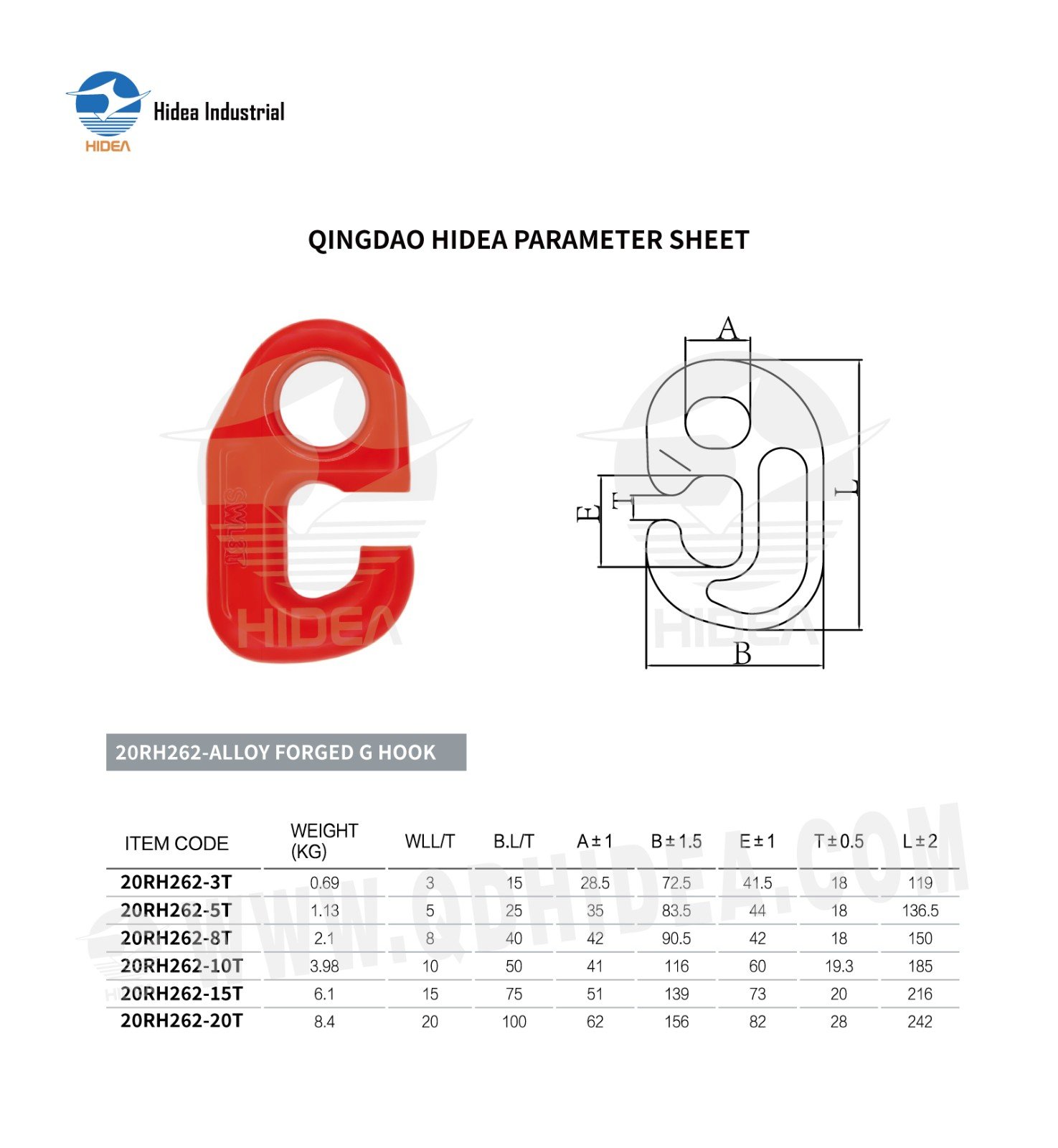

QINGDAO HIDEA PARAMETER SHEET FOR

20RH262-ALLOY FORGED G HOOK

ITEM CODE	WEIGHT (KG)	WLL/T	B.L/T	A±1	B±1.5	E±1	T±0.5	L±2
20RH262-3T	0.69	3	15	28.5	72.5	41.5	18	119
20RH262-5T	1.13	5	25	35	83.5	44	18	136.5
20RH262-8T	2.1	8	40	42	90.5	42	18	150
20RH262-10T	3.98	10	50	41	116	60	19.3	185
20RH262-15T	6.1	15	75	51	139	73	20	216
20RH262-20T	8.4	20	100	62	156	82	28	242
