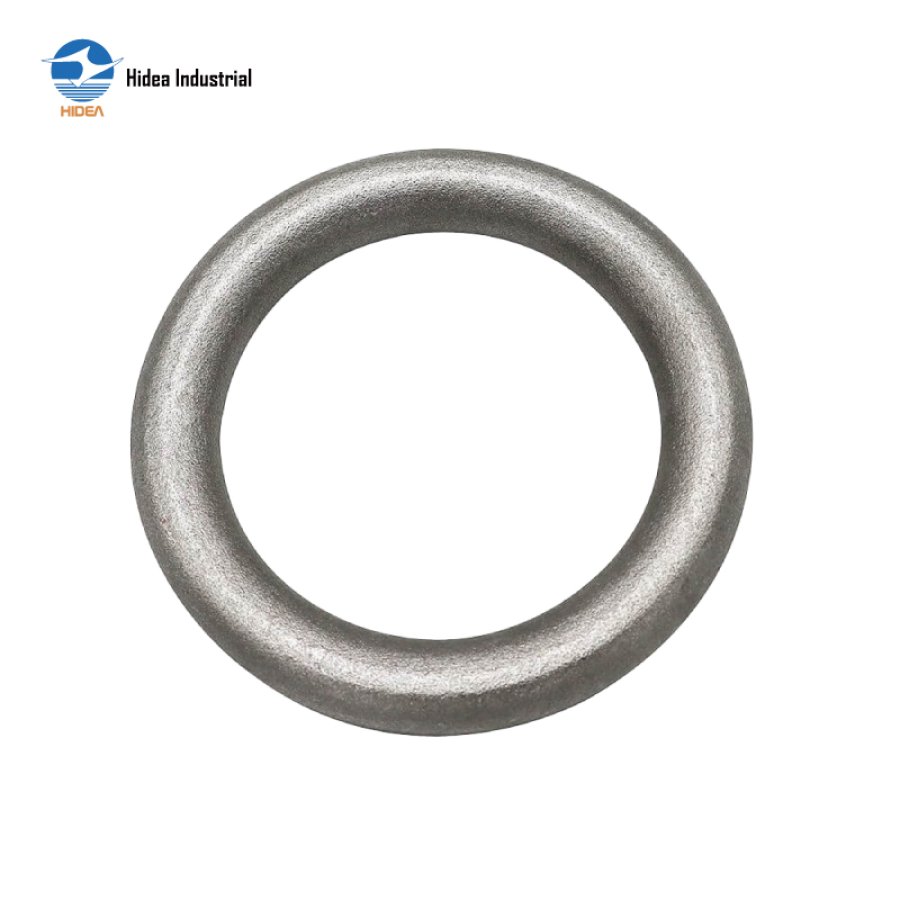

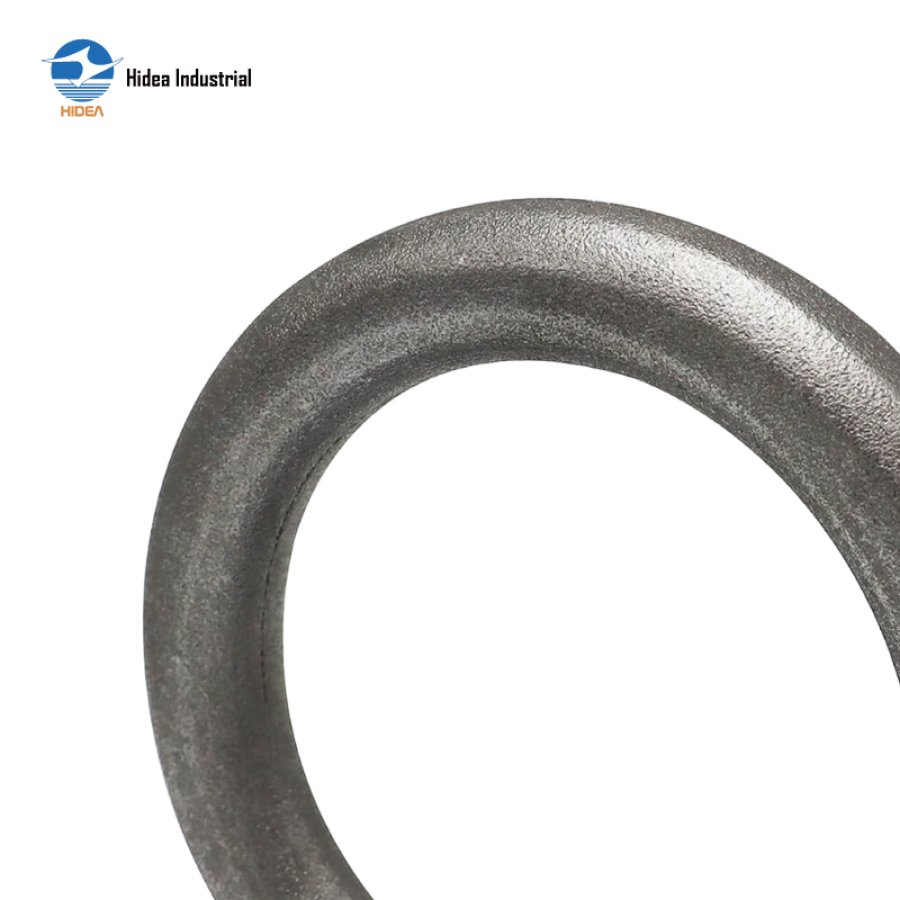

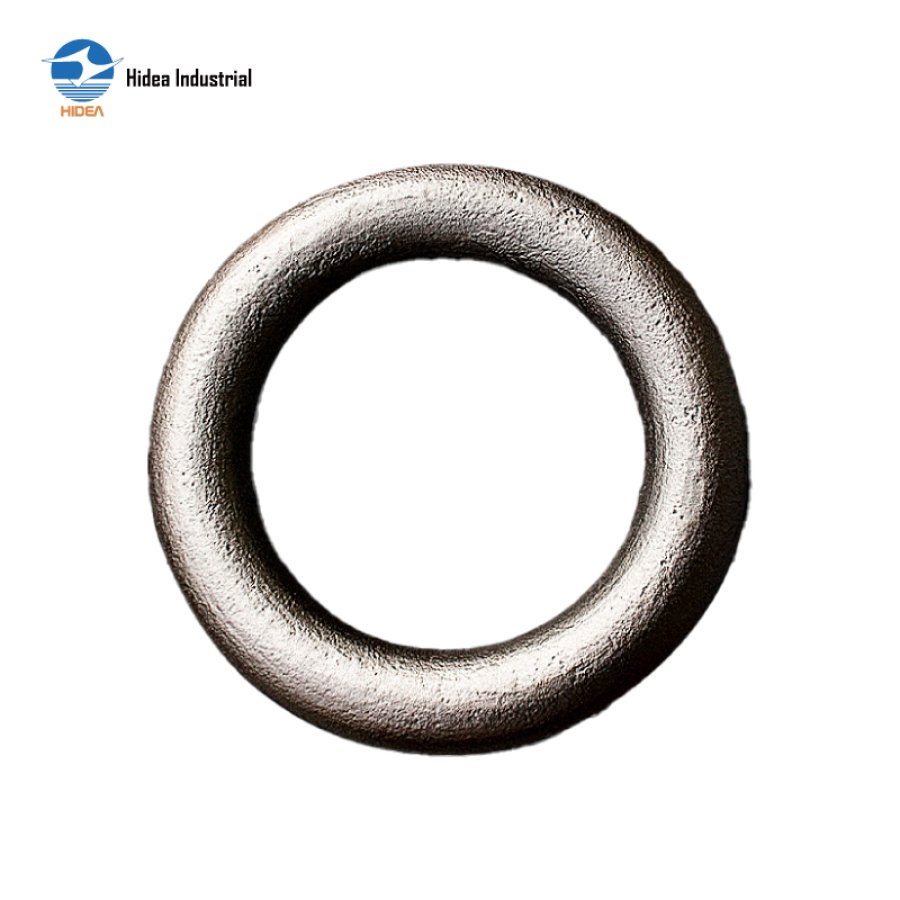

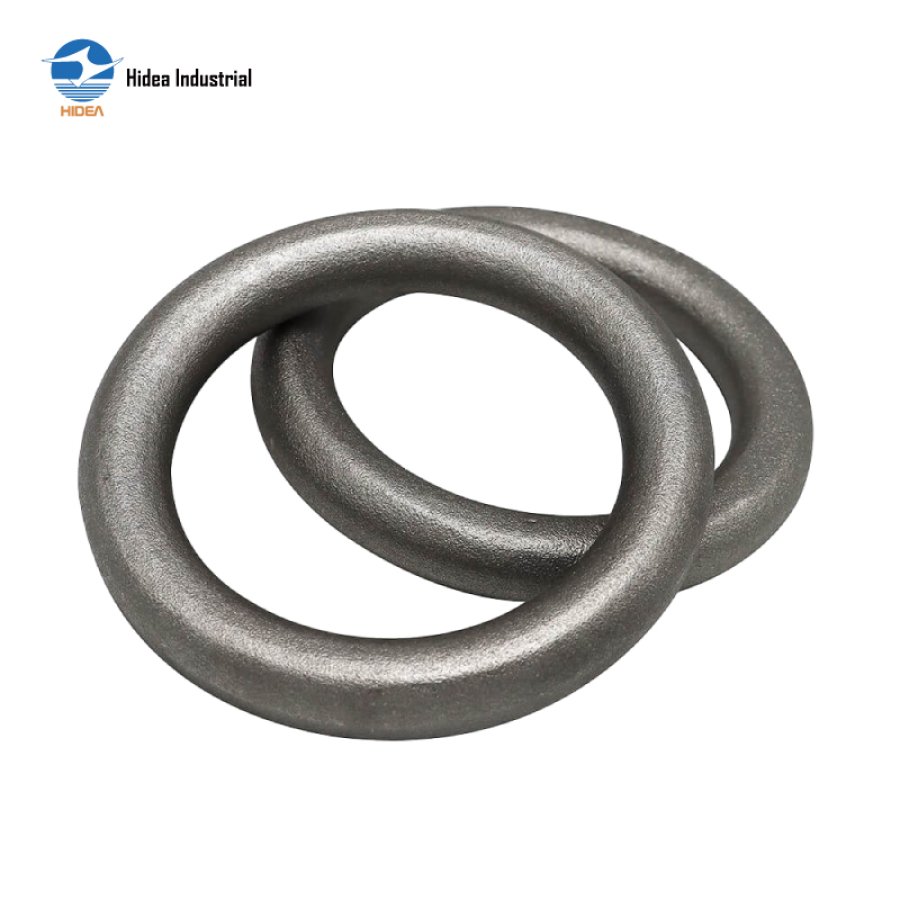

Hidea Forged Round Ring – Precision Forged for Maximum Strength and Durability

FORGED WELDLESS ROUND RING

High tensile alloy steel
Forged, quenched & tempered
Proof tested & certificate available
Surface Self-colored, Electro Galv. / Zinc Plated OR as requested
Drop Forged round rings without welding

Inquire Now

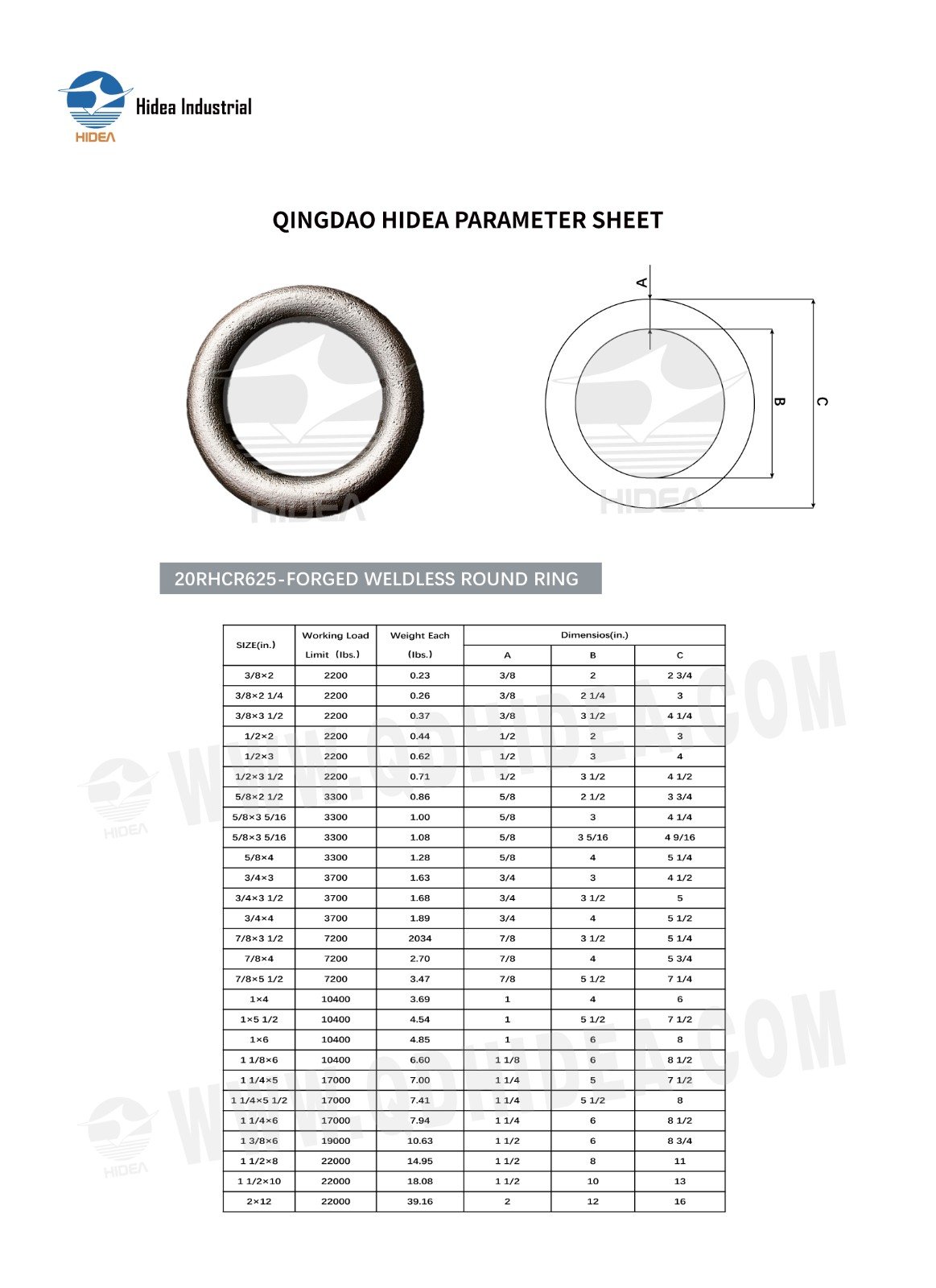

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR625-FORGED WELDLESS ROUND RING

SIZE(in.)	Working Load Limit(Ibs.)	Weight Each (Ibs.)	Dimensios(in.)
			A	B	c
3/8×2	2200	0.23	3/8	2	23/4
3/8×21/4	2200	0.26	3/8	21/4	3
3/8×31/2	2200	0.37	3/8	31/2	41/4
1/2×2	2200	0.44	1/2	2	3
1/2×3	2200	0.62	1/2	3	4
1/2×31/2	2200	0.71	1/2	31/2	41/2
5/8×21/2	3300	0.86	5/8	21/2	33/4
5/8×35/16	3300	1.00	5/8	3	41/4
5/8×35/16	3300	1.08	5/8	35/16	49/16
5/8×4	3300	1.28	5/8	4	51/4
3/4×3	3700	1.63	3/4	3	41/2
3/4×31/2	3700	1.68	3/4	31/2	5
3/4×4	3700	1.89	3/4	4	51/2
7/8×31/2	7200	2034	7/8	31/2	51/4
7/8×4	7200	2.70	7/8	4	53/4
7/8×51/2	7200	3.47	7/8	51/2	71/4
1×4	10400	3.69	1	4	6
1×51/2	10400	4.54	1	51/2	71/2
1×6	10400	4.85	1	6	8
11/8×6	10400	6.60	11/8	6	81/2
11/4×5	17000	7.00	11/4	5	71/2
11/4×51/2	17000	7.41	11/4	51/2	8
11/4×6	17000	7.94	11/4	6	81/2
13/8×6	19000	10.63	11/2	6	8.3/4
11/2×8	22000	14.95	11/2	8	11
11/2×10	22000	18.08	11/2	10	13
2×12	22000	39.16	2	12	16
