Hidea DIN 82101 Shackle: Designed for Strength and Durability in Harsh Environments

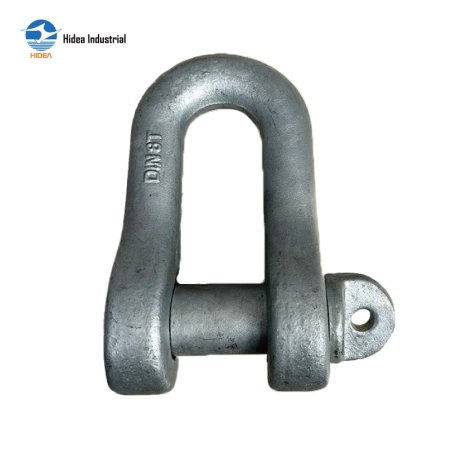

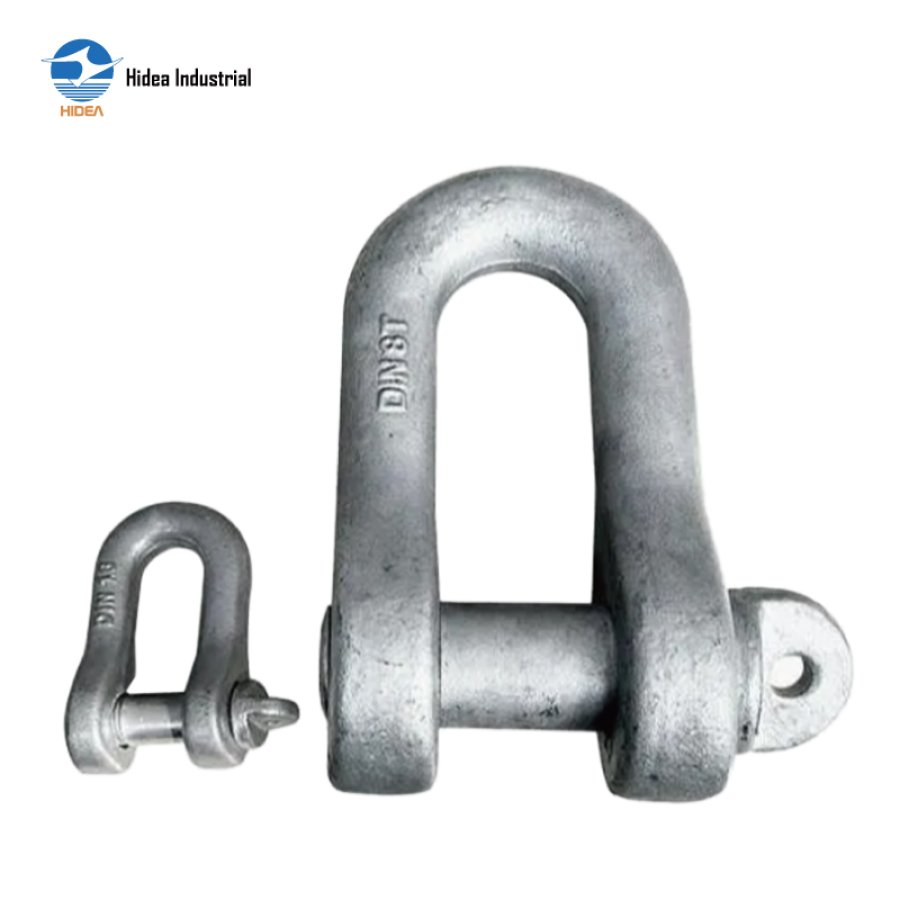

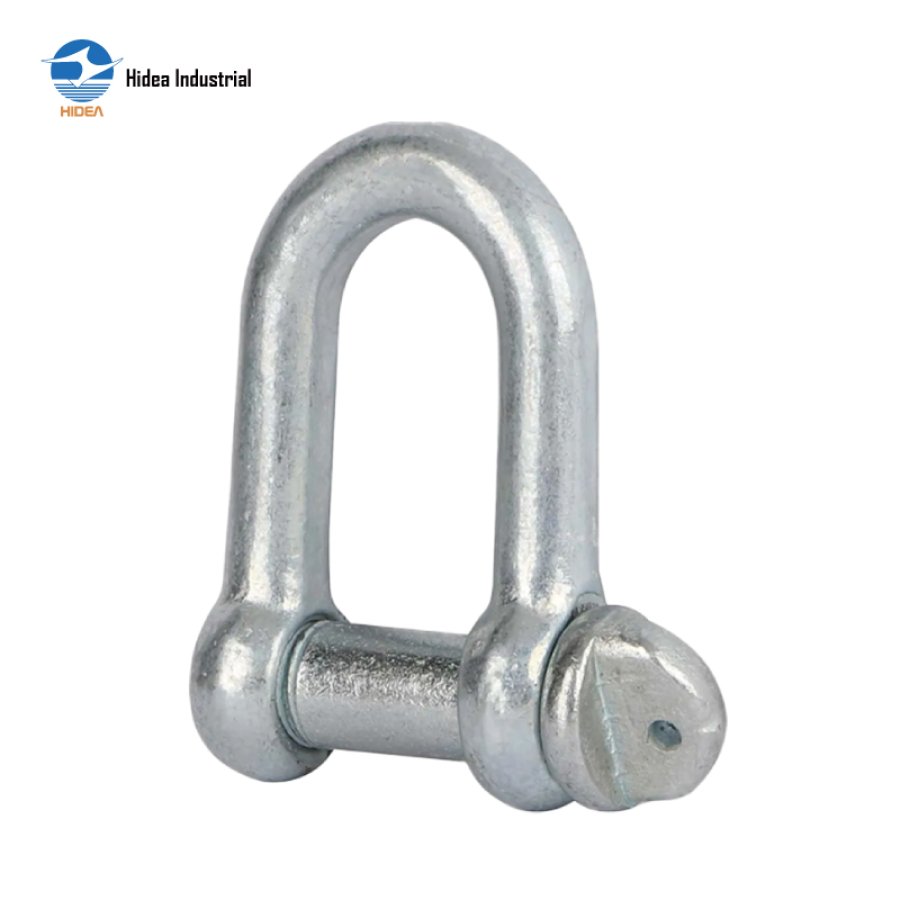

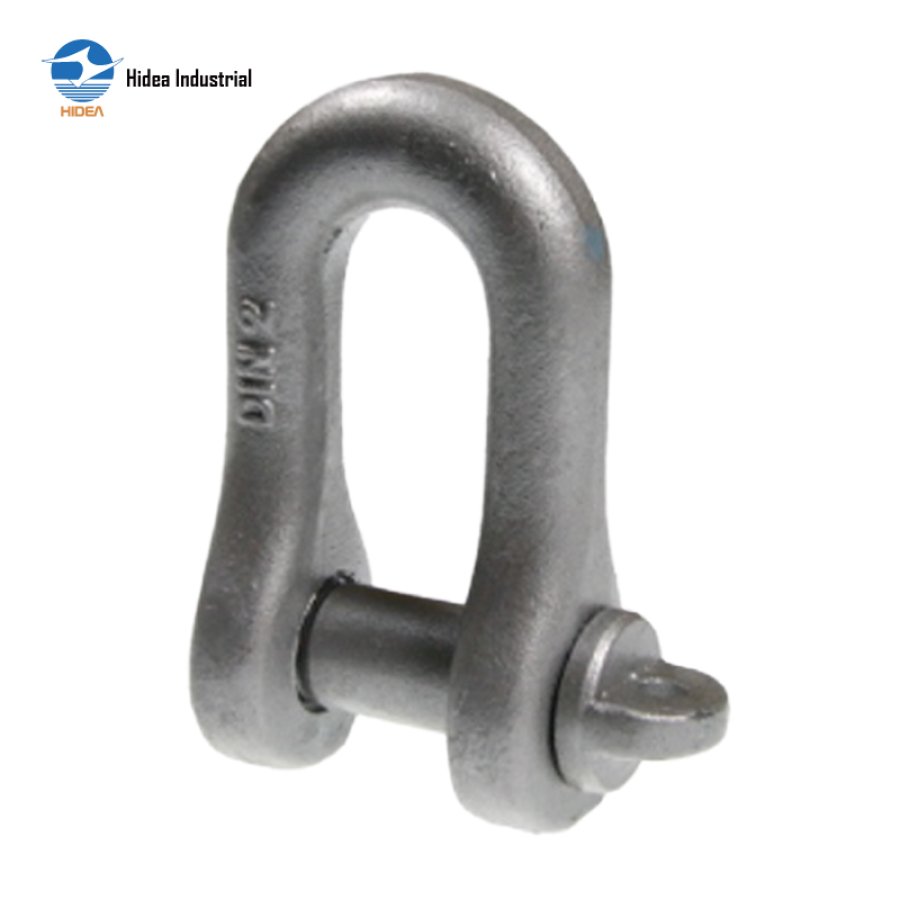

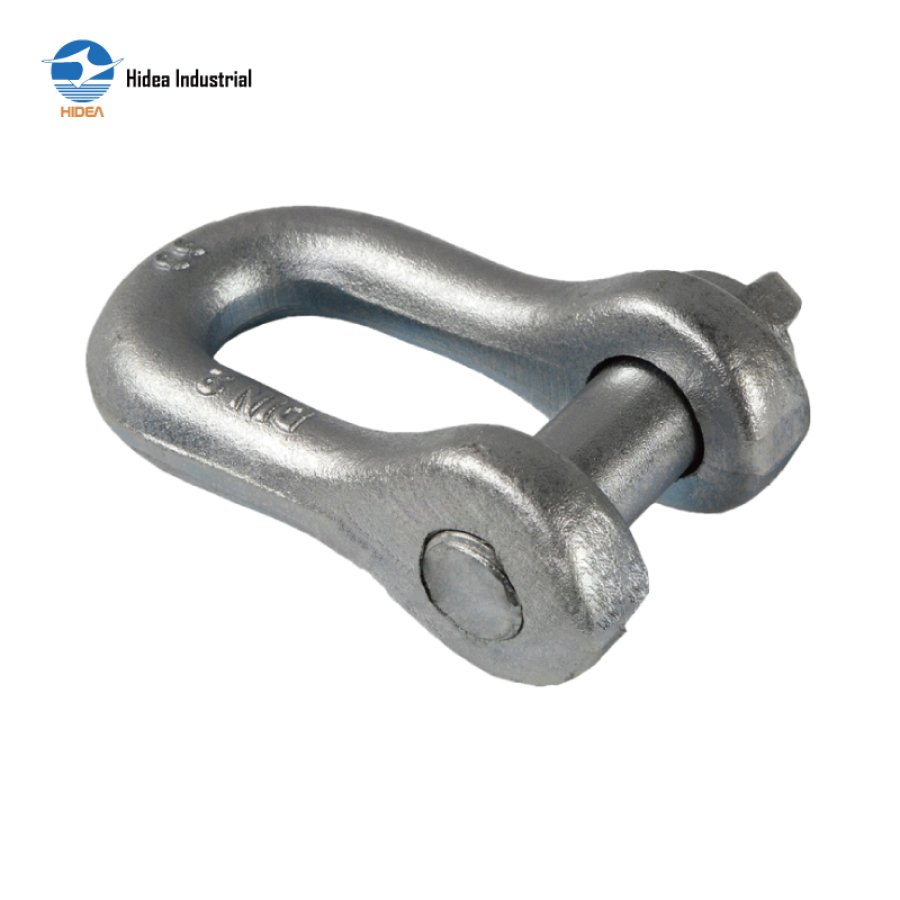

DIN 82101 CHAIN SHACKLE TYPE A

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard DIN82101 FORM A

Inquire Now

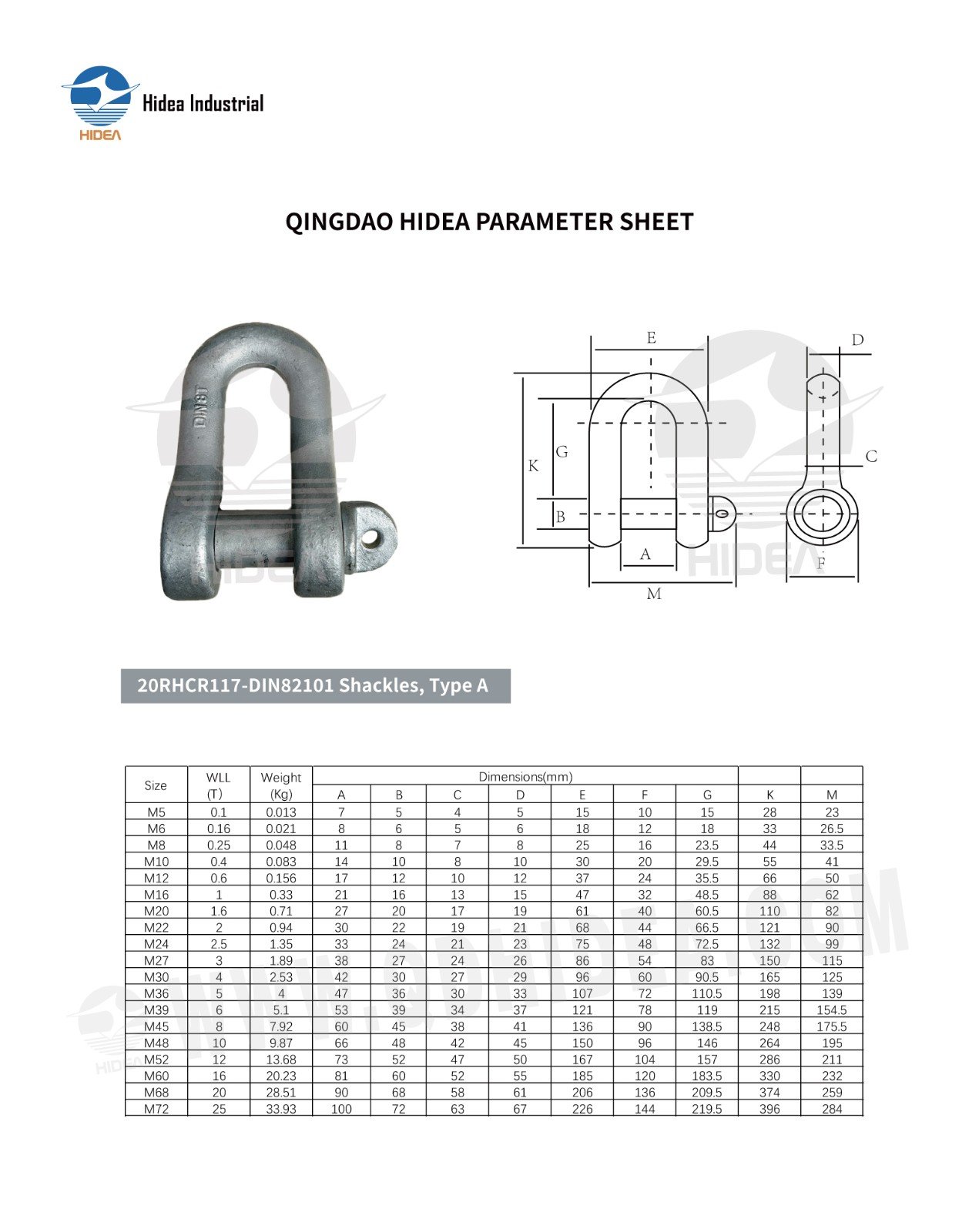

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR117-DIN82101 Shackles,Type A

Size	WLL (T)	Weight (Kg)	Dimensions(mm)
Size	WLL (T)	Weight (Kg)	A	B	C	D		E	F	G	K	M
M5	0.1	0.013	7	5	4	5		15	10	15	28	23
M6	0.16	0.021	8	6	5	6		18	12	18	33	26.5
M8	0.25	0.048	11	8	7	8		25	16	23.5	44	33.5
M10	0.4	0.083	14	10	8	10		30	20	29.5	55	41
M12	0.6	0.156	17	12	10	12		37	24	35.5	66	50
M16	1	0.33	21	16	13	15		47	32	48.5	88	62
M20	1.6	0.71	27	20	17	19		61	40	60.5	110	82
M22	2	0.94	30	22	19	21		68	44	66.5	121	90
M24	2.5	1.35	33	24	21	23		75	48	72.5	132	99
M27	3	1.89	38	27	24	26		86	54	83	150	115
M30	4	2.53	42	30	27	29		96	60	90.5	165	125
M36	5	4	47	36	30	33		107	72	110.5	198	139
M39	6	5.1	53	39	34	37		121	78	119	215	154.5
M45	8	7.92	60	45	38	41		136	90	138.5	248	175.5
M48	10	9.87	66	48	42	45		150	96	146	264	195
M52	12	13.68	73	52	47	50		167	104	157	286	211
M60	16	20.23	81	60	52	55		185	120	183.5	330	232
M68	20	28.51	90	68	58	61		206	136	209.5	374	259
M72	25	33.93	100	72	63	67		226	144	219.5	396	284
