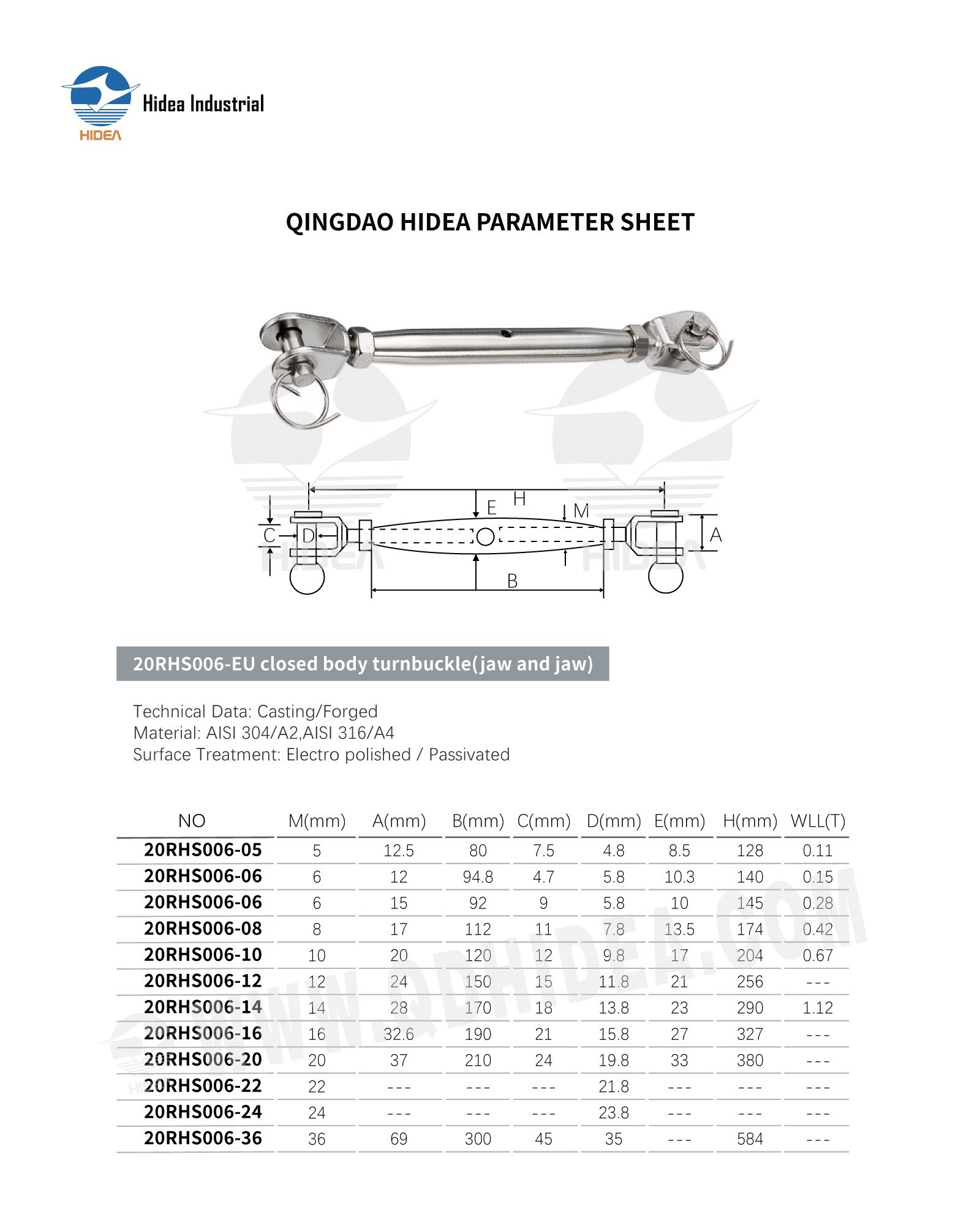

QINGDAO HIDEA PARAMETER SHEET FOR

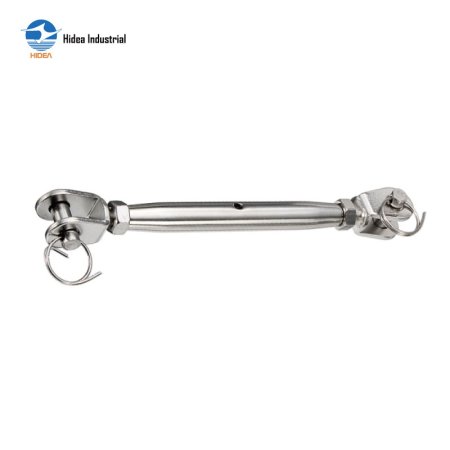

20RHSO06-EU closed body turnbuckle(jaw and jaw)
| NO | M(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | WLL(T) |
| 20RHS006-05 | 5 | 12.5 | 80 | 7.5 | 4.8 | 8.5 | 128 | 0.11 |
| 20RHS006-06 | 6 | 12 | 94.8 | 4.7 | 5.8 | 10.3 | 140 | 0.15 |
| 20RHS006-06 | 6 | 15 | 92 | 9 | 5.8 | 10 | 145 | 0.28 |
| 20RHS006-08 | 8 | 17 | 112 | 11 | 7.8 | 13.5 | 174 | 0.42 |
| 20RHS006-10 | 10 | 20 | 120 | 12 | 9.8 | 17 | 204 | 0.67 |
| 20RHSO06-12 | 12 | 24 | 150 | 15 | 11.8 | 21 | 256 | |
| 20RHS006-14 | 14 | 28 | 170 | 18 | 13.8 | 23 | 290 | 1.72 |
| 20RHS006-16 | 16 | 32.6 | 190 | 21 | 15.8 | 27 | 327 | 000 |
| 20RHS006-20 | 20 | 37 | 210 | 24 | 19.8 | 33 | 380 | 000 |
| 20RHS006-22 | 22 | 000 | 000 | 000 | 21.8 | 000 | 000 | 000 |
| 20RHS006-24 | 24 | 000 | 000 | 000 | 23.8 | 000 | 000 | 000 |
| 20RHSO06-36 | 36 | 69 | 300 | 45 | 35 | 000 | 584 | 000 |
