Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C

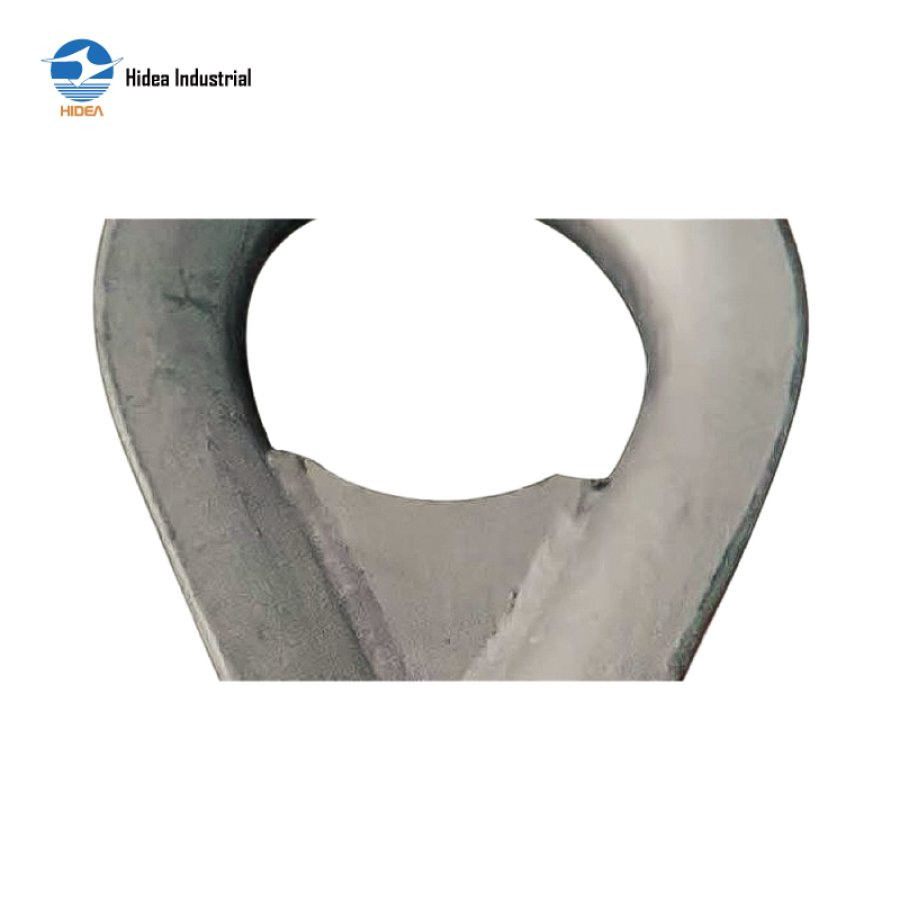

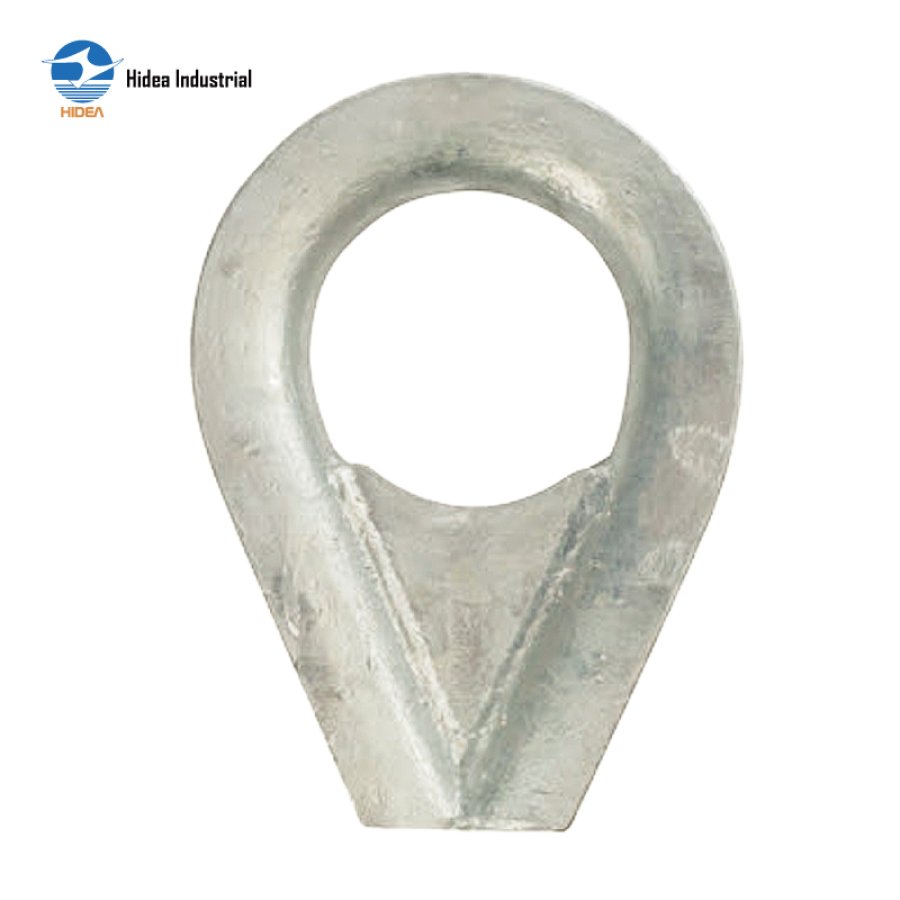

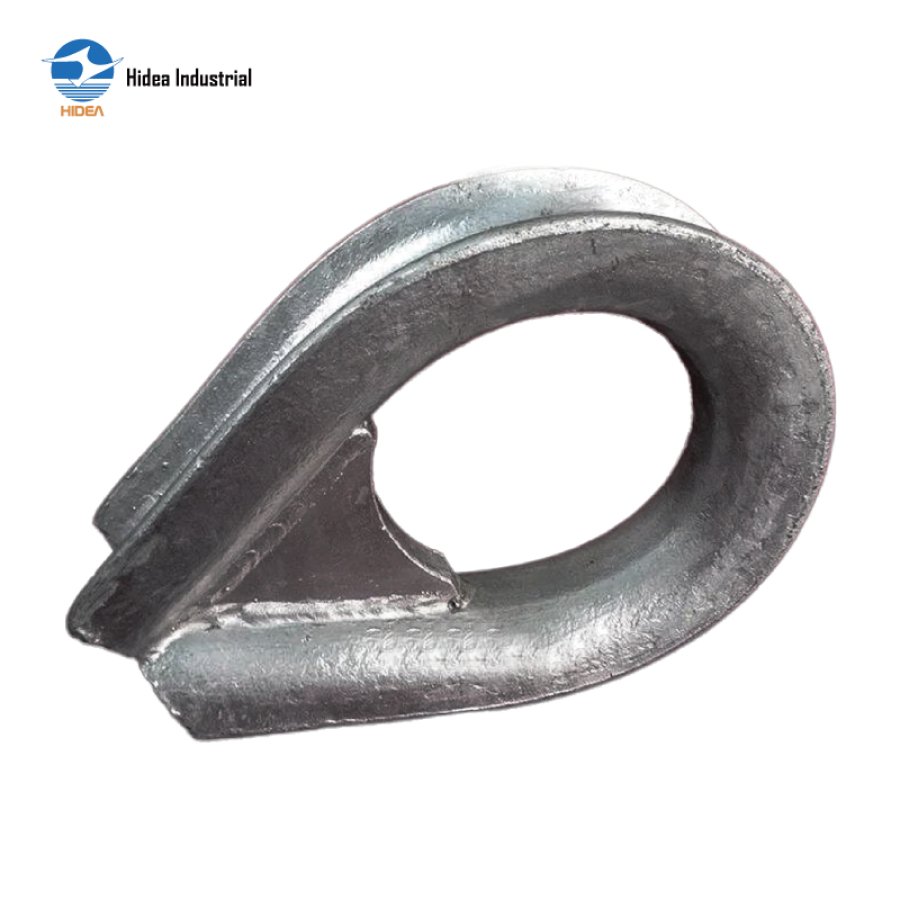

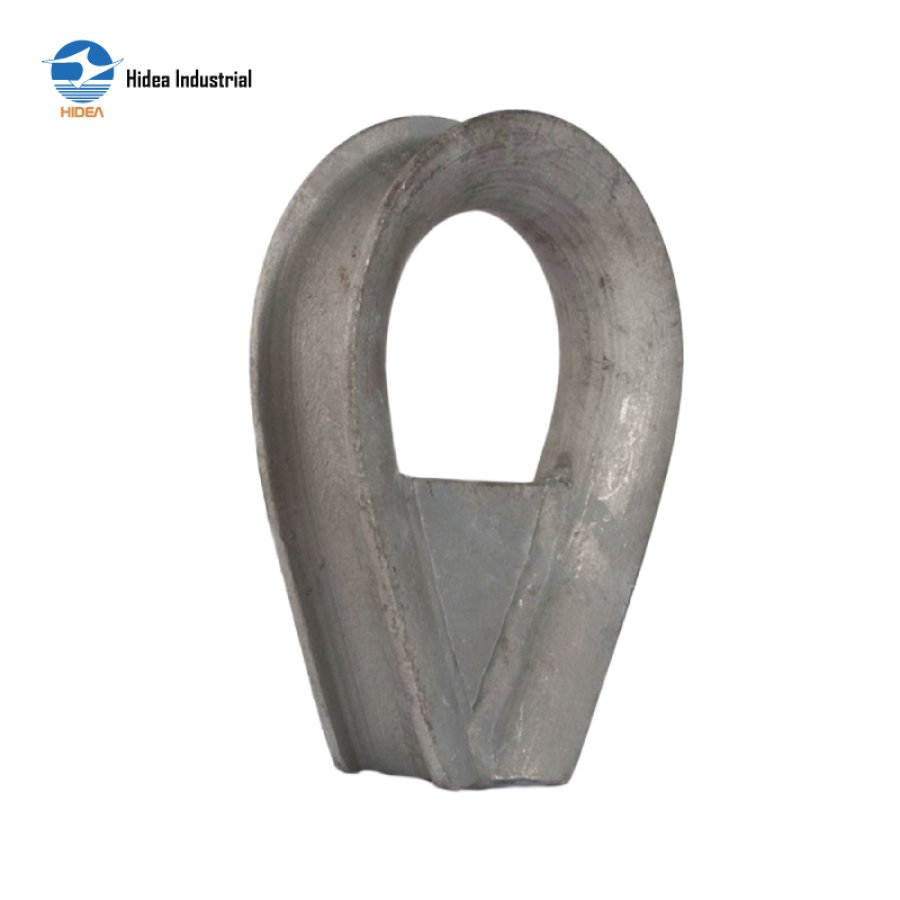

K2-B Heavy duty stub-end wire rope thimbles reinforced / Steel wire rope thimbles: K2, K2-B, K4, and K5

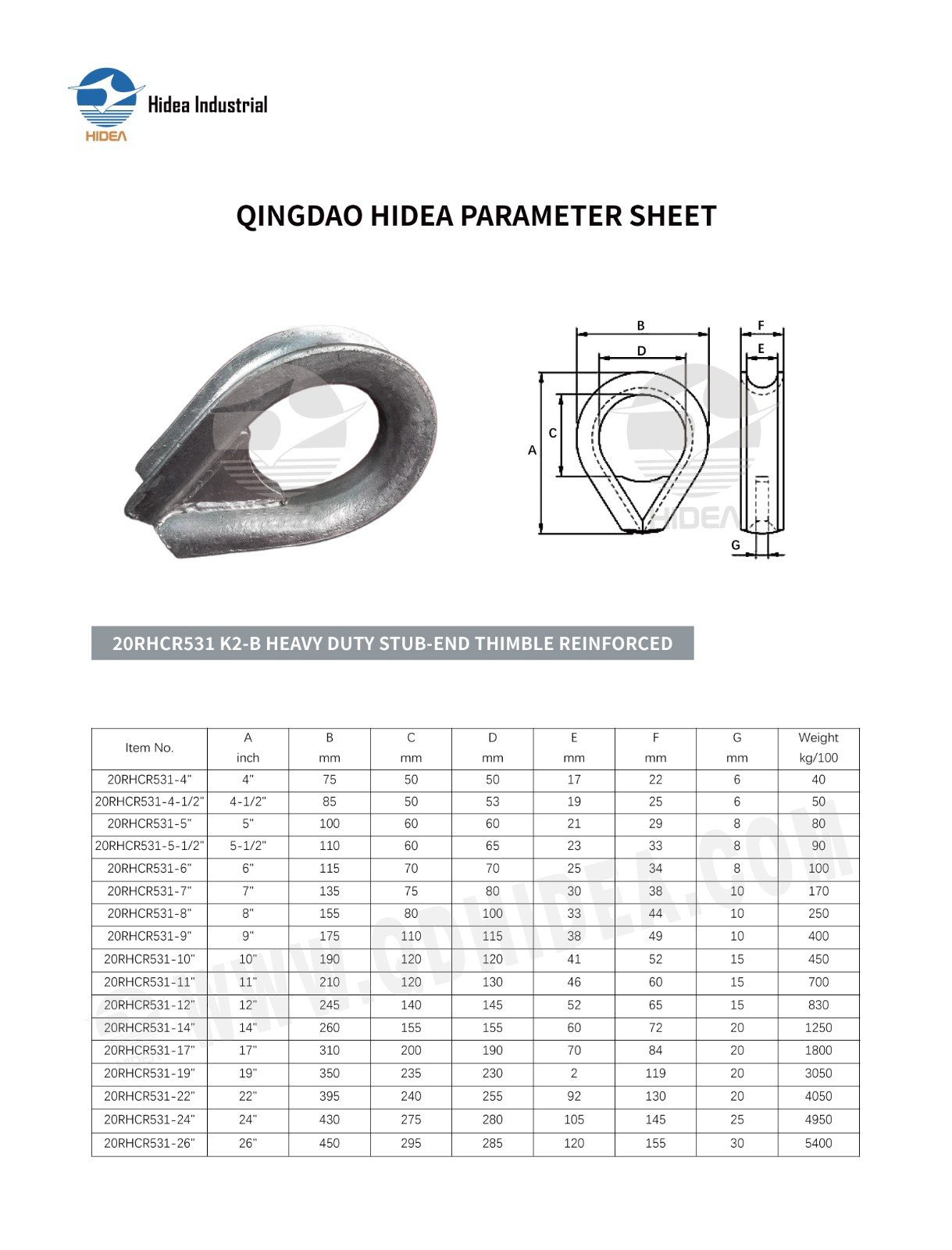

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR531 K2-B HEAVY DUTY STUB-END THIMBLE REINFORCED
| Item No. | A inch | B mm | C mm | D mm | E mm | F mm | G mm | Weight kg/100 |
| 20RHCR531-4" | 4" | 75 | 50 | 50 | 17 | 22 | 6 | 40 |
| 20RHCR531-4-1/2" | 4-1/2" | 85 | 50 | 53 | 19 | 25 | 6 | 50 |
| 20RHCR531-5" | 5" | 100 | 60 | 60 | 21 | 29 | 8 | 80 |
| 20RHCR531-5-1/2" | 5-1/2" | 110 | 60 | 65 | 23 | 33 | 8 | 90 |
| 20RHCR531-6" | 6" | 115 | 70 | 70 | 25 | 34 | 8 | 100 |
| 20RHCR531-7" | 7" | 135 | 75 | 80 | 30 | 38 | 10 | 170 |
| 20RHCR531-8" | 8 | 155 | 80 | 100 | 33 | 44 | 10 | 250 |
| 20RHCR531-9" | 9" | 175 | 110 | 115 | 38 | 49 | 10 | 400 |
| 20RHCR531-10" | 10" | 190 | 120 | 120 | 41 | 52 | 15 | 450 |
| 20RHCR531-11" | 11 | 210 | 120 | 130 | 46 | 60 | 15 | 700 |
| 20RHCR531-12" | 12 | 245 | 140 | 145 | 52 | 65 | 15 | 830 |
| 20RHCR531-14" | 14" | 260 | 155 | 155 | 60 | 72 | 20 | 1250 |
| 20RHCR531-17" | 17 | 310 | 200 | 190 | 70 | 84 | 20 | 1800 |
| 20RHCR531-19" | 19" | 350 | 235 | 230 | 2 | 119 | 20 | 3050 |
| 20RHCR531-22" | 22" | 395 | 240 | 255 | 92 | 130 | 20 | 4050 |
| 20RHCR531-24" | 24 | 430 | 275 | 280 | 105 | 145 | 25 | 4950 |
| 20RHCR531-26" | 26" | 450 | 295 | 285 | 120 | 155 | 30 | 5400 |
