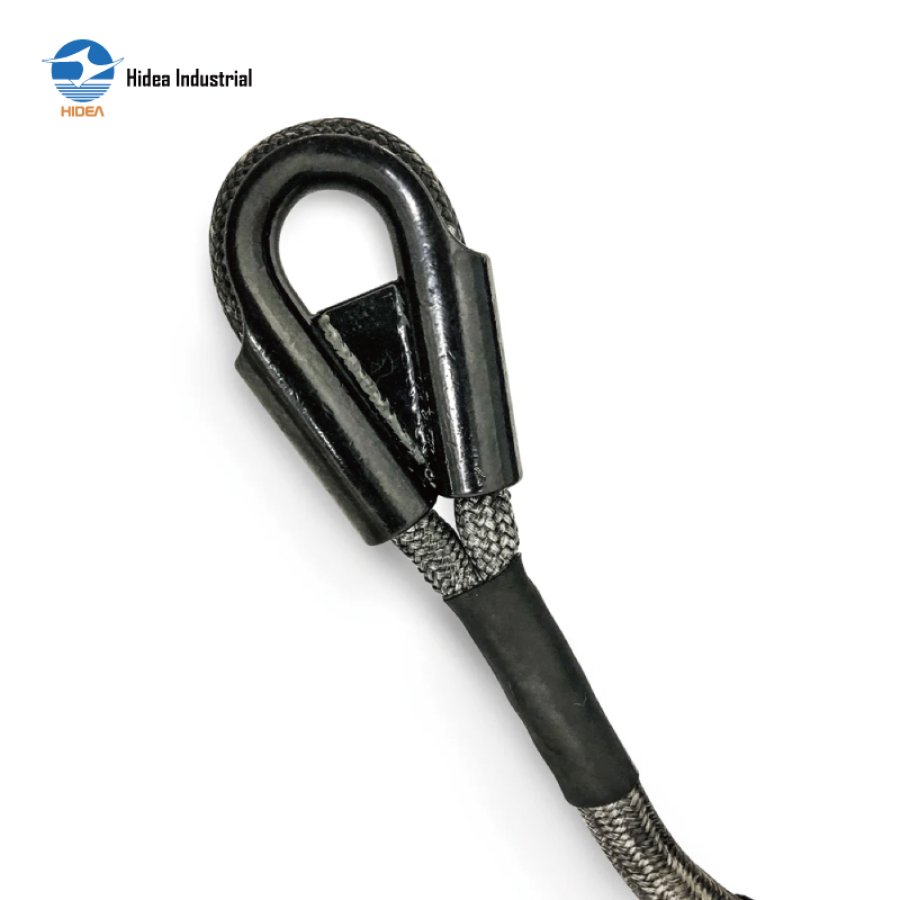

HIDEA Tubular Thimble with Gusset: Better Protection for The Eye of the Winch Line

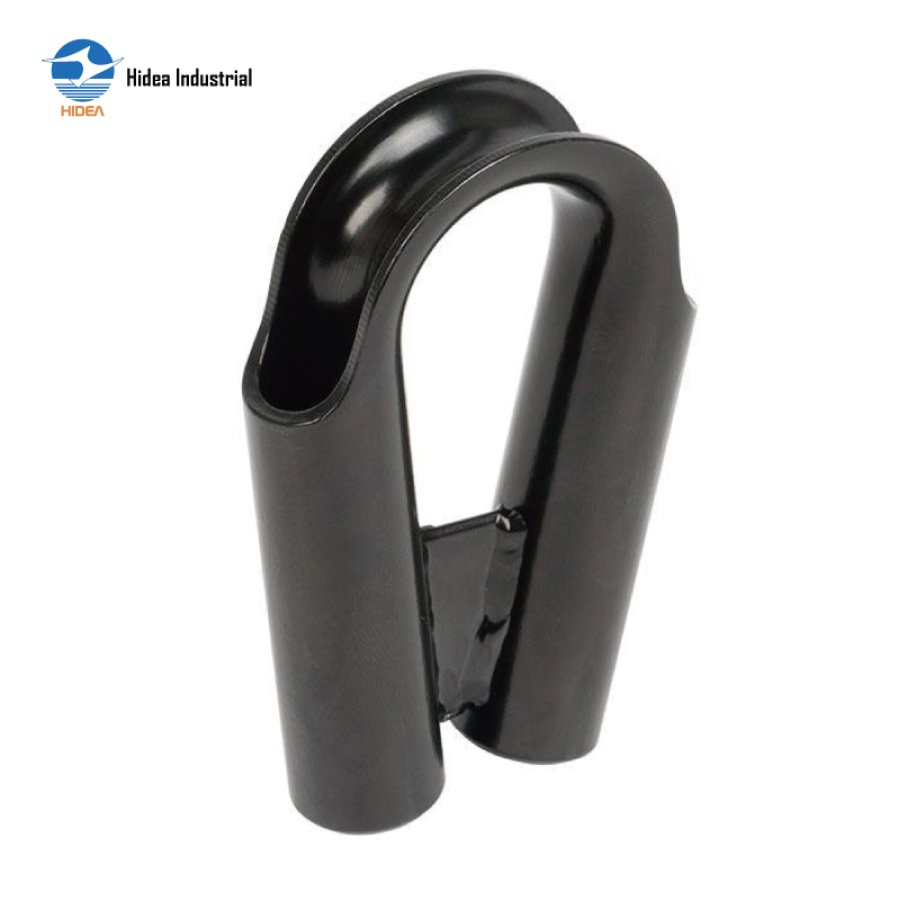

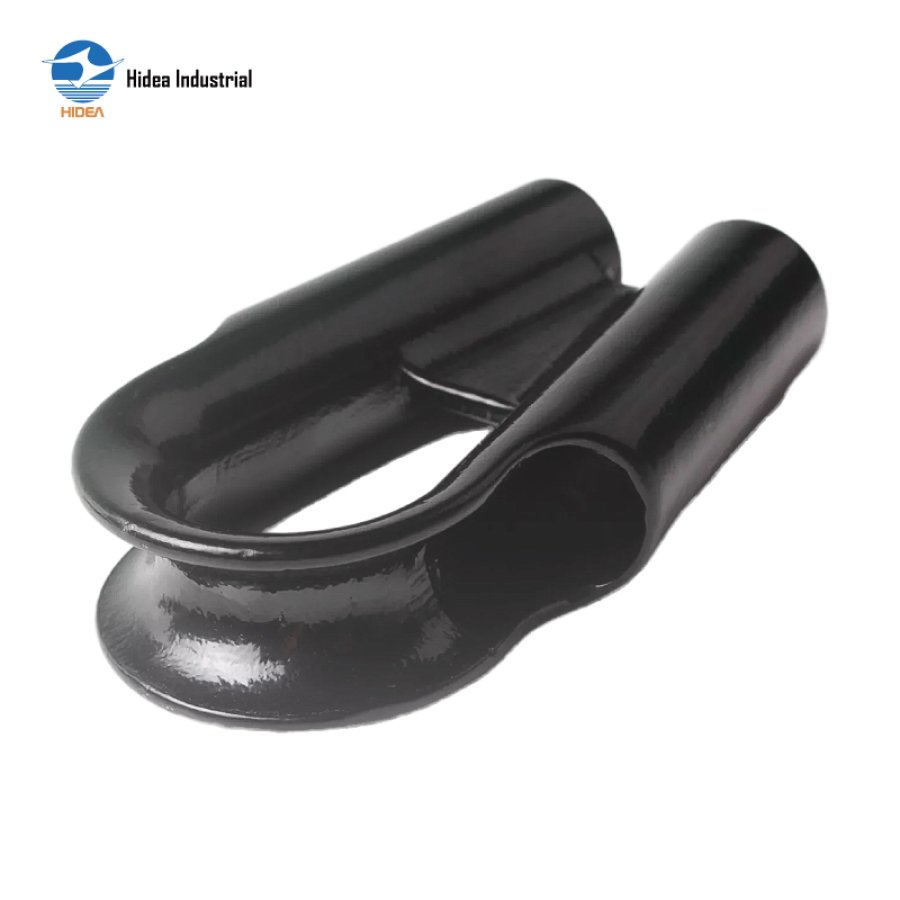

TUBE TUBULAR THIMBLE WITH GUSSET FLAT

Material Seamless Mild Steel Tube
Stamped & Bent to shape, Machined & polished

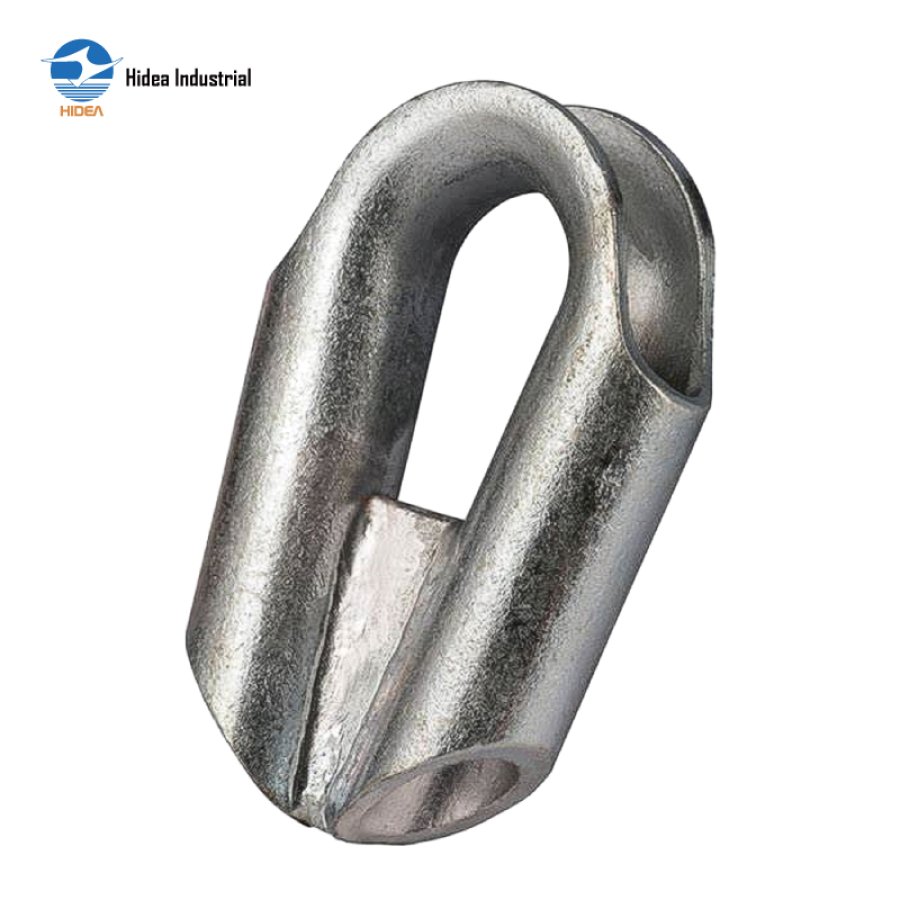

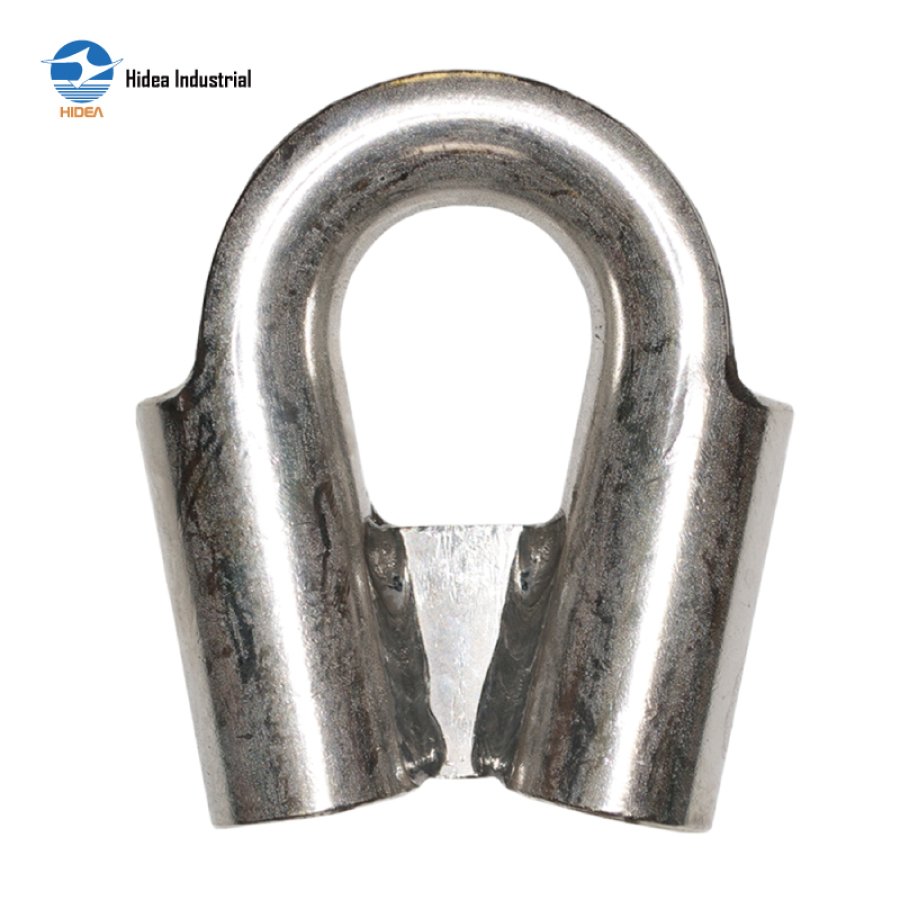

Surface powder coated OR painted blue, black etc., OR Hot Dip Galv., Electro Galv. Or as requested
Temperature range -20°C up to +200°C
Tubluar Thimble with Gusset / Stub Flat mouths

Inquire Now

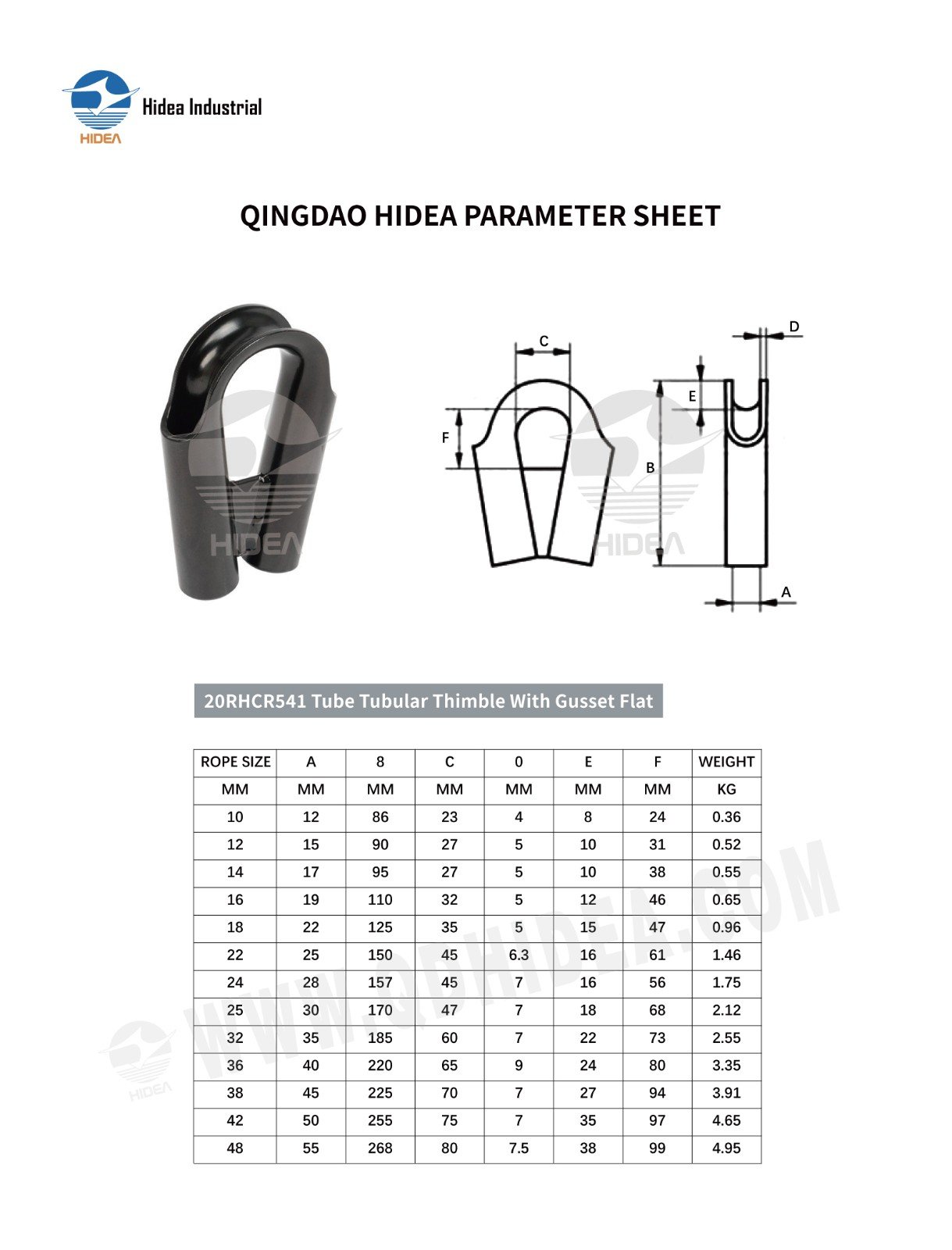

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR541 Tube Tublar Thimble With Gusset Flat

ROPE SIZE	A	8	C	0	E	F	WEIGHT
MM	MM	MM	MM	MM	MM	MM	KG
10	12	86	23	4	8	24	0.36
12	15	90	27	5	10	31	0.52
14	17	95	27	5	10	38	0.55
16	19	110	32	5	12	46	0.65
18	22	125	35	5	15	47	0.96
22	25	150	45	6.3	16	61	1.46
24	28	157	45	7	16	56	1.75
25	30	170	47	7	18	68	2.12
32	35	185	60	7	22	73	2.55
36	40	220	65	9	24	80	3.35
38	45	225	70	7	27	94	3.91
42	50	255	75	7	35	97	4.65
48	55	268	80	7.5	38	99	4.95
