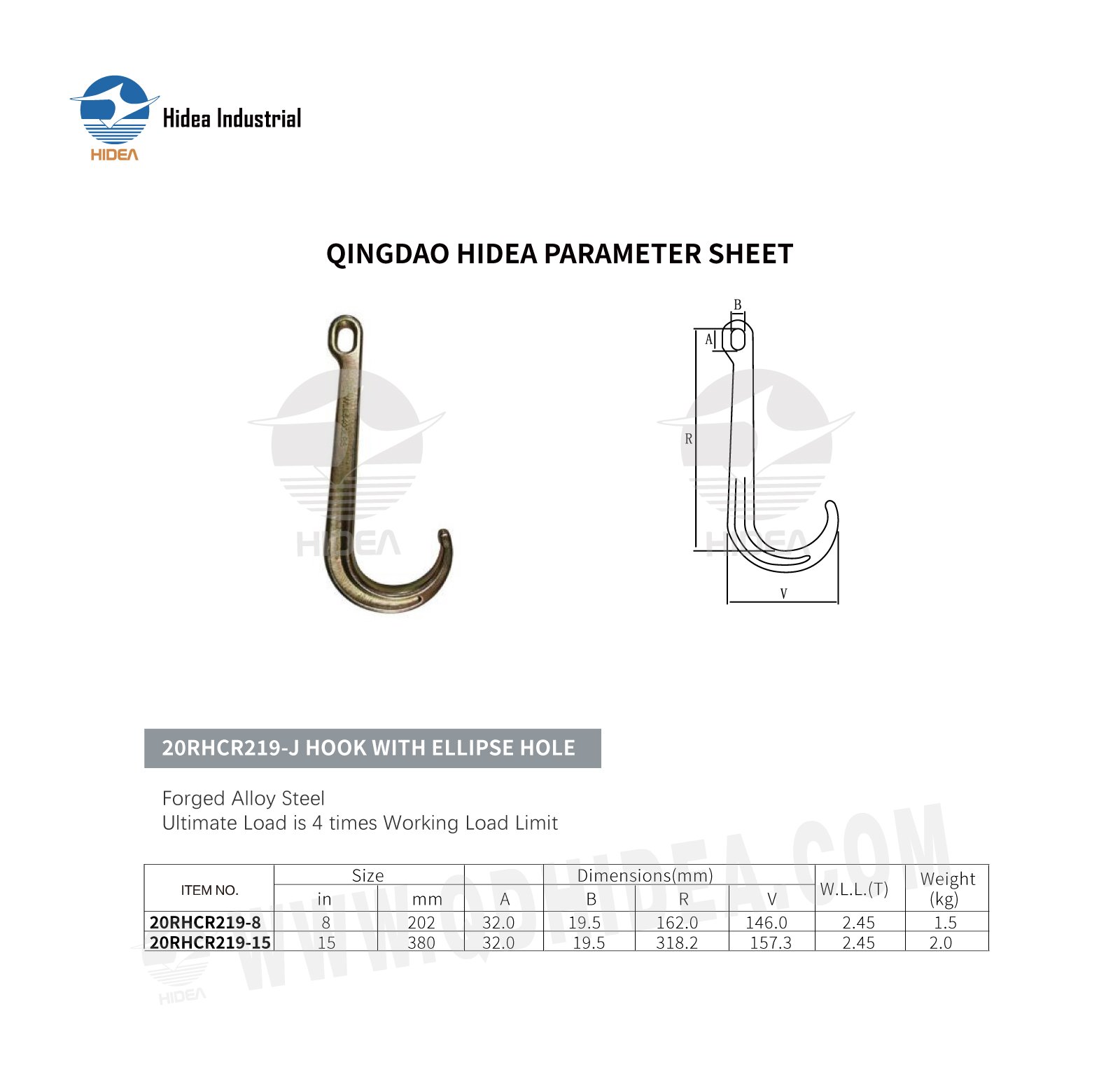

QINGDAO HIDEA PARAMETER SHEET FOR

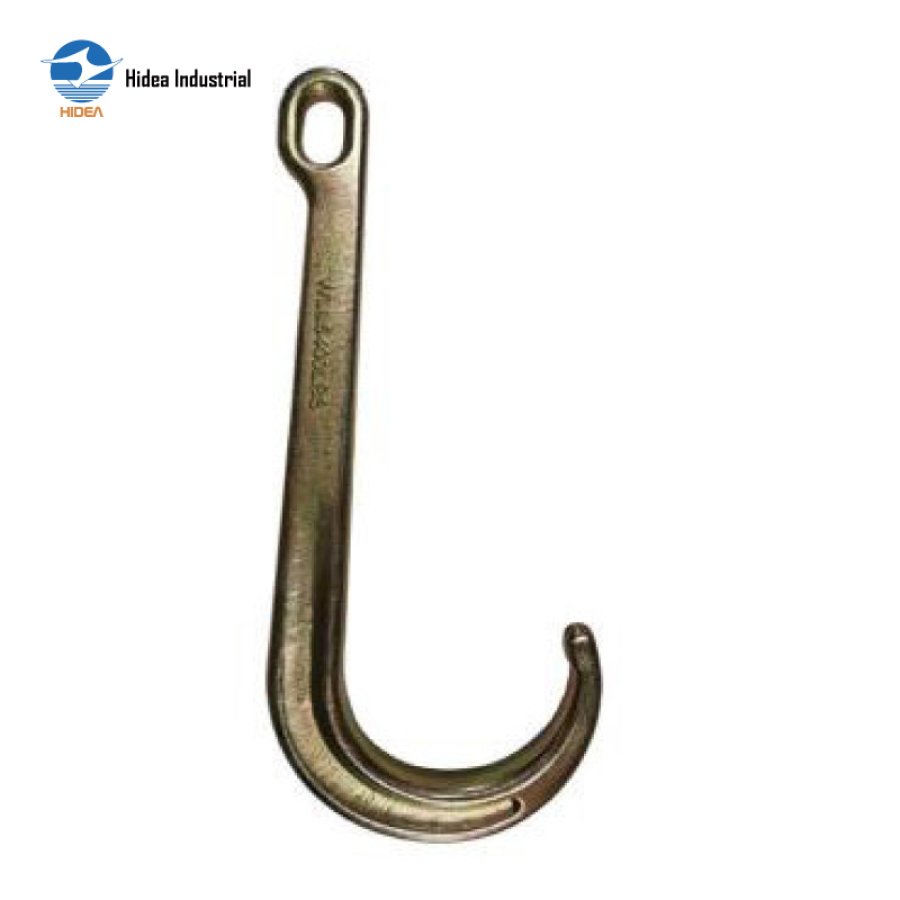

20RHCR219-J HOOK WITH ELLIPSE HOLE
| ITEM NO. | Size | Dimensions(mm) | W.L.L. (T) | Weight (kg) | ||||||
| in | mm | A | B | R | V | |||||
| 20RHCR219-8 | 8 | 202 | 32.0 | 19.5 | 162.0 | 146.0 | 2.45 | 1.5 | ||
| 20RHCR219-15 | 15 | 380 | 32.0 | 19.5 | 318.2 | 157.3 | 2.45 | 2.0 | ||
Inquire Now
-
