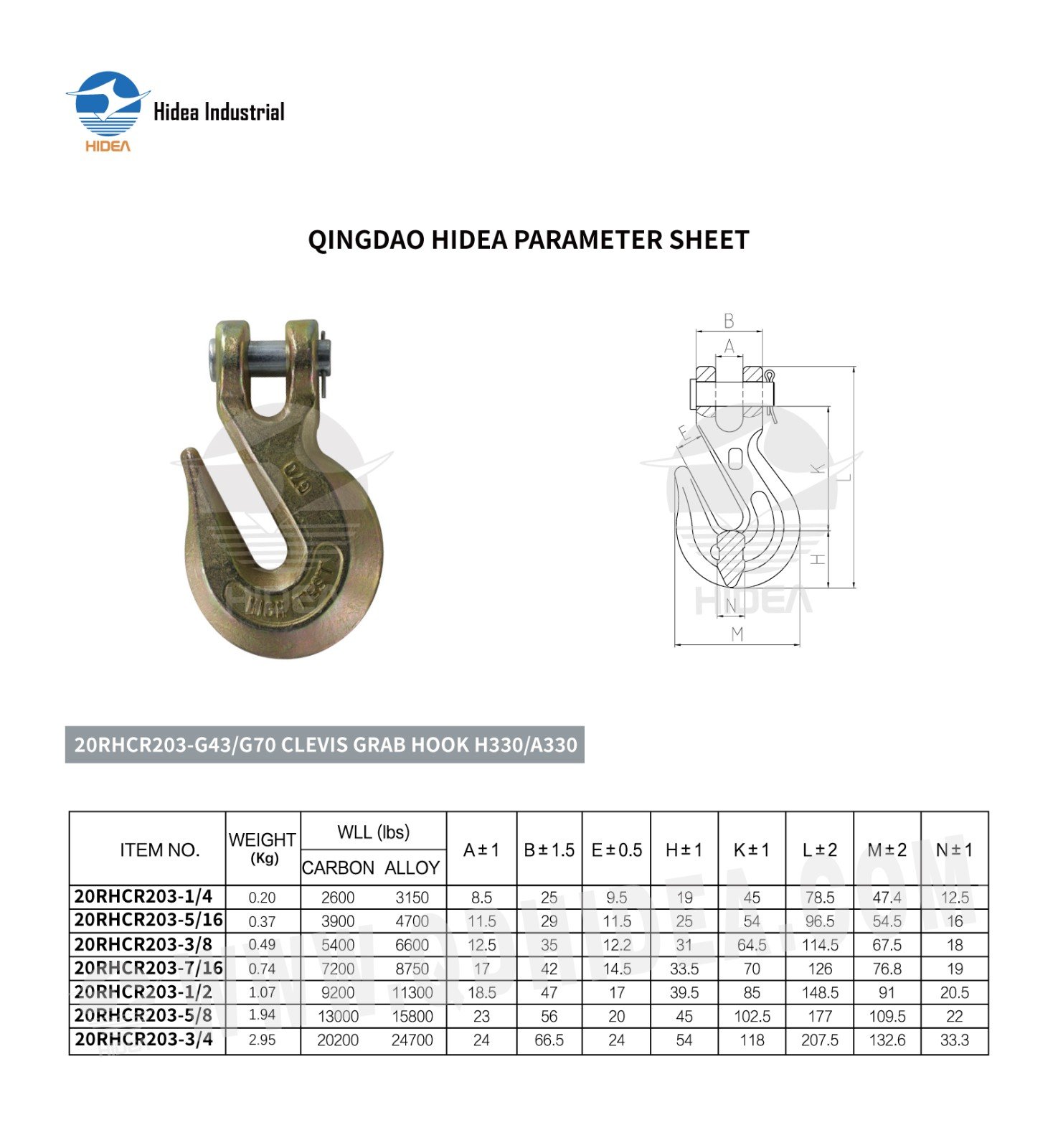

QINGDAO HIDEA PARAMETER SHEET FOR

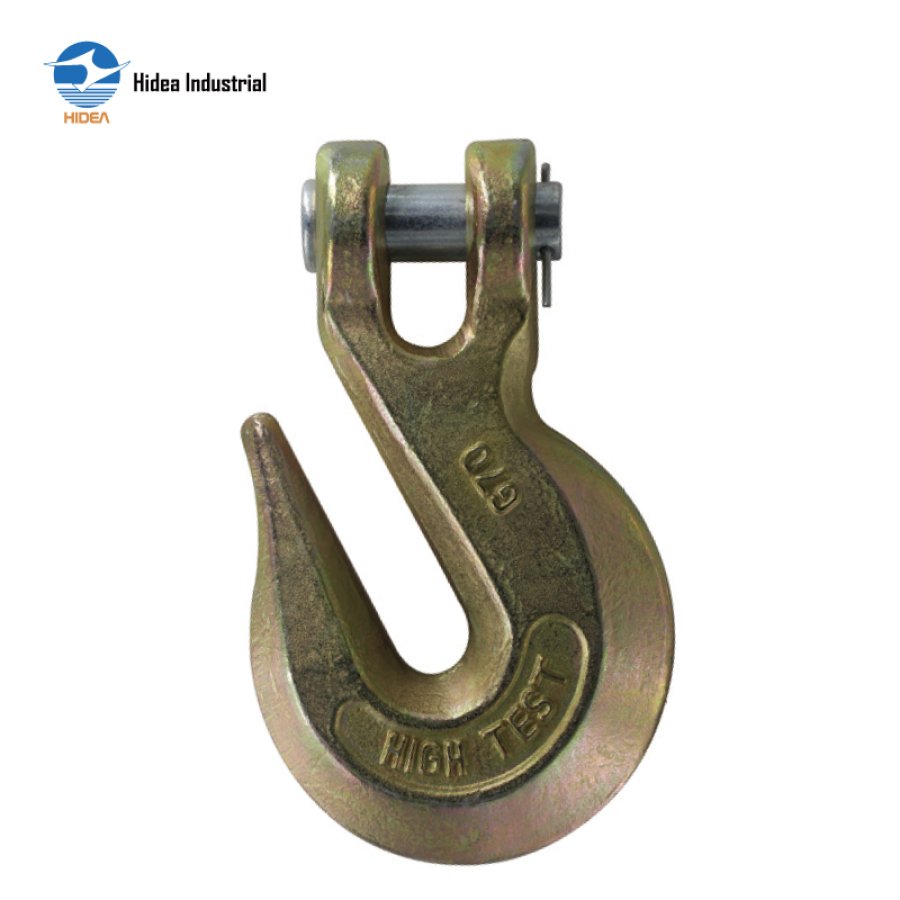

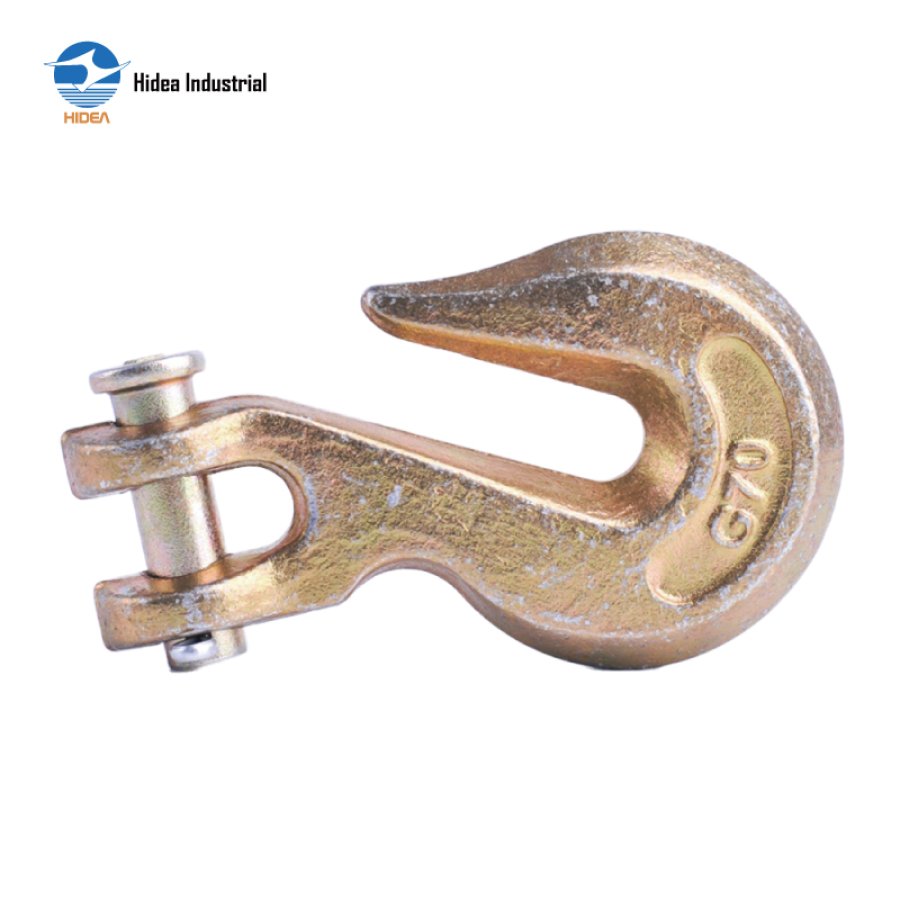

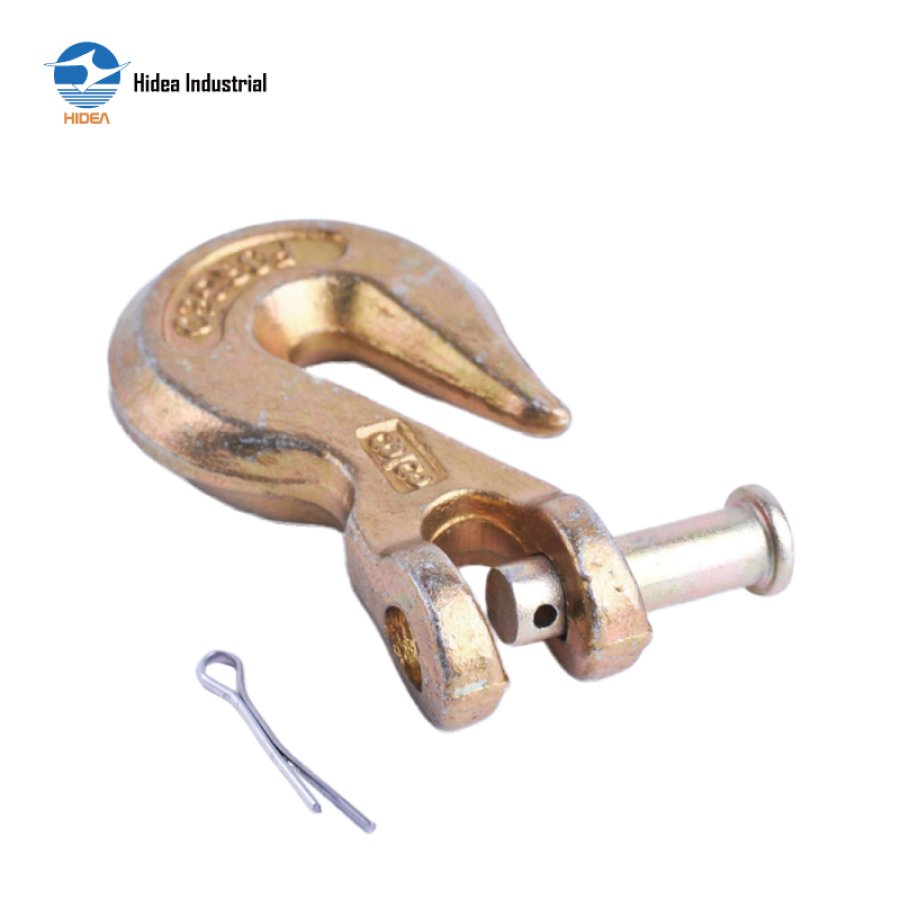

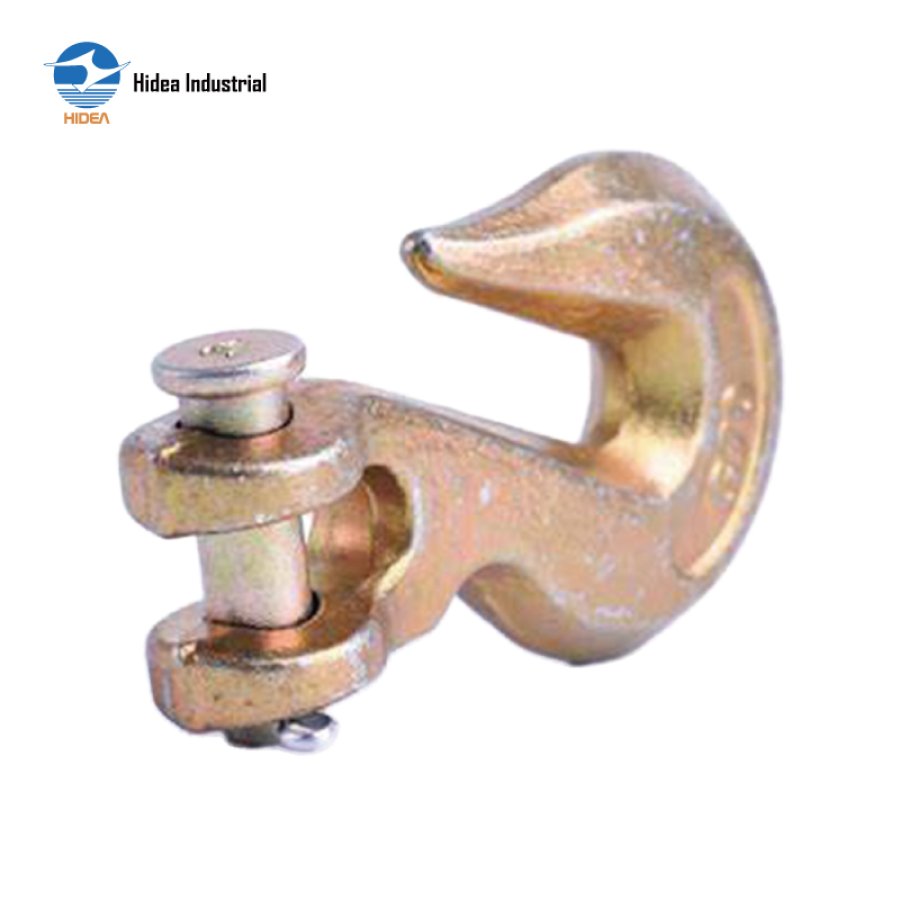

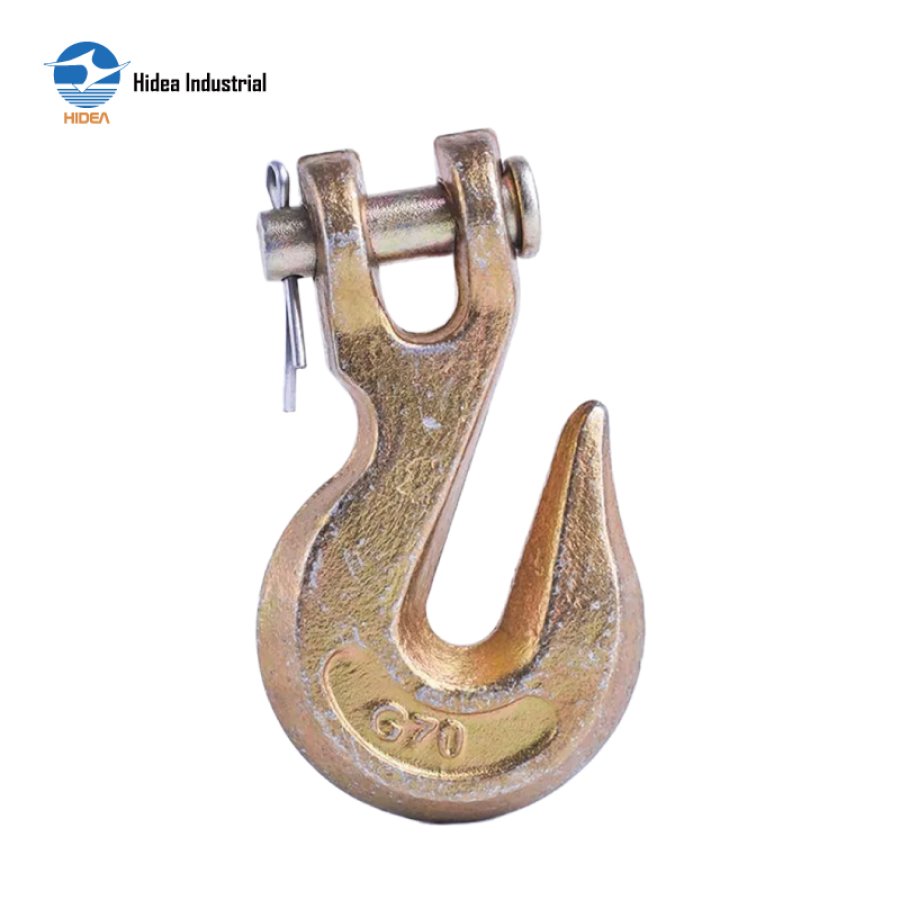

20RHCR203-G43/G70 CLEVIS GRAB HOOK H330/A330
| ITEMNO. | WEIGHT (Kg) | WLL(Ibs) | A±1 | B±1.5 | E±0.5 | H±1 | K±1 | L±2 | M±2 | N±1 | |
| CARBON ALLOY | |||||||||||
| 20RHCR203-1/4 | 0.20 | 2600 3150 | 8.5 | 25 | 9.5 | 19 | 45 | 78.5 | 47.4 | 12.5 | |
| 20RHCR203-5/16 | 0.37 | 3900 4700 | 11.5 | 29 | 11.5 | 25 | 54 | 96.5 | 54.5 | 16 | |
| 20RHCR203-3/8 | 0.49 | 5400 6600 | 12.5 | 35 | 12.2 | 31 | 64.5 | 114.5 | 67.5 | 18 | |
| 20RHCR203-7/16 | 0.74 | 7200 8750 | 17 | 42 | 14.5 | 33.5 | 70 | 126 | 76.8 | 19 | |
| 20RHCR203-1/2 | 1.07 | 9200 11300 | 18.5 | 47 | 17 | 39.5 | 85 | 148.5 | 91 | 20.5 | |
| 20RHCR203-5/8 | 1.94 | 13000 15800 | 23 | 56 | 20 | 45 | 102.5 | 177 | 109.5 | 22 | |
| 20RHCR203-3/4 | 2.95 | 20200 24700 | 24 | 66.5 | 24 | 54 | 118 | 207.5 | 132.6 | 33.3 | |
