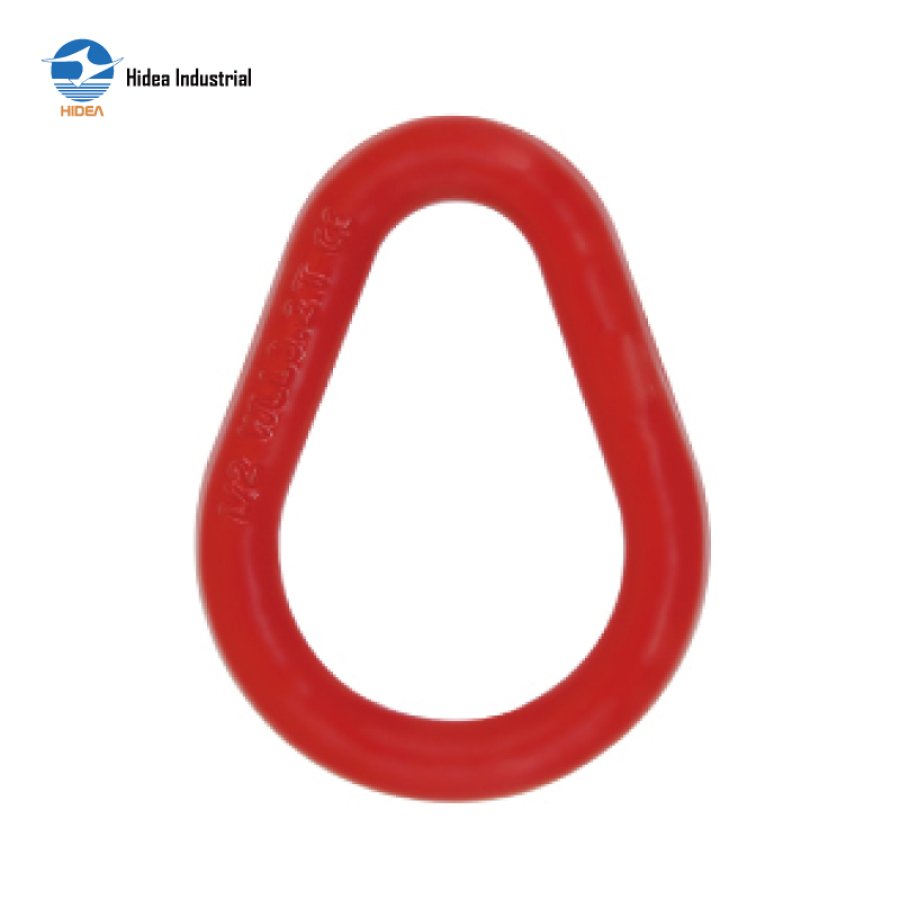

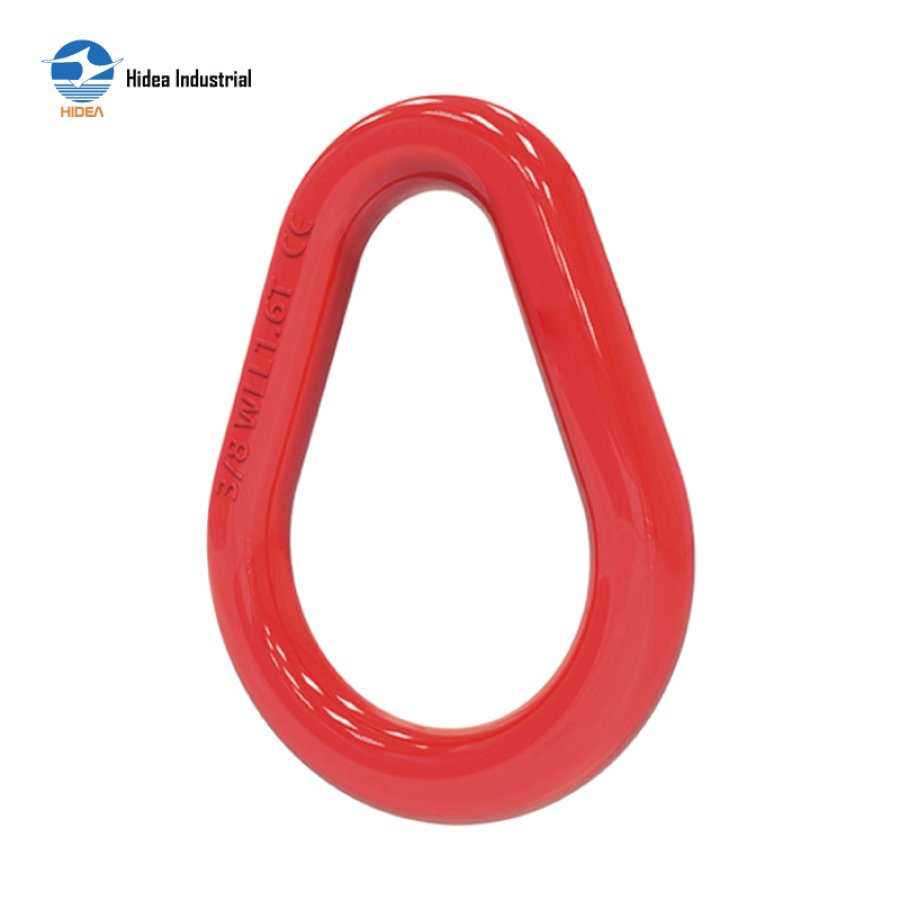

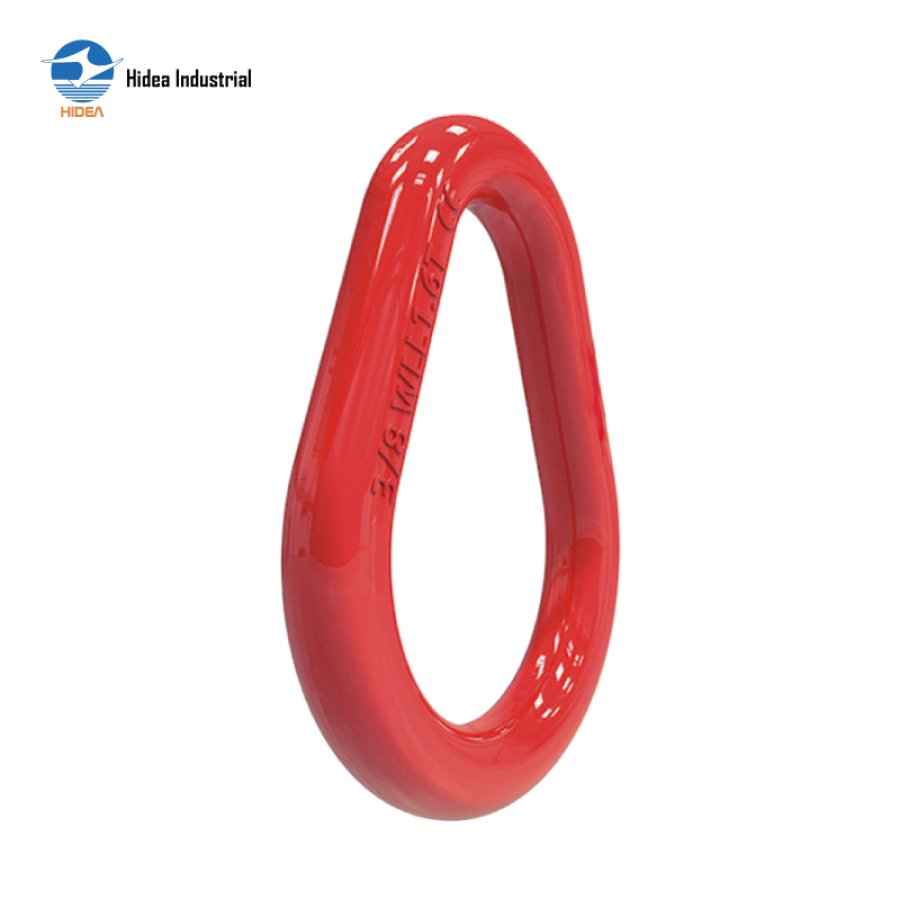

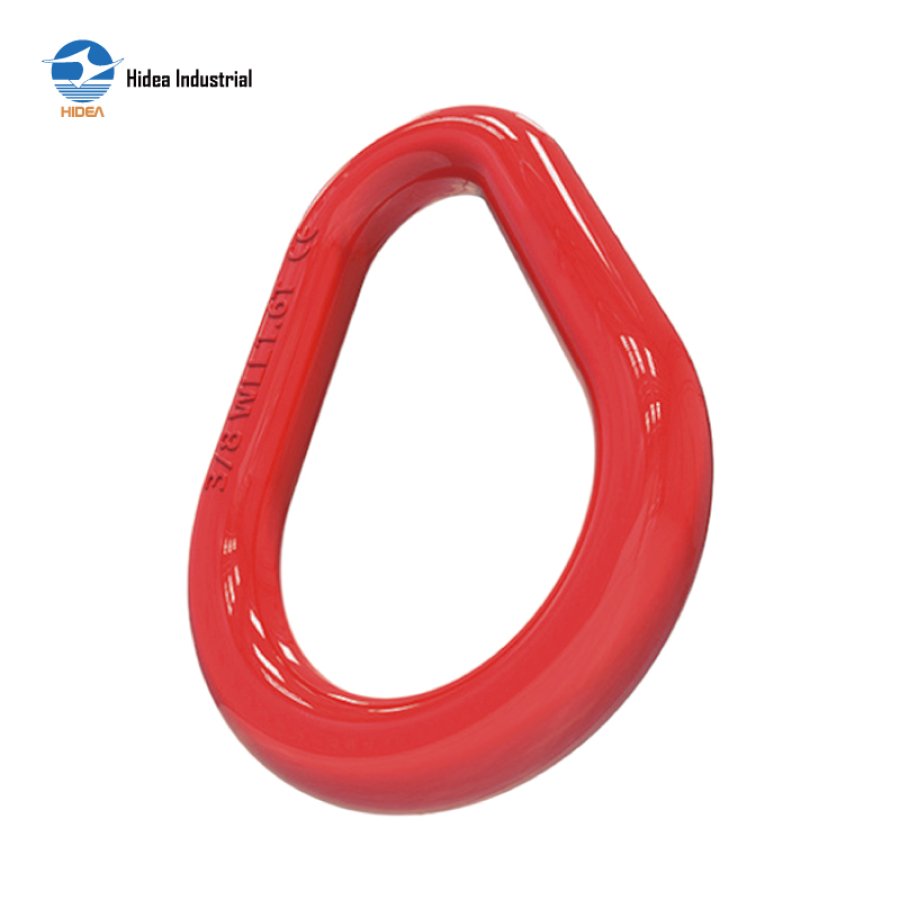

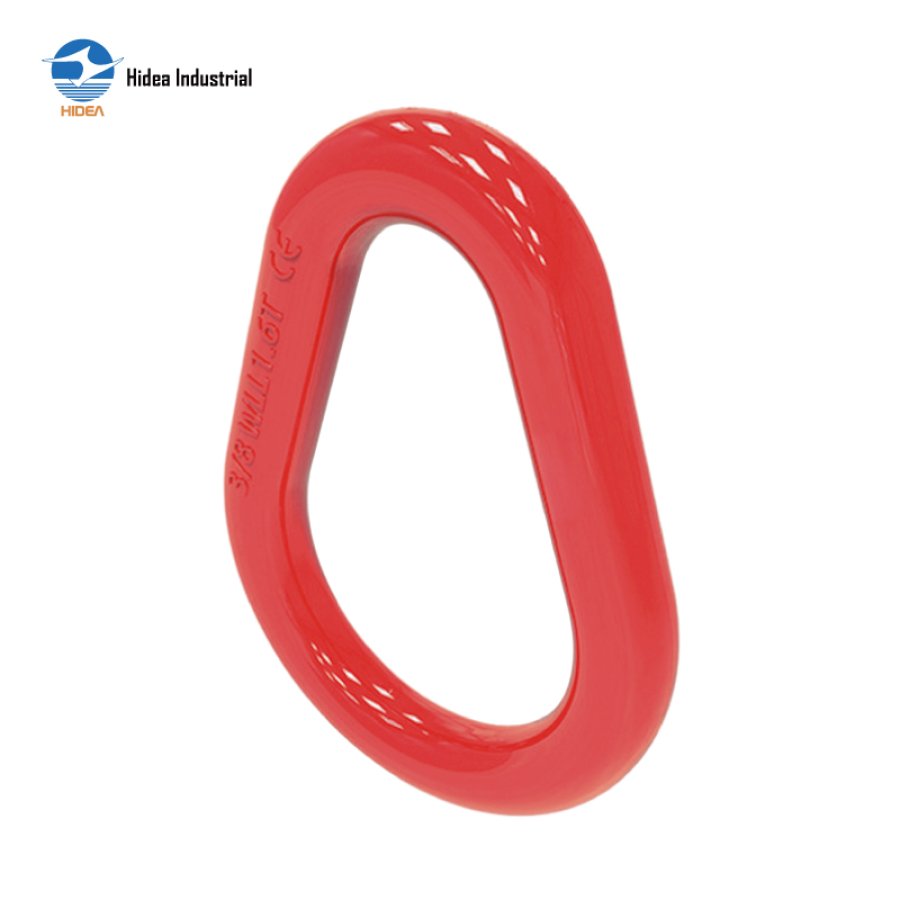

Hidea G80 Weldless Pear Shaped Link: Reliable and Strong for Hoisting and Lifting Operations

G80 FORGED ALLOY PEAR SHAPED LINK

Forged alloy steel-Quenched and Tempered
Regular mark: 1/2 WLL 3.2T

Inquire Now

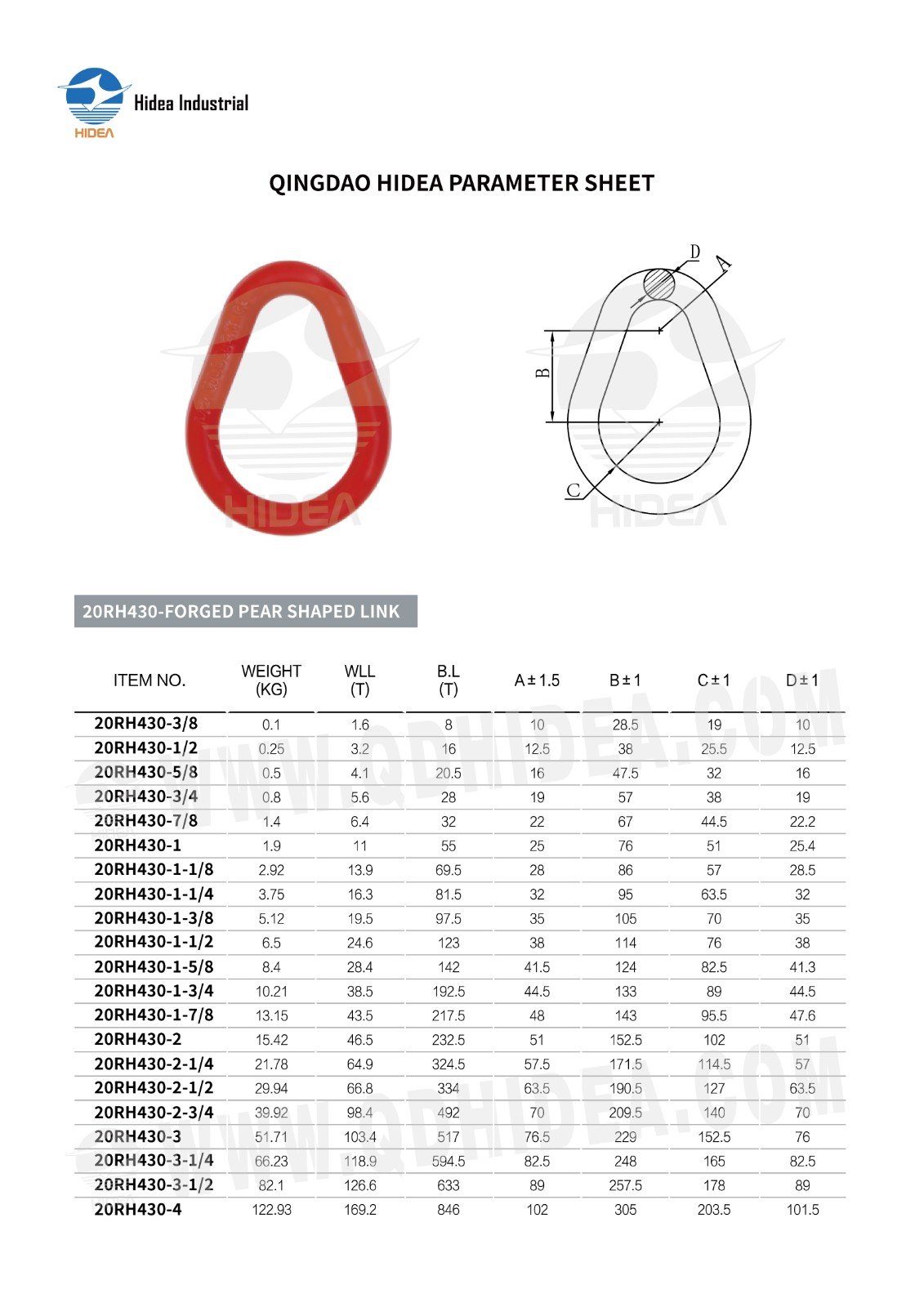

QINGDAO HIDEA PARAMETER SHEET FOR

20RH430-FORGED PEAR SHAPED LINK

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.5	B±1	C±1	D±1
20RH430-3/8	0.1	1.6	8	10	28.5	19	10
20RH430-1/2	0.25	3.2	16	12.5	38	25.5	12.5
20RH430-5/8	0.5	4.1	20.5	16	47.5	32	16
20RH430-3/4	0.8	5.6	28	19	57	38	19
20RH430-7/8	1.4	6.4	32	22	67	44.5	22.2
20RH430-1	1.9	11	55	25	76	51	25.4
20RH430-1-1/8	2.92	13.9	69.5	28	86	57	28.5
20RH430-1-1/4	3.75	16.3	81.5	32	95	63.5	32
20RH430-1-3/8	5.12	19.5	97.5	35	105	70	35
20RH430-1-1/2	6.5	24.6	123	38	114	76	38
20RH430-1-5/8	8.4	28.4	142	41.5	124	82.5	41.3
20RH430-1-3/4	10.21	38.5	192.5	44.5	133	89	44.5
20RH430-1-7/8	13.15	43.5	217.5	48	143	95.5	47.6
20RH430-2	15.42	46.5	232.5	51	152.5	102	51
20RH430-2-1/4	21.78	64.9	324.5	57.5	171.5	114.5	57
20RH430-2-1/2	29.94	66.8	334	63.5	190.5	127	63.5
20RH430-2-3/4	39.92	98.4	492	70	209.5	140	70
20RH430-3	51.71	103.4	517	76.5	229	152.5	76
20RH430-3-1/4	66.23	118.9	594.5	82.5	248	165	82.5
20RH430-3-1/2	82.1	126.6	633	89	257.5	178	89
20RH430-4	122.93	169.2	846	102	305	203.5	101.5
