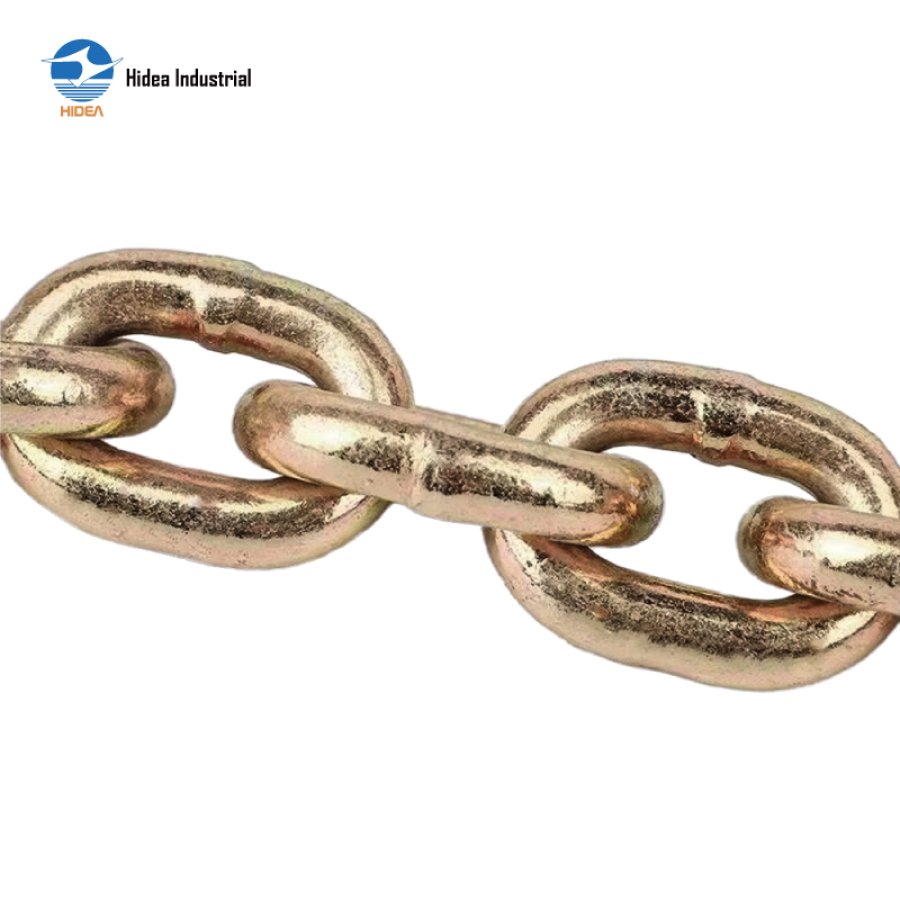

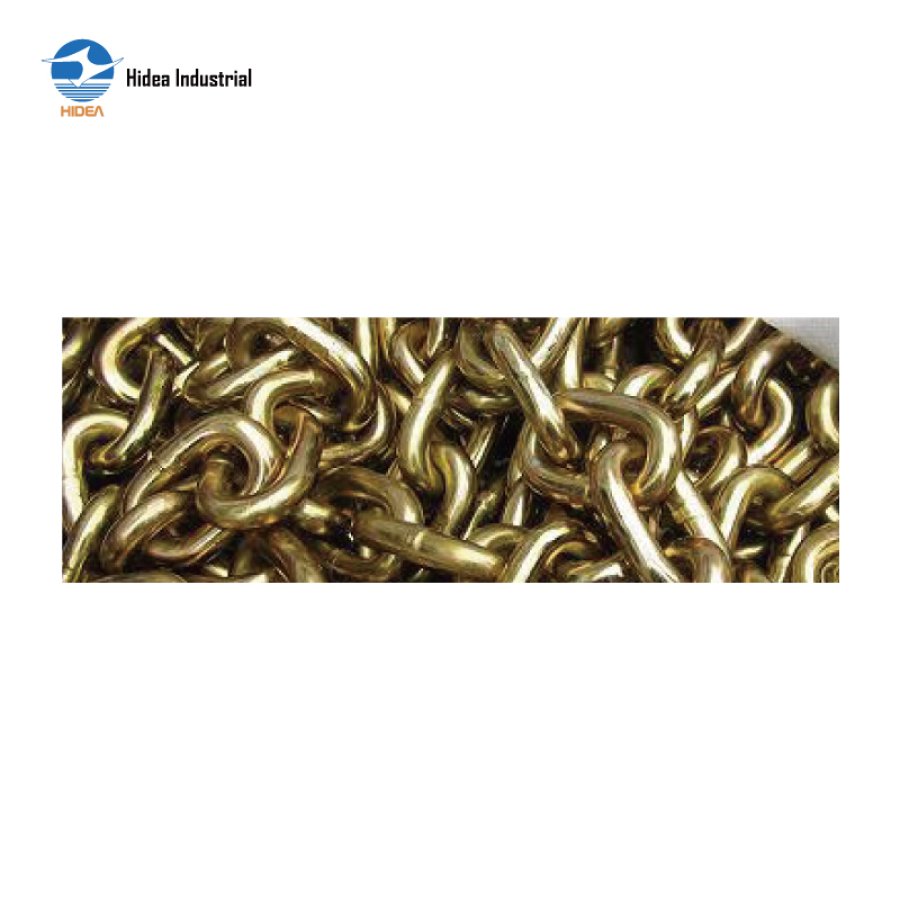

Hidea NACM96 Standard Link Chain: Reliable Solutions for Rigging, Securing, and Towing

NACM96 STANDARD LINK CHAIN

Material: Carbon Steel & Alloy Steel G30 / G43 / G70
Surface Treatment: Electro OR Hot Dip galvanized, Blackened or as requested
US NACM96 Standard Link Chain, Proof Coil Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC119 US NACM96 Standard Link Chain

Proof Coil Chain(G30)

Nominal Size		Working Load Max.		Breaking Load Min.		Inside Length Max.		Inside Width Min.		Weight
mm	in	kg	Ibs	kn	lbs	mm	in	mm	in	kg/m
4.0	1/8	180	400	7.2	1,600	23.9	0.94	6.4	0.25	0.28
5.5	3/16	365	800	1.44	3,200	24.8	0.98	7.7	0.30	0.57
7.0	1/4	580	1,300	23.2	5,200	31.5	1.24	9.8	0.38	0.92
8.0	5/16	860	1,900	33.8	7,600	32.8	1.29	11.2	0.44	1.24
10.0	3/8	1,200	2,650	47.2	10,600	35.0	1.38	14.0	0.55	2.07
11.9	7/16	1,680	3,700	65.8	14,800	41.5	1.64	16.8	0.65	2.93
13.0	1/2	2,030	4,500	80.0	18,000	45.6	1.79	18.2	0.72	3.49
16.0	5/8	3,130	6,900	122.6	27,600	56.0	2.20	20.0	0.79	5.21
20.0	3/4	4,800	10,600	188.6	42,400	70.0	2.76	25.0	0.98	8.14
22.0	7/8	5,810	12,800	228.2	51,200	77.0	3.03	27.5	1.08	9.86
26.0	1	8,140	17,900	318.2	71,600	90.9	3.58	31.7	1.25	12.56

NACM 96 High Test Chain (G43)

Nominal Size		Working Load Max.		Breaking Load Min.		Inside Length Max.		Inside Width Min.		Weight
mm	in	kg	lbs	kn	lbs	mm	n	mm	in	kg/m
7.0	1/4	1,180	2,600	34.5	7,800	31.5	1.24	9.8	0.38	0.92
8.7	5/16	1,770	3,900	52.0	11,700	32.8	1.29	11.2	0.44	1.50
10.0	3/8	2,450	5,400	72.0	16,200	35.0	1.38	14.0	0.55	2.07
11.9	7/16	3,270	7,200	96.0	21,600	41.6	1.64	16.6	0.65	2.93
13.0	1/2	4,170	9,200	122.6	27,600	45.5	1.79	18.2	0.72	3.50
16.0	5/8	5,910	13,000	173.0	39,000	56.0	2.20	20.0	0.79	5.21
20.0	3/4	9,180	20,200	269.4	60,600	70.0	2.76	25.0	0.98	8.14
22.0	7/8	11,140	24,500	326.6	73,500	77.0	3.03	27.5	1.08	9.86

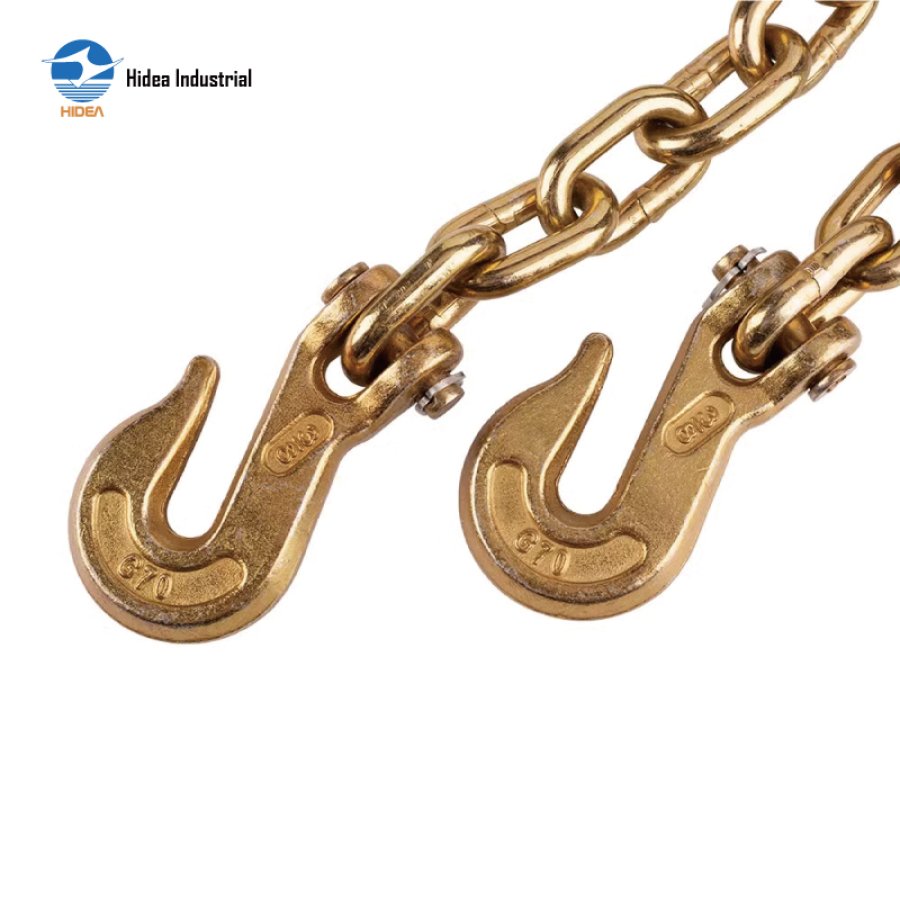

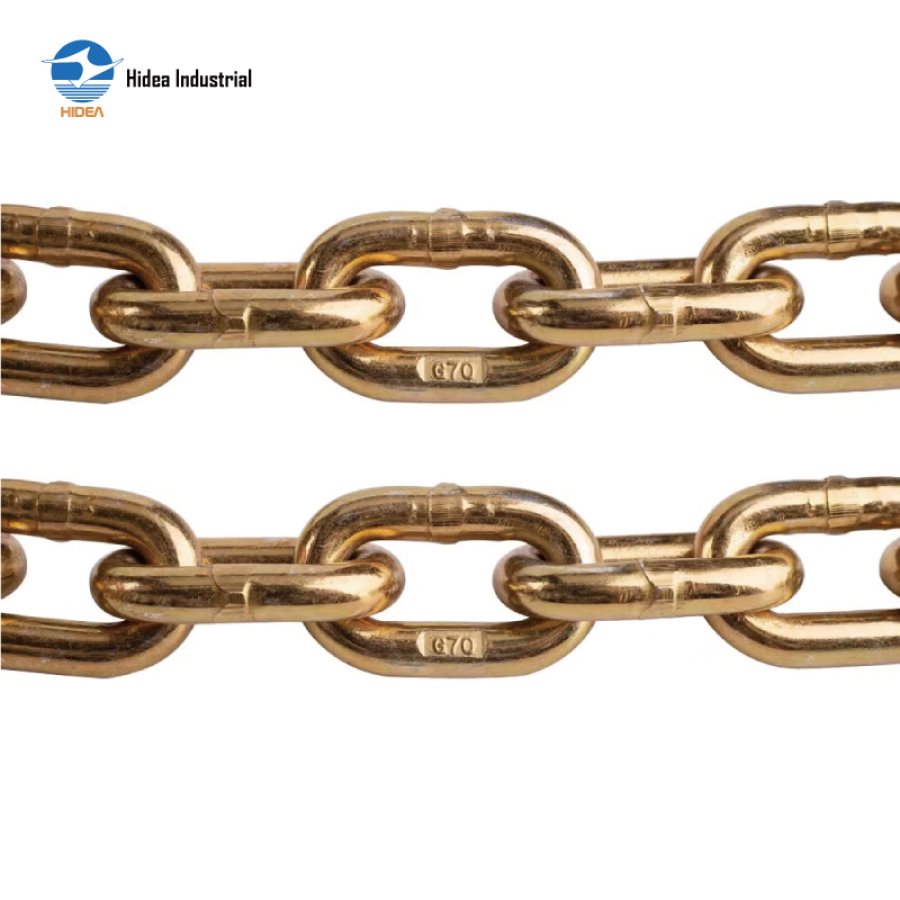

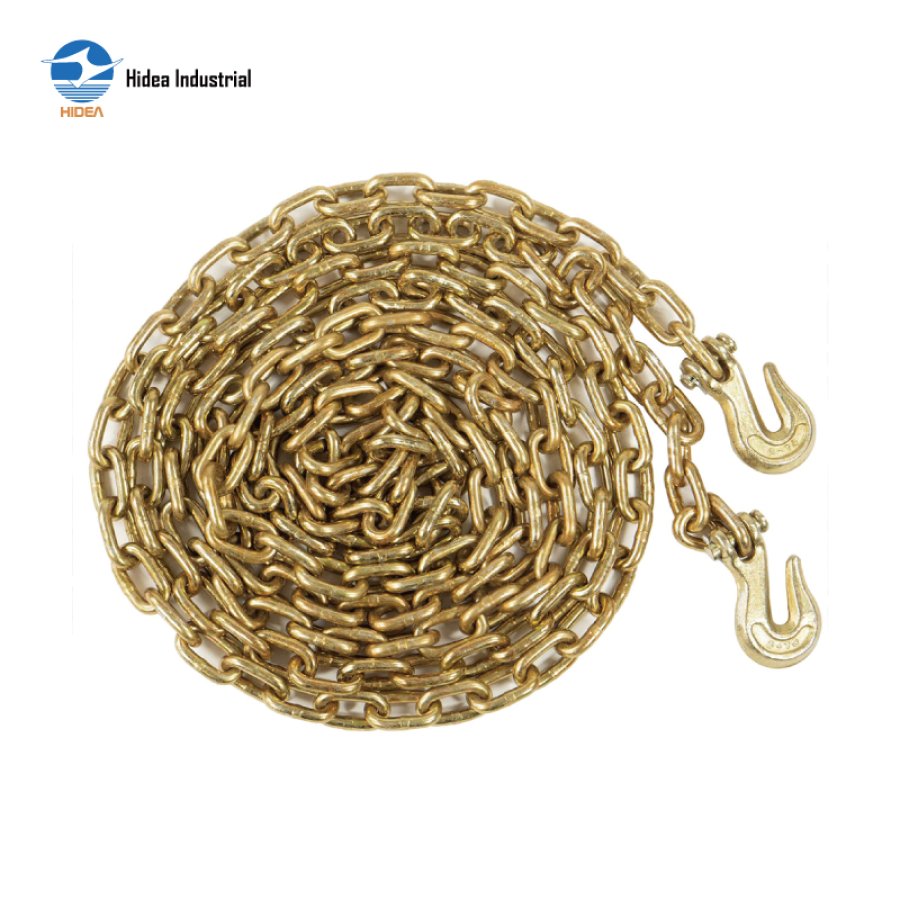

Transport Chain (G70)

Nominal Size		Working Load Max.		Breaking Load Min.		Inside Length Max.		Inside Width Min.		Weight
mm	in	kg	lbs	kn	lbs	mm	n	mm	in	kg/m
7.0	1/4	1,430	3,150	56.0	12,600	31.5	1.24	9.8	0.38	0.92
8.7	5/16	2,130	4,700	83.6	18,800	32.8	1.29	11.2	0.44	1.50
10.0	3/8	2,990	6,600	117.4	26,400	35.0	1.38	14.0	0.55	2.07
11.9	7/16	3,970	8,750	155.4	35,000	41.6	1.64	16.6	0.65	2.93
13.0	1/2	5,130	11,300	200.8	45,200	45.5	1.79	18.2	0.72	3.49
16.0	5/8	7,170	15,800	280.8	63,200	56.0	2.20	20.0	0.79	5.21
20.0	3/4	11,200	24,700	439.2	98,800	70.0	2.76	25.0	0.98	8.14
