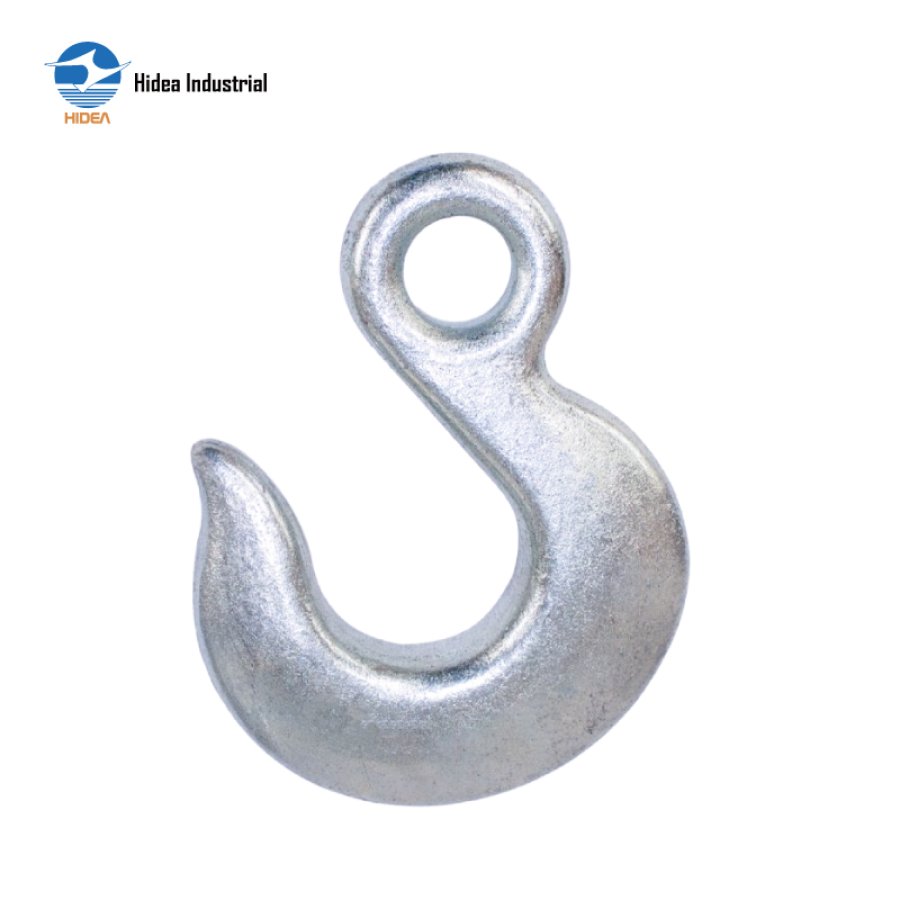

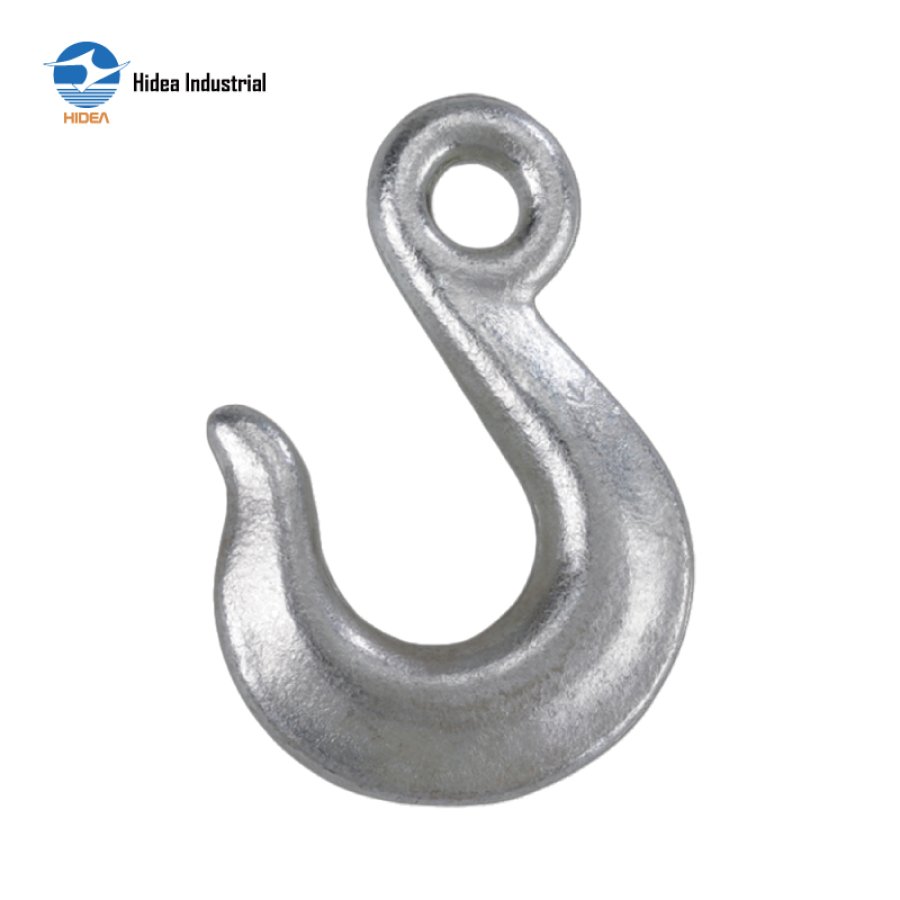

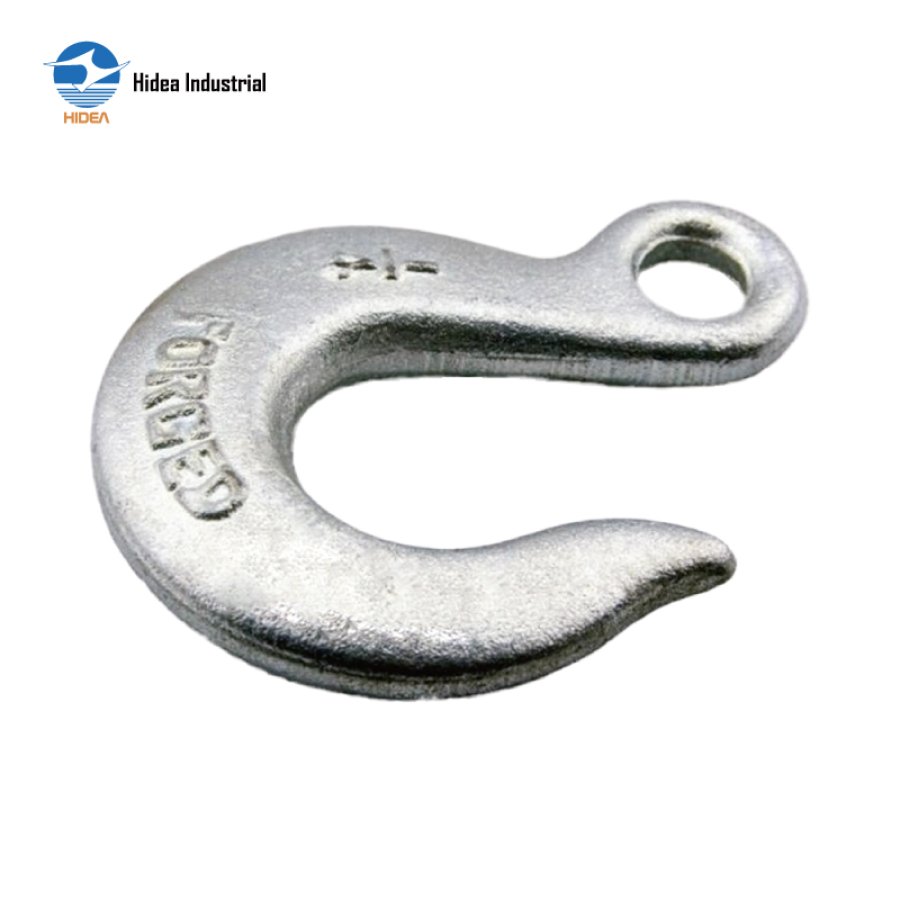

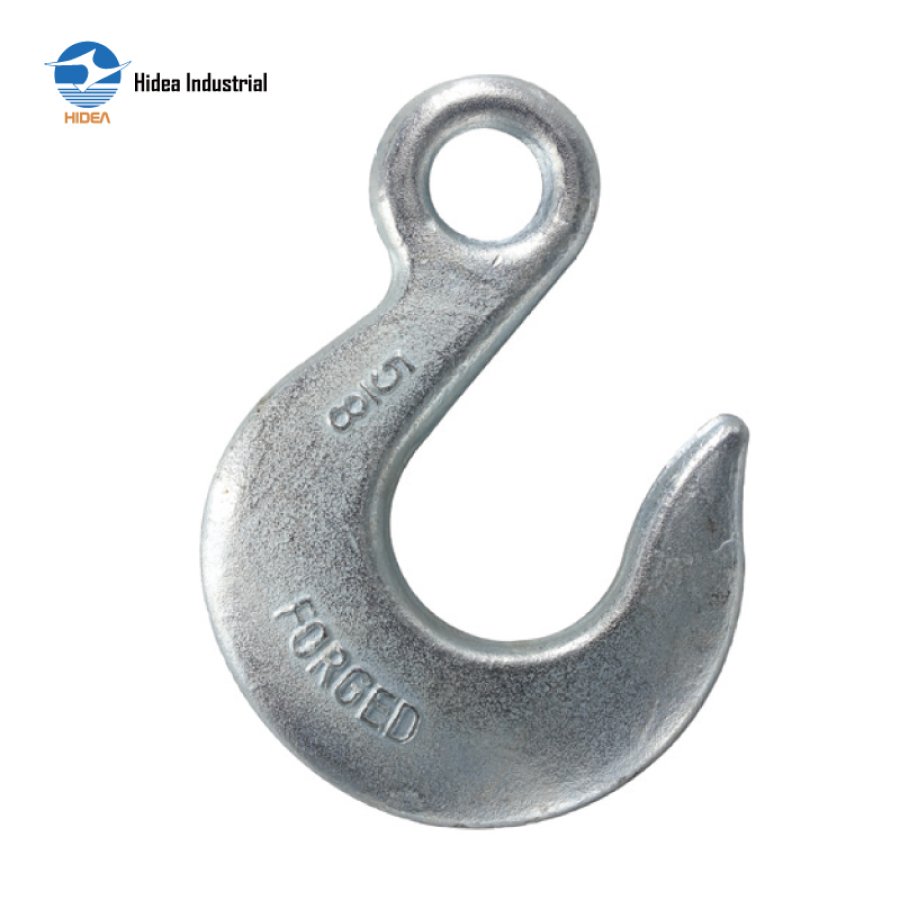

Maximum Strength with Hidea G70/G43 Forged Eye Slip Hook

G43/G70 EYE SLIP HOOK H324/A324

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 4:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR207-G43/G70 EYE SLIP HOOK H324/A324

ITEM NO.	WEIGHT (kg)	WLL/bs(4:1)		Ø±2	R±2	L±3	M±3	E±2
ITEM NO.	WEIGHT (kg)	CARBON	ALLOY	Ø±2	R±2	L±3	M±3	E±2
20RHCR207-1/4	0.20	1950	2750	12.7	65	92	68.5	23
20RHCR207-5/16	0.29	2875	4300	16	72.5	106	76	26
20RHCR207-3/8	0.50	4000	5250	18	86.5	124	89.5	33
20RHCR207-7/16	0.73	5000	7000	20.5	98.5	142	108	40
20RHCR207-1/2	1.17	6500	9000	23	109.5	156	116.5	43
20RHCR207-5/8	2.09	9250	13500	28.8	132.5	195	143	52
20RHCR207-3/4	2.95	12500	19250	35	147.5	222	169	55
