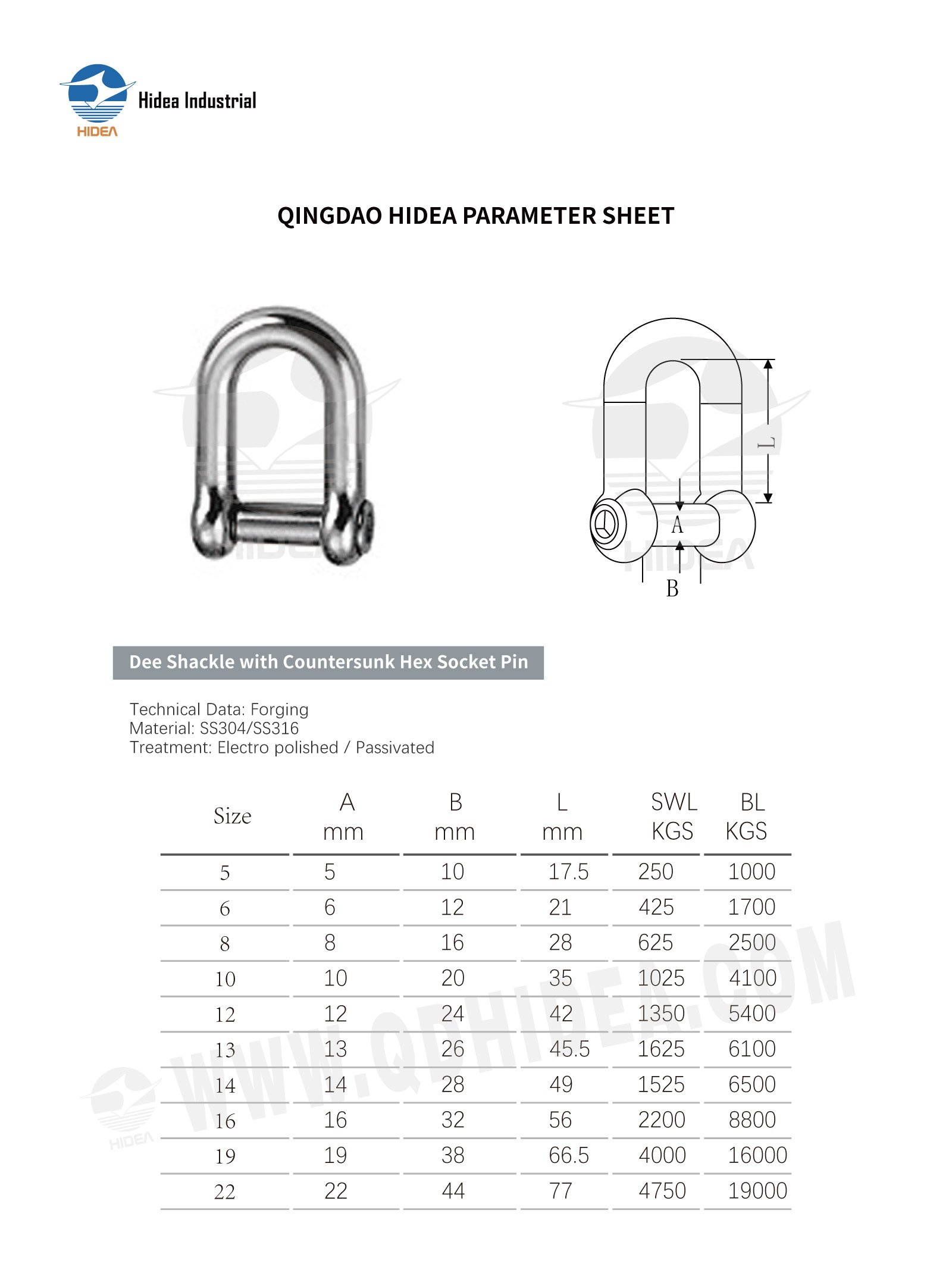

QINGDAO HIDEA PARAMETER SHEET FOR

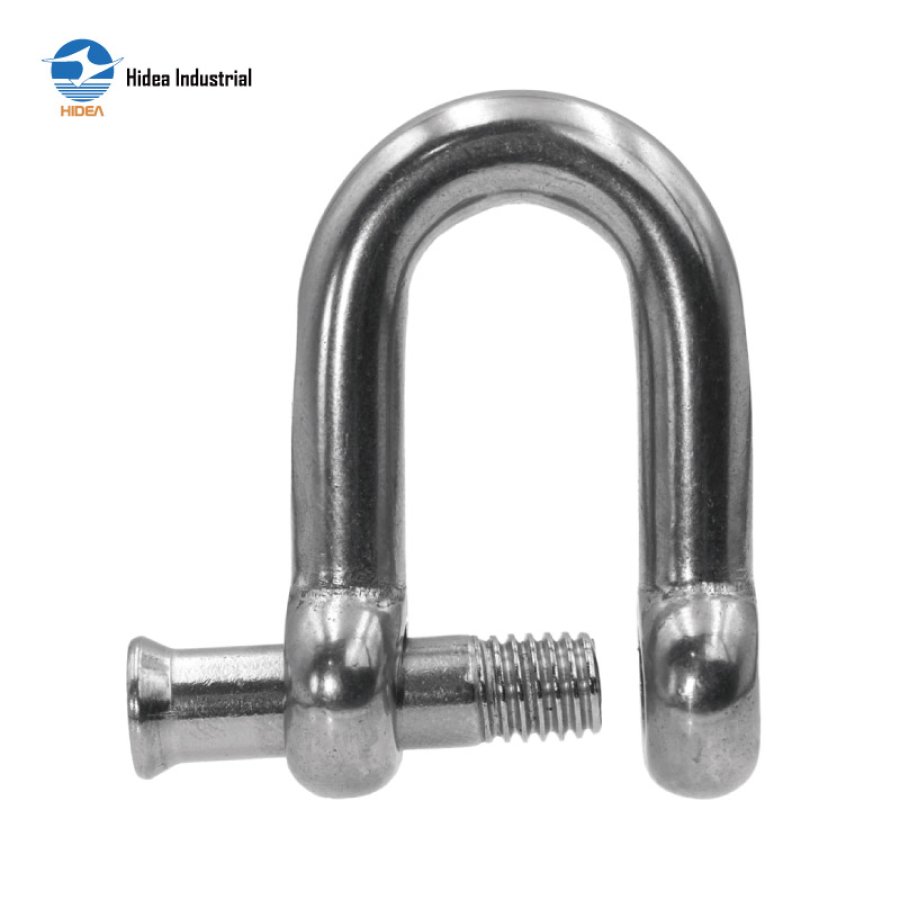

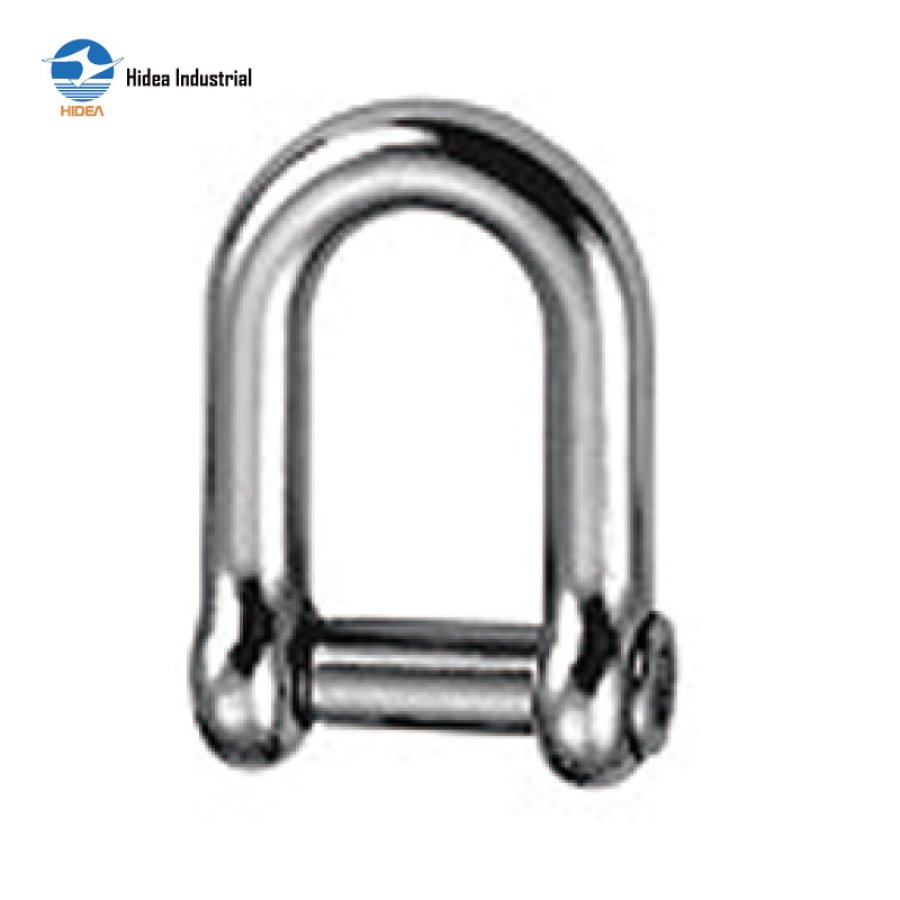

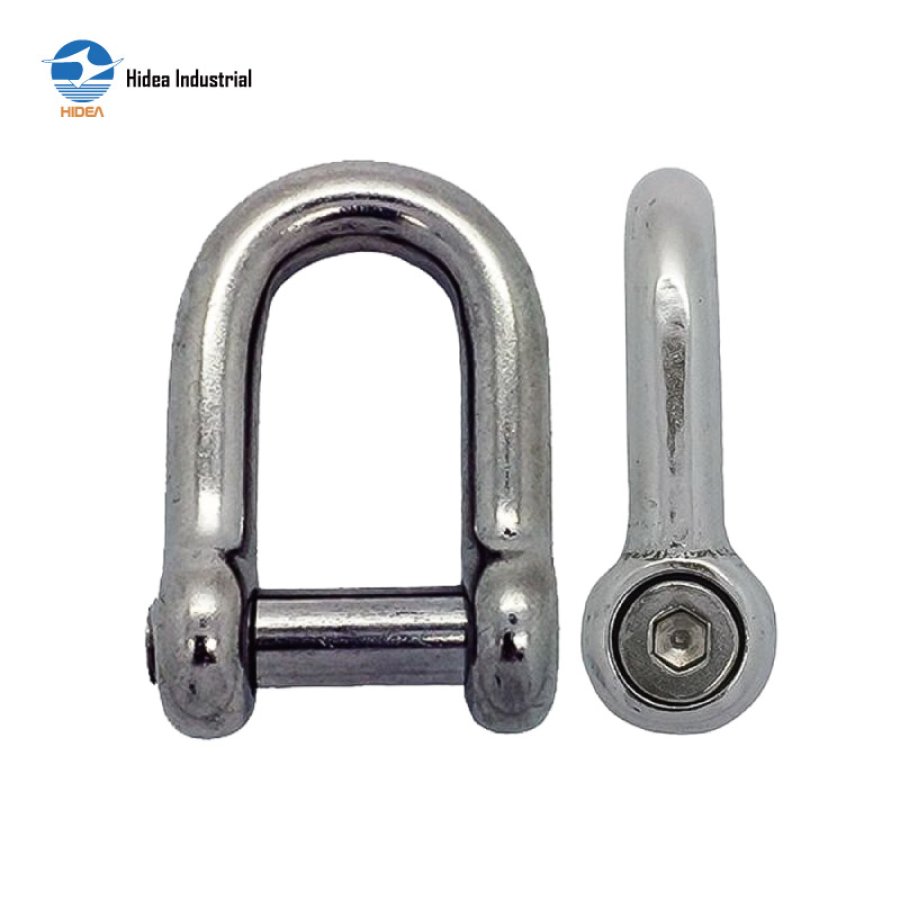

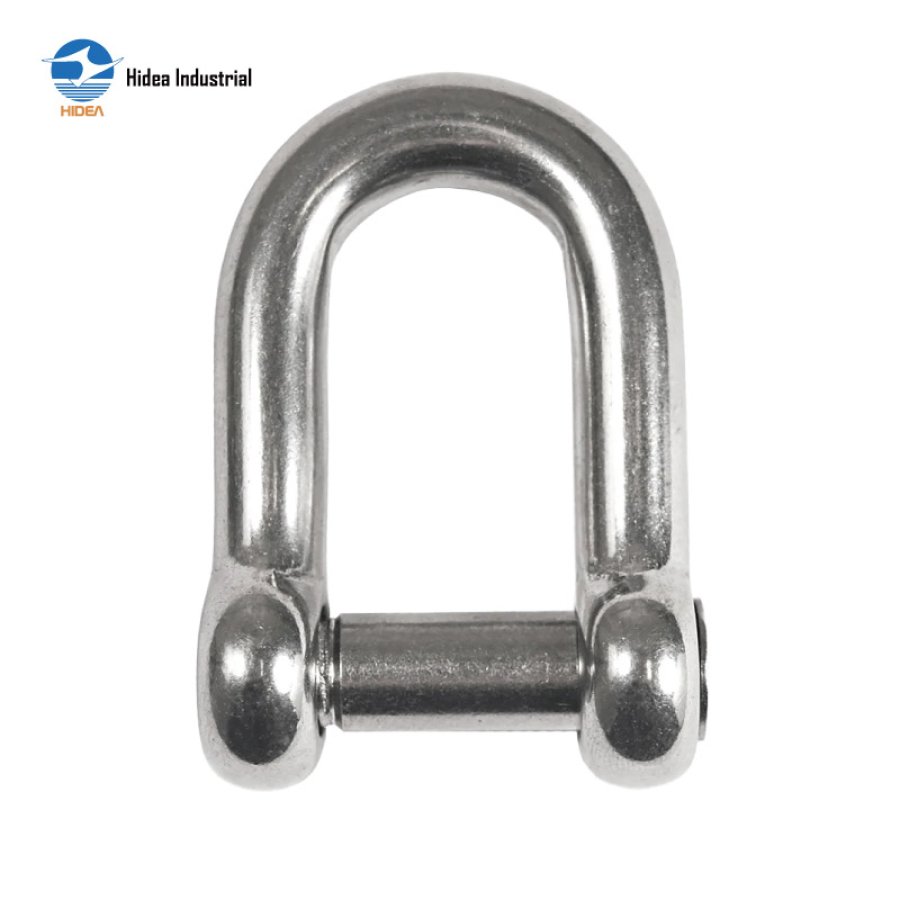

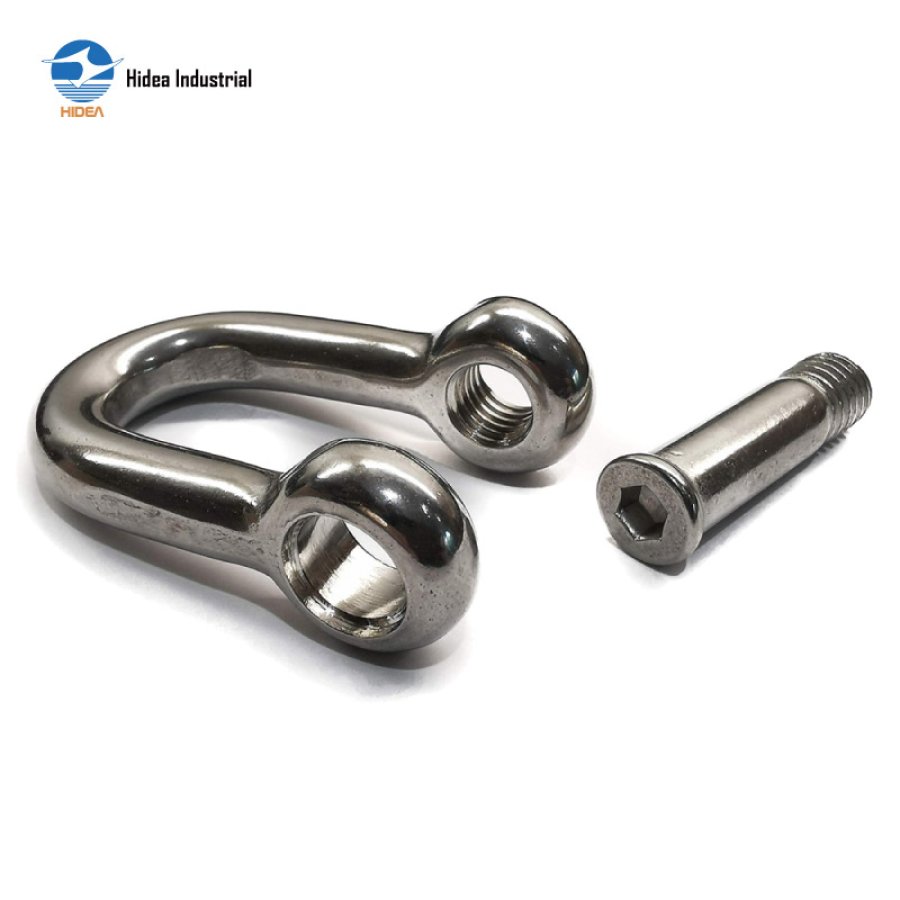

Dee Shackle with Countersunk Hex Socket Pin
| Size | A mm | B mm | L mm | SWL KGS | BL KGS |
| 5 | 5 | 10 | 17.5 | 250 | 1000 |
| 6 | 6 | 12 | 21 | 425 | 1700 |
| 8 | 8 | 16 | 28 | 625 | 2500 |
| 10 | 10 | 20 | 35 | 1025 | 4100 |
| 12 | 12 | 24 | 42 | 1350 | 5400 |
| 13 | 13 | 26 | 45.5 | 1625 | 6100 |
| 14 | 14 | 28 | 49 | 1525 | 6500 |
| 16 | 16 | 32 | 56 | 2200 | 8800 |
| 19 | 19 | 38 | 66.5 | 4000 | 16000 |
| 22 | 22 | 44 | 77 | 4750 | 19000 |
