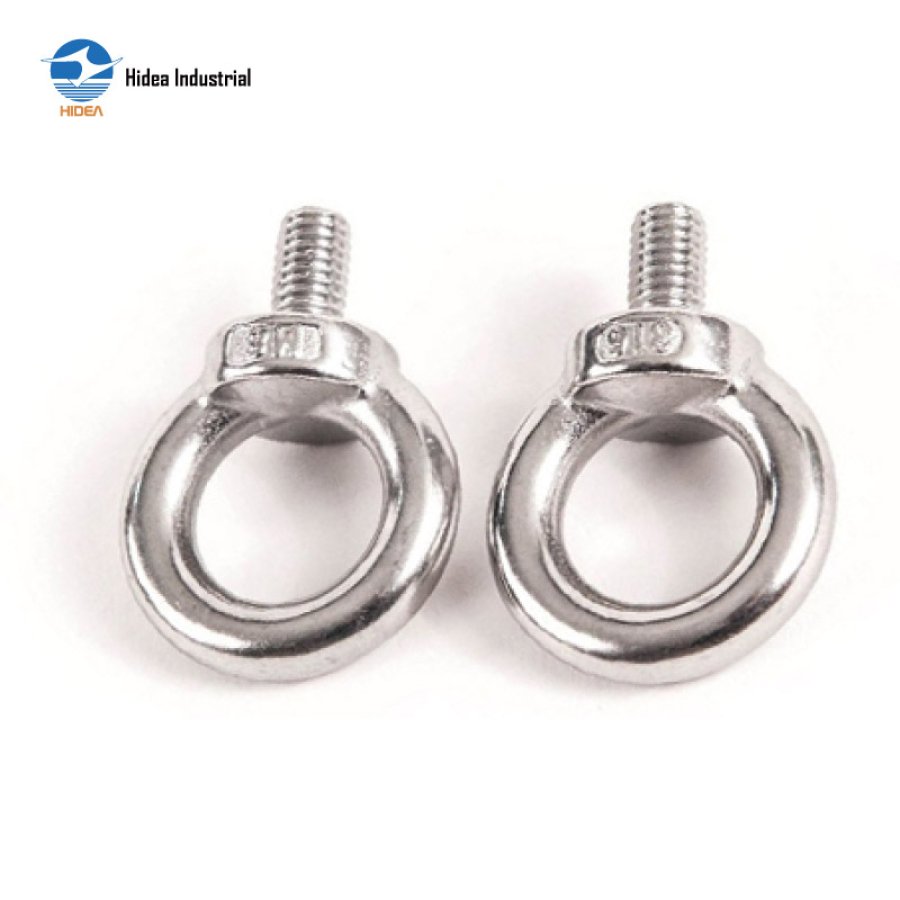

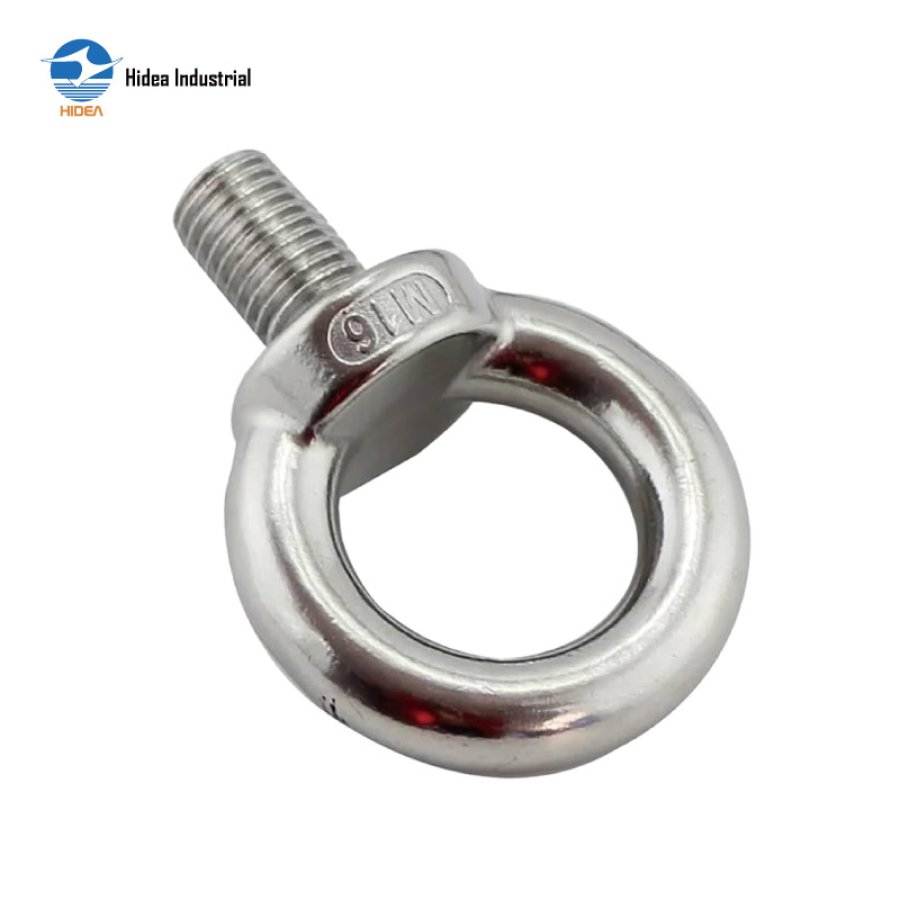

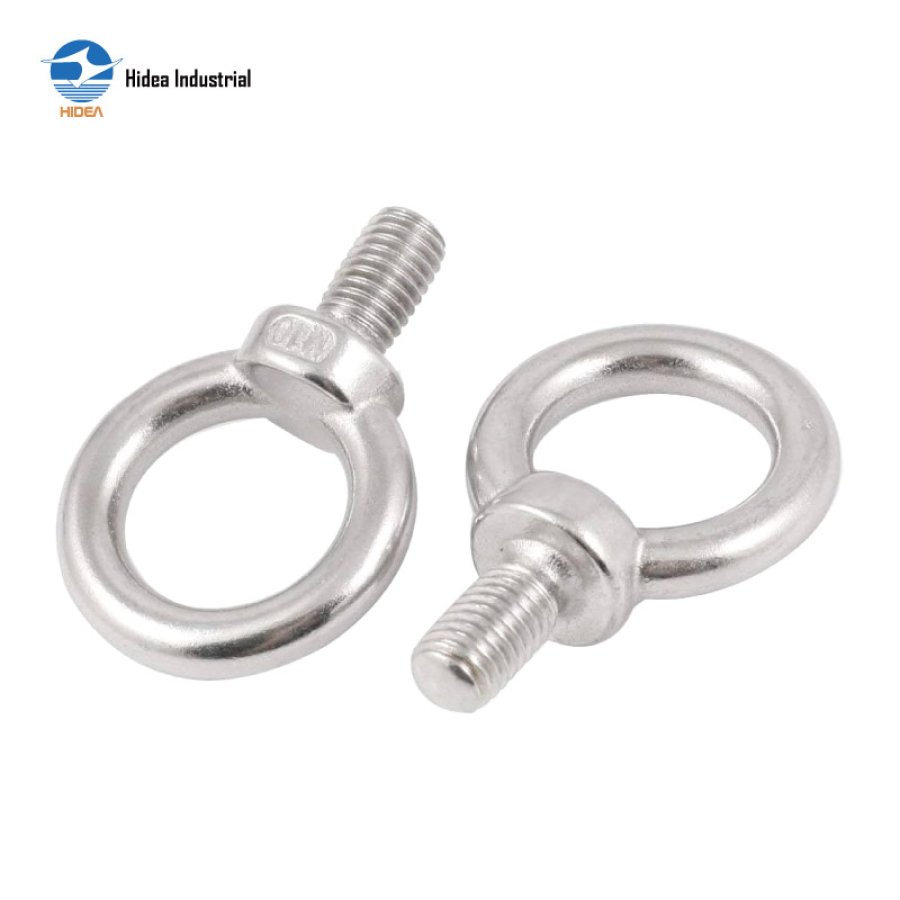

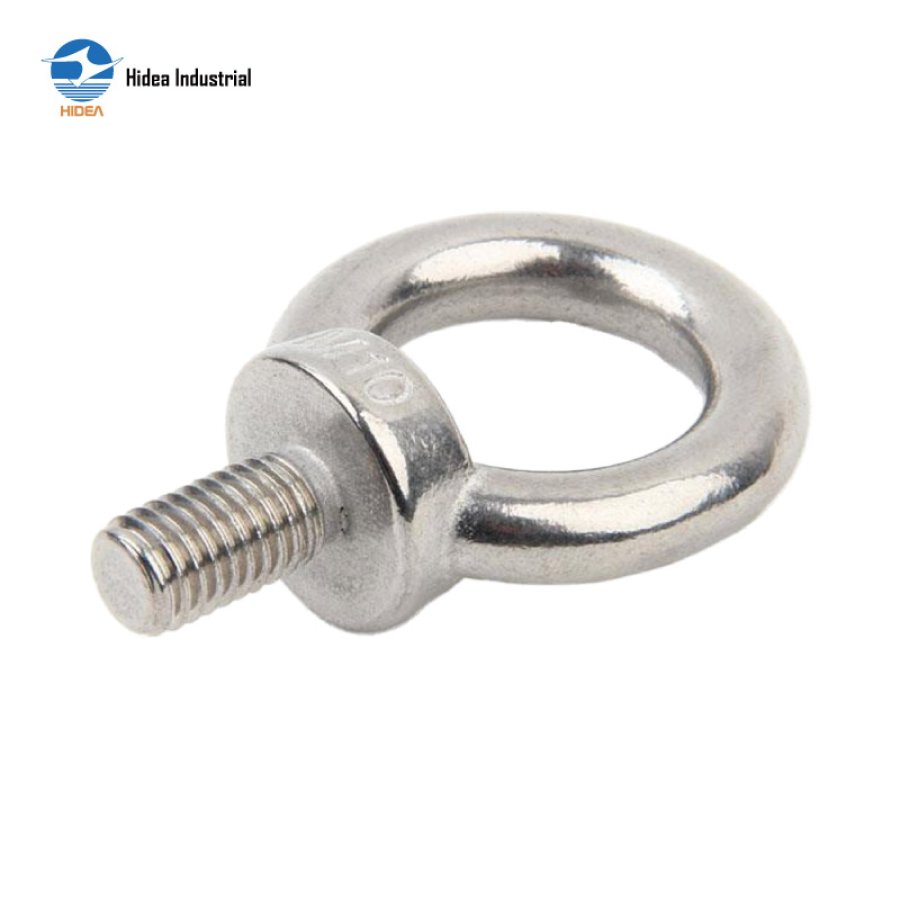

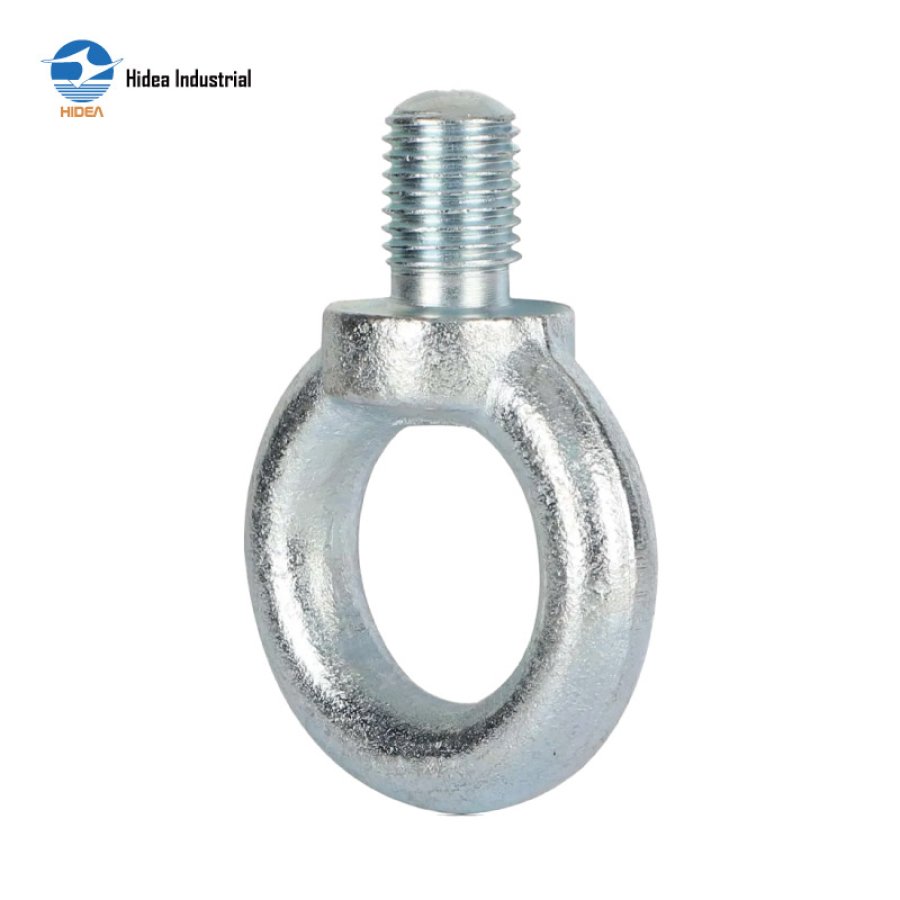

HIDEA JIS 1168 Lifting Eye Bolt: Reliable, Strong, and Corrosion-Resistant

JIS1168 EYE BOLT

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

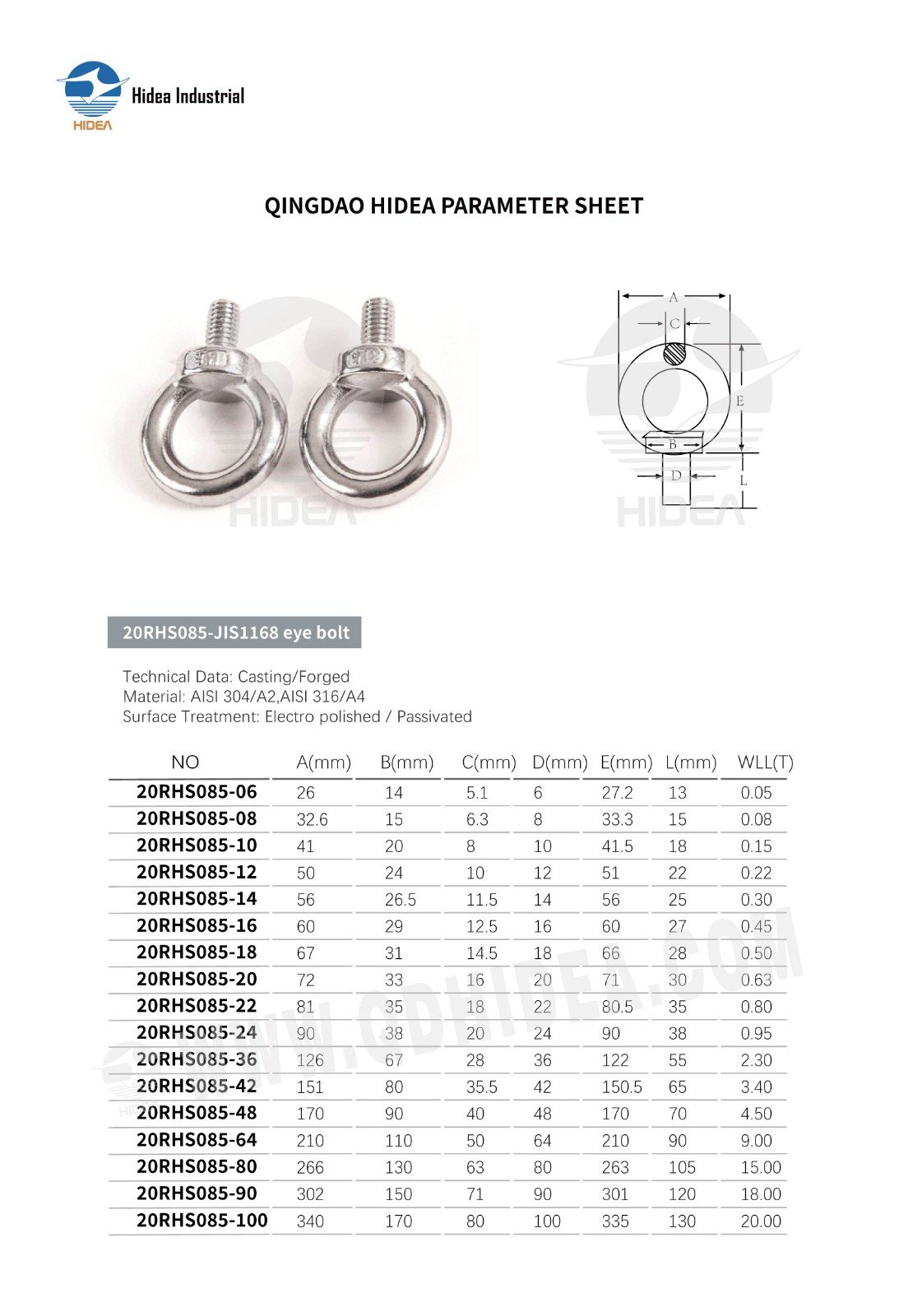

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS085-JIS1168 eye bolt

NO	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	L(mm)	WLL(T)
20RHS085-06	26	14	5.1	6	27.2	13	0.05
20RHS085-08	32.6	15	6.3	8	33.3	15	0.08
20RHS085-10	41	20	8	10	41.5	18	0.15
20RHS085-12	50	24	10	12	51	22	0.22
20RHS085-14	56	26.5	11.5	14	56	25	0.30
20RHS085-16	60	29	12.5	16	60	27	0.45
20RHS085-18	67	31	14.5	18	66	28	0.50
20RHS085-20	72	33	16	20	71	30	0.63
20RHS085-22	81	35	18	22	80.5	35	0.80
20RHS085-24	90	38	20	24	90	38	0.95
20RHS085-36	126	67	28	36	122	55	2.30
20RHS085-42	151	80	35.5	42	150.5	65	3.40
20RHS085-48	170	90	40	48	170	70	4.50
20RHS085-64	210	110	50	64	210	90	9.00
20RHS085-80	266	130	63	80	263	105	15.00
20RHS085-90	302	150	71	90	301	120	18.00
20RHS085-100	340	170	80	100	335	130	20.00
