HIDEA G-279 Shoulder Type Machinery Eye Bolt: Strong, Corrosion-Resistant Solution for Lifting Tasks

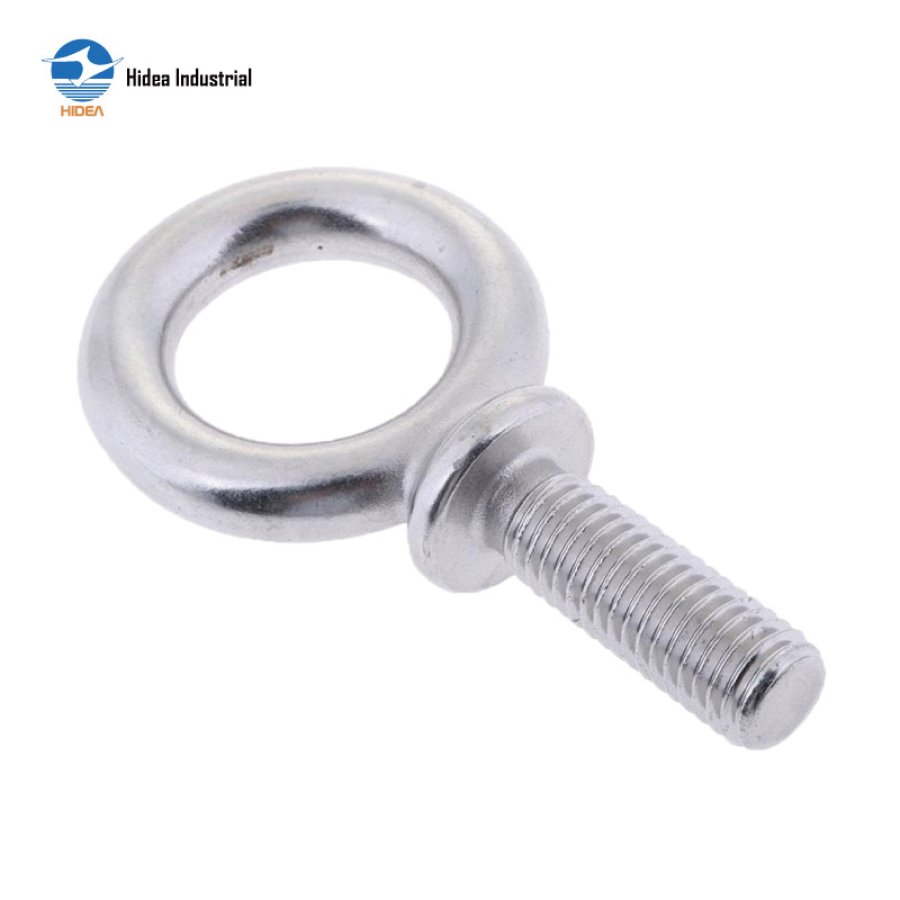

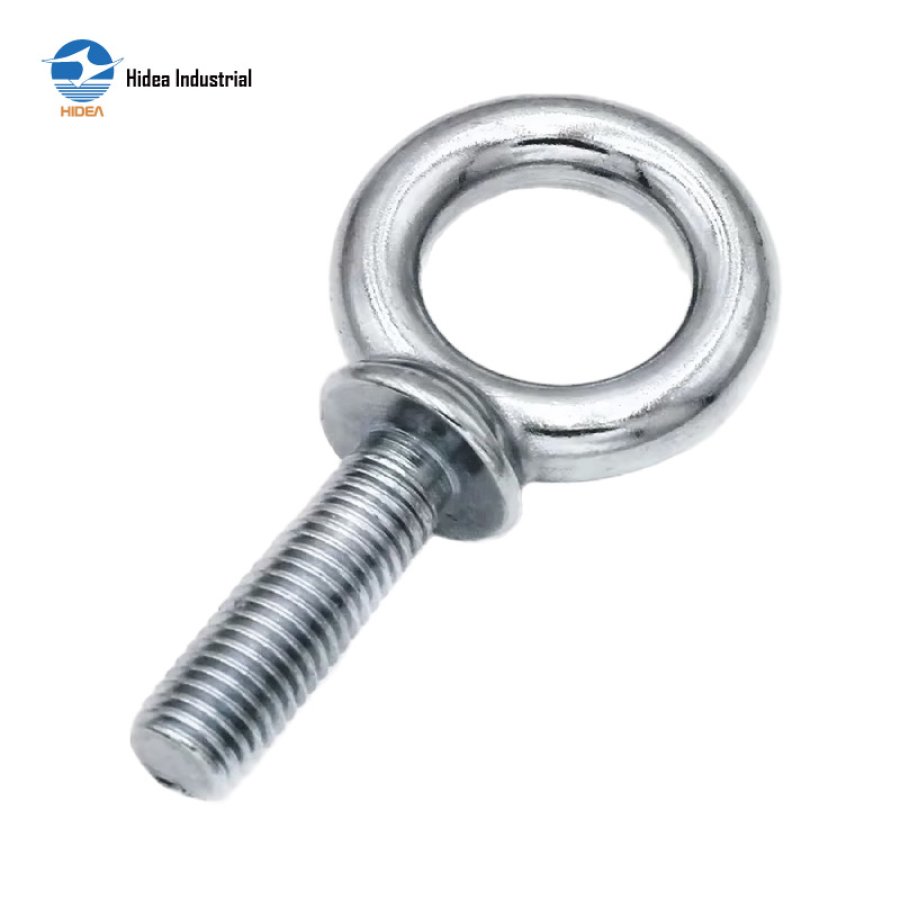

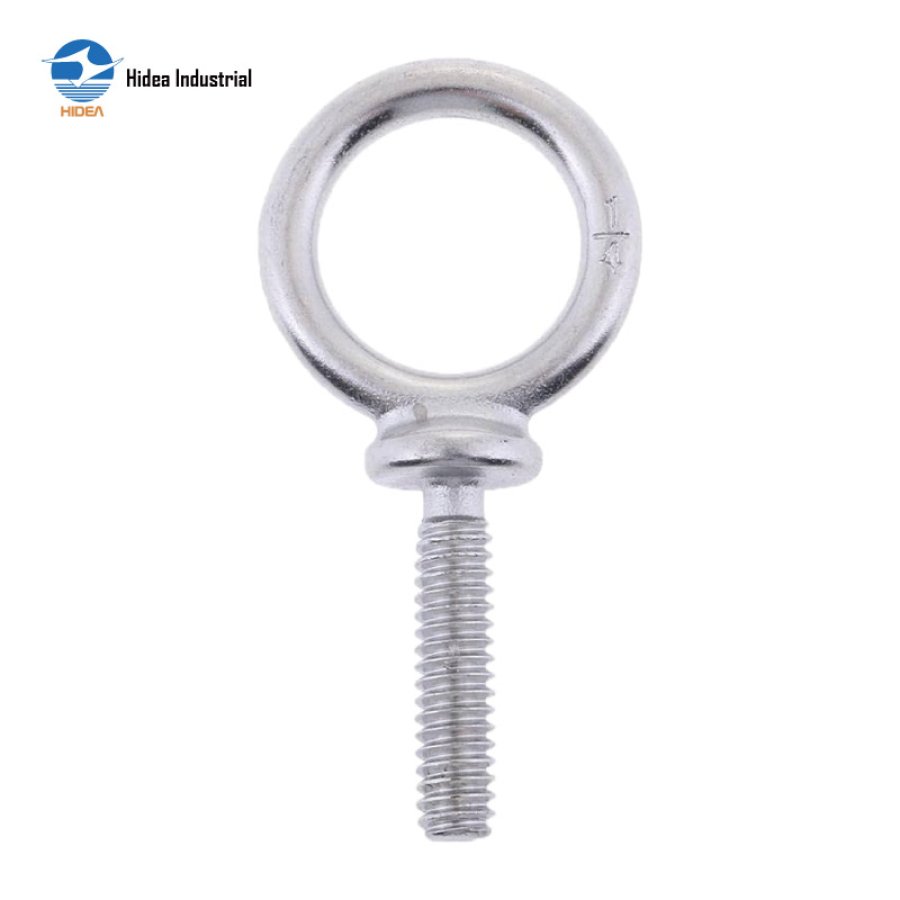

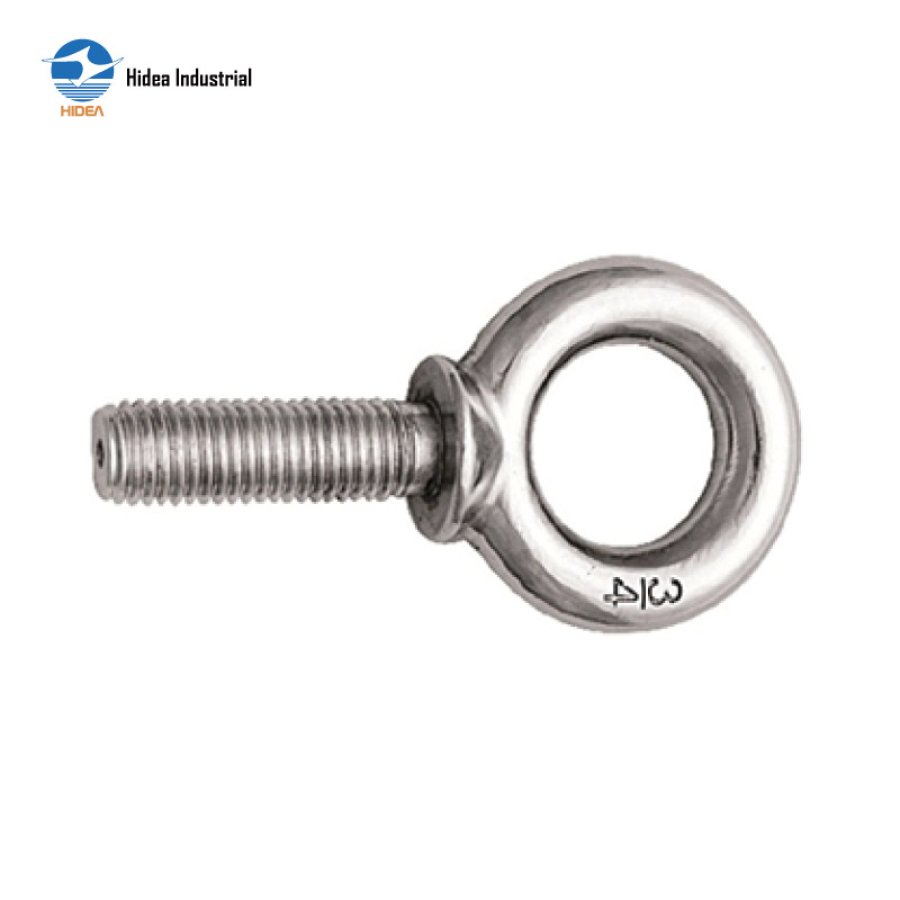

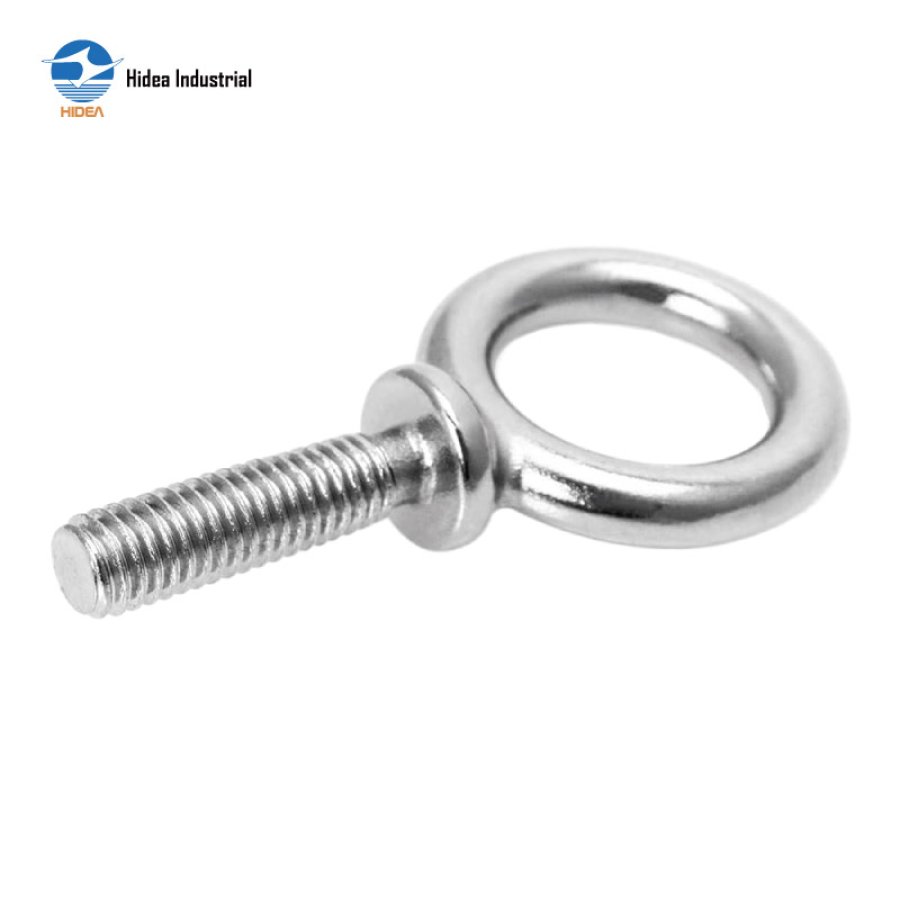

US EYE BOLT S-279

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

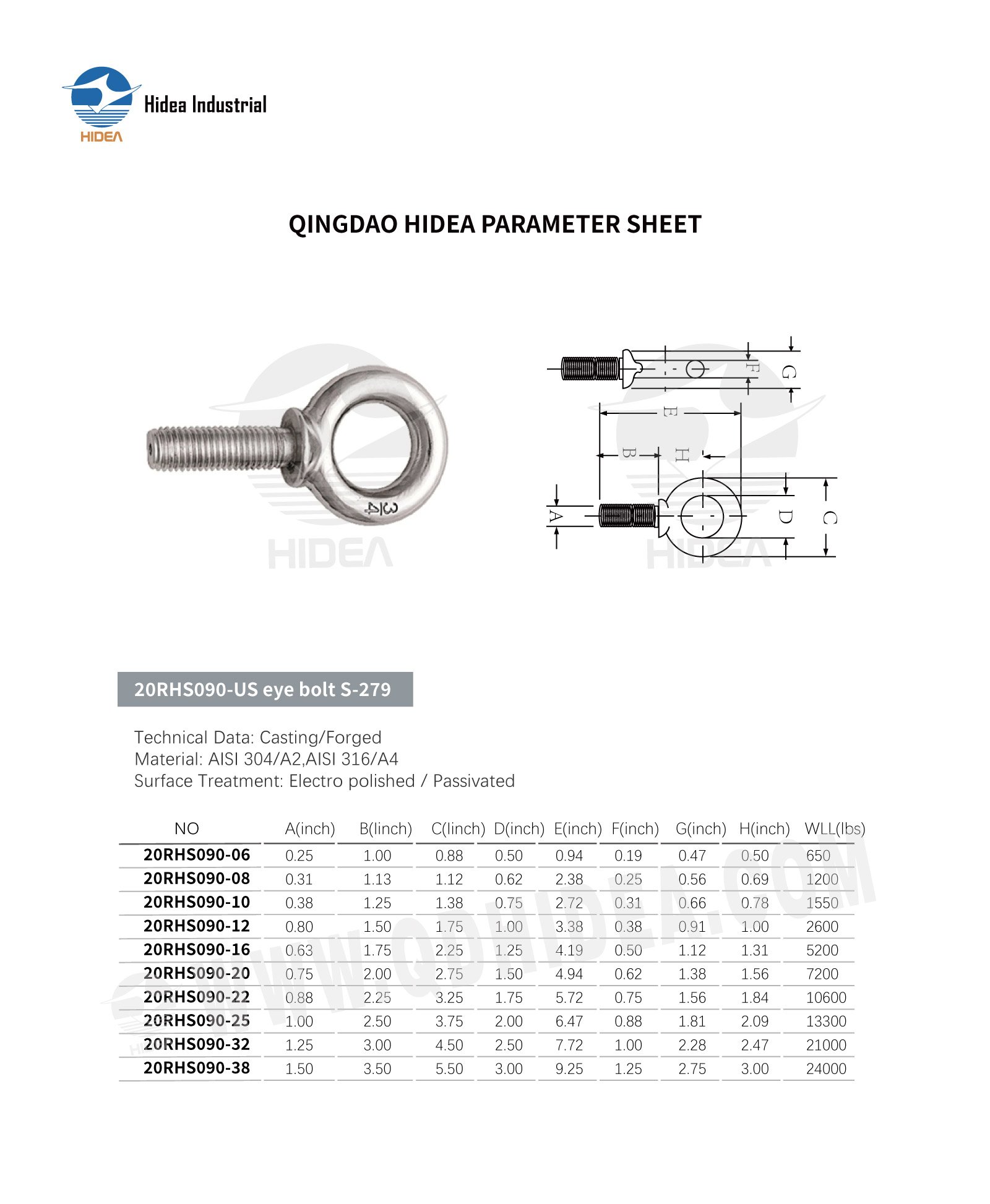

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS090-US eye bolt S-279

NO	A(inch)	B(linch)	C(linch)	D(inch)	E(inch)	F(inch)	G(inch)	H(inch)	WLL(Ibs)
20RHS090-06	0.25	1.00	0.88	0.50	0.94	0.19	0.47	0.50	650
20RHS090-08	0.31	1.13	1.12	0.62	2.38	0.25	0.56	0.69	1200
20RHSO90-10	0.38	1.25	1.38	0.75	2.72	0.31	0.66	0.78	1550
20RHS090-12	0.80	1.50	1.75	1.00	3.38	0.38	0.91	1.00	2600
20RHS090-16	0.63	1.75	2.25	1.25	4.19	0.50	1.12	1.31	5200
20RHS090-20	0.75	2.00	2.75	1.50	4.94	0.62	1.38	1.56	7200
20RHSO90-22	0.88	2.25	3.25	1.75	5.72	0.75	1.56	1.84	10600
20RHS090-25	1.00	2.50	3.75	2.00	6.47	0.88	1.81	2.09	13300
20RHS090-32	1.25	3.00	4.50	2.50	7.72	1.00	2.28	2.47	21000
20RHS090-38	1.50	3.50	5.50	3.00	9.25	1.25	2.75	3.00	24000
