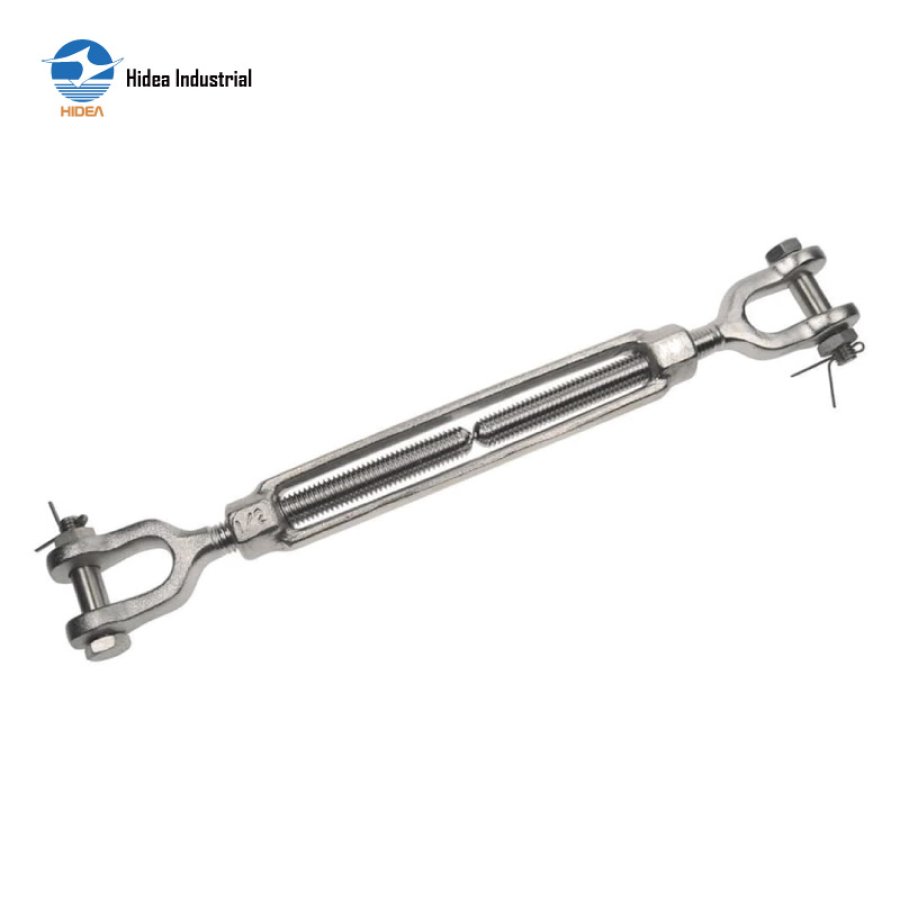

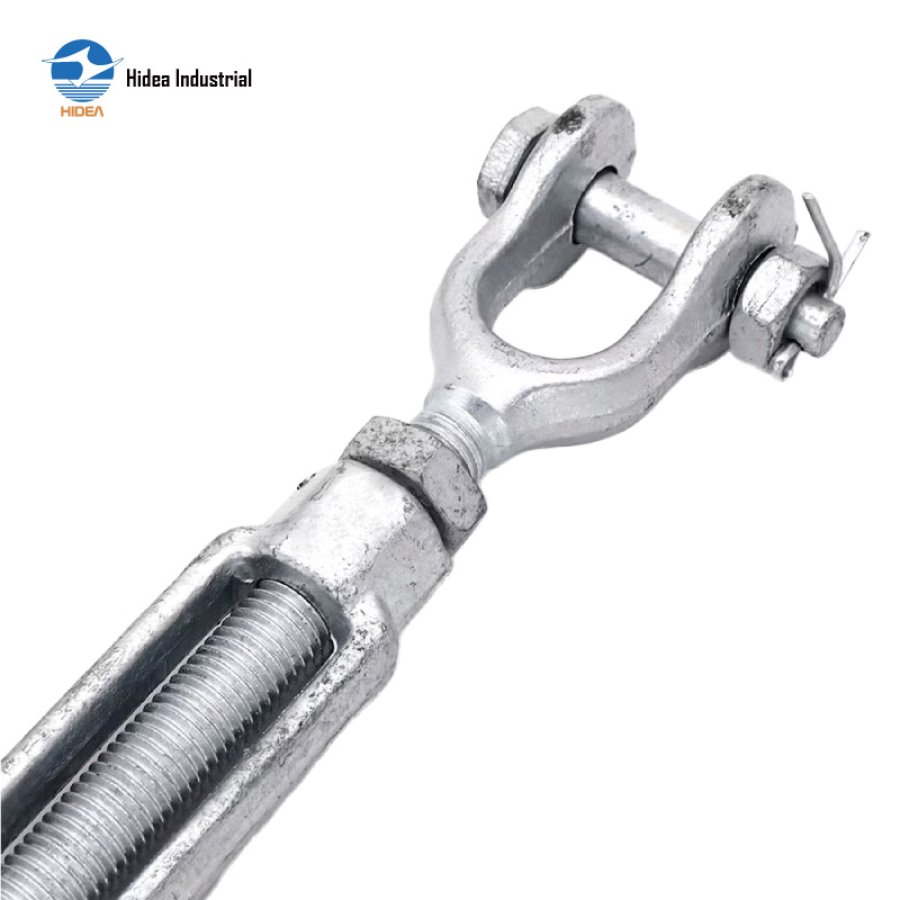

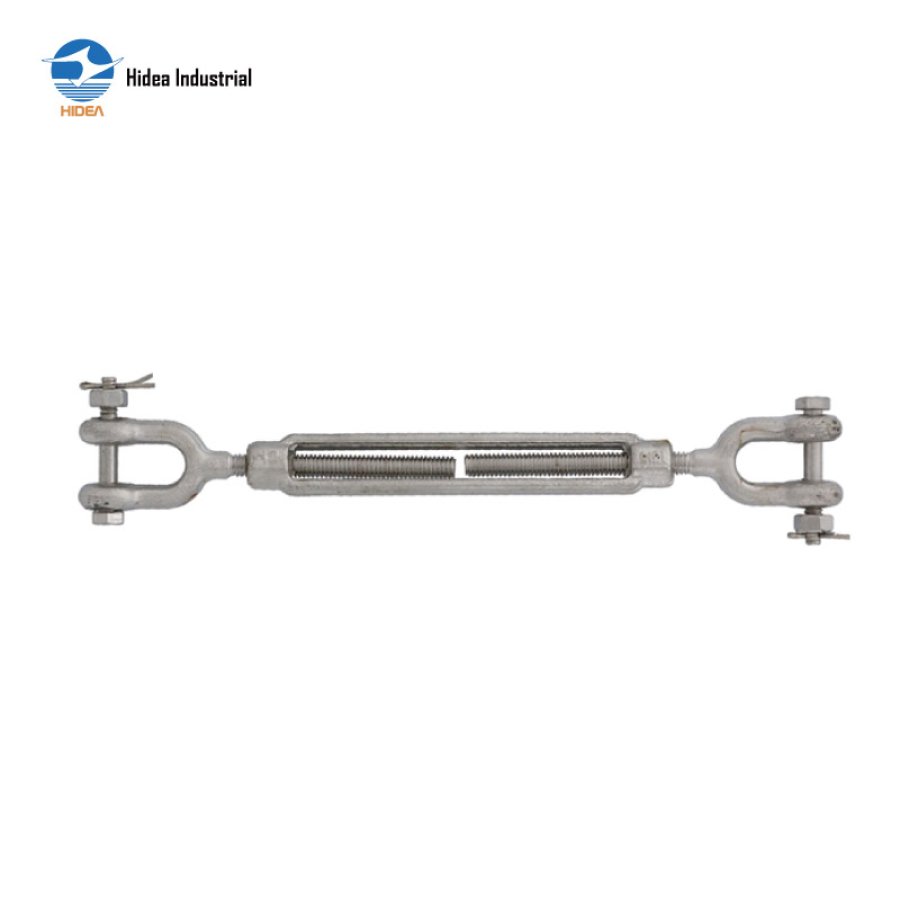

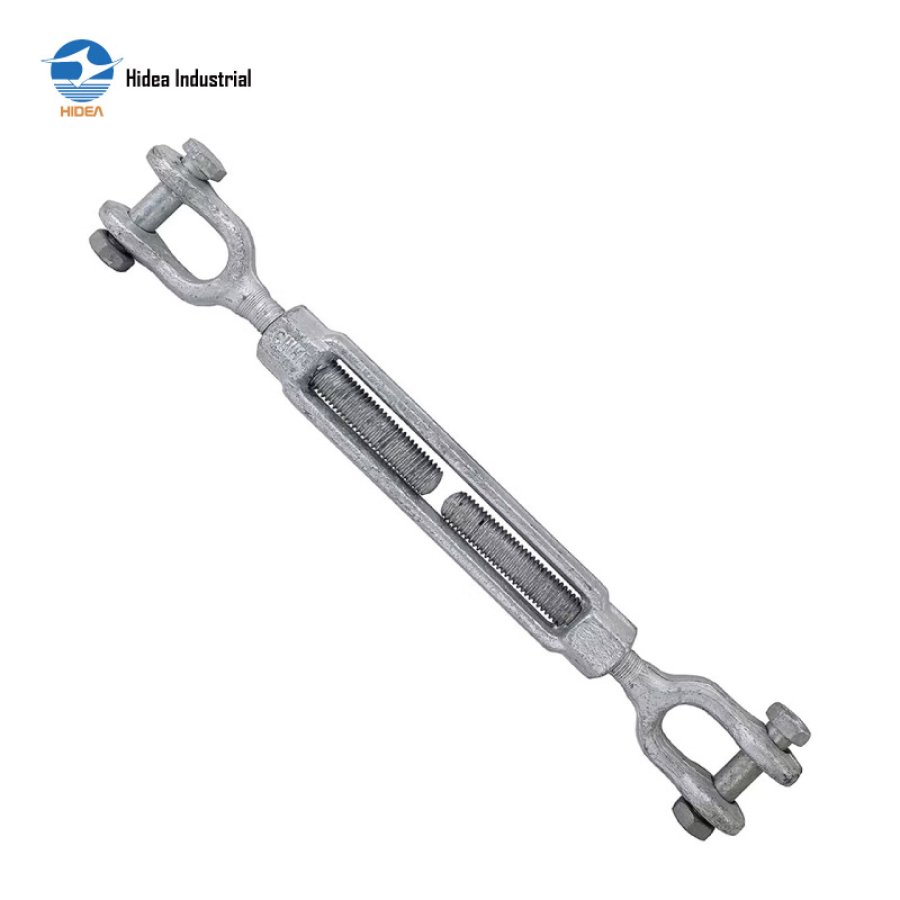

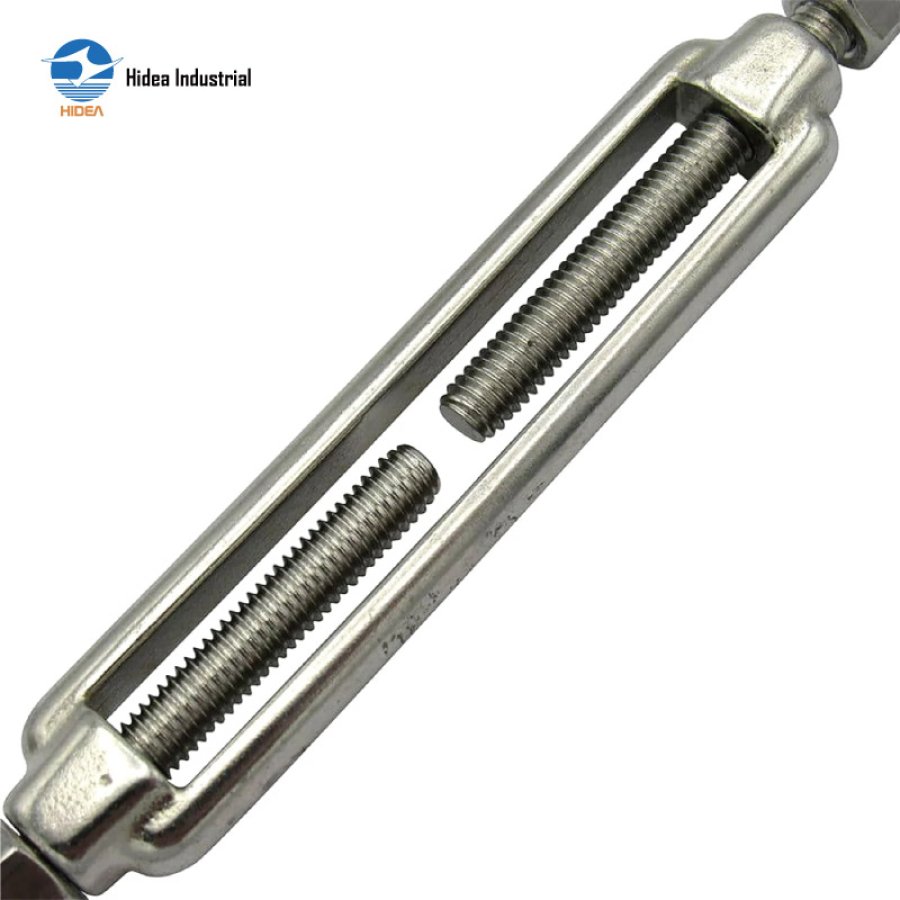

Forged Jaw & Jaw Stainless Steel Turnbuckle

US TYPE TURNBUCKLE (JAW AND JAW）

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

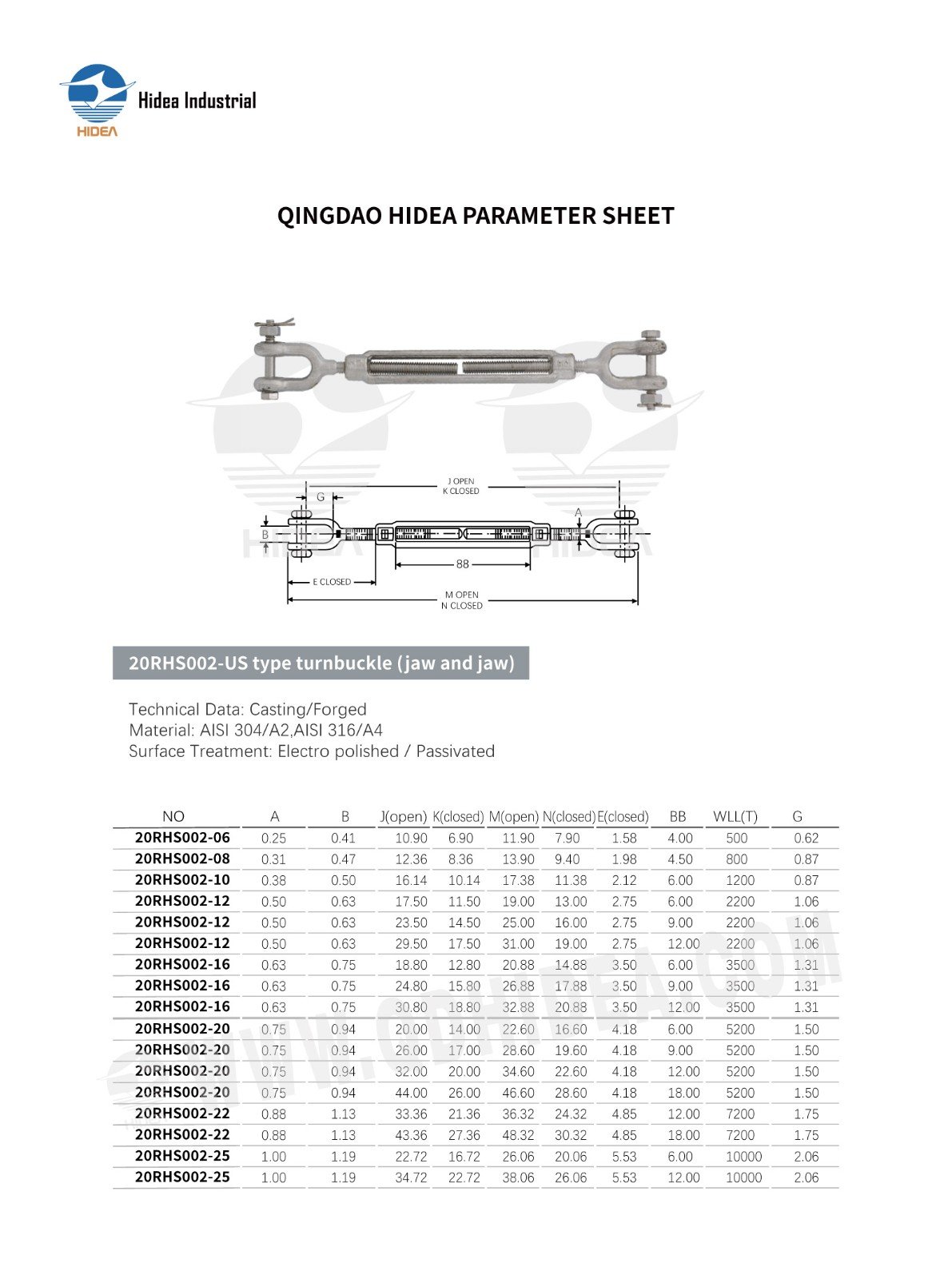

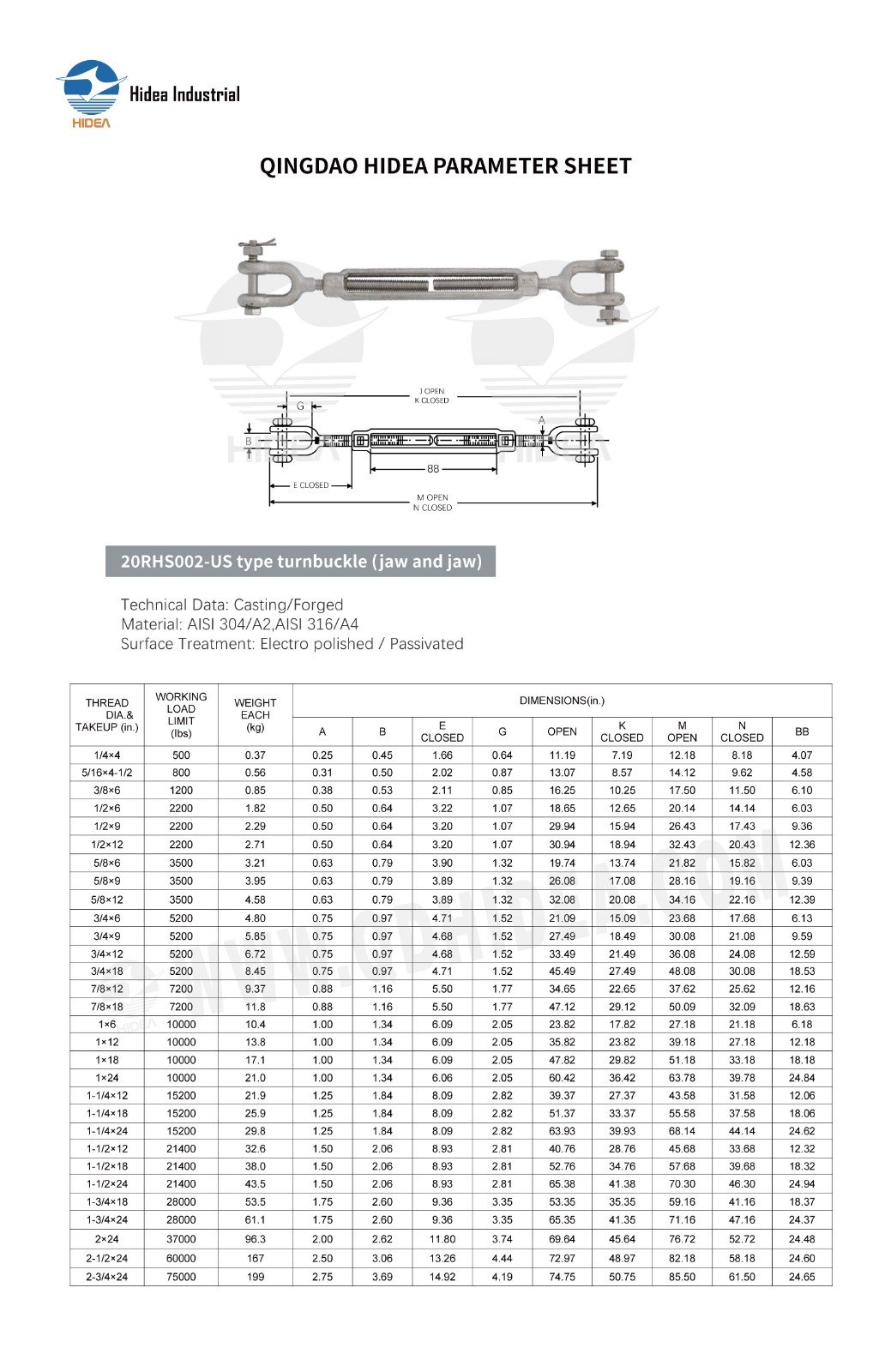

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS002-US type turnbuckle(jaw and jaw)

NO	A	B	J(open)	K(closed)	M(open)	N(closed)	E(closed)	BB	WLL(T)	G
20RHS002-06	0.25	0.41	10.90	6.90	11.90	7.90	1.58	4.00	500	0.62
20RHS002-08	0.31	0.47	12.36	8.36	13.90	9.40	1.98	4.50	800	0.87
20RHS002-10	0.38	0.50	16.14	10.14	17.38	11.38	2.12	6.00	1200	0.87
20RHSO02-12	0.50	0.63	17.50	11.50	19.00	13.00	2.75	6.00	2200	1.06
20RHS002-12	0.50	0.63	23.50	14.50	25.00	16.00	2.75	9.00	2200	1.06
20RHSO02-12	0.50	0.63	29.50	17.50	31.00	19.00	2.75	12.00	2200	1.06
20RHS002-16	0.63	0.75	18.80	12.80	20.88	14.88	3.50	6.00	3500	1.31
20RHS002-16	0.63	0.75	24.80	15.80	26.88	17.88	3.50	9.00	3500	1.31
20RHS002-16	0.63	0.75	30.80	18.80	32.88	20.88	3.50	12.00	3500	1.31
20RHS002-20	0.75	0.94	20.00	14.00	22.60	16.60	4.18	6.00	5200	1.50
20RHS002-20	0.75	0.94	26.00	17.00	28.60	19.60	4.18	9.00	5200	1.50
20RHS002-20	0.75	0.94	32.00	20.00	34.60	22.60	4.18	12.00	5200	1.50
20RHS002-20	0.75	0.94	44.00	26.00	46.60	28.60	4.18	18.00	5200	1.50
20RHSO02-22	0.88	1.13	33.36	21.36	36.32	24.32	4.85	12.00	7200	1.75
20RHSO02-22	0.88	1.13	43.36	27.36	48.32	30.32	4.85	18.00	7200	1.75
20RHS002-25	1.00	1.19	22.72	16.72	26.06	20.06	5.53	6.00	10000	2.06
20RHS002-25	1.00	1.19	34.72	22.72	38.06	26.06	5.53	12.00	10000	2.06
