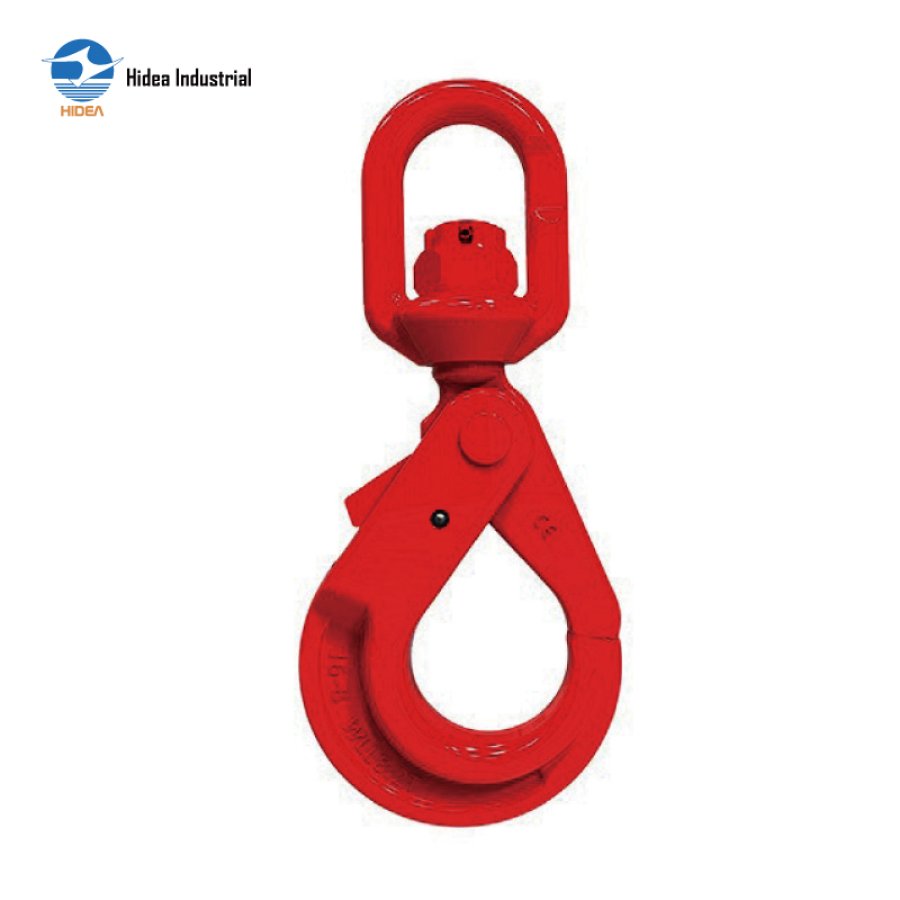

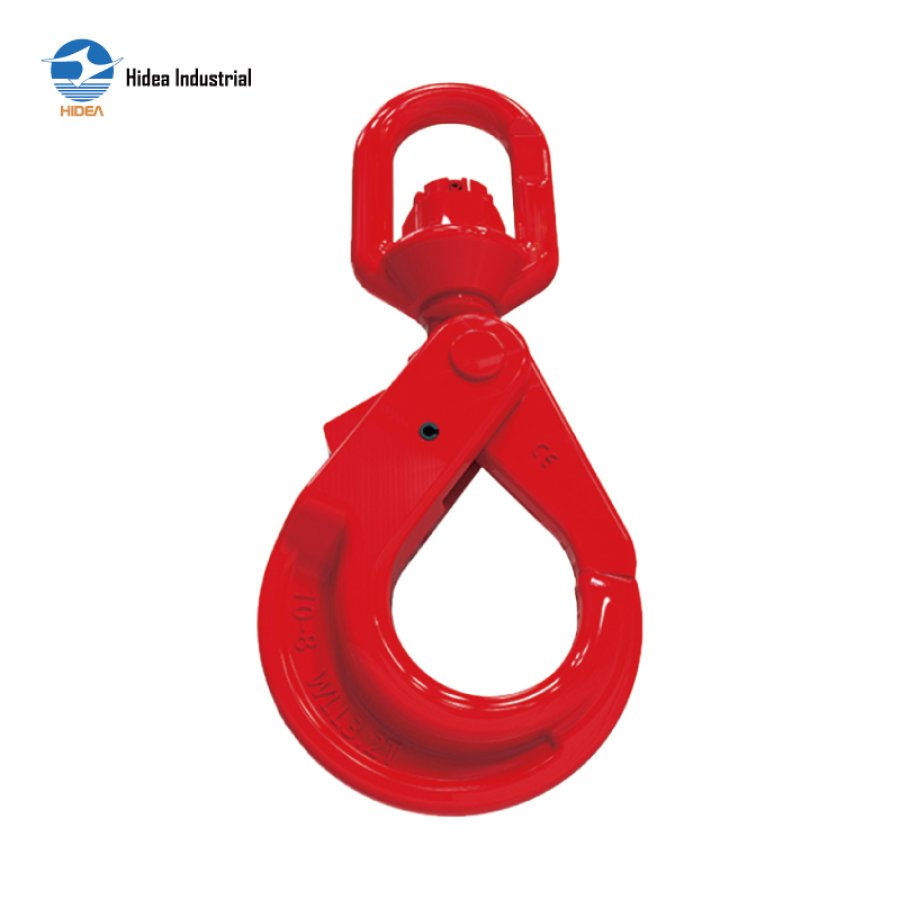

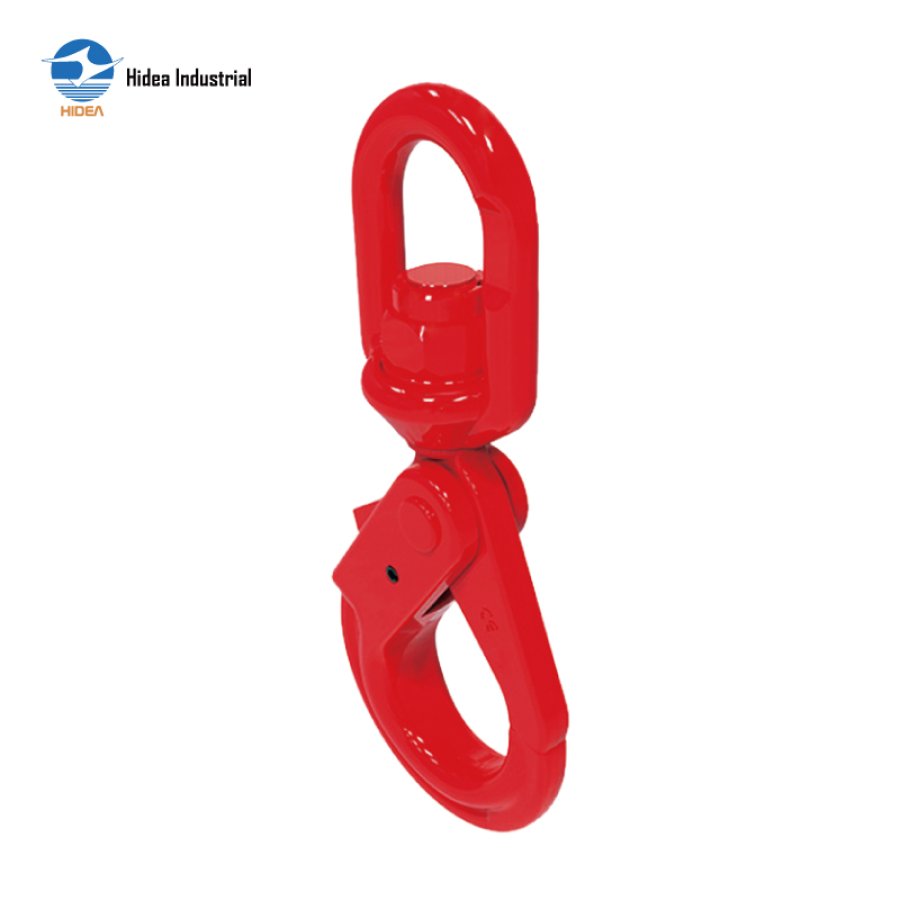

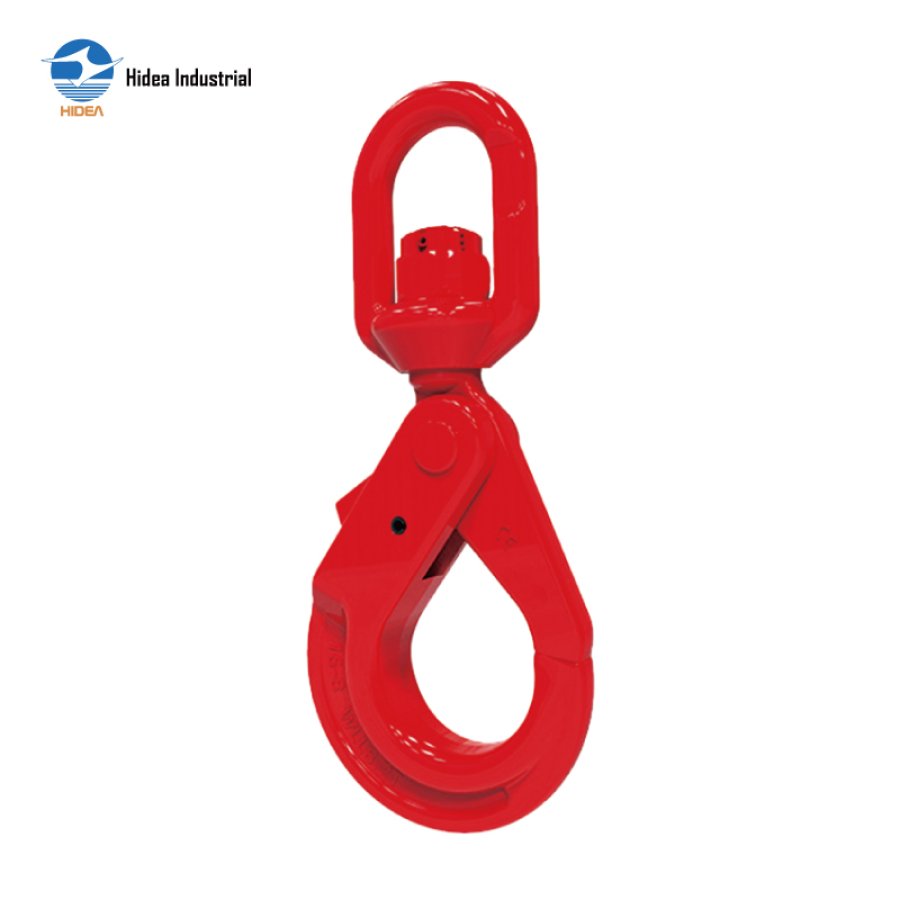

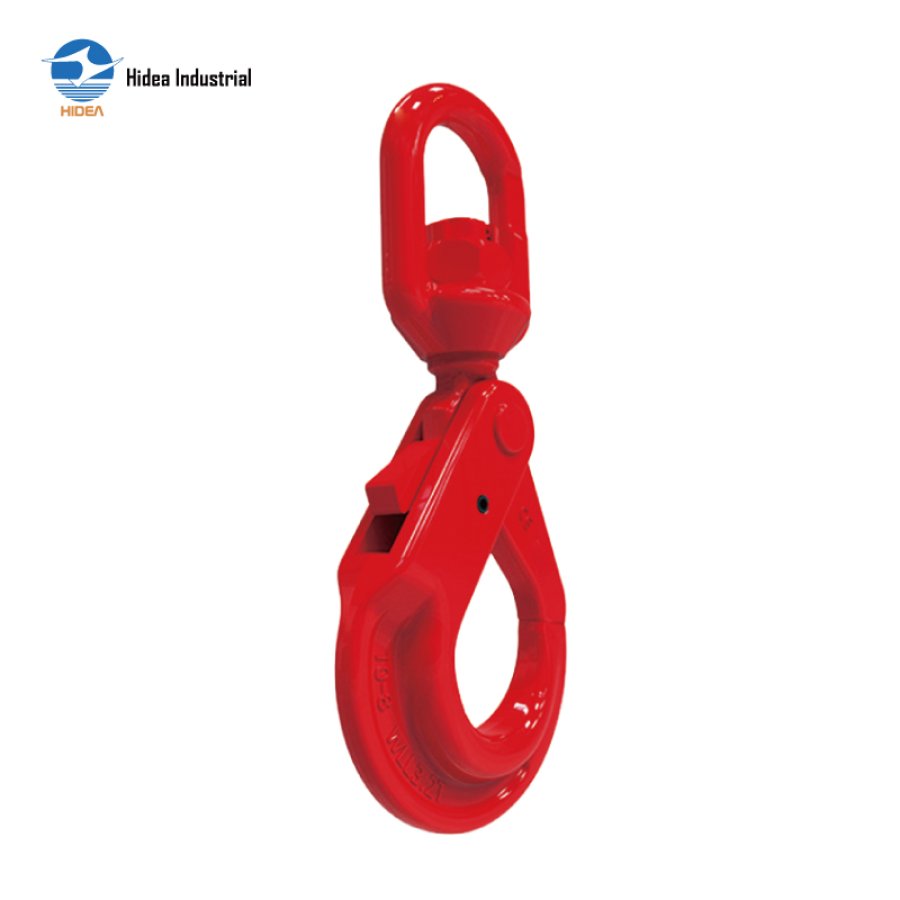

Hidea G80 US Type Swivel Self-Locking Safety Hook for Increased Flexibility in Lifting

G80 US TYPE SWIVEL SELF-LOCKING SAFETY HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
With latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH010-G80 U.S TYPE SWIVEL SELF-LOCKING HOOK

ITEM NO.	WEIGHT (Kg)	WLL (T)	B.L (T)	A±0.5	B±1.5	C±2	D±1	H±1	K±2	L±3	φ±2
20RH010-7/8	1.2	2	8	28	35	36	13	29	116	163	42
20RH010-10	2	3.2	12.8	35.5	42	42	15.5	31	218	265	55
20RH010-13	4.5	5.4	21.6	41	55	50	17	41	261	319	65
20RH010-16	7.36	8.2	32.8	50	66	70	21.5	52	326	399	76
