High-Quality Hidea Control Cables for Automotive Applications

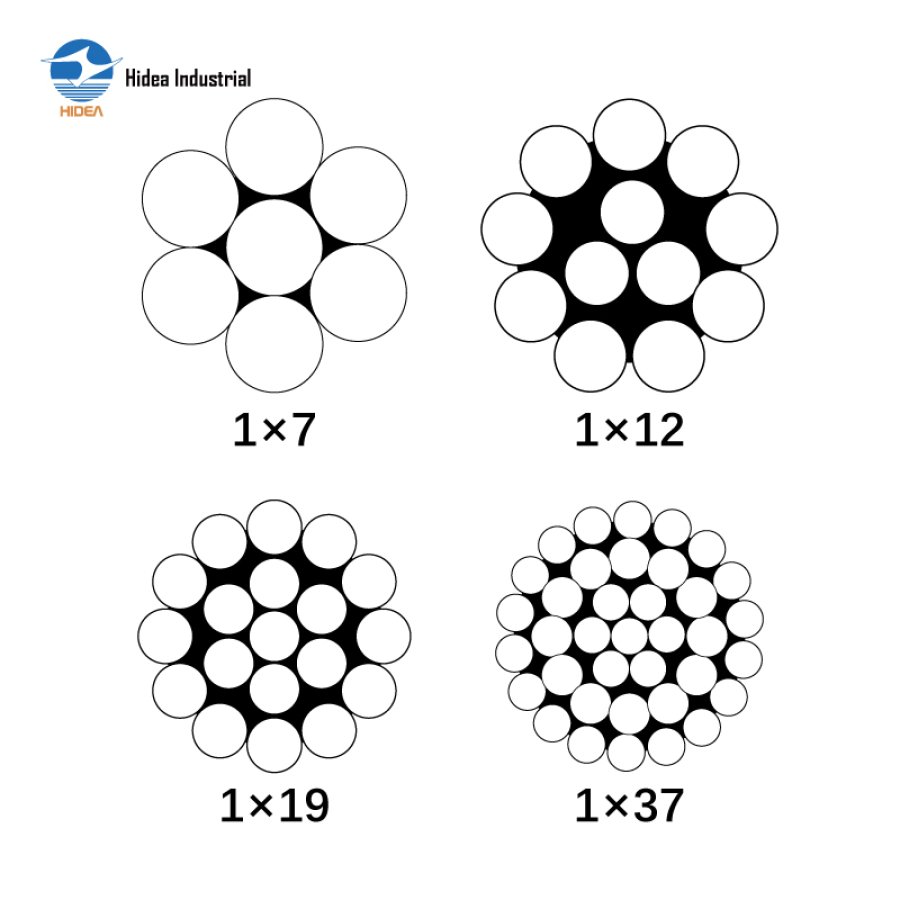

CONTROL CABLE FOR VEHICLE 1×7 / 1×12 / 1×19 / 1×37

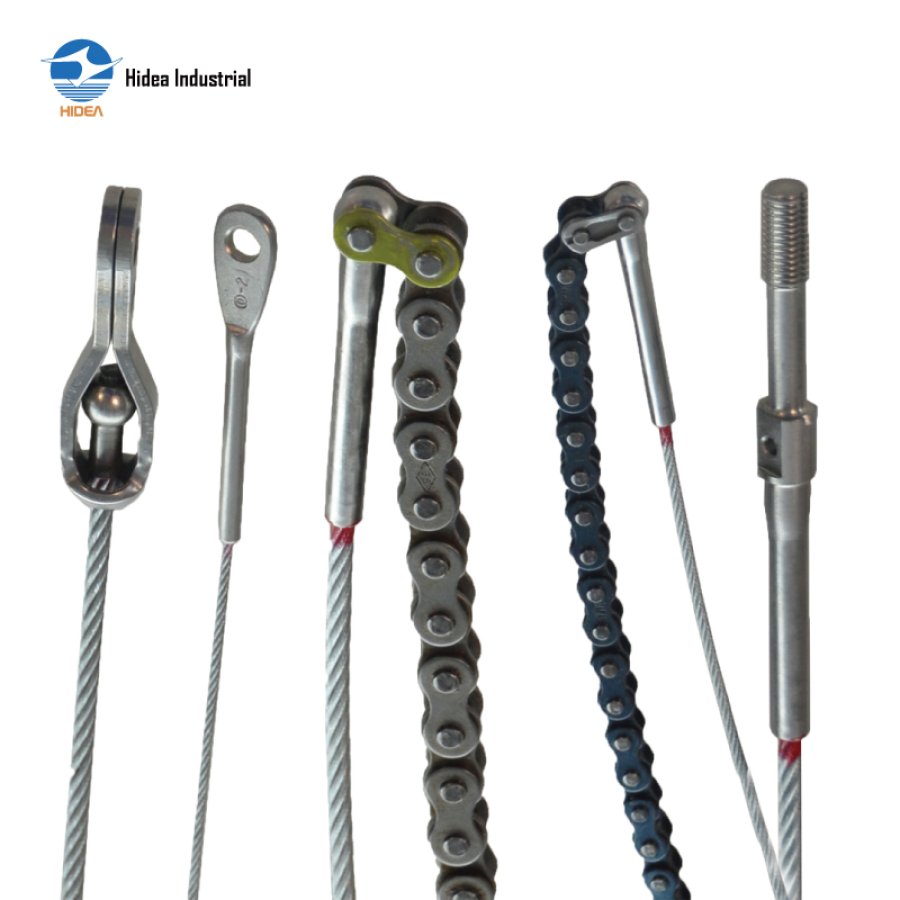

Control Cable for Vehicles such as Cars, Motorcycles OR even Bicycles

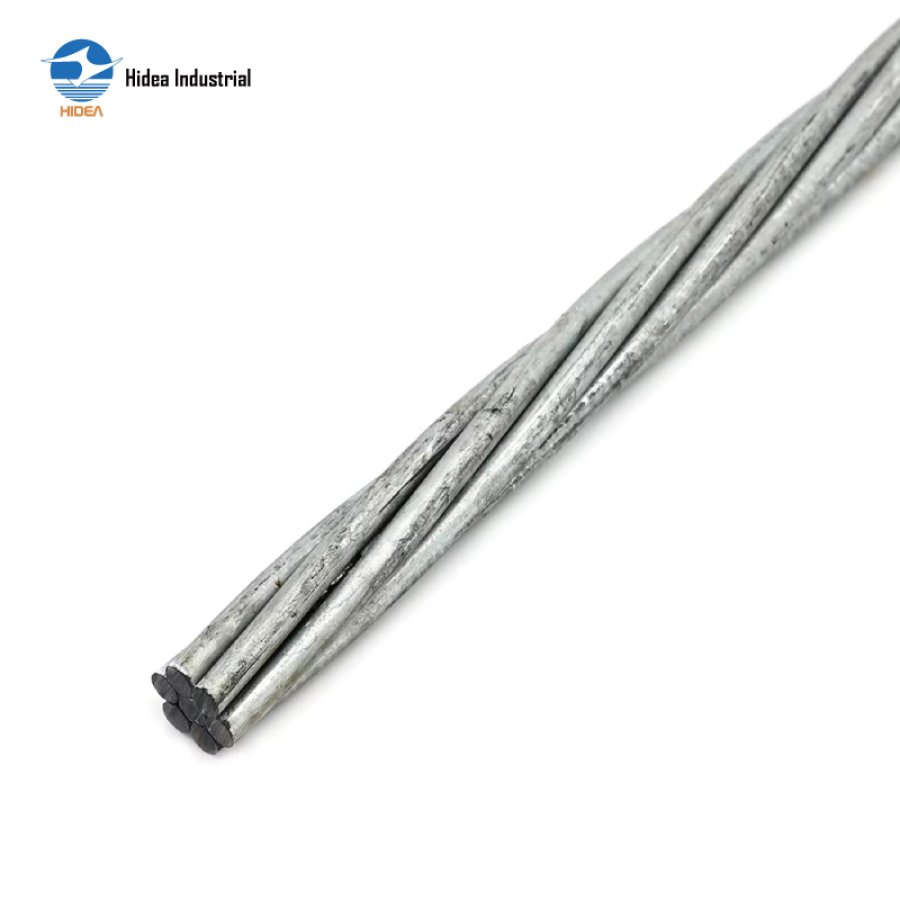

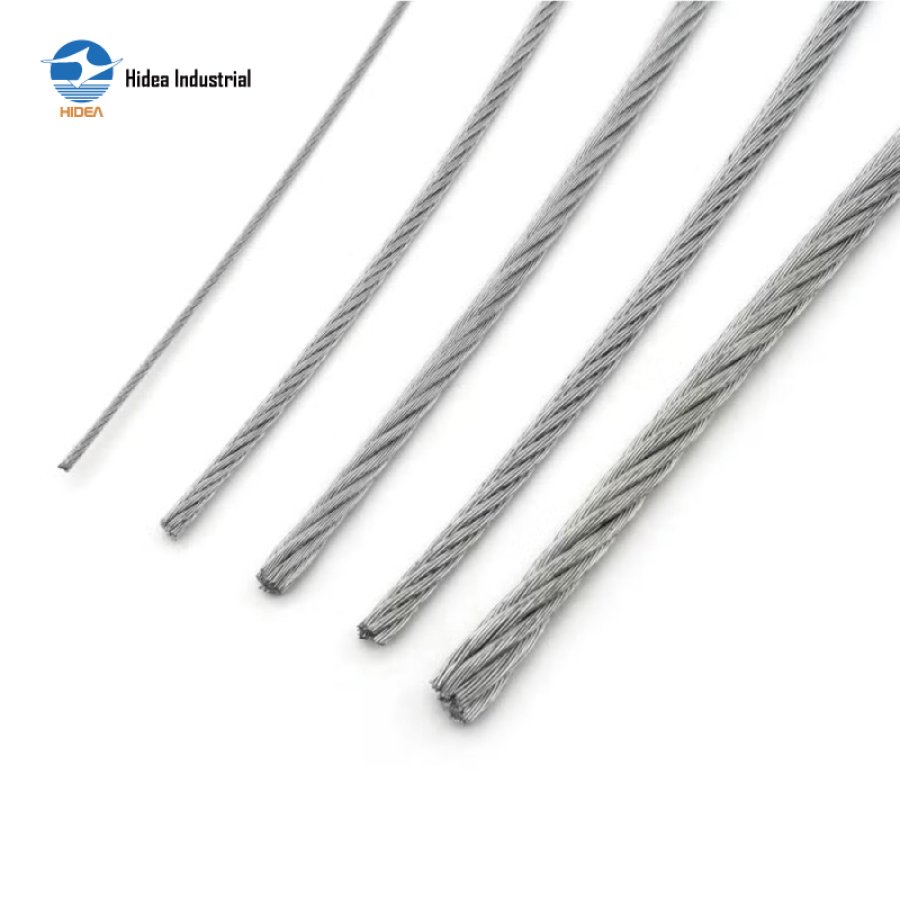

High Carbon Steel Cable Galvanized OR AISI 304 / AISI 316 or AISI 316L

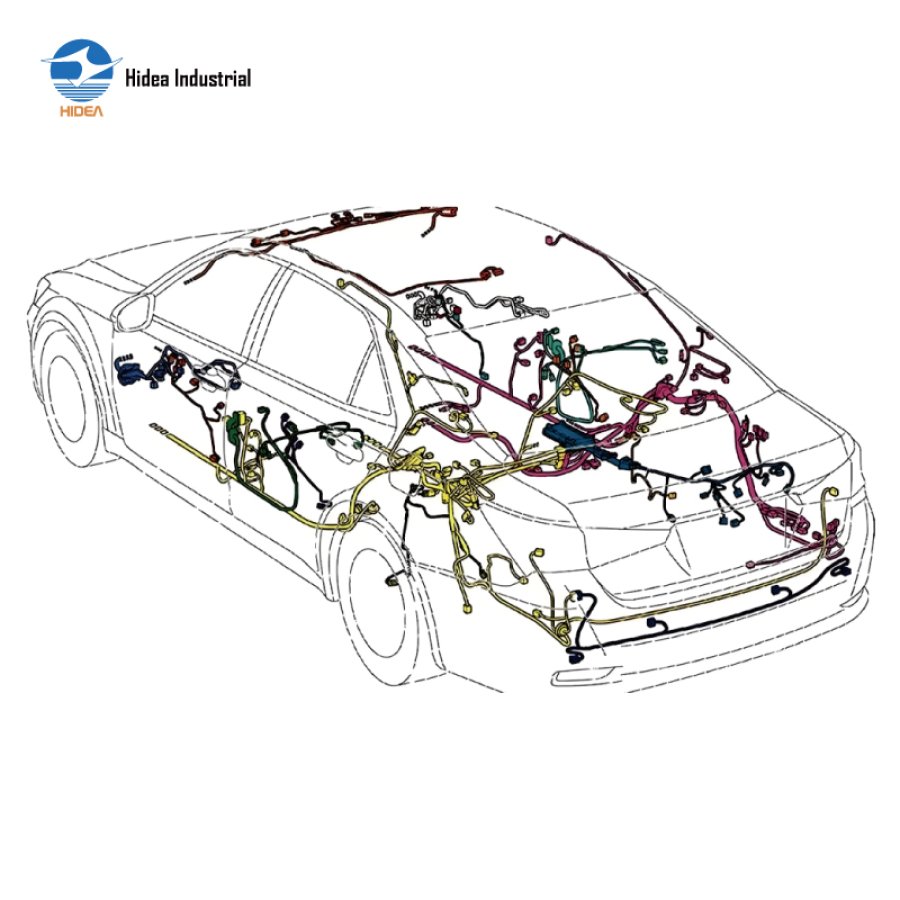

Application Cases: The vehicles (such as Cars, Motocycles OR even Bicycles) breaking system, gear, window, rear mirror, gas pedal etc., and also applied to the vehicle control system of machinery and electronic devices.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

CONTROL CABLE FOR VEHICLE 1×7/1×12/1×19/1×37

High Carbon Steel Cable Galvanized OR AISI 304/AISI 316 or AISI 316L

Construction	Diameter mm	Min,Breaking Load(Kg)			ApproxWeight (Kg/100m)
Construction	Diameter mm	Galvanized	SUS 316	SUS 304	ApproxWeight (Kg/100m)
1×7	0.30	10	8	10	0.005
	0.40	18	15	17	0.08
	0.50	29	25	27	0.13
	0.60	41	34	39	0.18
	0.80	72	60	68	0.32
	1.00	110	90	105	0.50
	1.20	155	135	150	0.74
	1.40	210	180	205	1.01
	1.50	240	210	230	1.15
	1.60	270	240	260	1.42
1×12	1.00	105	80	95	0.49
	1.20	150	120	140	0.70
	1.40	200	160	190	0.95
	1.50	230	185	215	1.09
	1.60	250	210	245	1.24
	1.80	310	265	310	1.56
1×19	0.80	70	50	60	0.32
	1.00	105	80	95	0.50
	1.20	150	120	140	0.72
	1.40	220	160	190	0.98
	1.50	250	185	215	1.12
	0.60	280	210	245	1.27
	1.80	340	265	310	1.61
	2.00	425	330	365	2.00
	2.50	665	520	570	3.10
	3.00	850	660	730	4.48
	3.50	1100	860	950	6.00
	4.00	1400	1090	1200	7.90
	5.00	2180	1700	1880	12.50
	6.00	3150	2050	2700	18.10
1×37	2.50	580	440	555	3.05
	3.00	830	640	800	4.39
	3.50	1130	870	1090	5.99
	4.00	1480	1140	1420	7.82
	4.80	2130	1640	2050	11.30
	5.00	2300	1670	2110	12.20
	6.00	3330	2400	3000	17.60
