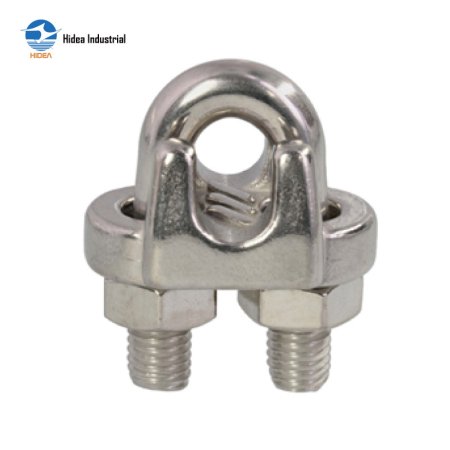

Hidea Forged Stainless Steel Wire Rope Clip – Corrosion-Proof and Long-Lasting

US TYPE WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

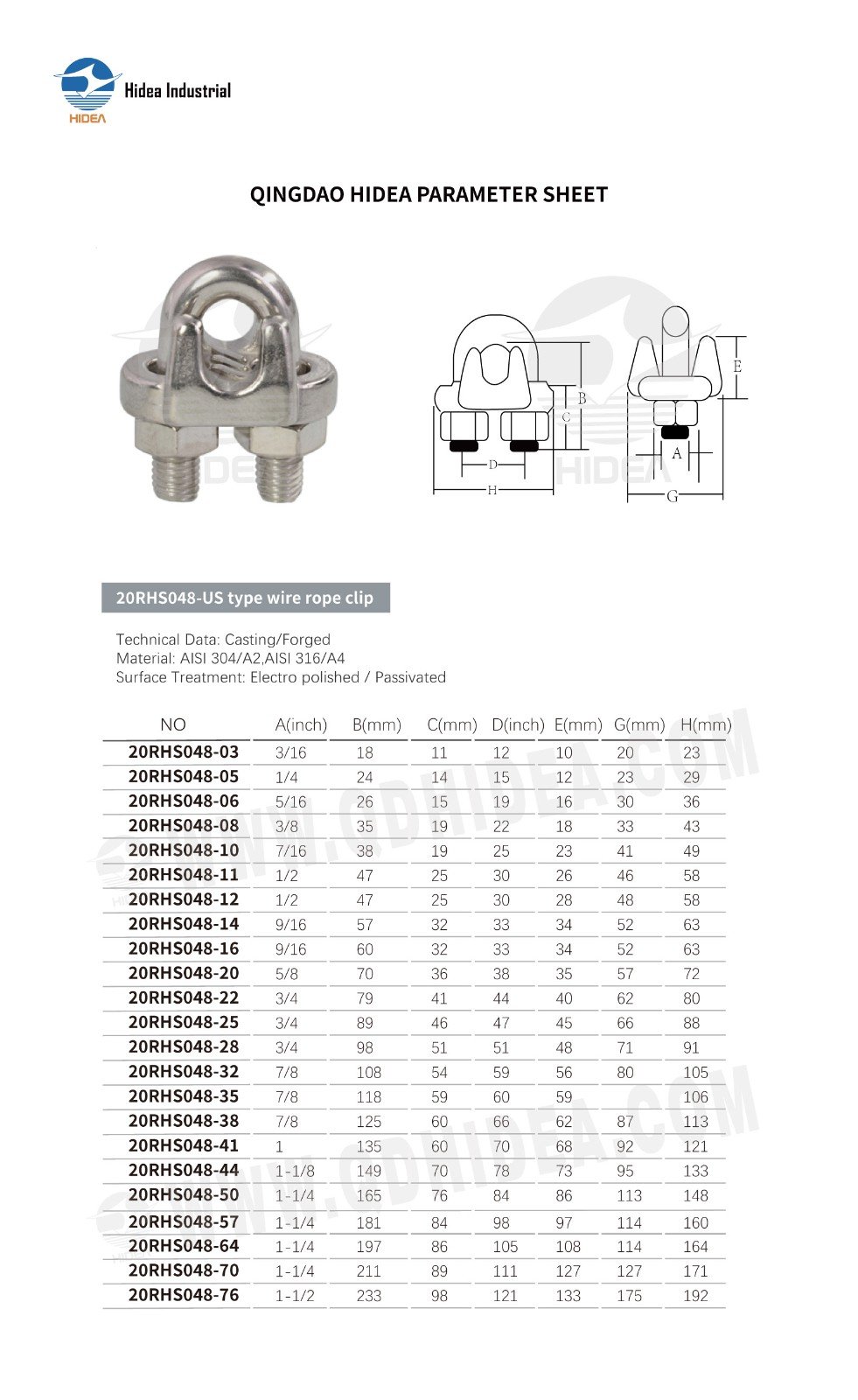

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS048-US type wire rope clip

NO	A(inch)	B(mm)	C(mm)	D(inch	)E(mm)	G(mm)	H(mm)
20RHS048-03	3/16	18	11	12	10	20	23
20RHS048-05	1/4	24	14	15	12	23	29
20RHS048-06	5/16	26	15	19	16	30	36
20RHS048-08	3/8	35	19	22	18	33	43
20RHS048-10	7/16	38	19	25	23	41	49
20RHS048-11	1/2	47	25	30	26	46	58
20RHS048-12	1/2	47	25	30	28	48	58
20RHS048-14	9/16	57	32	33	34	52	63
20RHS048-16	9/16	60	32	33	34	52	63
20RHS048-20	5/8	70	36	38	35	57	72
20RHS048-22	3/4	79	41	44	40	62	80
20RHS048-25	3/4	89	46	47	45	66	88
20RHS048-28	3/4	98	51	51	48	71	91
20RHS048-32	7/8	108	54	59	56	80	105
20RHS048-35	7/8	118	59	60	59		106
20RHS048-38	7/8	125	60	66	62	87	113
20RHS048-41	1	135	60	70	68	92	121
20RHS048-44	1-1/8	149	70	78	73	95	133
20RHS048-50	1-1/4	165	76	84	86	113	148
20RHS048-57	1-1/4	181	84	98	97	114	160
20RHS048-64	1-1/4	197	86	105	108	114	164
20RHS048-70	1-1/4	211	89	111	127	127	171
20RHS048-76	1-1/2	233	98	121	133	175	192
