Premium Hidea Anchor Shackle with Screw Collar Pin – Ideal for Industrial and Marine Use

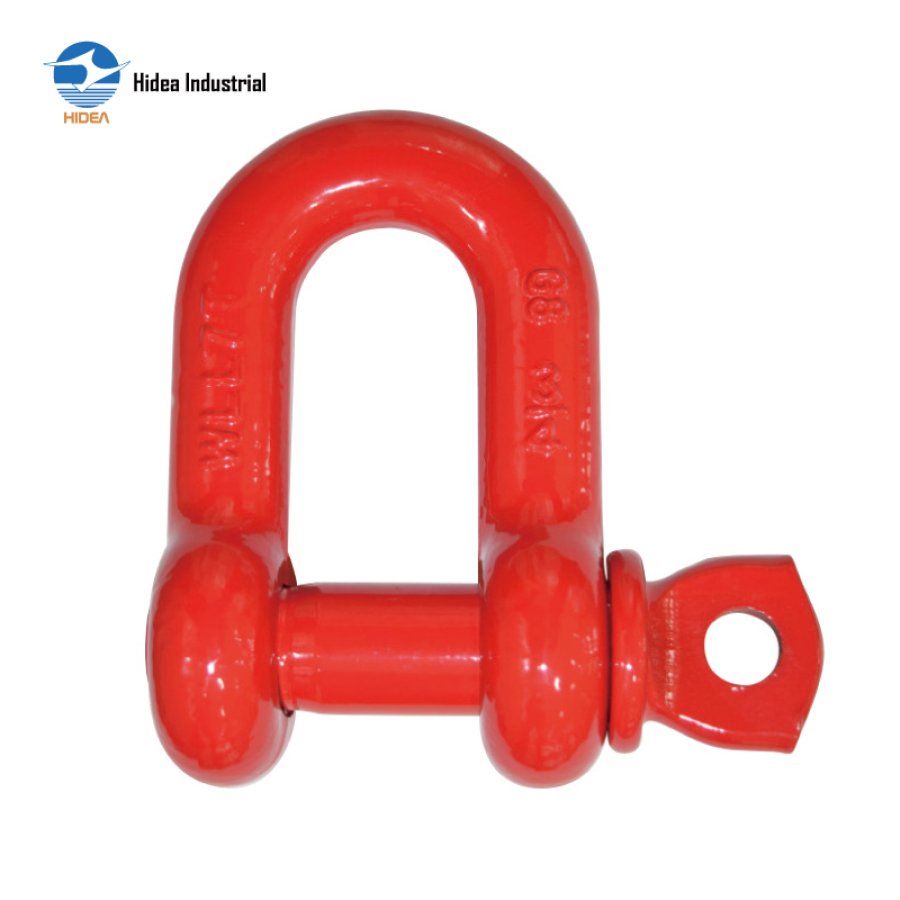

G80/G8 SCREW PIN CHAIN SHACKLE

Material: body AND pin super alloy steel
Drop forged, quenched &tempered
Magnaflux crack detection
Safety factor 5:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271D, Type IVA, Class3,Grade B/EN 1677-1:2000+A1:2008
Temperature range -20 to 200 centigrade degrees

Inquire Now

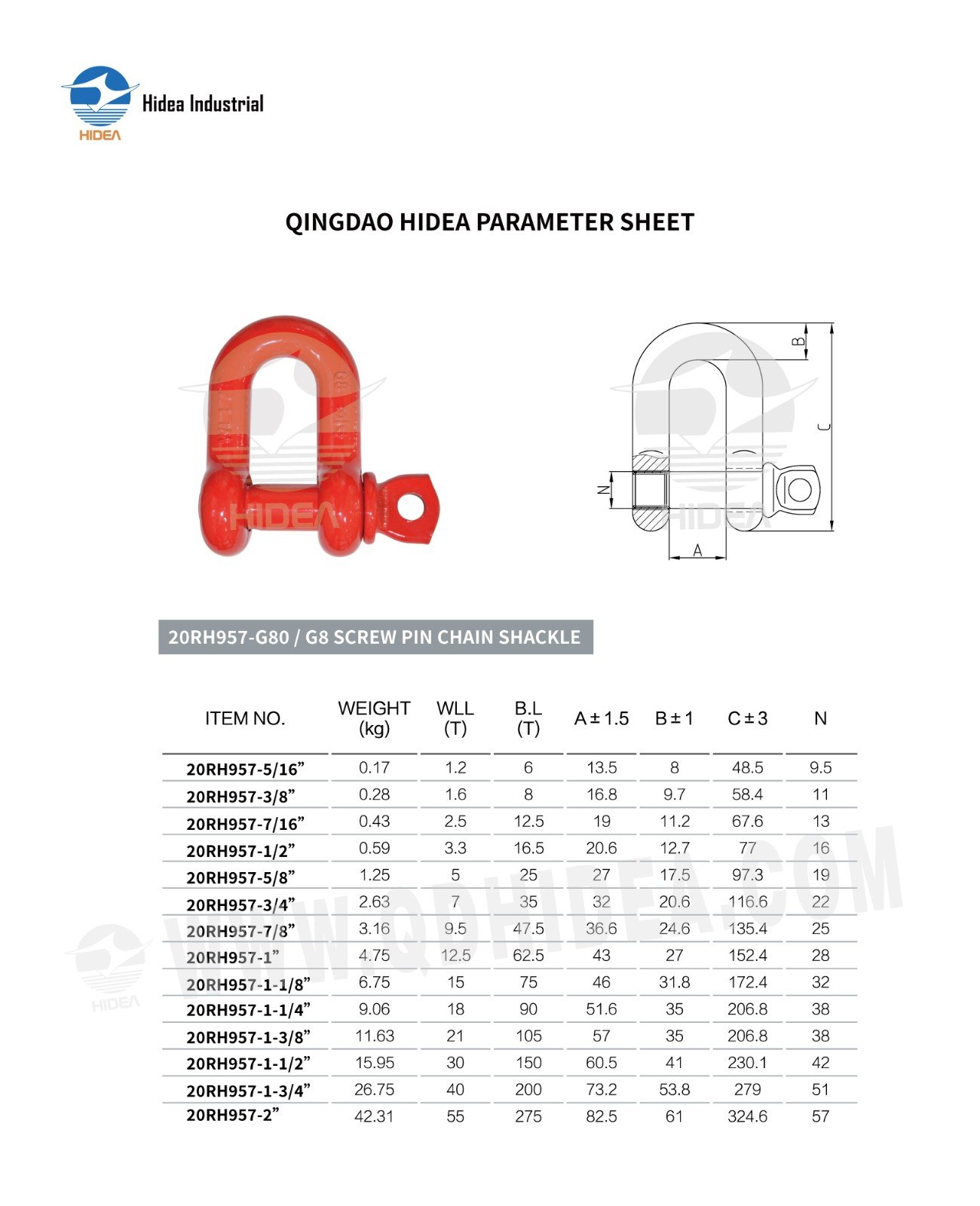

QINGDAO HIDEA PARAMETER SHEET FOR

20RH957-G80/G8 SCREW PIN CHAIN SHACKLE

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1.5	B±1	C±3	N
20RH957-5/16"	0.17	1.2	6	13.5	8	48.5	9.5
20RH957-3/8”	0.28	1.6	8	16.8	9.7	58.4	11
20RH957-7/16"	0.43	2.5	12.5	19	11.2	67.6	13
20RH957-1/2”	0.59	3.3	16.5	20.6	12.7	77	16
20RH957-5/8”	1.25	5	25	27	17.5	97.3	19
20RH957-3/4”	2.63	7	35	32	20.6	116.6	22
20RH957-7/8”	3.16	9.5	47.5	36.6	24.6	135.4	25
20RH957-1”	4.75	12.5	62.5	43	27	152.4	28
20RH957-1-1/8”	6.75	15	75	46	31.8	172.4	32
20RH957-1-1/4”	9.06	18	90	51.6	35	206.8	38
20RH957-1-3/8"	11.63	21	105	57	35	206.8	38
20RH957-1-1/2"	15.95	30	150	60.5	41	230.1	42
20RH957-1-3/4”	26.75	40	200	73.2	53.8	279	51
20RH957-2”	42.31	55	275	82.5	61	324.6	57
