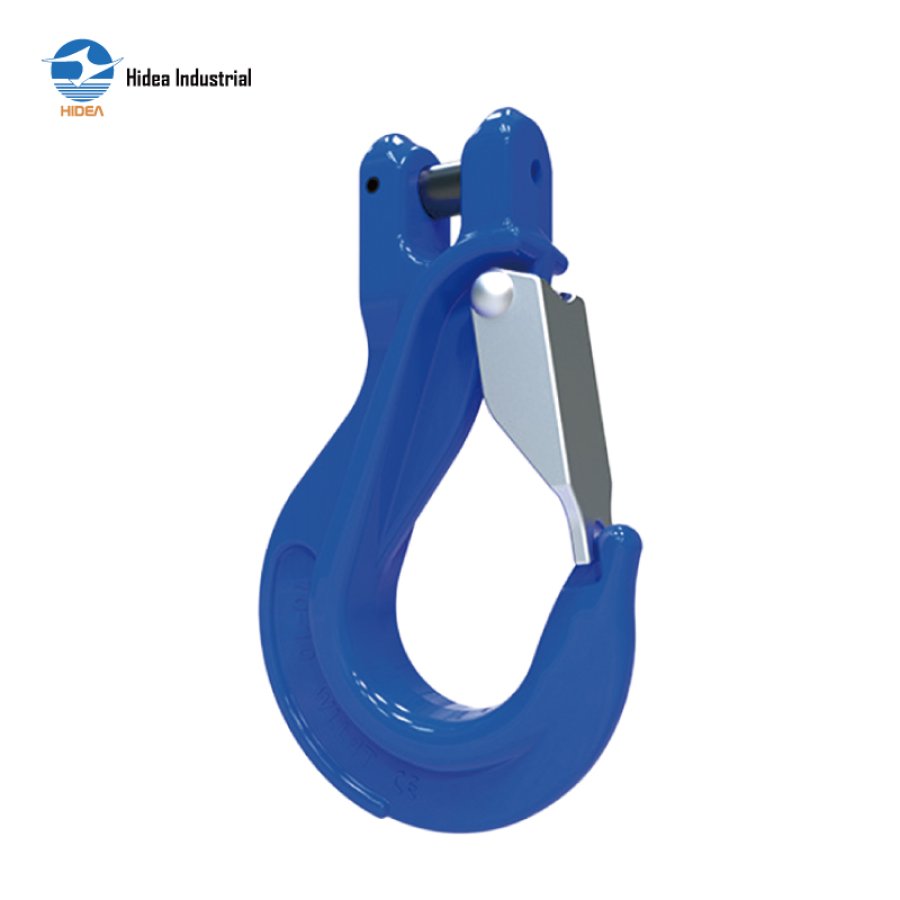

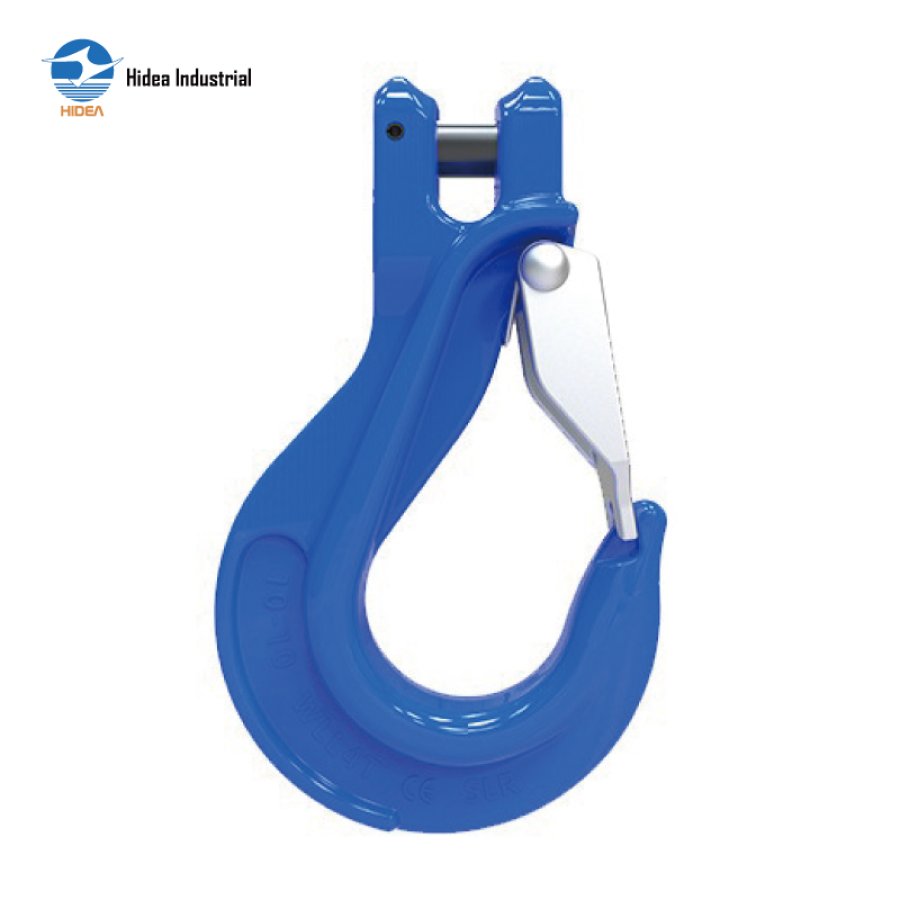

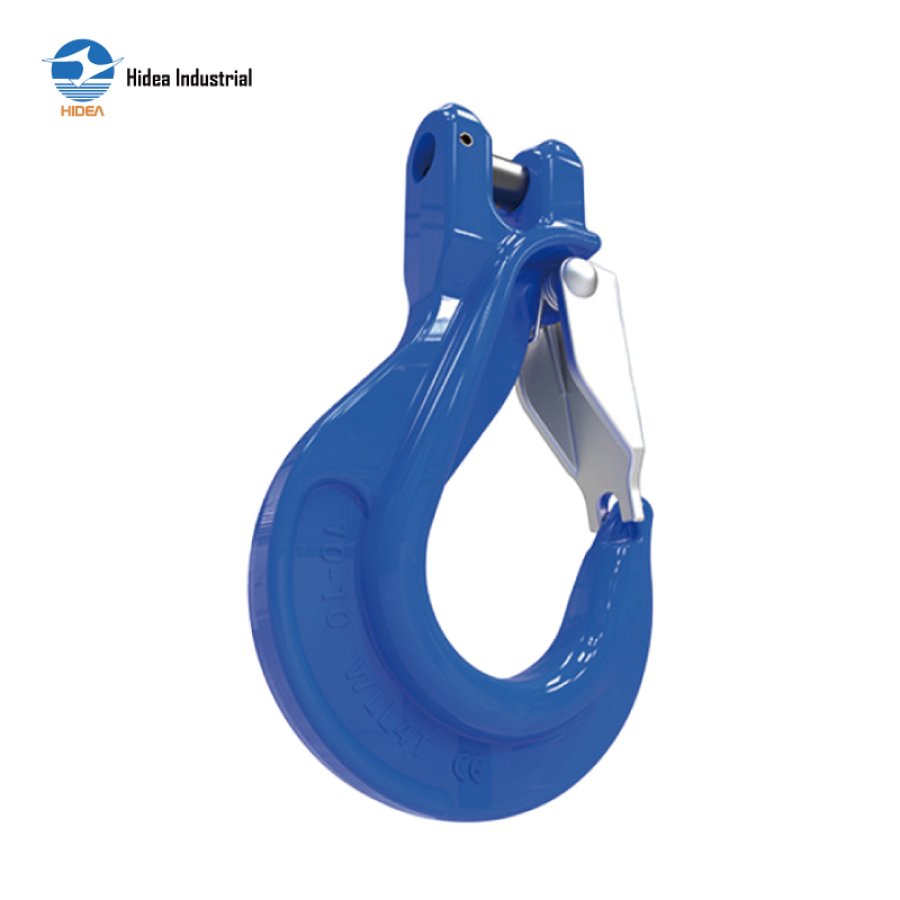

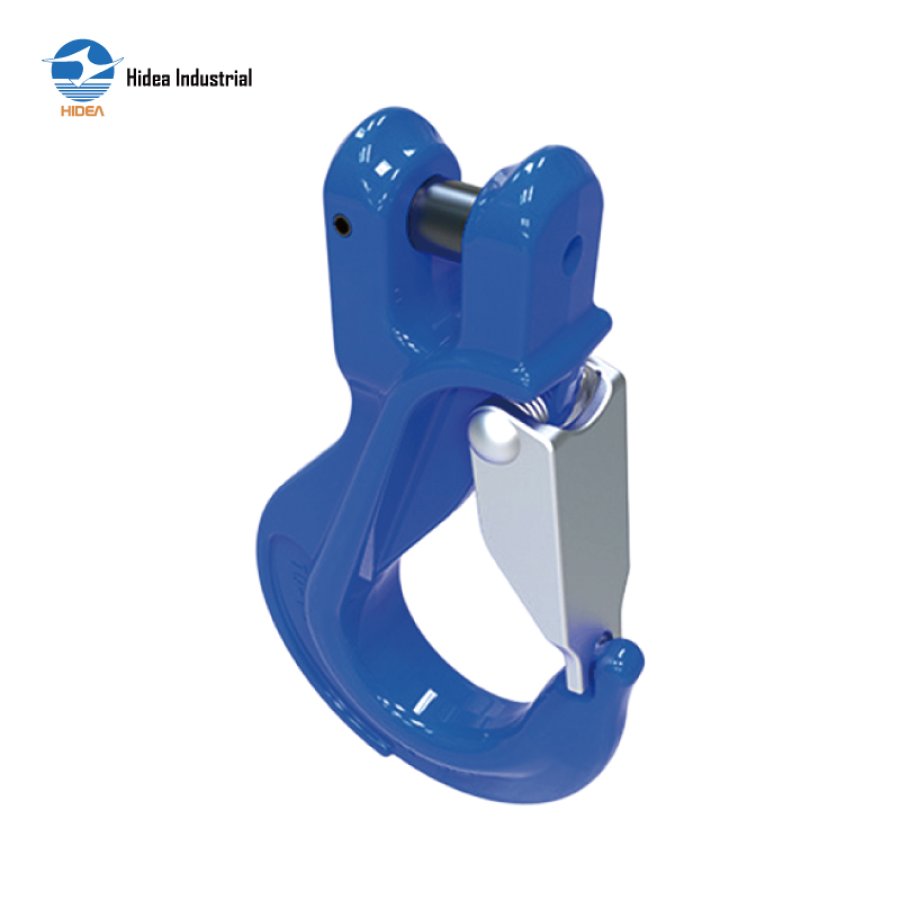

Grade 100 Light Type Clevis Sling Hook with Cast Latch for Secure Loads

G100 LIGHT TYPE CLEVIS SLING HOOK WITH CAST LATCH

Light type: more compact and lighter
Suitable to use with Grade 80/100 chain
Forged super alloy steel-Quenched and Tempered
25% strong than G80
Individually proof test at 2.5tmes Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH8801-G100 CLEVIS SLING HOOK WITH CAST LATCH

ITEM NO.	WEIGHT	WLL	B.L	A	B	C	E	M	N	H	K	L
ITEM NO.	(kg)	(T)	(T)	A	B	C	E	M	N	H	K	L
6-10	0.3	1.4	5.6	8	28.8	18	23	66	15.5	19	79	112
8-10	0.585	2.5	10	9	35	23	27	85	20	25	93.5	140
10-10	1.19	4	16	12	44	25.5	33	103	24	28	121	174
13-10	2.32	6.7	26.8	15	57	34	40	133	38	38	147.6	213.6
16-10	3.82	10	40	18.5	67	41.5	44	161	41.5	41	166	250
20-10	6.77	16	64	23	80	51	53	187	48	50	200	292
22-10	10	19	76	25	97.5	61	72	240	57	63	228	339
