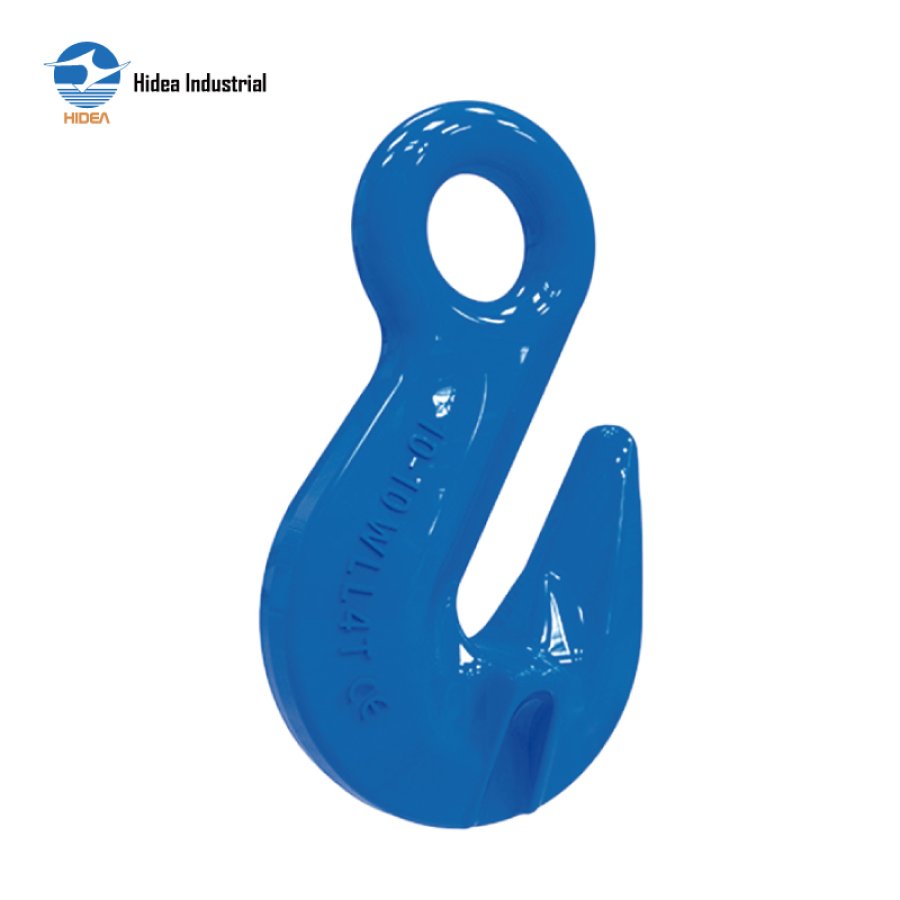

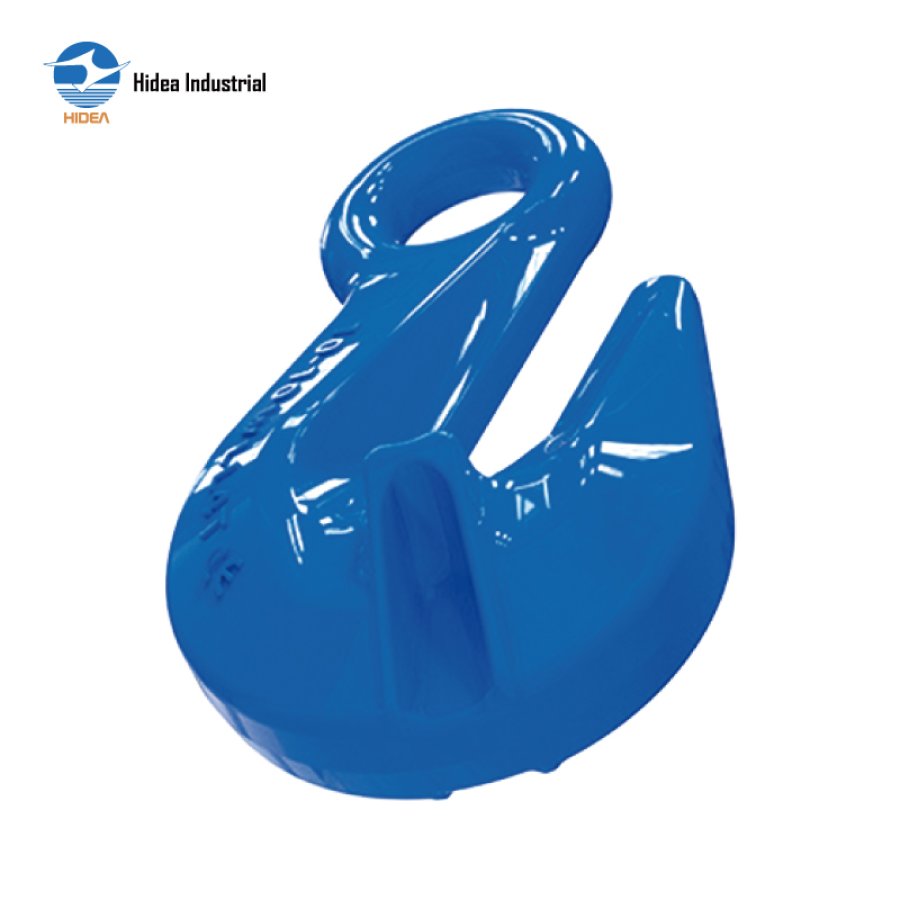

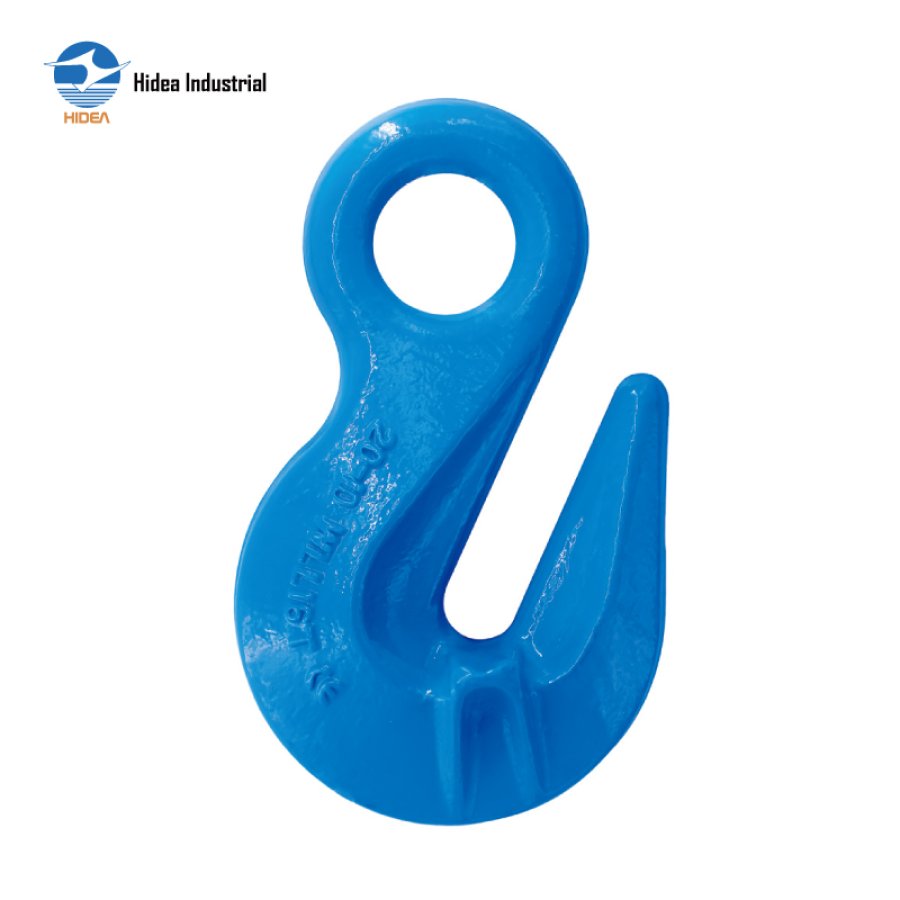

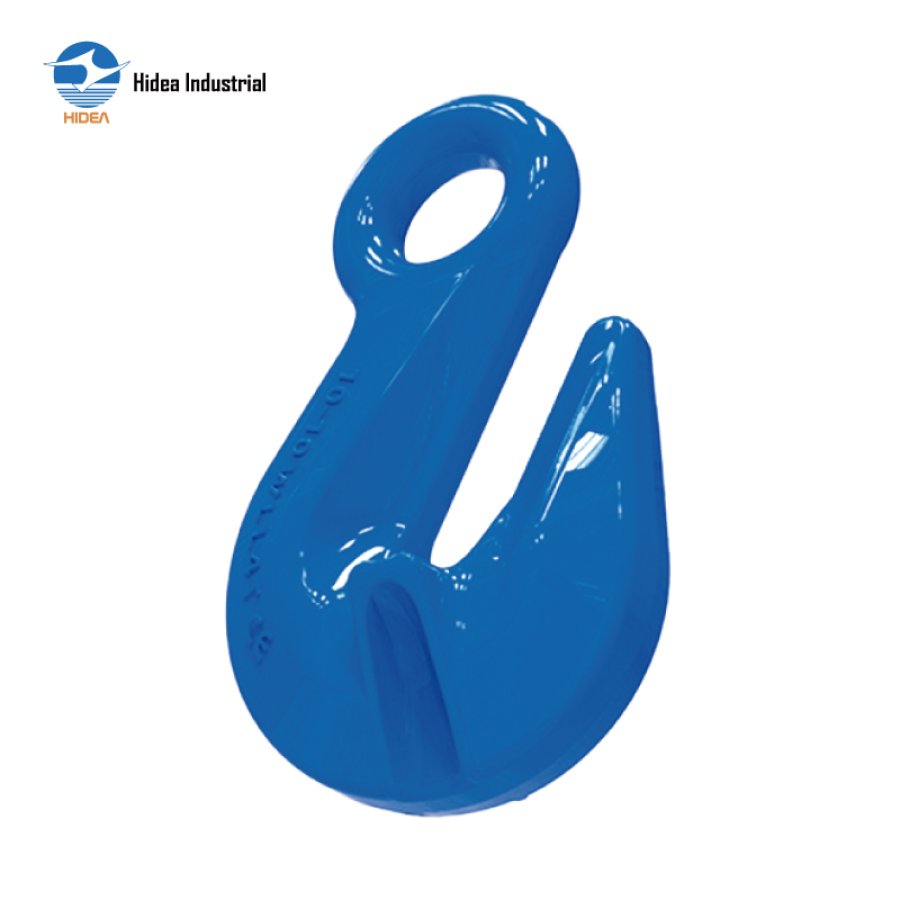

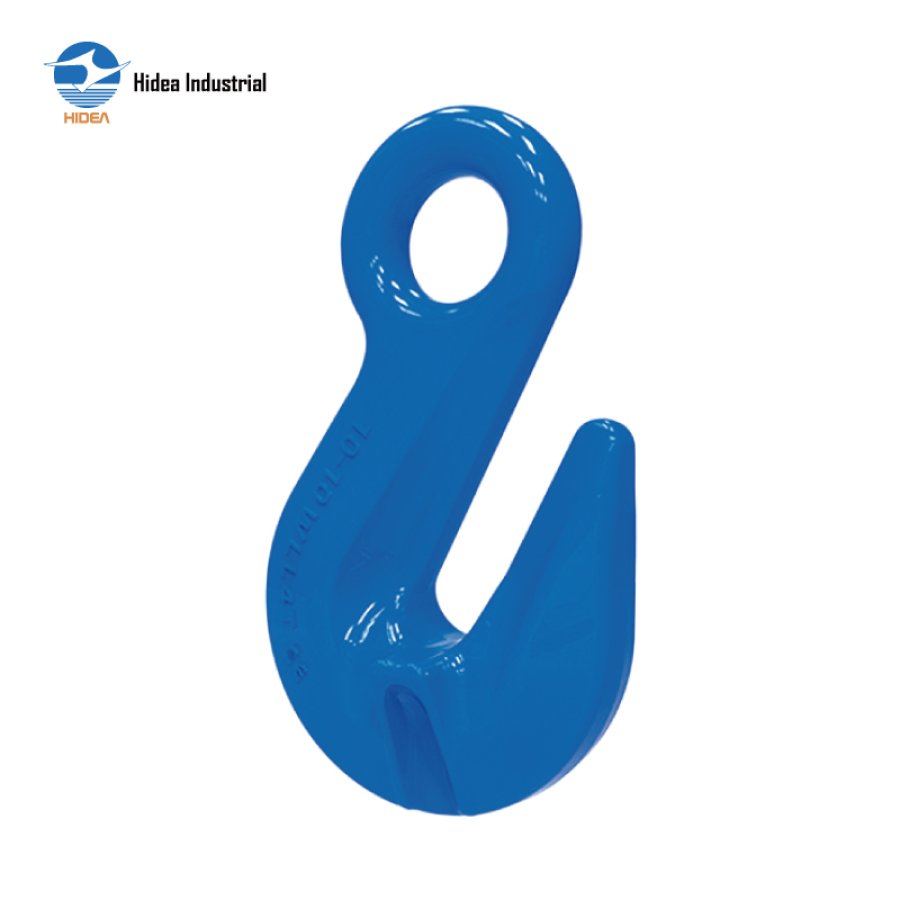

Hidea Grade 100 Lifting Eye Shortening Grab Hook for Adjustable Load Handling

G100 EYE SHORTENING GRAB HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for G80/100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

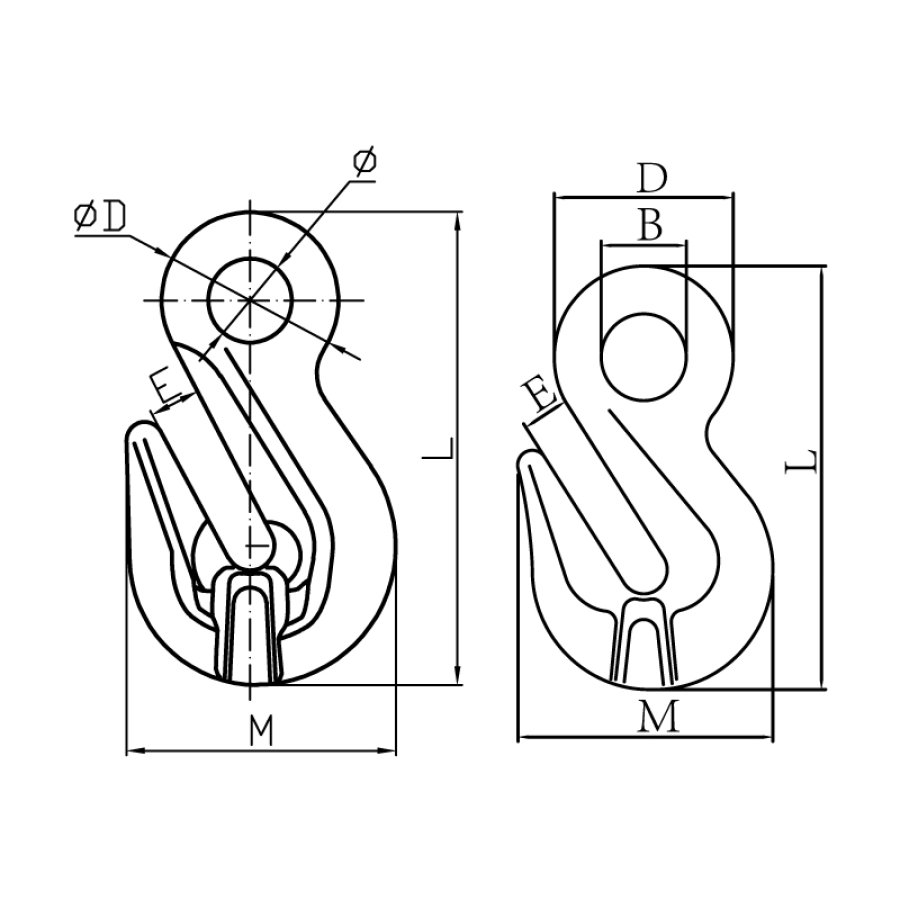

QINGDAO HIDEA PARAMETER SHEET FOR

20RH8001-G100 EYE SHORTENING GRAB HOOK

ITEM NO.	WEIGHT	WLL	B.L	E±1	Φ±1	ΦD±1.5	M±2	L±3
ITEM NO.	(kg)	(T)	(T)	E±1	Φ±1	ΦD±1.5	M±2	L±3
20RH8001-06	0.15	1.4	5.6	8	13.5	30.5	43.5	73
20RH8001-08	0.3	2.5	10	11	17.5	37	53	93
20RH8001-10	0.79	4	16	13.5	22	48.5	74	129
20RH8001-13	1.67	6.7	26.8	16.5	28	59	96	166
20RH8001-16	2.74	10	40	19	36	75	116	186
20RH8001-20	4.72	16	64	24	43.5	89.5	143	227
20RH8001-22	8.2	19	76	27	48.5	100.5	160.5	260.5
