Durable Hidea European Type Large Bow Shackle – Perfect for Rigging, Towing, and Lifting

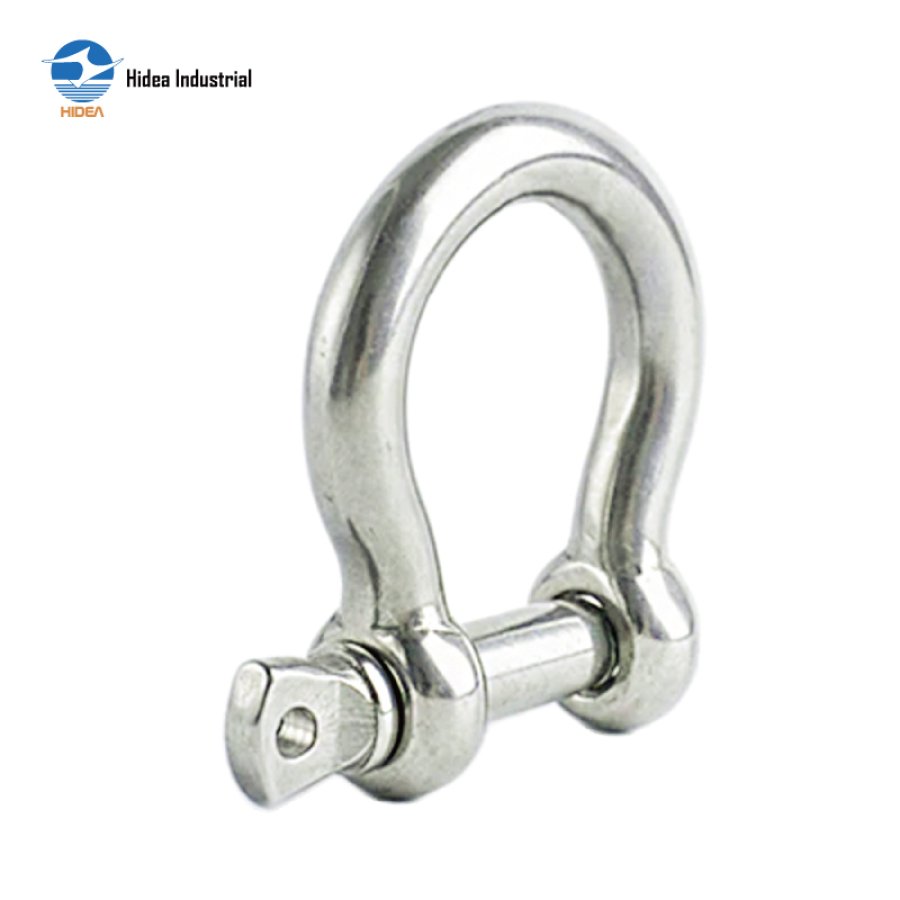

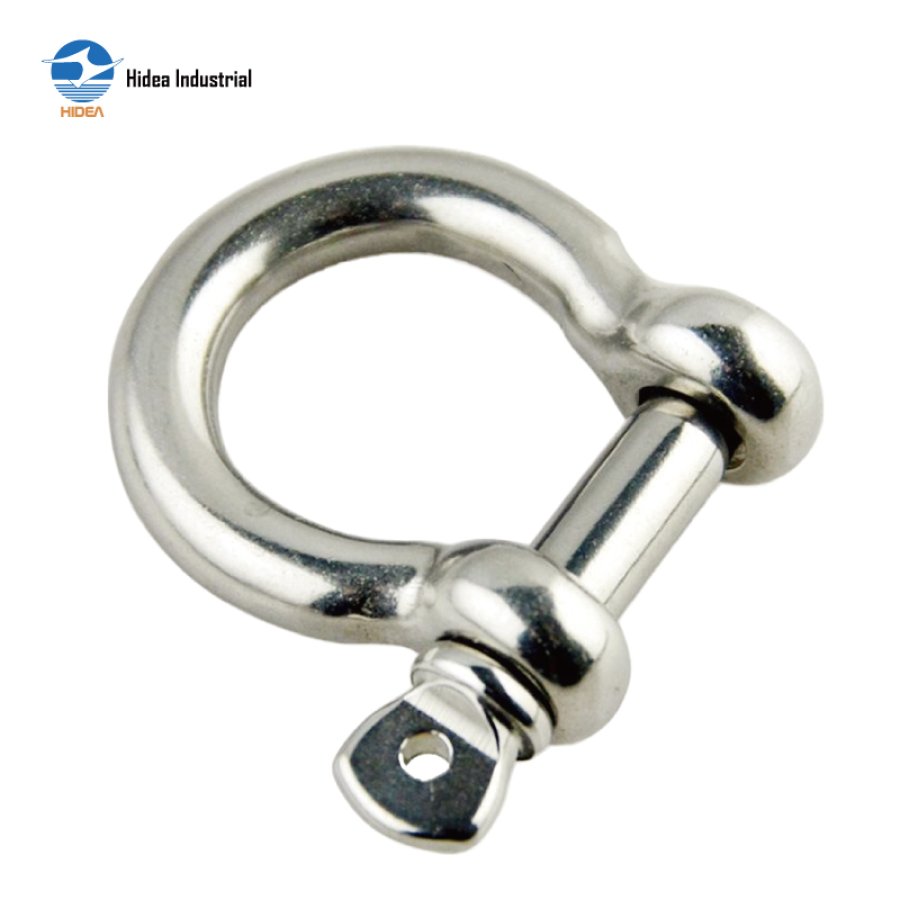

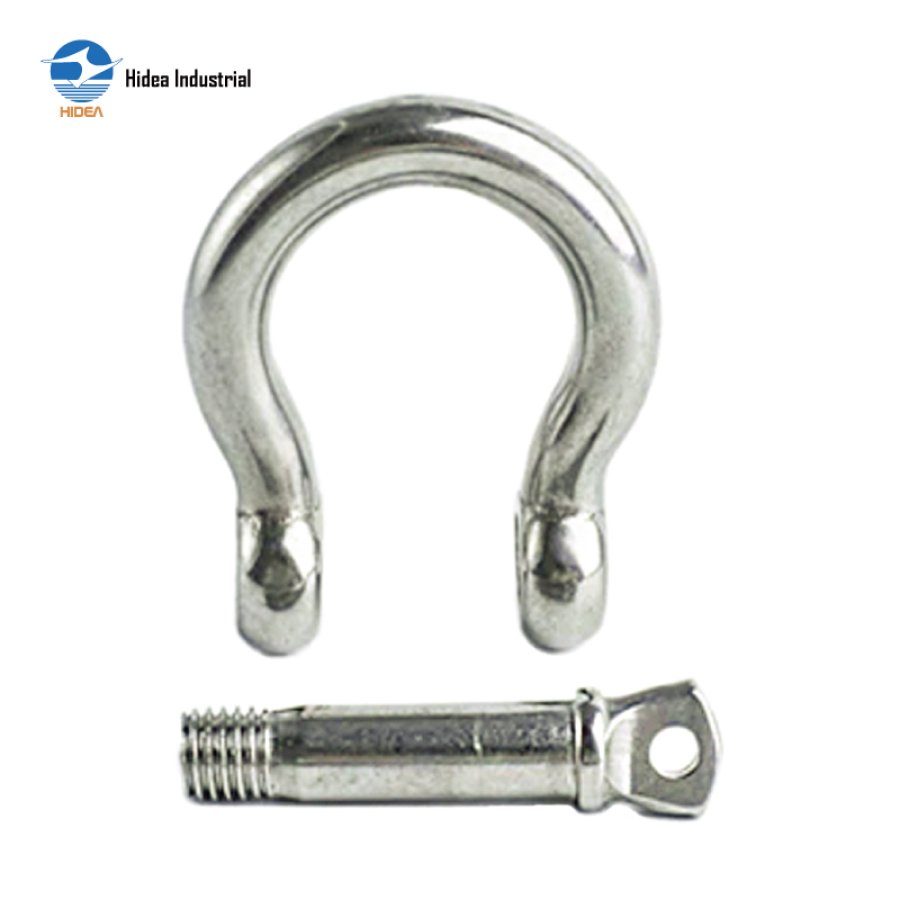

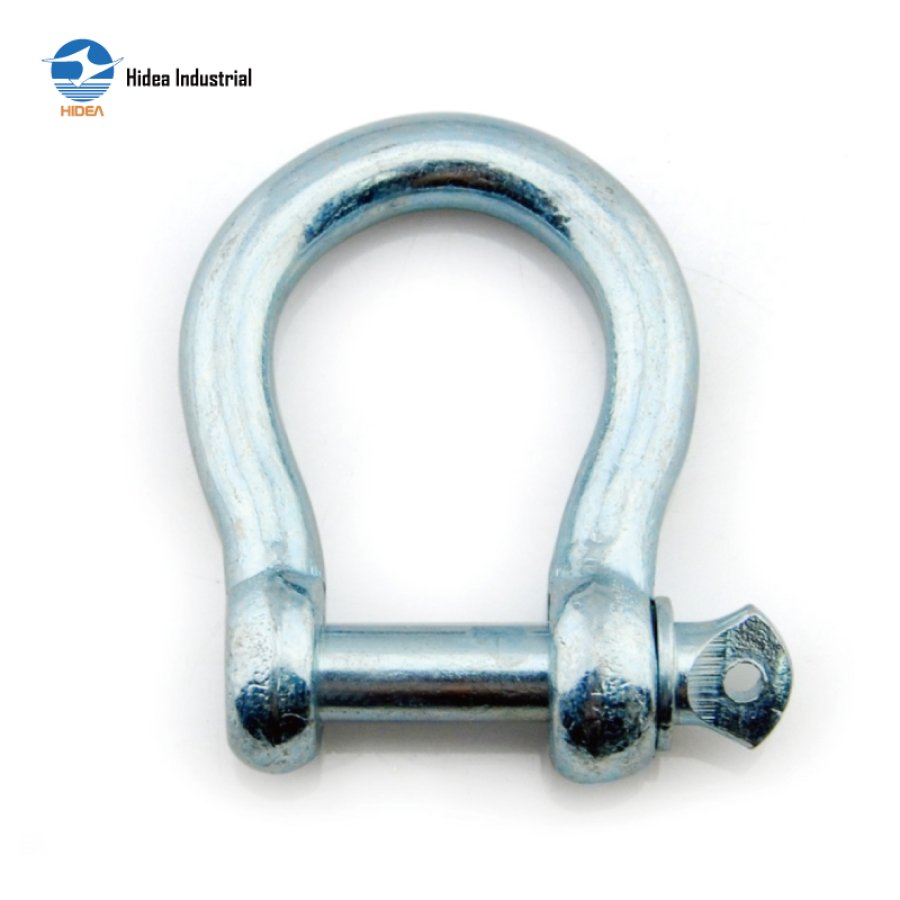

EUROPEAN TYPE LARGE BOW SHACKLE

Material: fine mild steel commercial shackle
Free forged with stamped sizes
Safety factor 5:1 & certificates available
Surface electro-galvanized (EG) OR powder coated OR self-colored OR as requested

Inquire Now

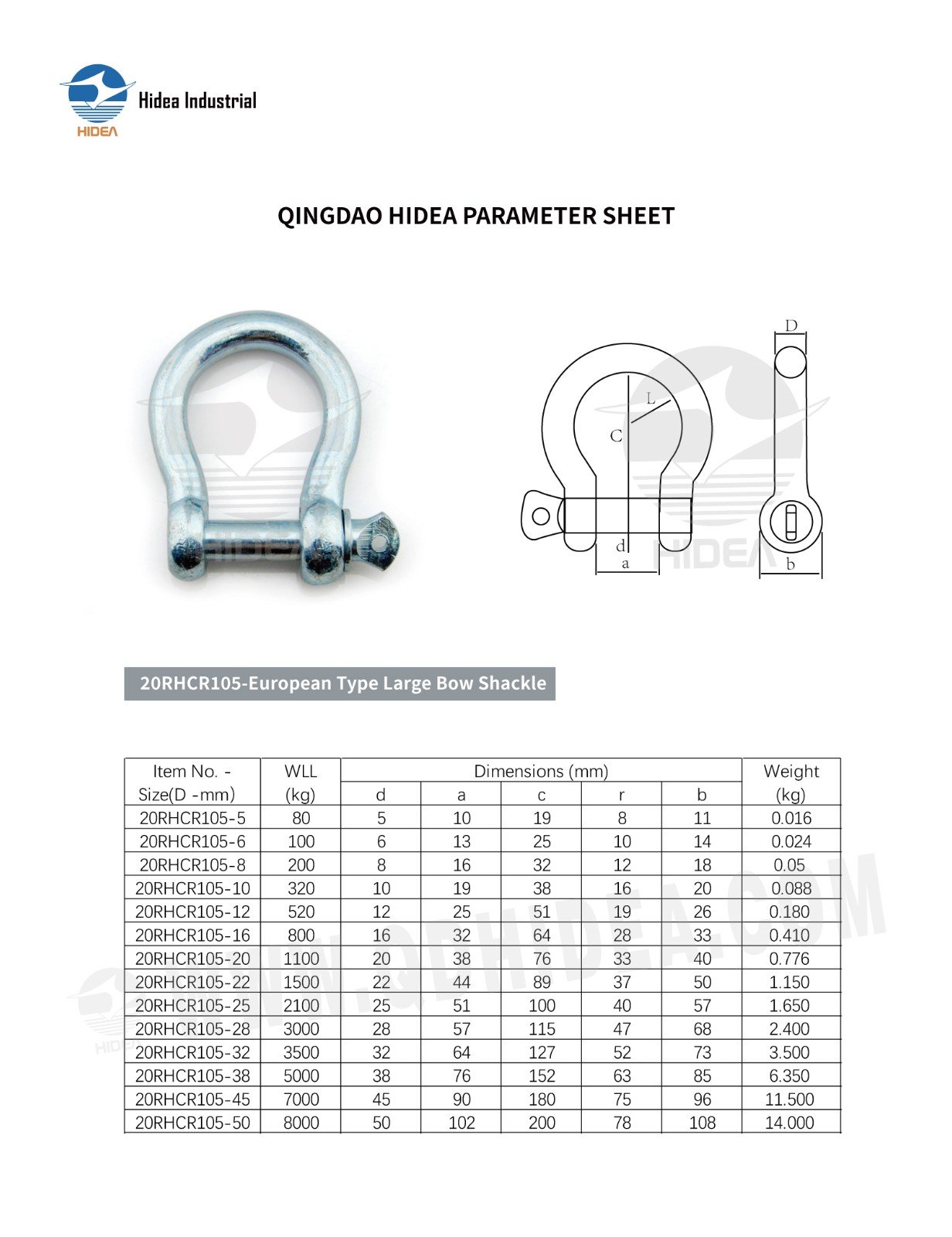

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR105-European Type Large Bow Shackle

Item No.- Size(D-mm)	WLL (kg)	Dimensions(mm)					Weight (kg)
Item No.- Size(D-mm)	WLL (kg)	d	a	C	r	b	Weight (kg)
20RHCR105-5	80	5	10	19	8	11	0.016
20RHCR105-6	100	6	13	25	10	14	0.024
20RHCR105-8	200	8	16	32	12	18	0.05
20RHCR105-10	320	10	19	38	16	20	0.088
20RHCR105-12	520	12	25	51	19	26	0.180
20RHCR105-16	800	16	32	64	28	33	0.410
20RHCR105-20	1100	20	38	76	33	40	0.776
20RHCR105-22	1500	22	44	89	37	50	1.150
20RHCR105-25	2100	25	51	100	40	57	1.650
20RHCR105-28	3000	28	57	115	47	68	2.400
20RHCR105-32	3500	32	64	127	52	73	3.500
20RHCR105-38	5000	38	76	152	63	85	6.350
20RHCR105-45	7000	45	90	180	75	96	11.500
20RHCR105-50	8000	50	102	200	78	108	14.000
