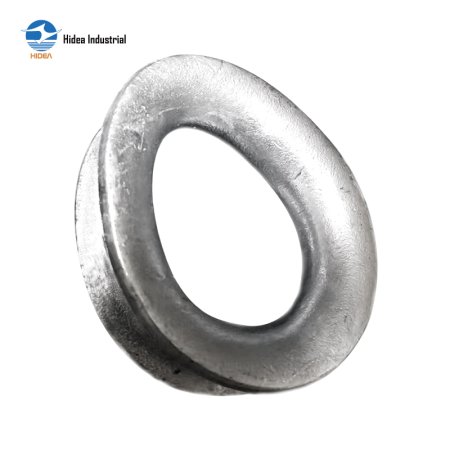

HIDEA K4 Egg Shaped Wire Rope Thimble – Durable Thimble for Wire & Fiber Rope

K4 EGG SHAPED OVAL THIMBLE

Material Mild Steel Profile
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K4 Container Thimble Egg Shaped, Round/Oval Egg Shaped circle wire rope thimbles

Inquire Now

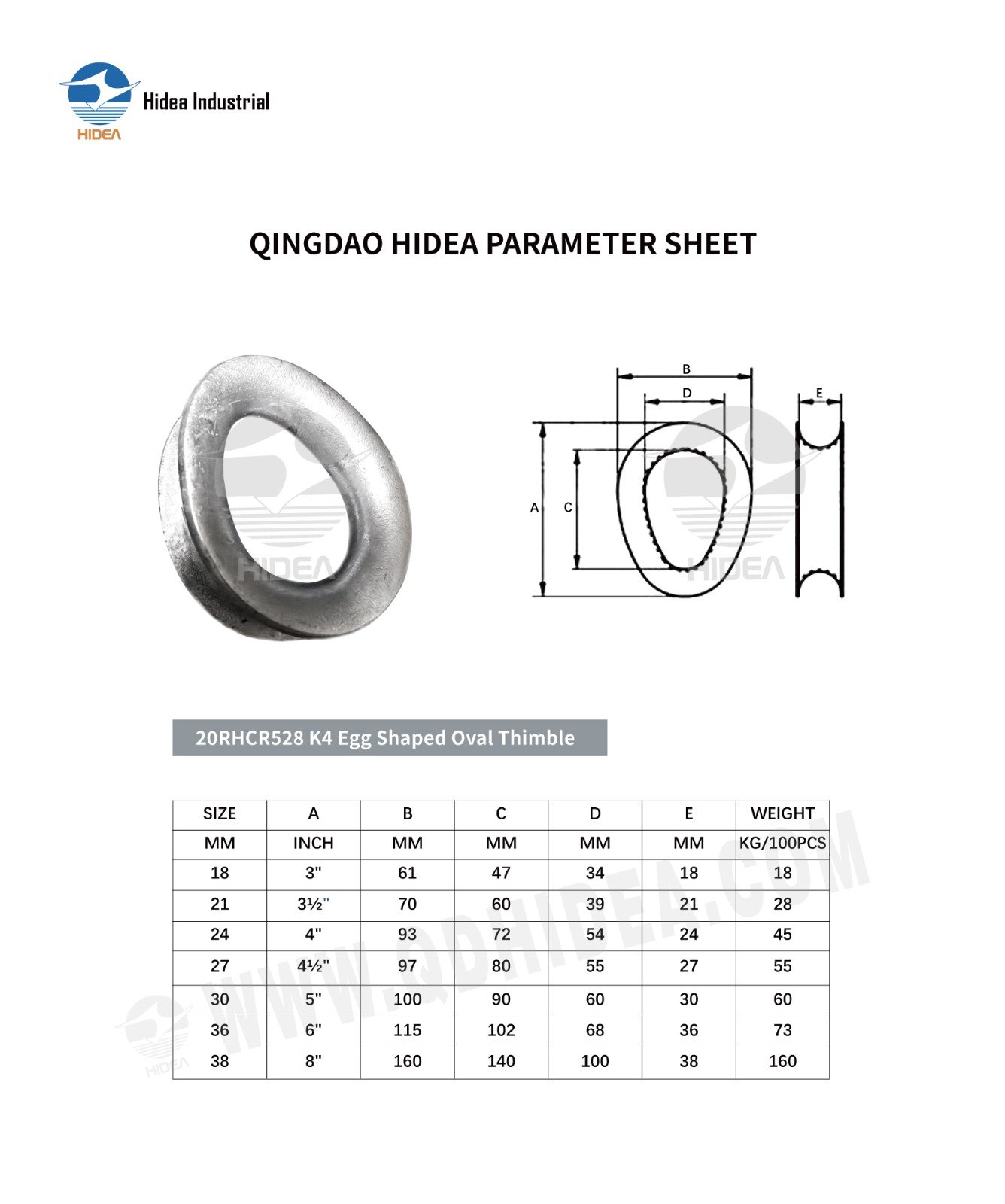

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR528 K4 Egg Shaped Oval Thimble

SIZE	A	B	C	D	E	WEIGHT
MM	INCH	MM	MM	MM	MM	KG/100PCS
18	3"	61	47	34	18	18
21	3½”	70	60	39	21	28
24	4"	93	72	54	24	45
27	4½”	97	80	55	27	55
30	5"	100	90	60	30	60
36	6"	115	102	68	36	73
38	8"	160	140	100	38	160
