Hidea Trawling Dee Shackle: Built for Safe and Secure Trawling Operations

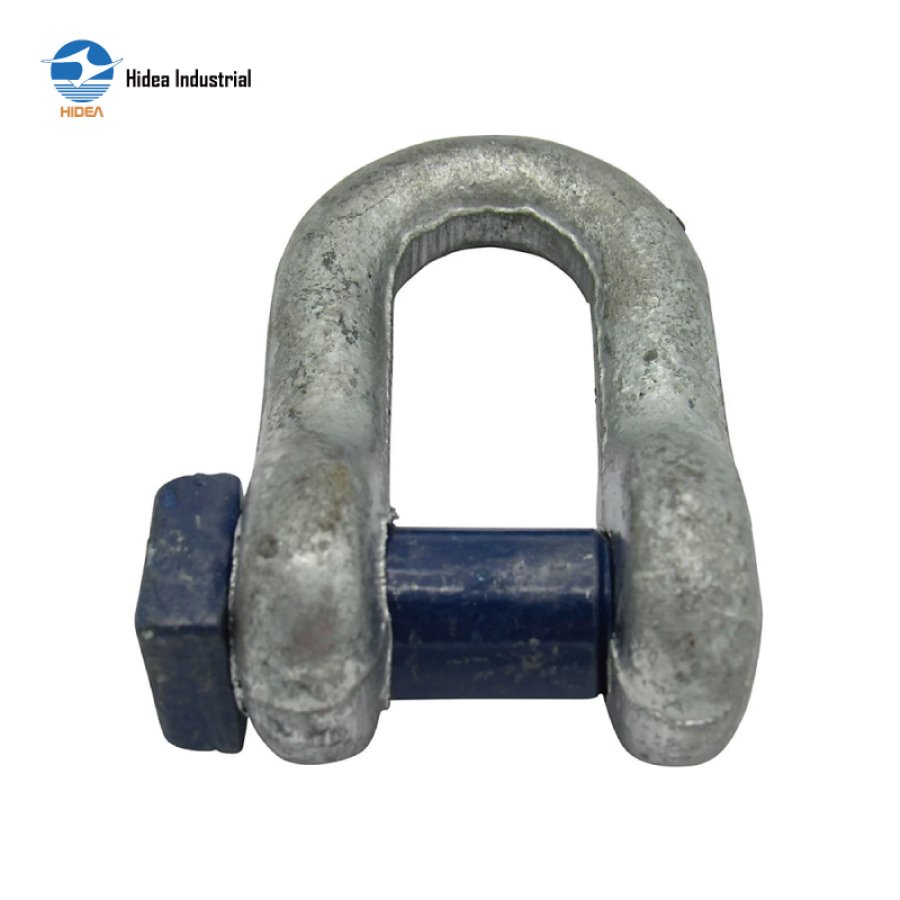

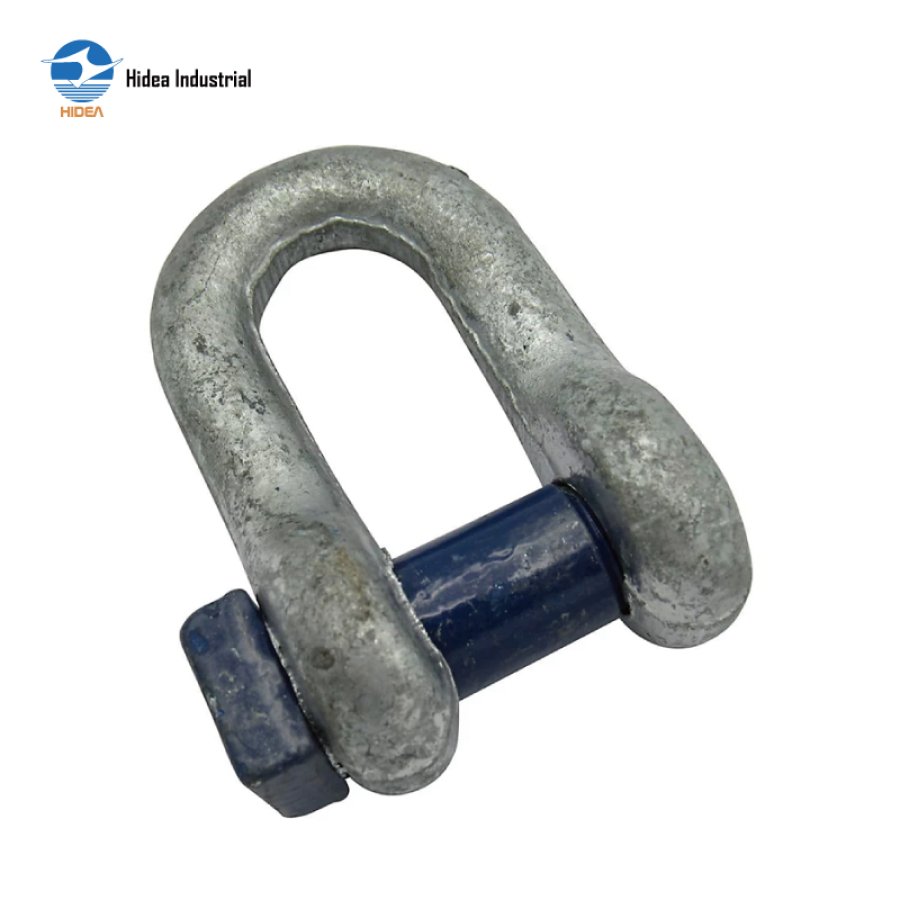

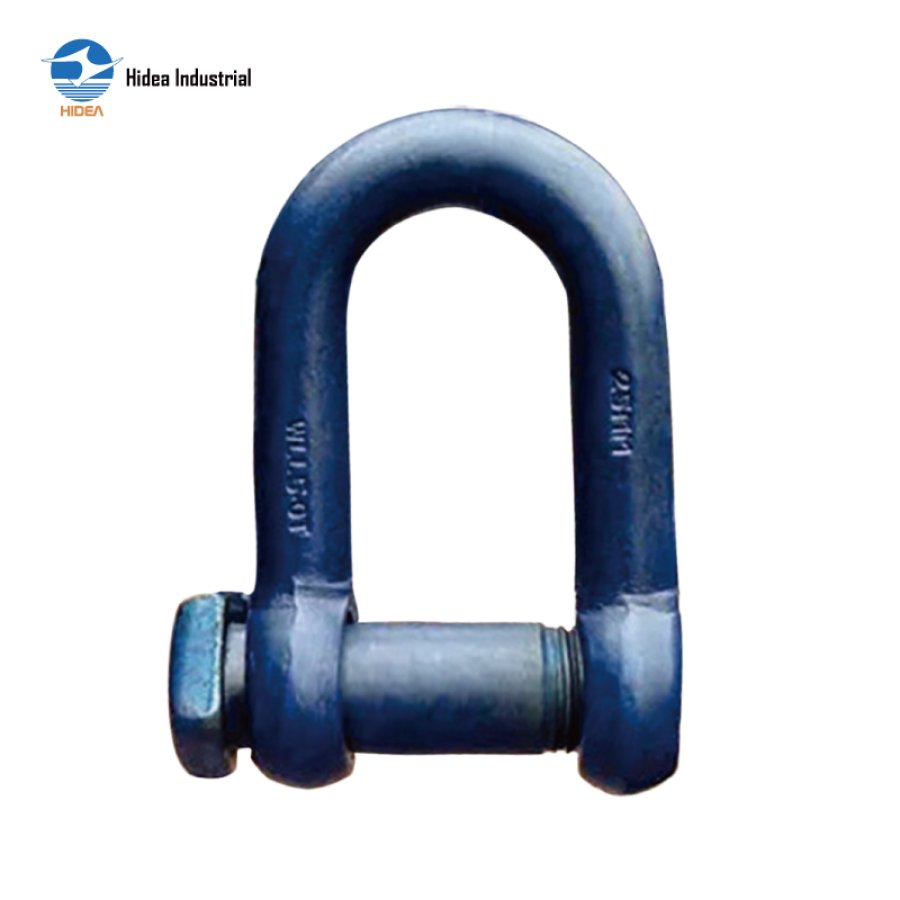

TRAWLING SHACKLE OVERSIZE SQUARE HEAD PIN DEE TYPE

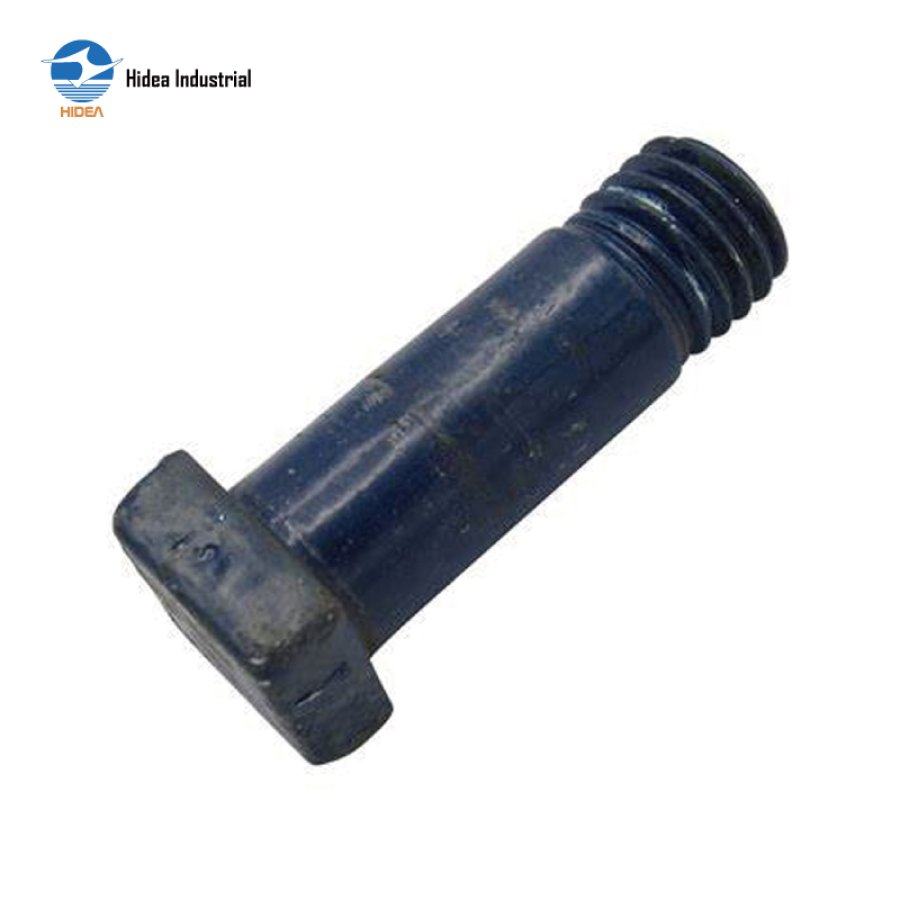

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface Electro galvanized (EG), powder coated OR self-colored

Inquire Now

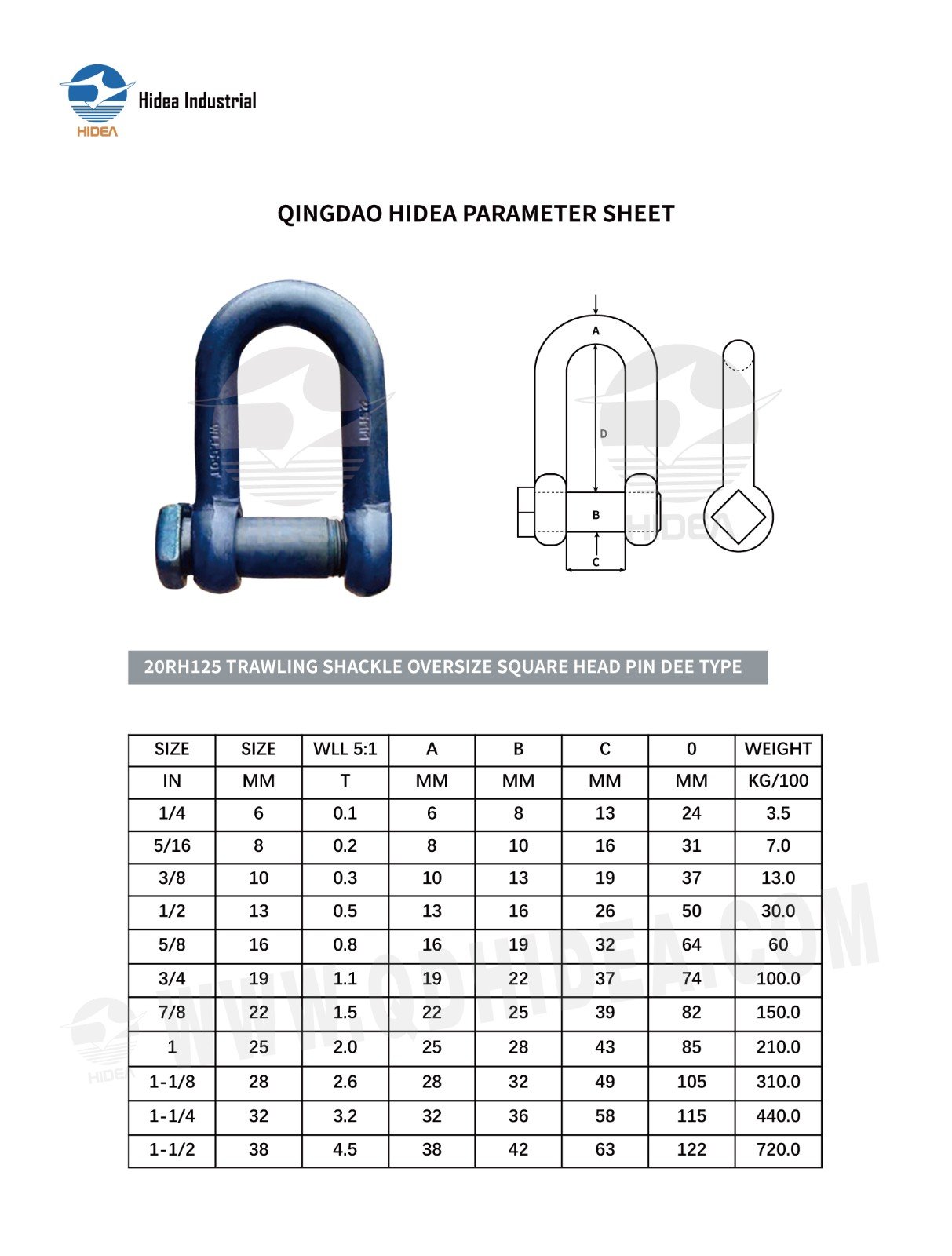

QINGDAO HIDEA PARAMETER SHEET FOR

20RH125 TRAWLING SHACKLE OVERSIZE SQUARE HEAD PIN DEE TYPE

SIZE	SIZE	WLL5:1	A	B	C	0	WEIGHT
IN	MM	T	MM	MM	MM	MM	KG/100
1/4	6	0.1	6	8	13	24	3.5
5/16	8	0.2	8	10	16	31	7.0
3/8	10	0.3	10	13	19	37	13.0
1/2	13	0.5	13	16	26	50	30.0
5/8	16	0.8	16	19	32	64	60
3/4	19	1.1	19	22	37	74	100.0
7/8	22	1.5	22	25	39	82	150.0
1	25	2.0	25	28	43	85	210.0
1-1/8	28	2.6	28	32	49	105	310.0
1-1/4	32	3.2	32	36	58	115	440.0
1-1/2	38	4.5	38	42	63	122	720.0
