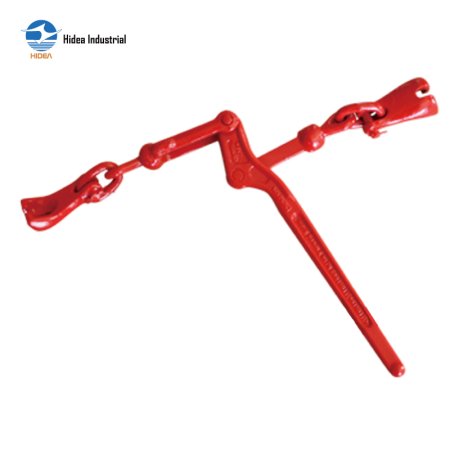

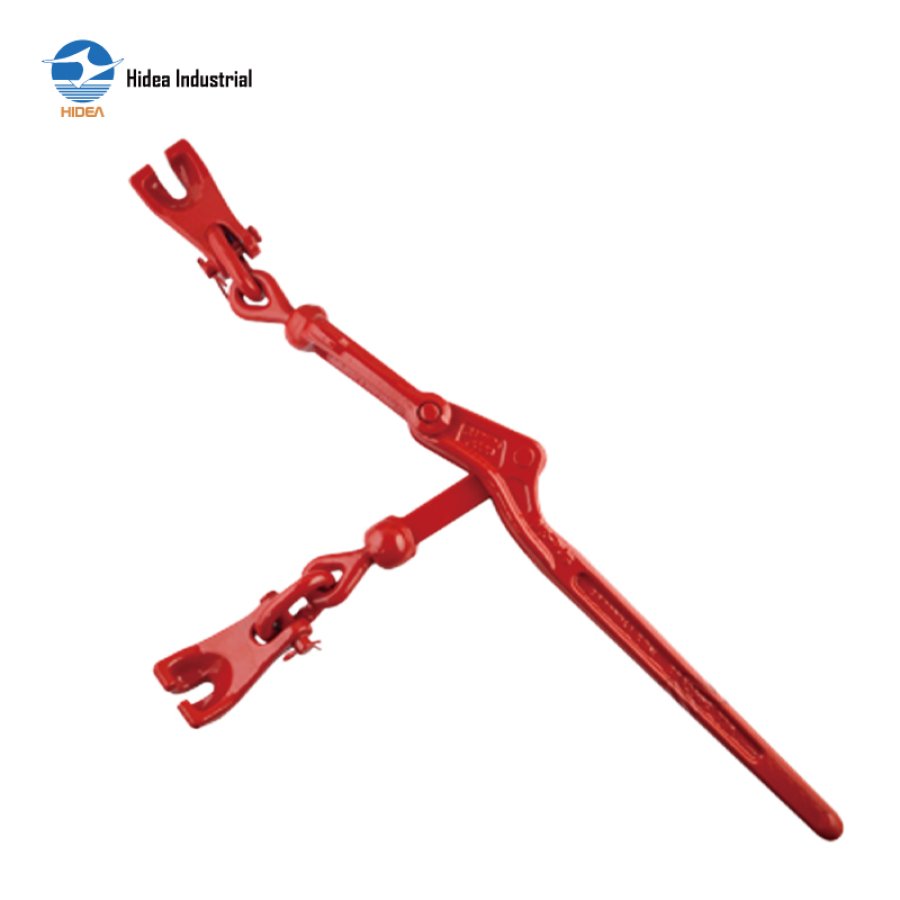

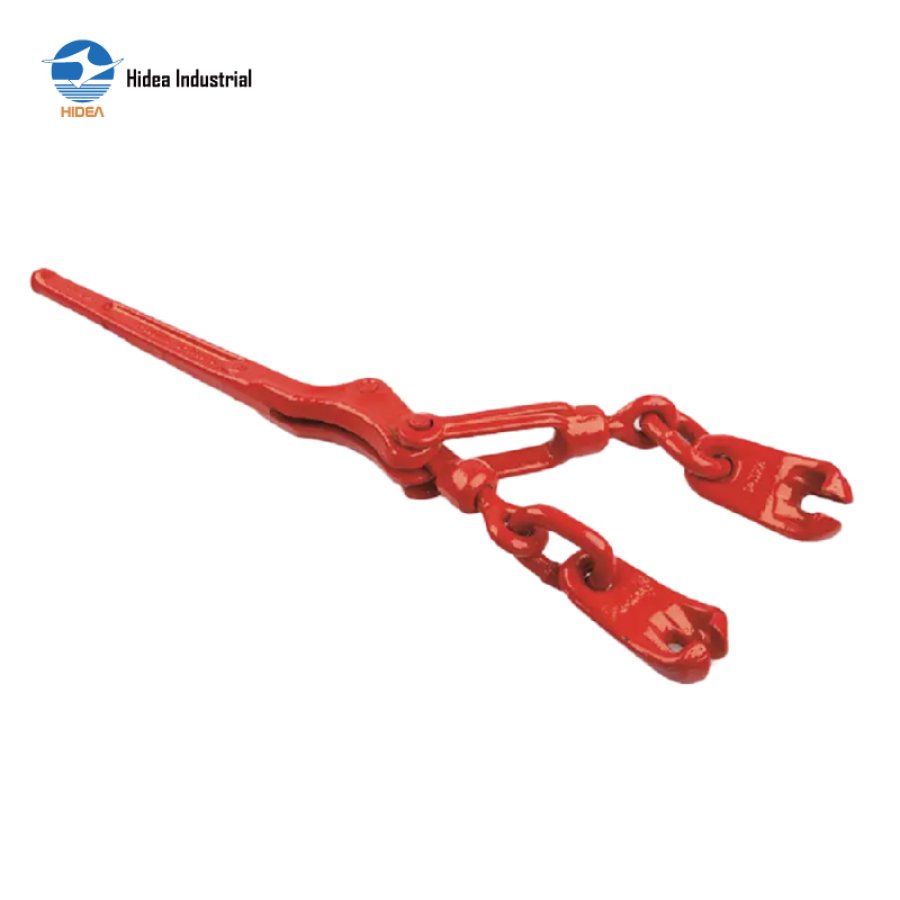

Hidea G70 Claw Load Binders for Quick Tensioning

DROP FORGED CLAW LOAD BINDER

High tensile steel rated G70+
Drop forged, quenched & tempered
Proof tested individually
Surface: Powder coated OR as requested
Meets or exceeds requirements of US DOT FMGSA Part 393 Subpart I

Inquire Now

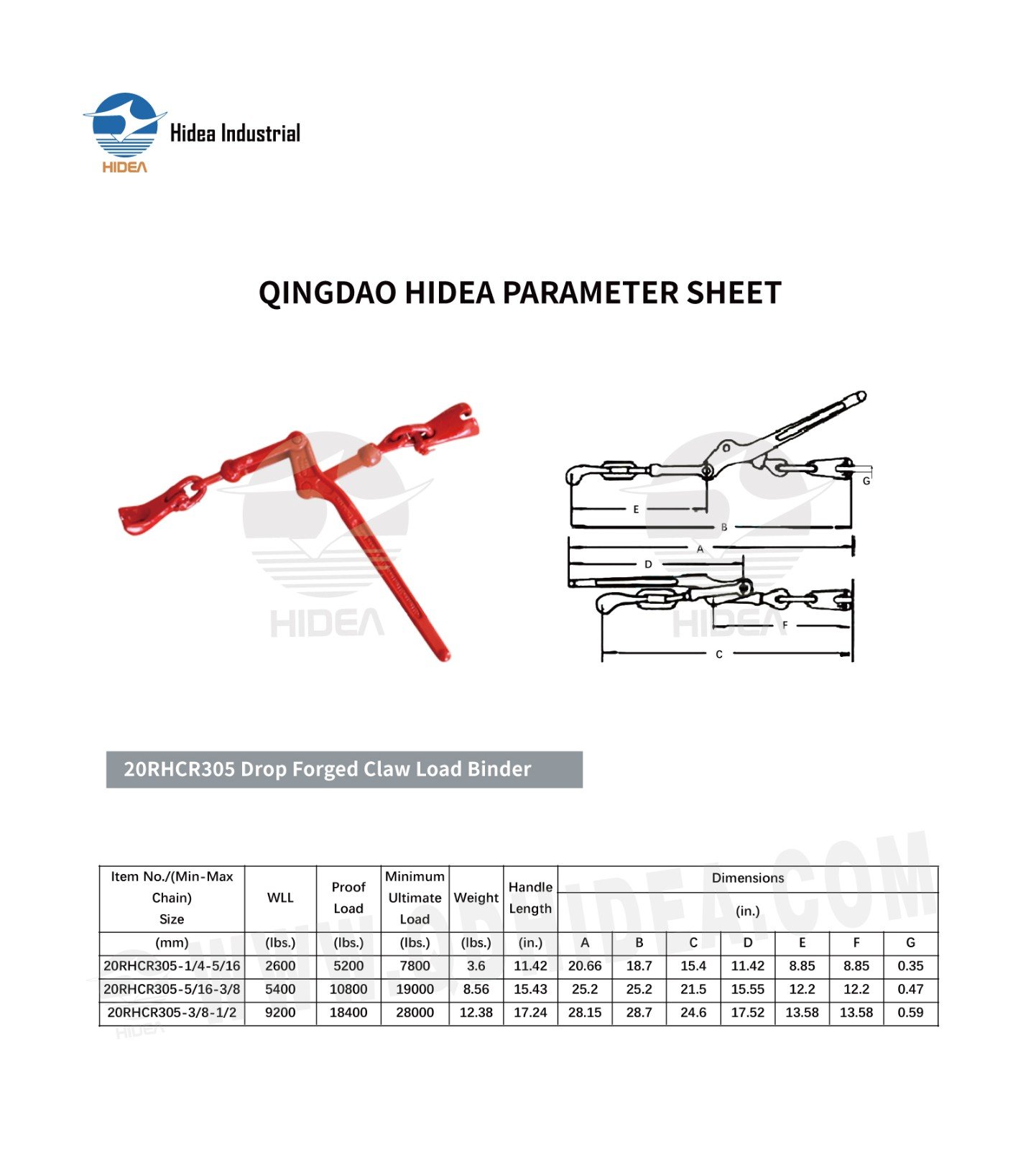

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR305 Drop Forged Claw Load Binder

Item No./(Min-Max
Chain)
Size

WLL

Proof
Load

Minimum
Ultimate
Load

Weight

Handle
Length

Dimensions

(in.)

(mm)

(Ibs.)

(lbs.)

(Ibs.)

(Ibs.)

(in.)

A

B

C

D

E

F

G

20RHCR305-1/4-5/16

2600

5200

7800

3.6

11.42

20.66

18.7

15.4

11.42

8.85

8.85

0.35

20RHCR305-5/16-3/8

5400

10800

19000

8.56

15.43

25.2

25.2

21.5

15.55

12.2

12.2

0.47

20RHCR305-3/8-1/2

9200

18400

28000

12.38

17.24

28.15

28.7

24.6

17.52

13.58

13.58

0.59
