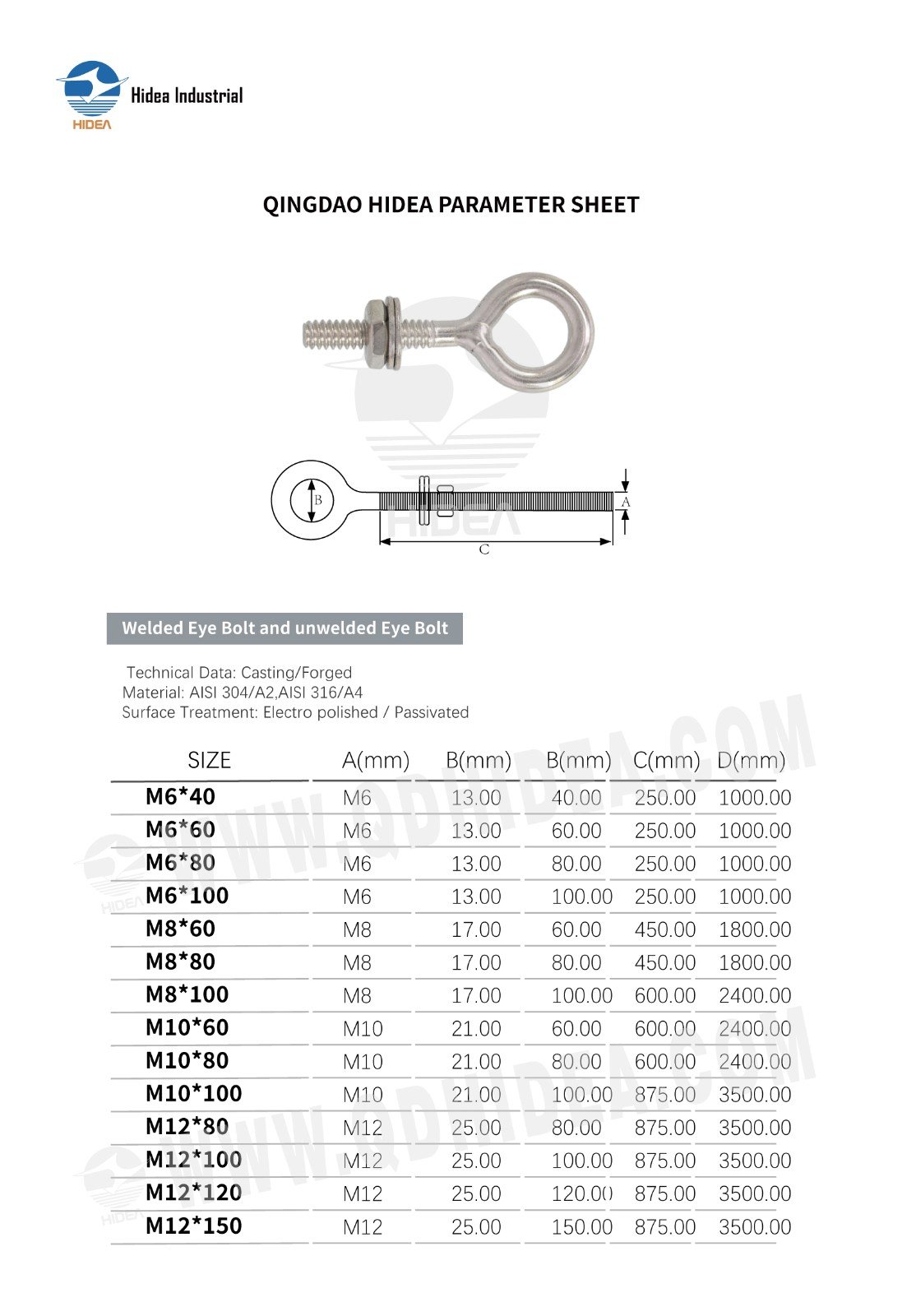

QINGDAO HIDEA PARAMETER SHEET FOR

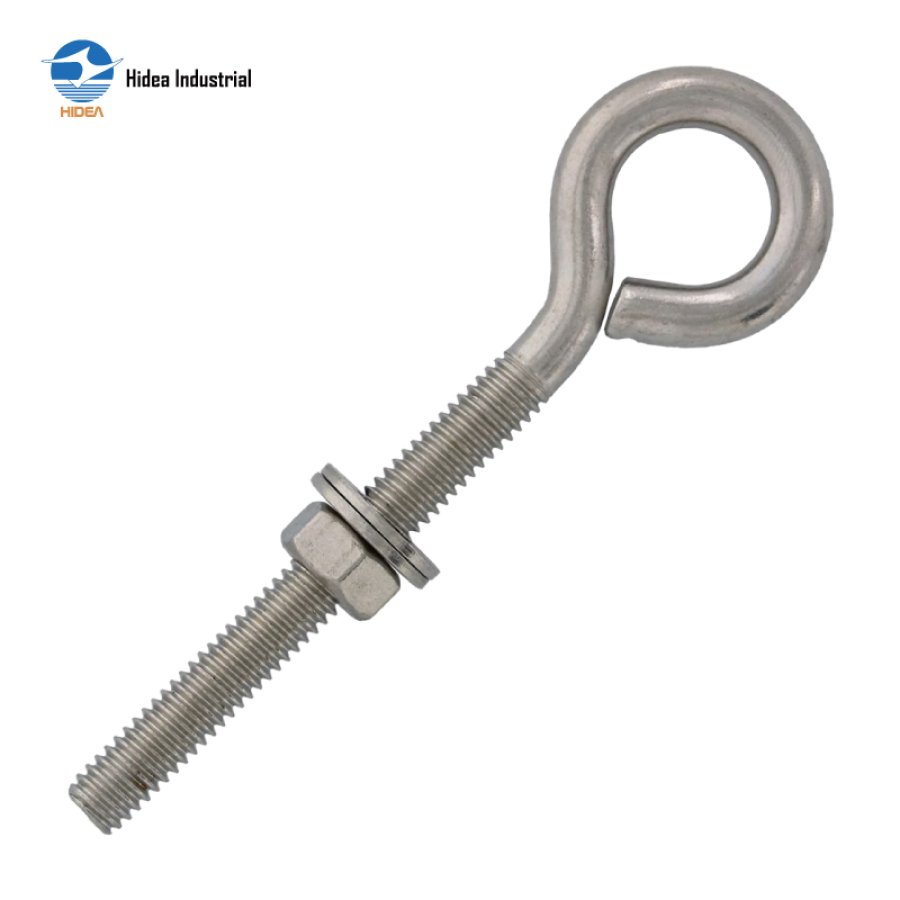

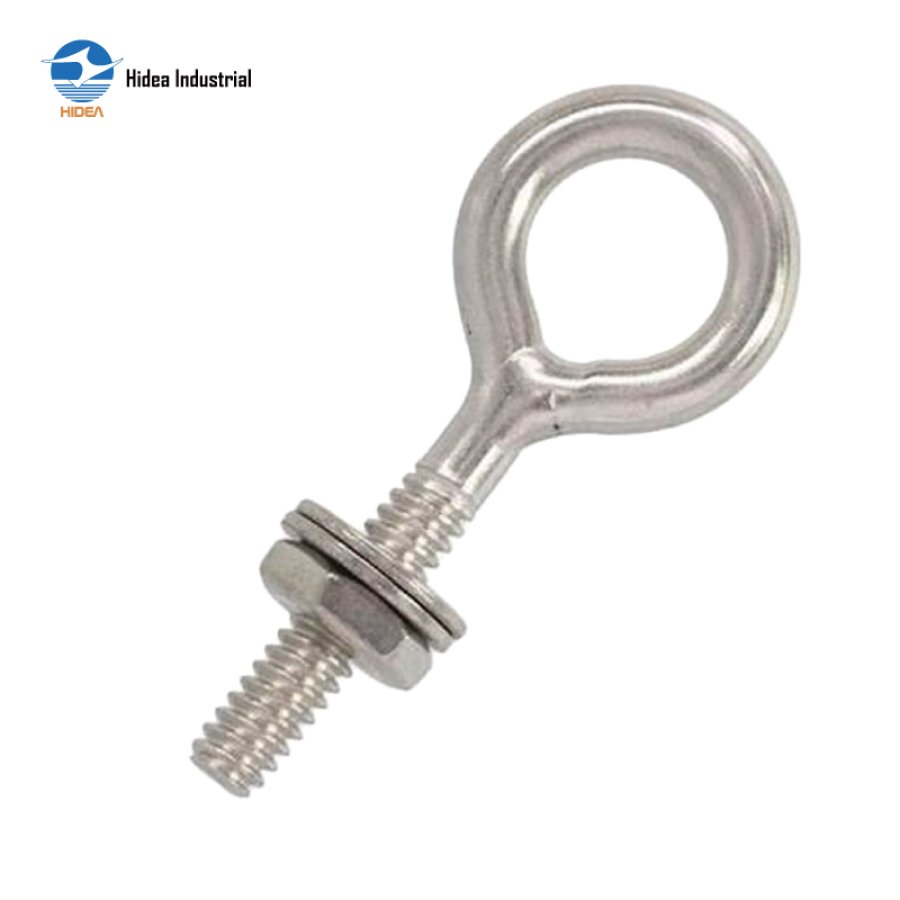

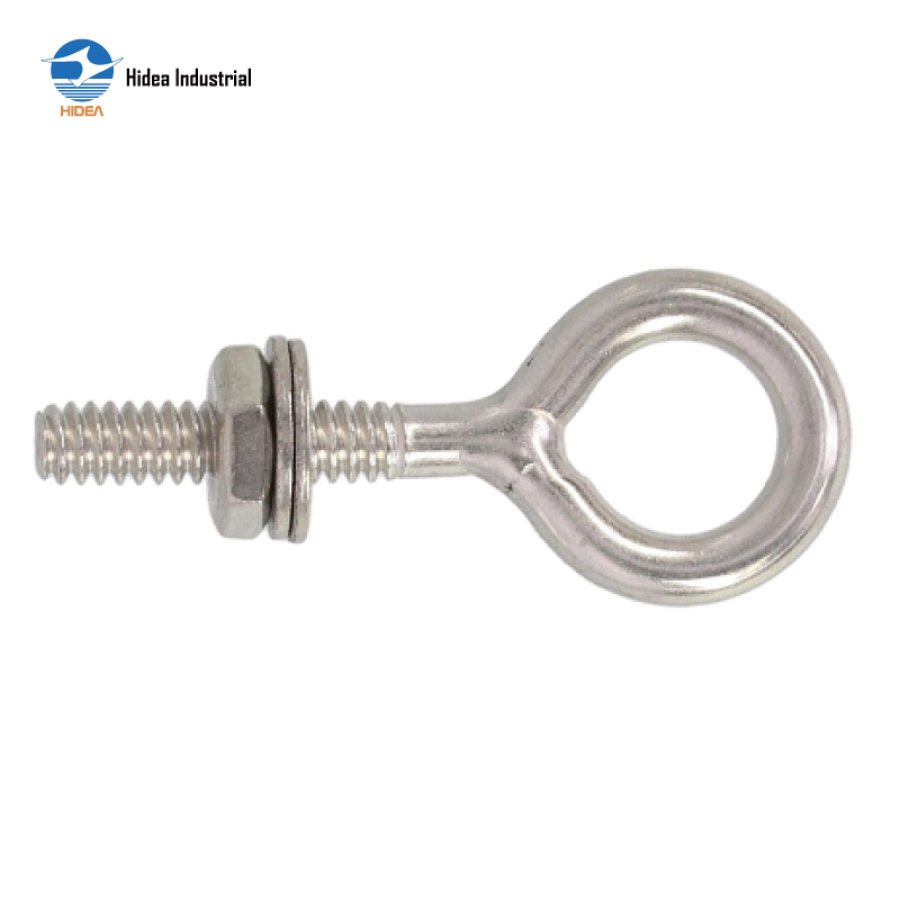

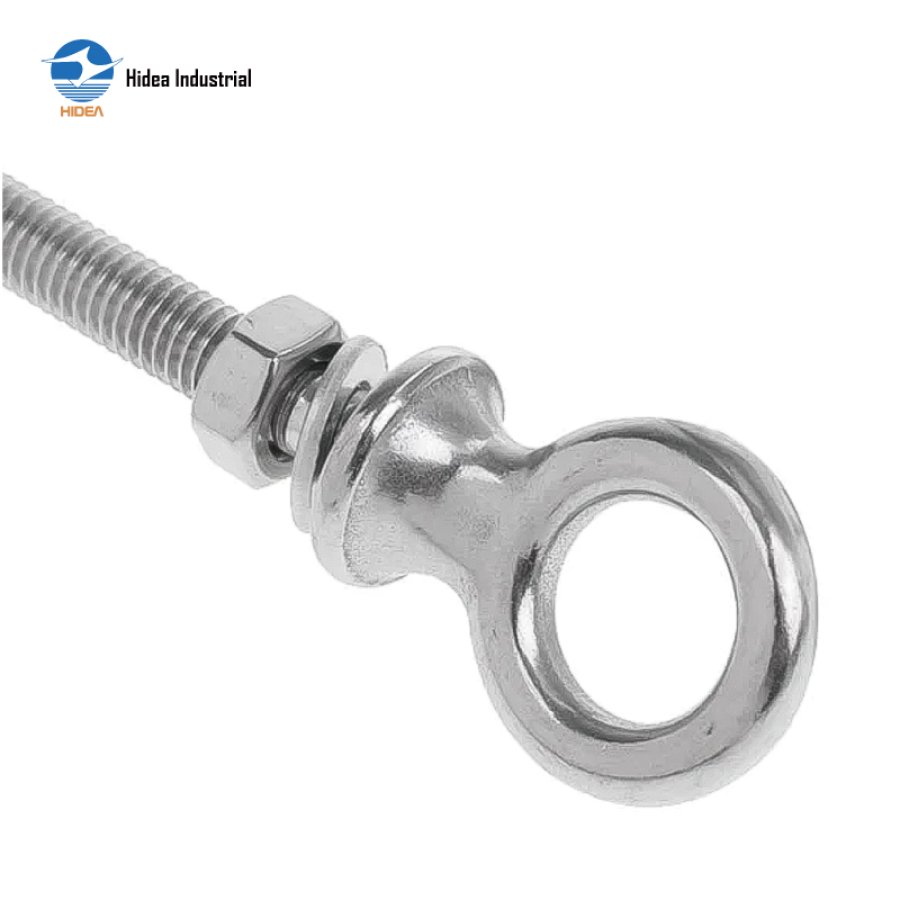

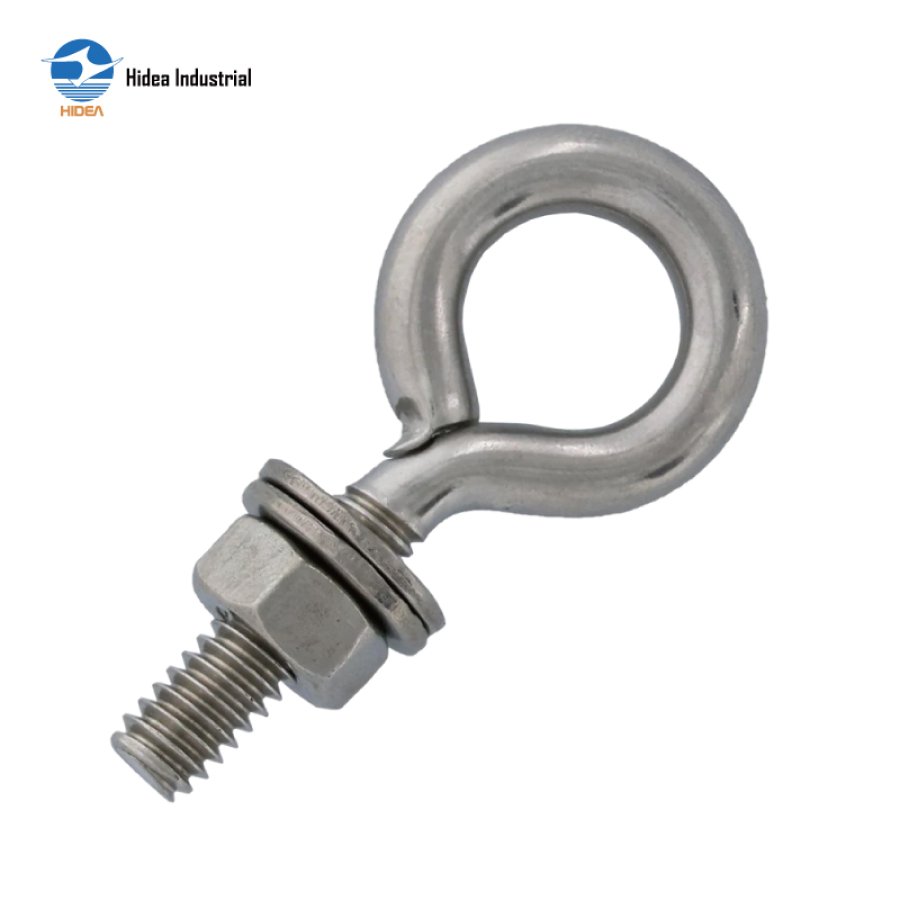

Welded Eye Bolt and unwelded Eye Bolt
| SIZE | A(mm) | B(mm) | B(mm) | C(mm) | D(mm) |
| M6*40 | M6 | 13.00 | 40.00 | 250.00 | 1000.00 |
| M6*60 | M6 | 13.00 | 60.00 | 250.00 | 1000.00 |
| M6*80 | M6 | 13.00 | 80.00 | 250.00 | 1000.00 |
| M6*100 | M6 | 13.00 | 100.00 | 250.00 | 1000.00 |
| M8*60 | M8 | 17.00 | 60.00 | 450.00 | 1800.00 |
| M8*80 | M8 | 17.00 | 80.00 | 450.00 | 1800.00 |
| M8*100 | M8 | 17.00 | 100.00 | 600.00 | 2400.00 |
| M10*60 | M10 | 21.00 | 60.00 | 600.00 | 2400.00 |
| M10*80 | M10 | 21.00 | 80.00 | 600.00 | 2400.00 |
| M10*100 | M10 | 21.00 | 100.00 | 875.00 | 3500.00 |
| M12*80 | M12 | 25.00 | 80.00 | 875.00 | 3500.00 |
| M12*100 | M12 | 25.00 | 100.00 | 875.00 | 3500.00 |
| M12*120 | M12 | 25.00 | 120.00 | 875.00 | 3500.00 |
| M12*150 | M12 | 25.00 | 150.00 | 875.00 | 3500.00 |
