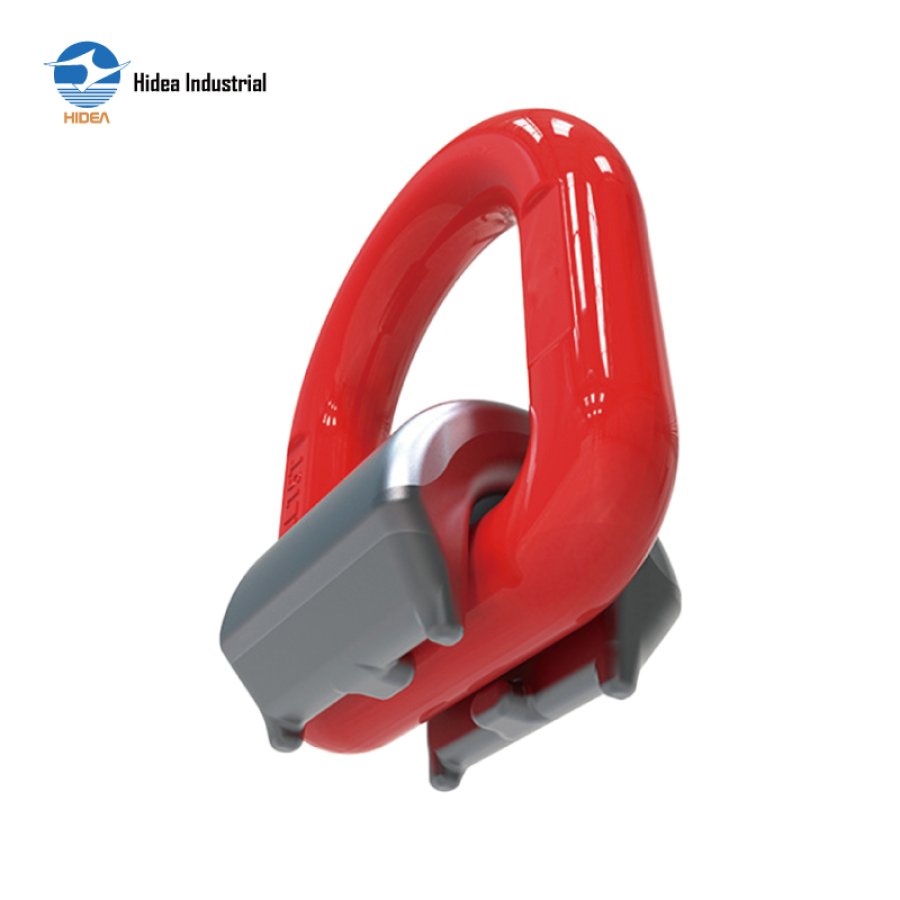

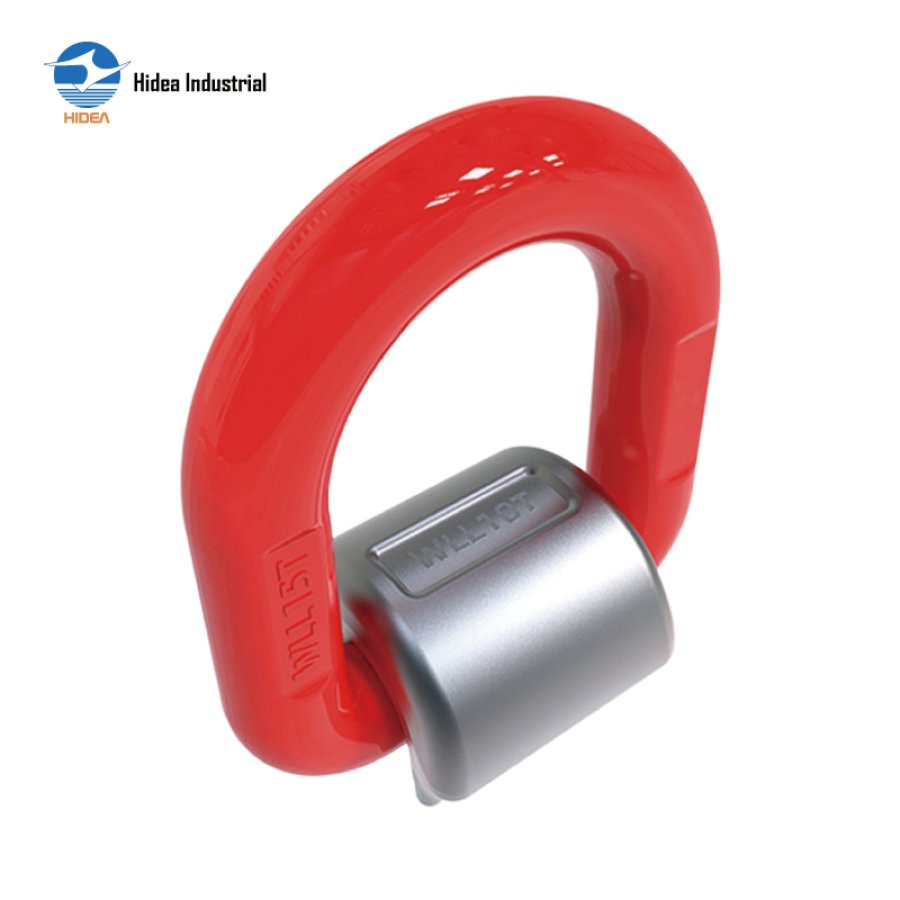

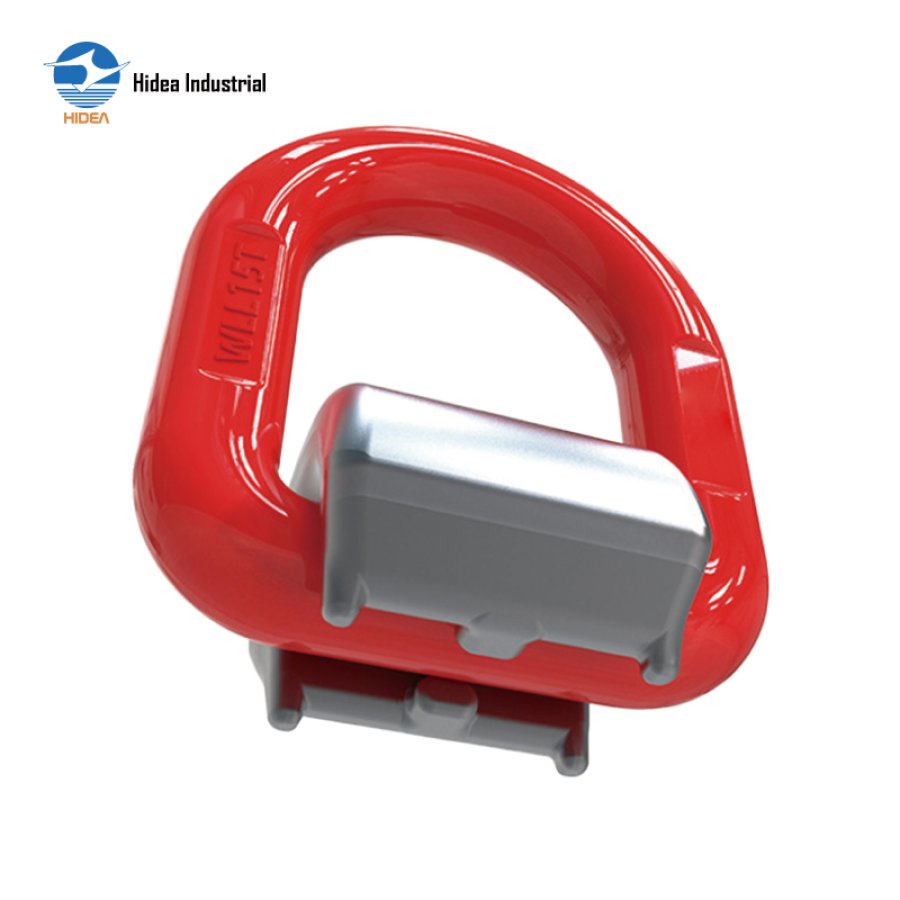

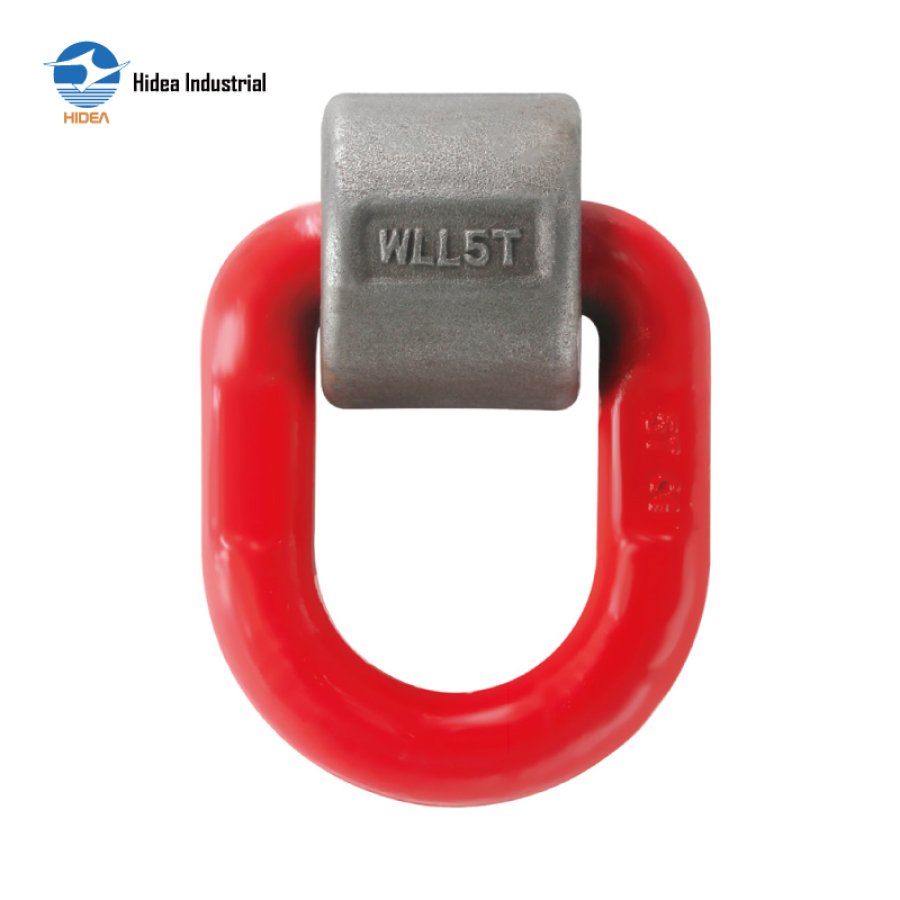

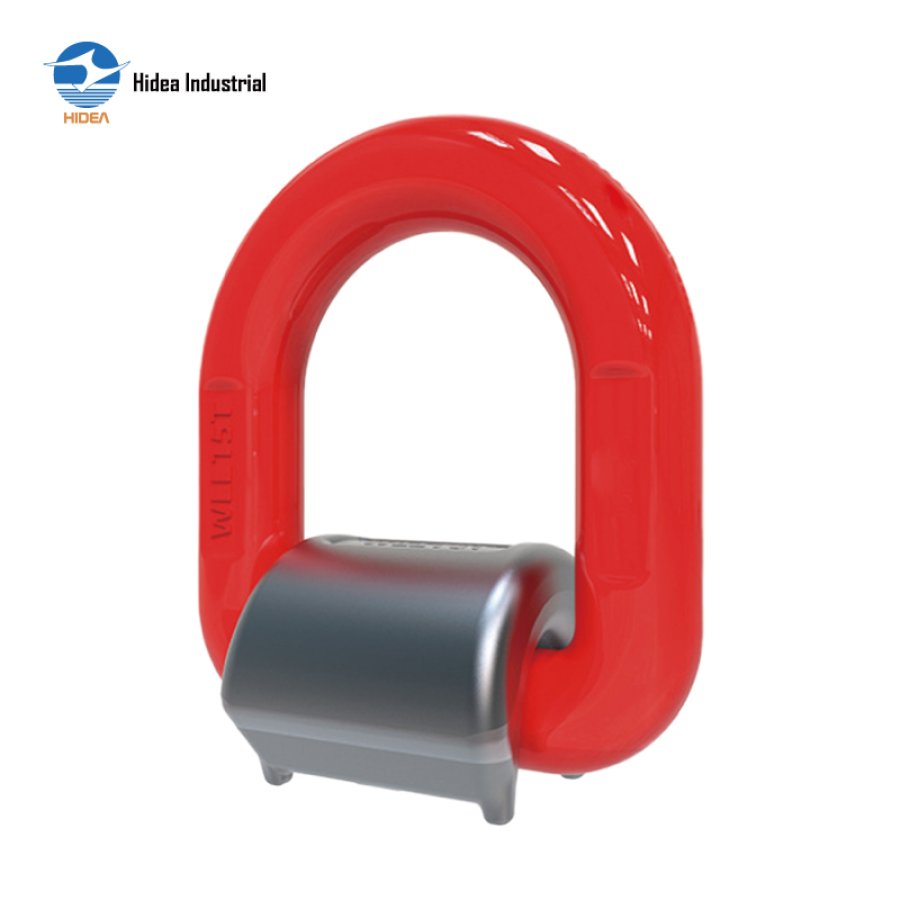

Heavy-Duty Hidea G80 D-Ring with Wrap & Spring for Secure Load Restraint and Rigging Systems

G80 WELD ON PIVOTING D LINK WITH WRAP & SPRING

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
With spring inside for better pivoting control
Welding is to be performed by a qualified welder

Inquire Now

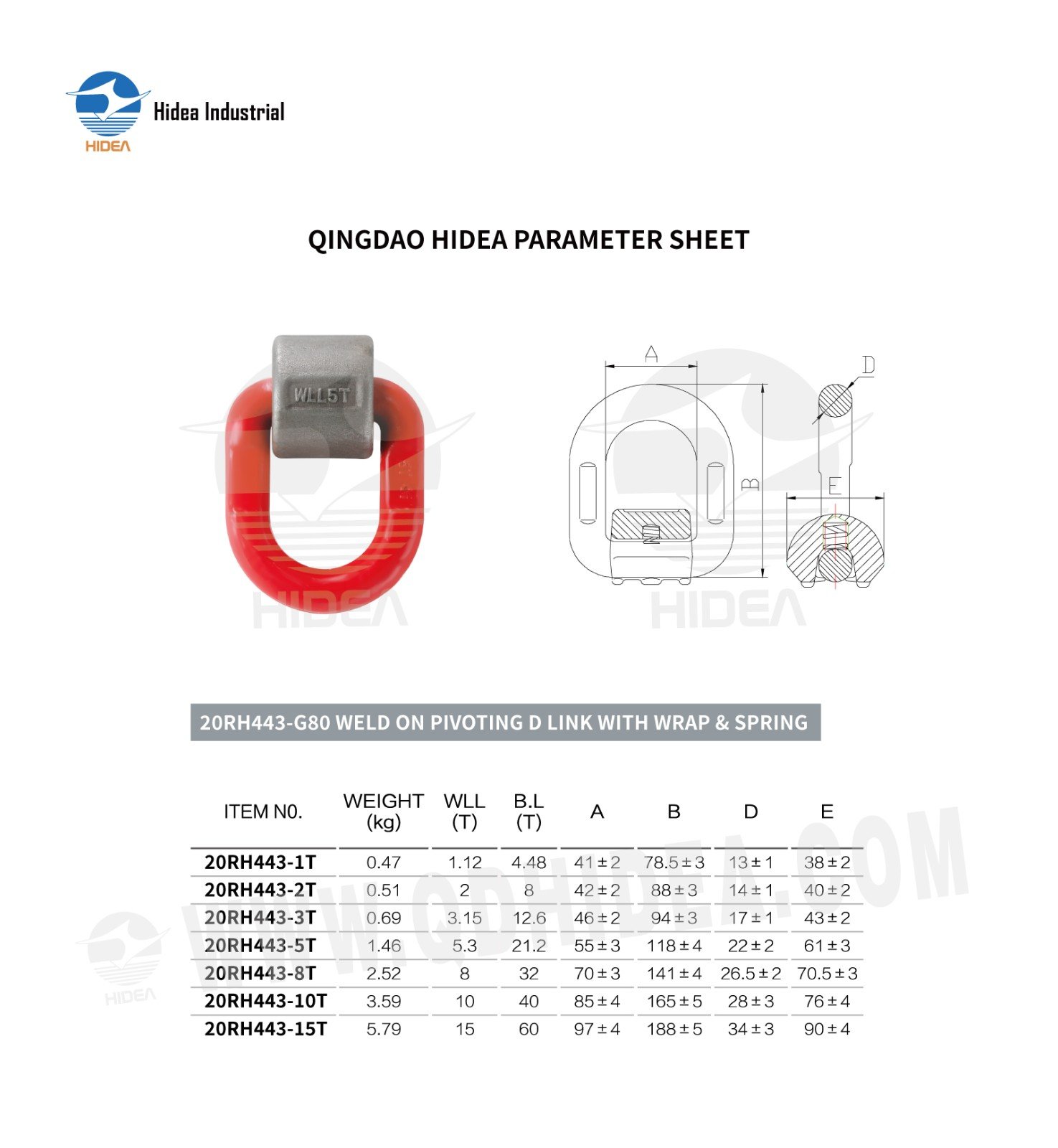

QINGDAO HIDEA PARAMETER SHEET FOR

20RH443-G80 WELD ON PIVOTINGD LINK WITH WRAP&SPRING

ITEM N0.	WEIGHT	WLL	B.L	A	B	D	E
	(kg)	(T)	(T)
20RH443-1T	0.47	1.12	4.48	41±2	78.5±3	13±1	38±2
20RH443-2T	0.51	2	8	42±2	88±3	14±1	40±2
20RH443-3T	0.69	3.15	12.6	46±2	94±3	17±1	43±2
20RH443-5T	1.46	5.3	21.2	55±3	118±4	22±2	61±3
20RH443-8T	2.52	8	32	70±3	141±4	26.5±2	70.5±3
20RH443-10T	3.59	10	40	85±4	165±5	28±3	76±4
20RH443-15T	5.79	15	60	97±4	188±5	34±3	90±4
