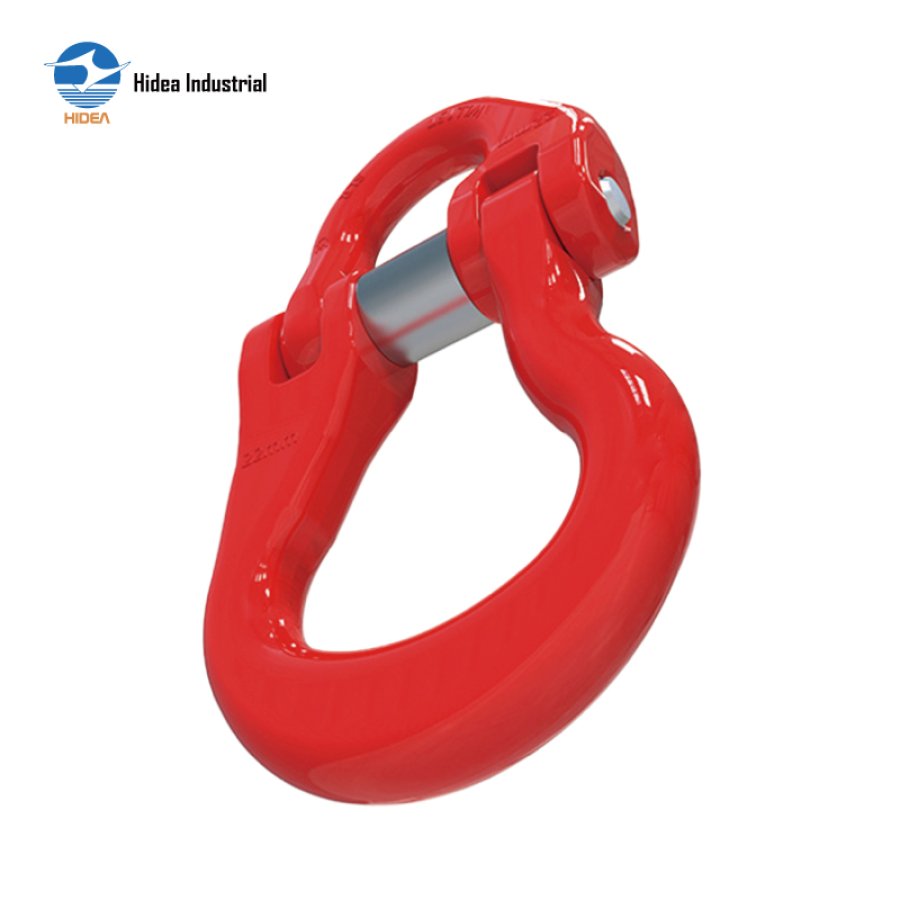

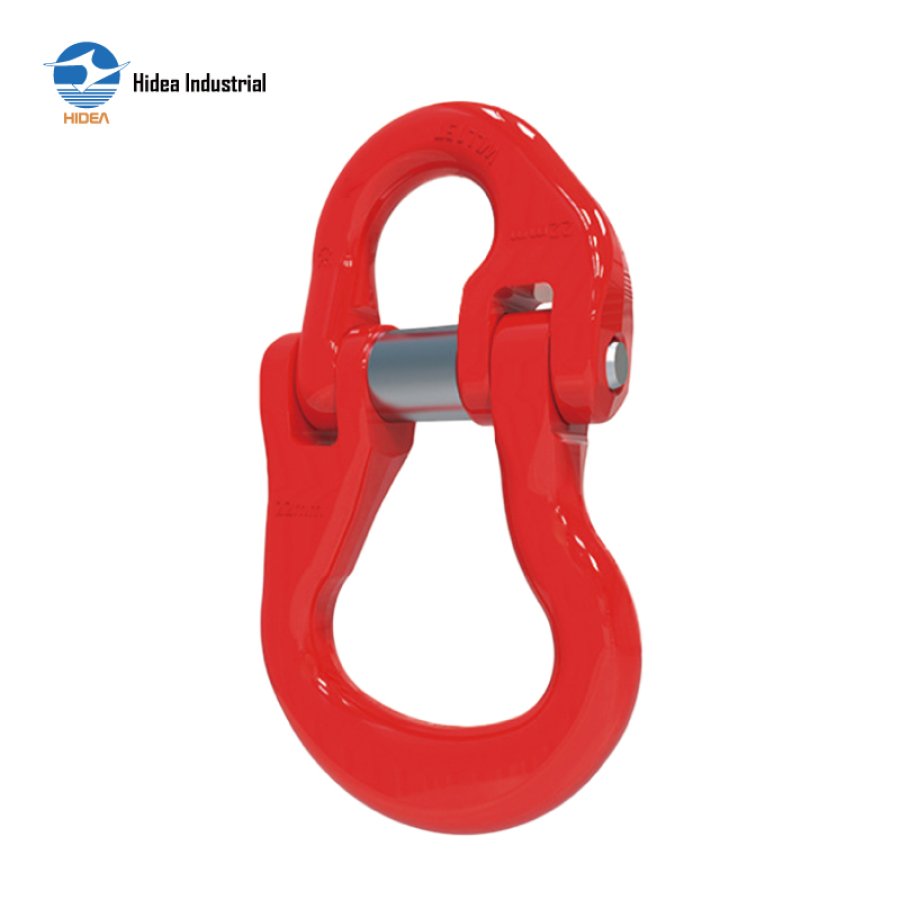

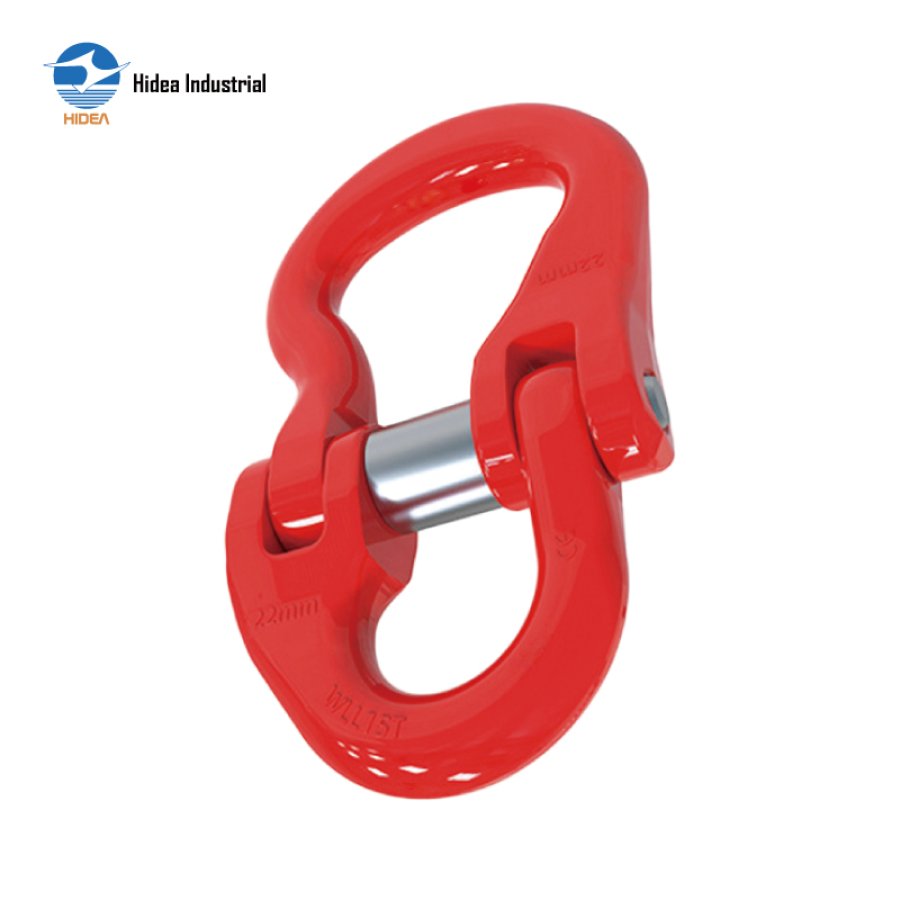

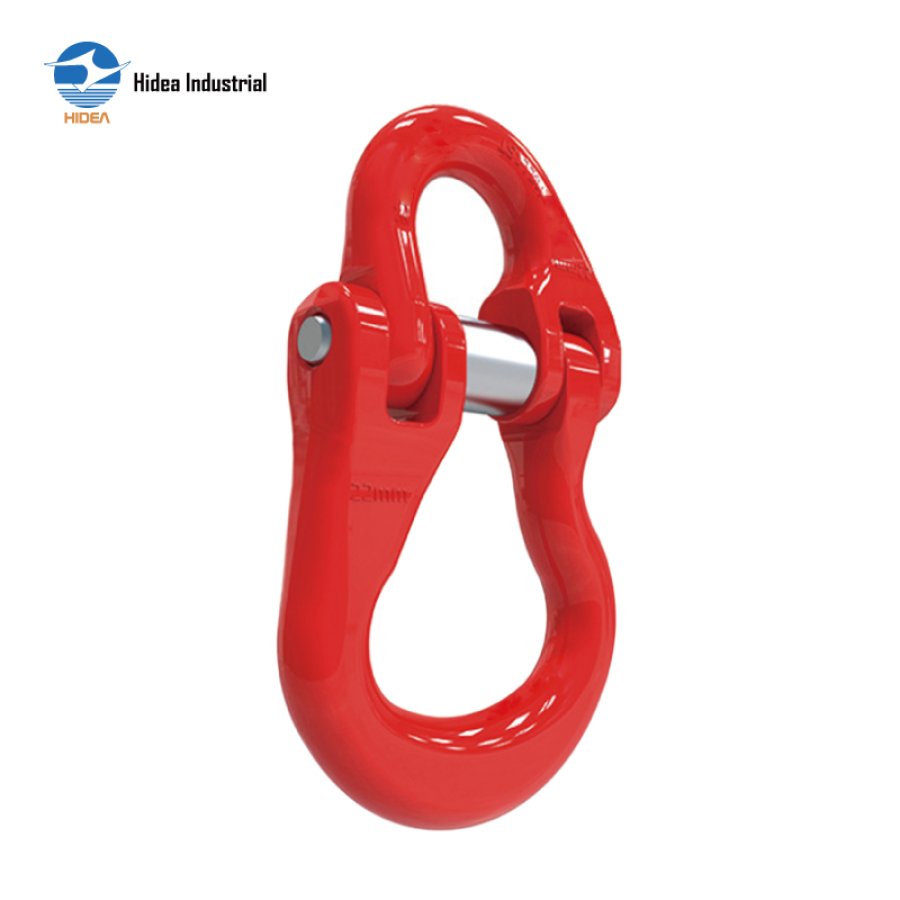

Hidea Grade 80 Forged Hammerlock for Heavy Lifting and Hoisting Equipment

G80 CONNECTING LINK

Forged super alloy steel-Quenched and Tempered
Suitable for web sling and G80 chain EN818-2
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH970-B-LINK DOUBLE HINK BUCBLE

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.5	M±1	H±2	K±3	L±3
20RH970-19	3.1	12.5	50	37	26	20	186.5	246
20RH970-22	4.55	15	60	47.5	28	25	206.5	274
20RH970-25	6.1	20	80	51.5	33	30	231	306
