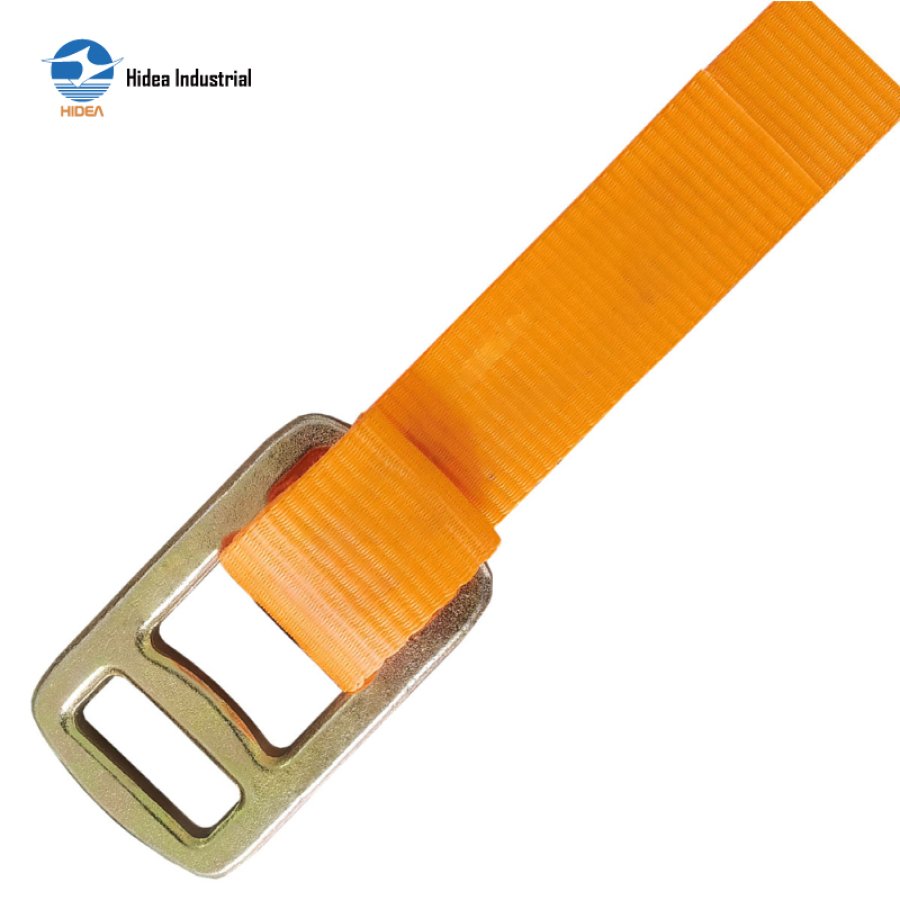

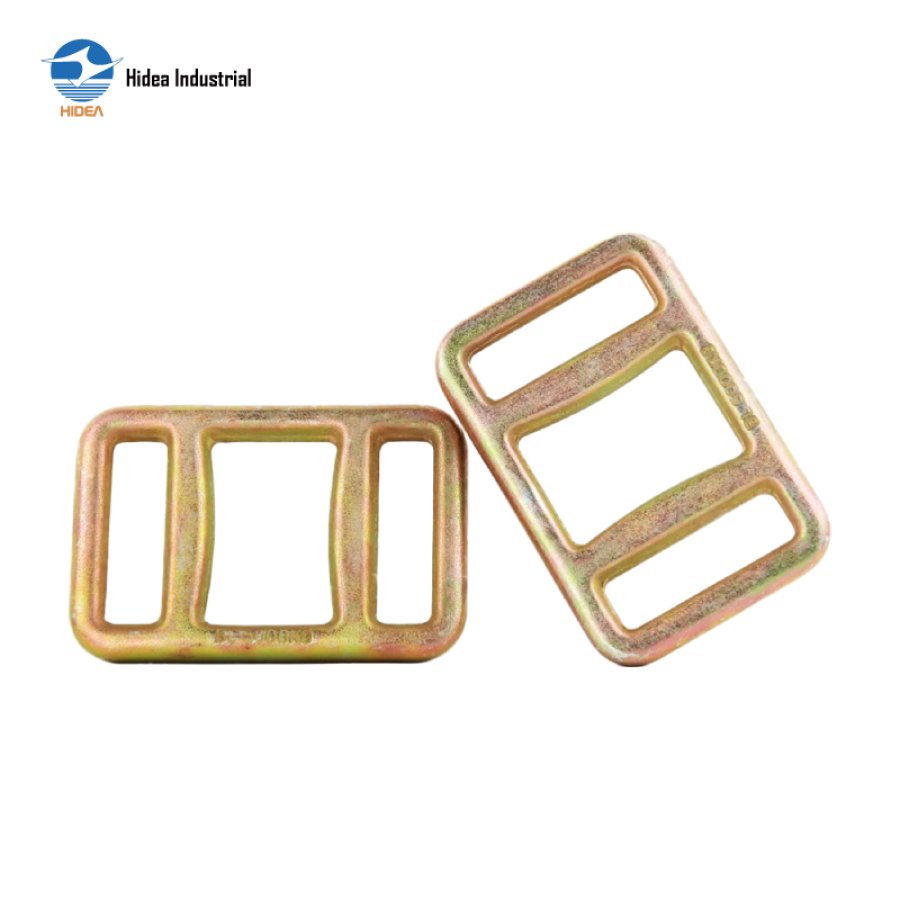

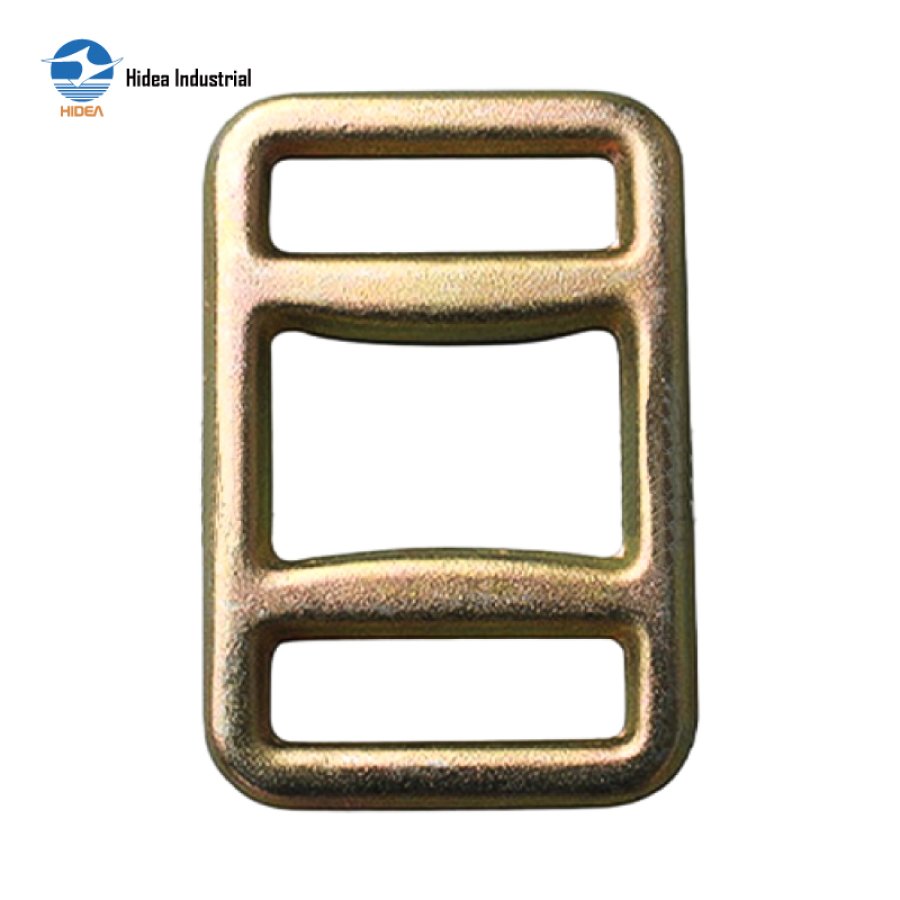

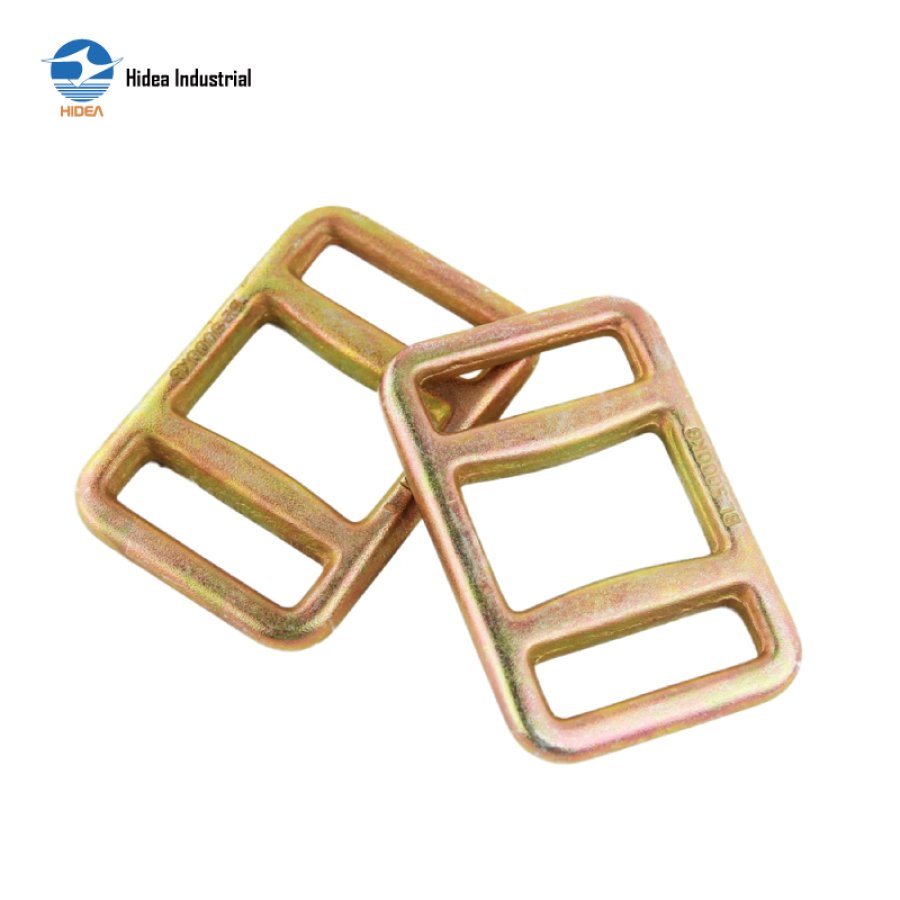

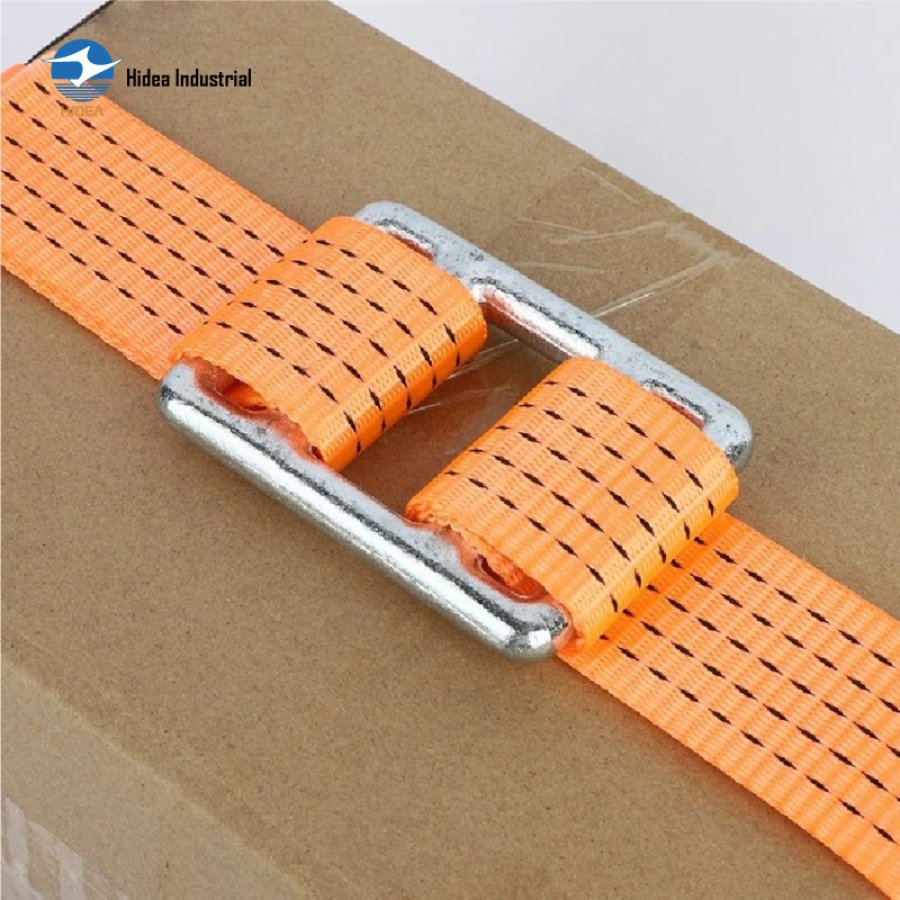

Hidea Forged One Way Lashing Buckle – Durable and Secure for Industrial Lashing Applications

ONE WAY LASHING BUCKLE

High tensile alloys teel
Forged, quenched & tempered
Proof tested & certificate available
Surface Self-colored, Electro Galv. / Zinc Plated OR as requested
Drop Forged One Way Lashing Buckle without welding

Inquire Now

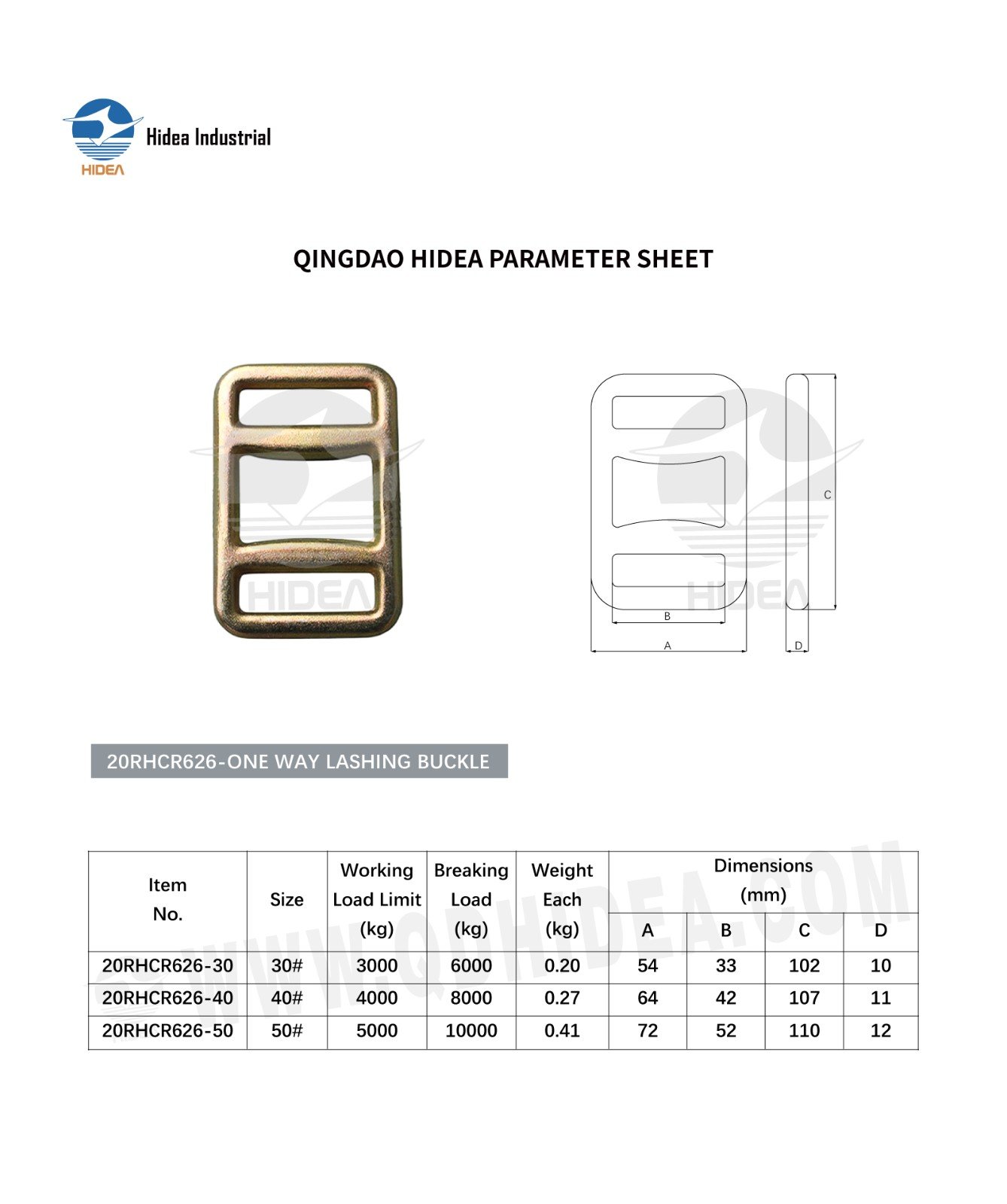

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR626-ONE WAY LASHING BUCKLE

ltem No.	Size	Working Load Limit (kg)	Breaking Load (kg)	Weight Each (kg)	Dimensions (mm)
ltem No.	Size	Working Load Limit (kg)	Breaking Load (kg)	Weight Each (kg)	A	B	C	D
20RHCR626-30	30#	3000	6000	0.20	54	33	102	10
20RHCR626-40	40#	4000	8000	0.27	64	42	107	11
20RHCR626-50	50#	5000	10000	0.41	72	52	110	12
