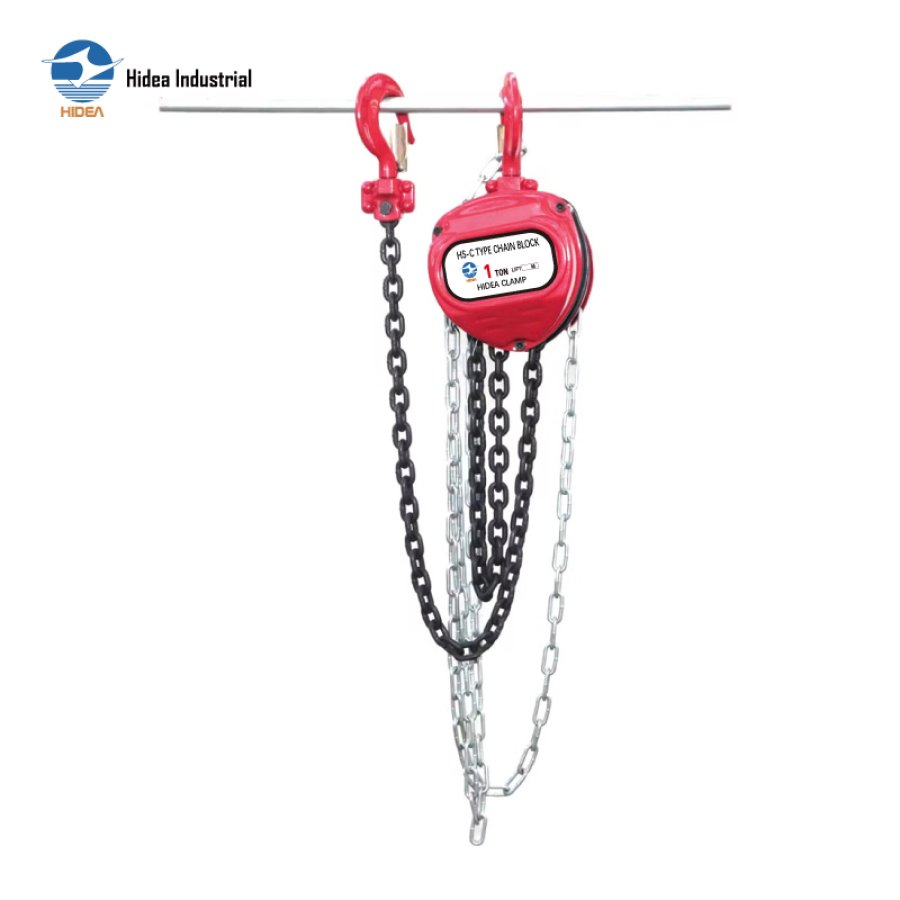

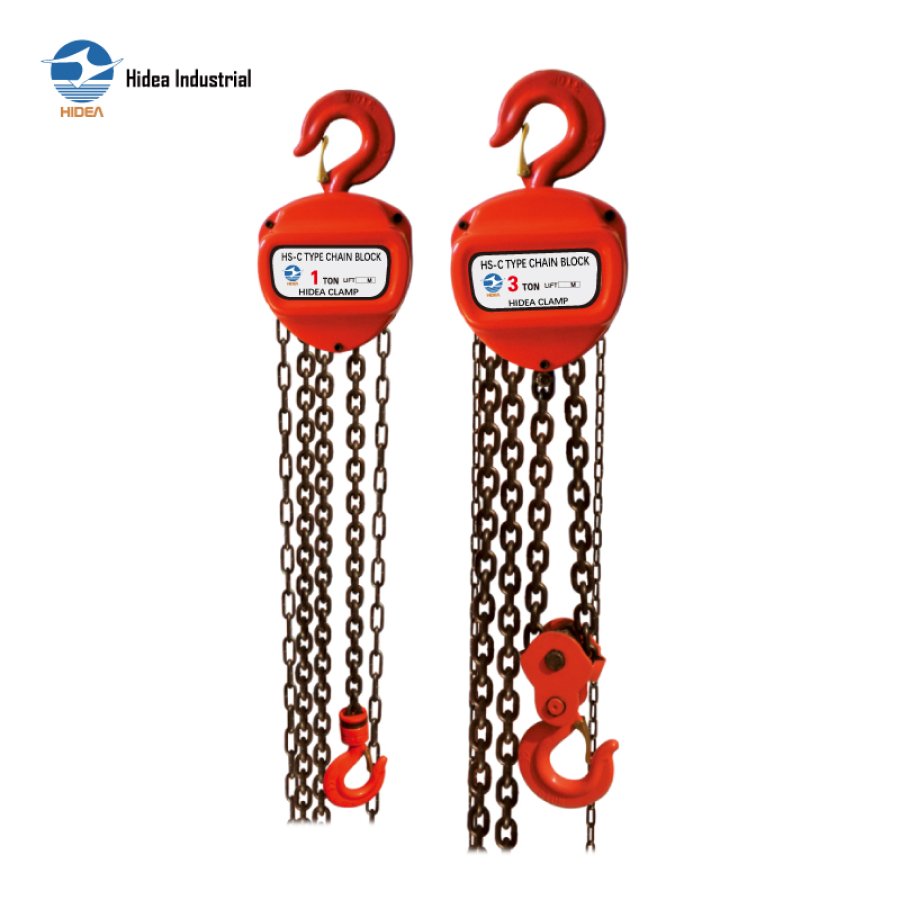

HS-C type chain block hoist is improved on the basic of HSZ series of chains blocks, less hand-pull force needed and safer, easier for operation
The chain block hoist can be used in a variety of settings where heavy loads need to be lifted and moved with precision and control, and typically to be used in the open air and where without power supply
High quality alloy steel body & forged alloy hooks, supper G80 lifting chains and hand chains make it durable to withstand heavy duty
The HS-C chain hoists meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901
QINGDAO HIDEA PARAMETER SHEET FOR
HS-C TYPE CHAIN BLOCK HOIST
| Mode | Unit | HSZ-C%2 | HSZ-C1 | HSZ-C122 | HSZ-C2 | HSZ-C3 | HSZ-C5 | HSZ-C10 | HSZ-C20 | ||||
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | ||||
| Standard lifting height | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | ||||
| Test load | KN | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | ||||
| Heard room(drawn close up)Hmin | mm | 255 | 306 | 368 | 444 | 486 | 616 | 700 | 1000 | ||||
| Chain pullto lift full load | N | 221 | 304 | 343 | 314 | 343 | 483 | 492 | 492 | ||||
| No.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |||||
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | ||||
| Net weight | Kg | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 155 | ||||
| Gross Weight | Kg | 10 | 13 | 20 | 17 | 28 | 45 | 83 | 193 | ||||
| Packing measurement (L*W*H) | cm | 28x21x17 | 30x24x18 | 34x29x20 | 33x25x19 | 38x30x20 | 45x35x24 | 62x50×28 | 70×46x75 | ||||
| Extra weight per meter of extra lift | Kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | ||||
