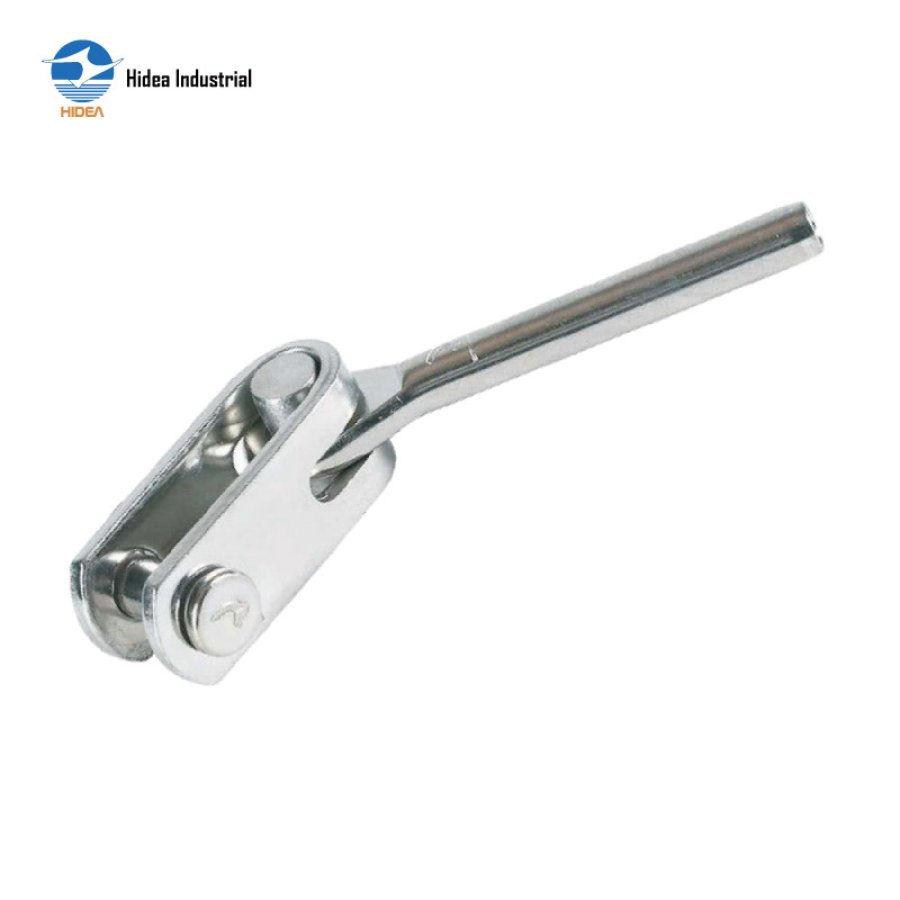

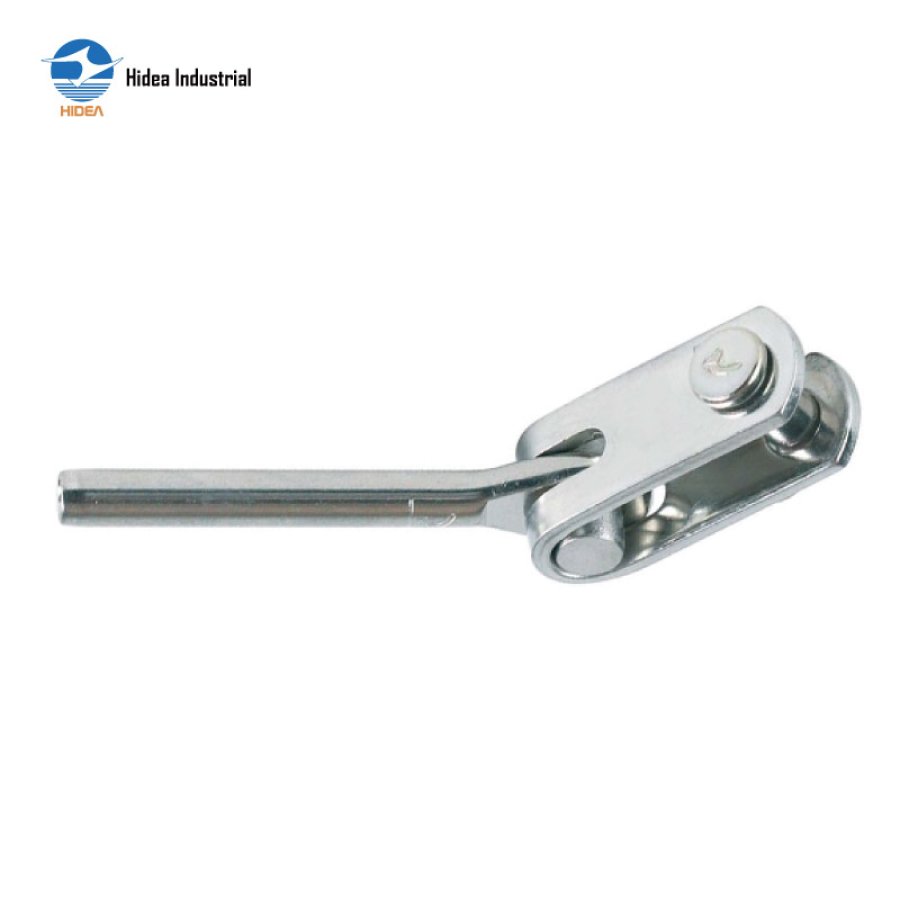

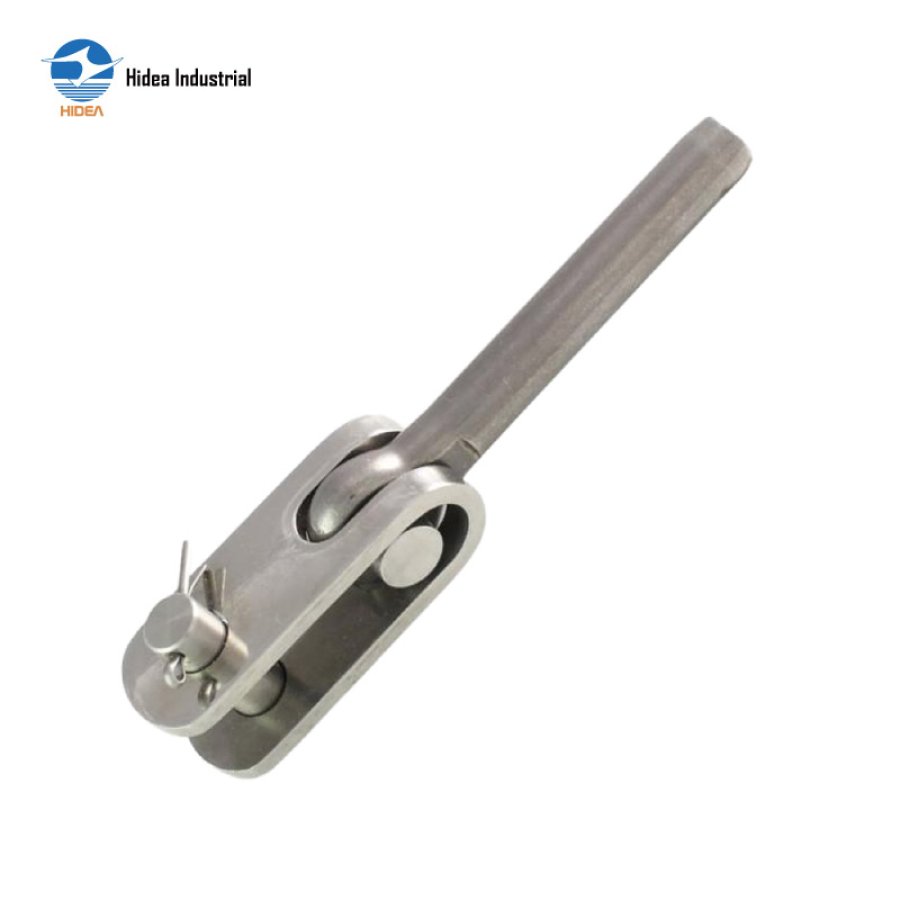

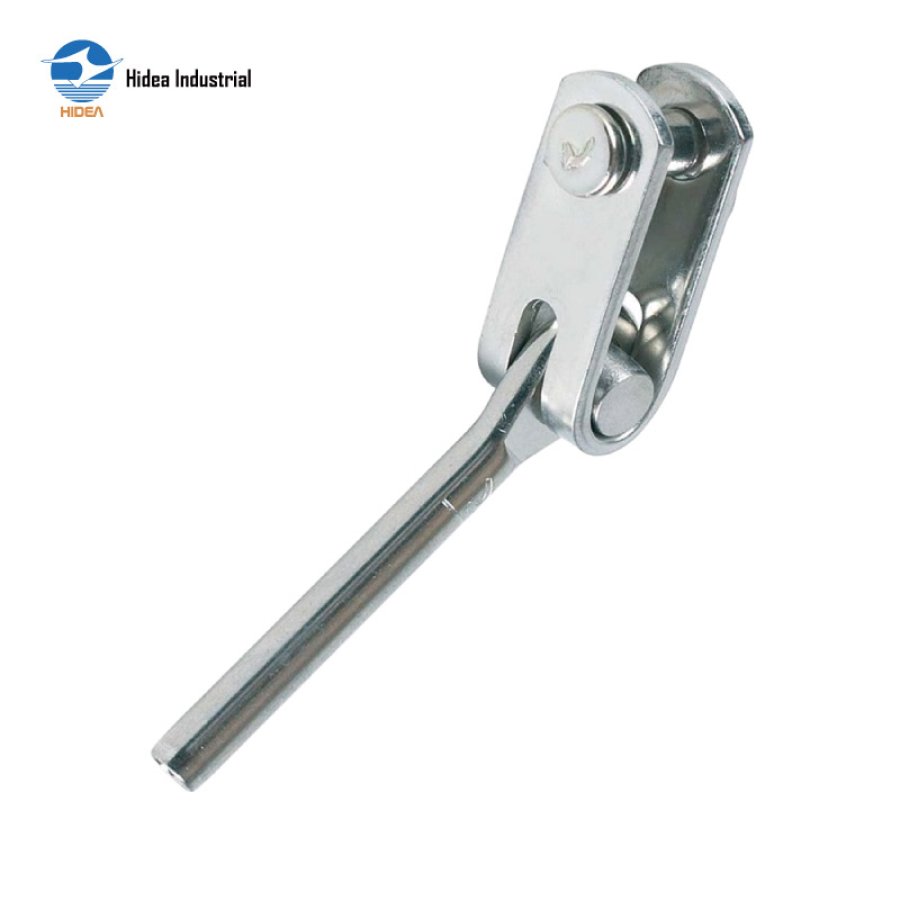

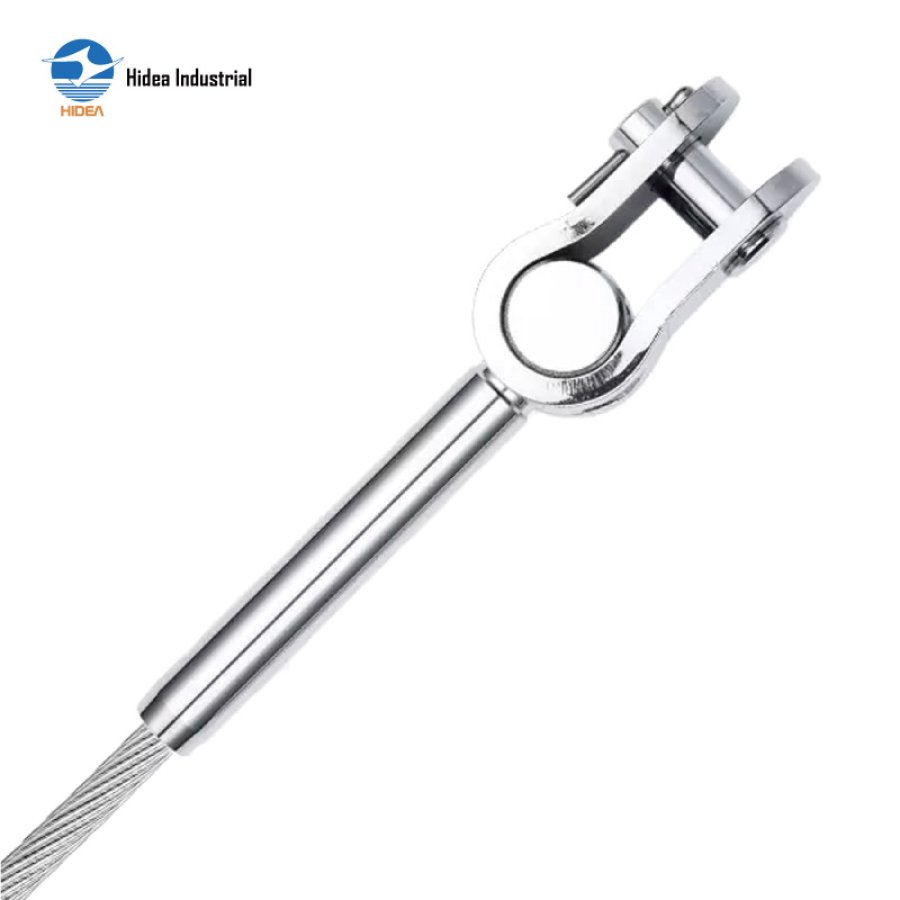

HIDEA Stainless Steel Swage Toggle – Ideal for Industrial & Marine Applications

SWIVEL TERMINAL PARTS

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

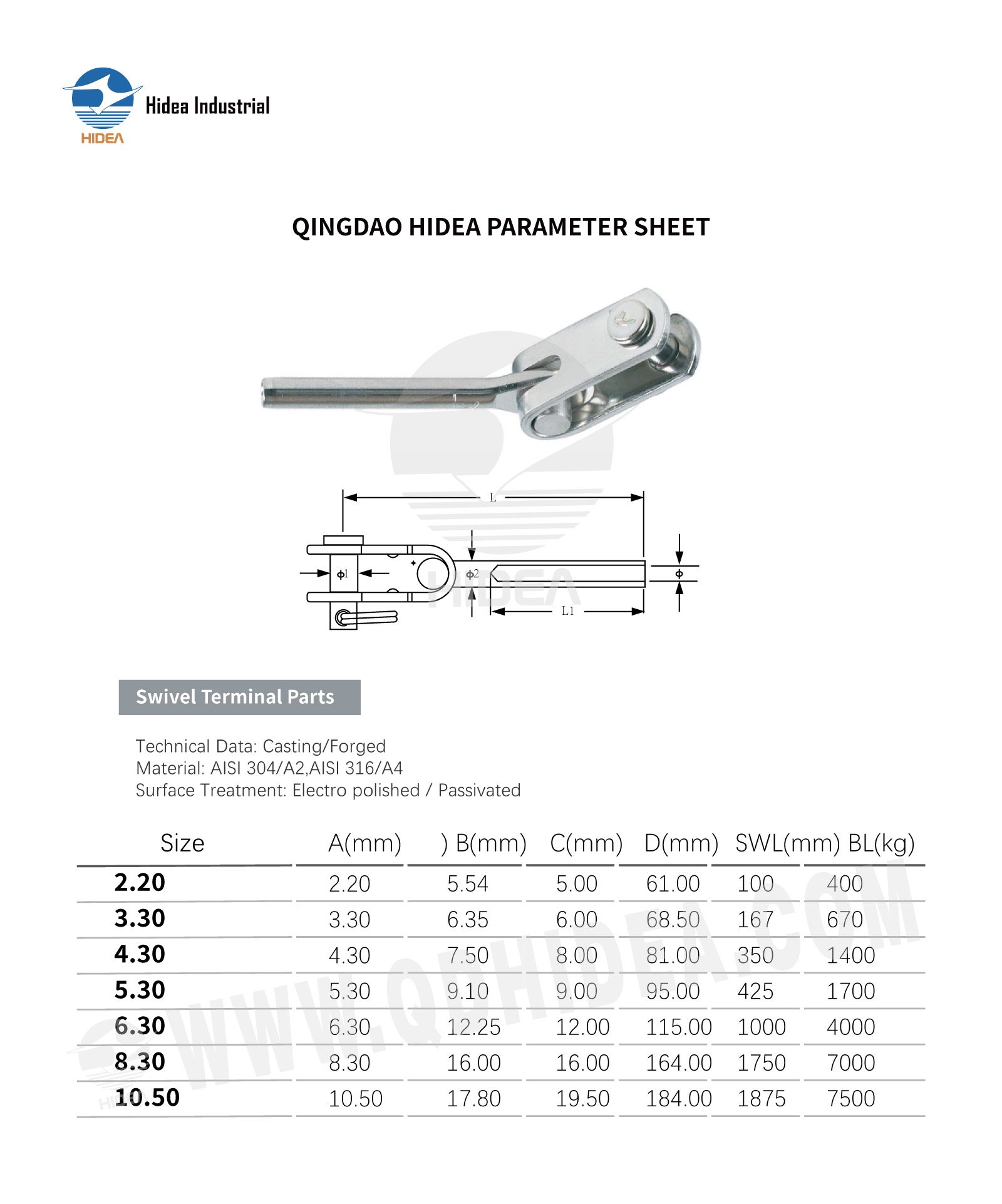

QINGDAO HIDEA PARAMETER SHEET FOR

Swivel Terminal Parts

Size	A(mm)	B(mm)	C(mm)	D(mm)	SWL(mm)	BL(kg)
2.20	2.20	5.54	5.00	61.00	100	400
3.30	3.30	6.35	6.00	68.50	167	670
4.30	4.30	7.50	8.00	81.00	350	1400
5.30	5.30	9.10	9.00	95.00	425	1700
6.30	6.30	12.25	12.00	115.00	1000	4000
8.30	8.30	16.00	16.00	164.00	1750	7000
10.50	10.50	17.80	19.50	184.00	1875	7500
