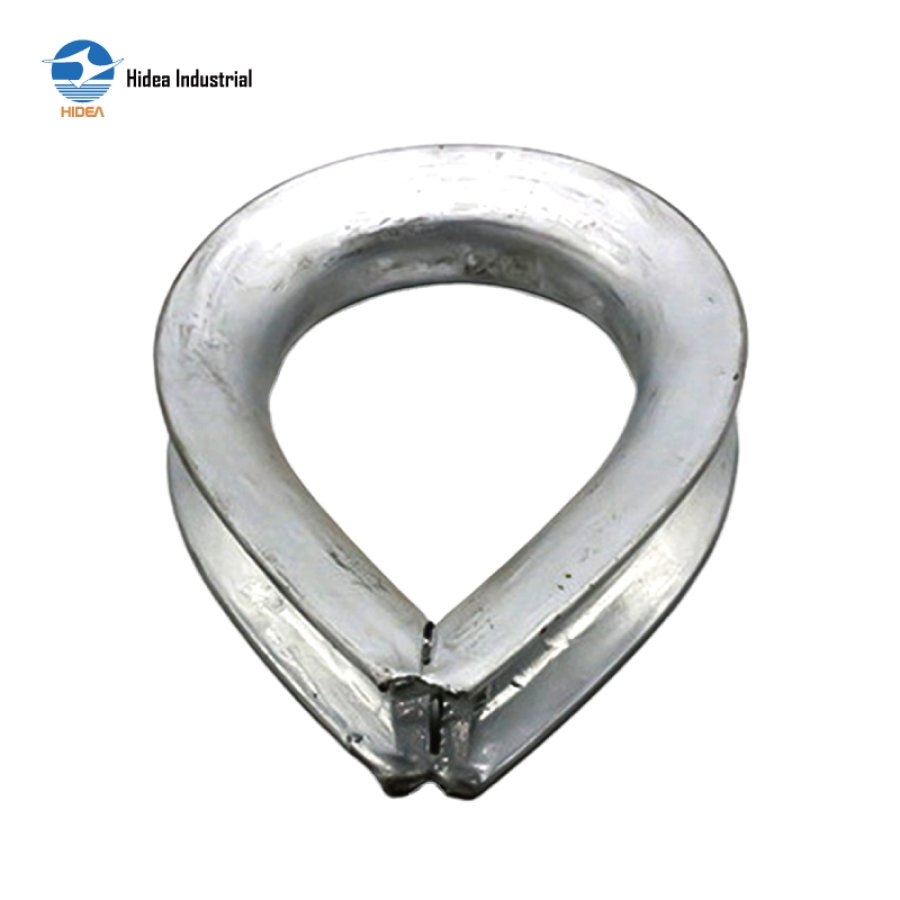

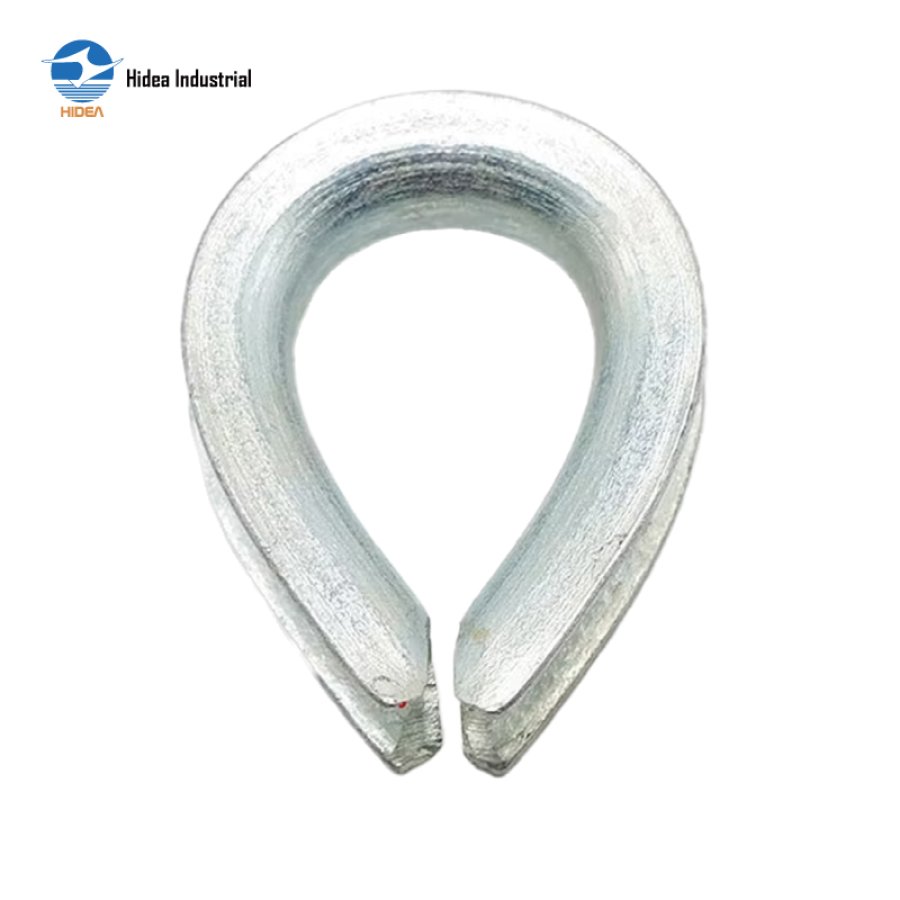

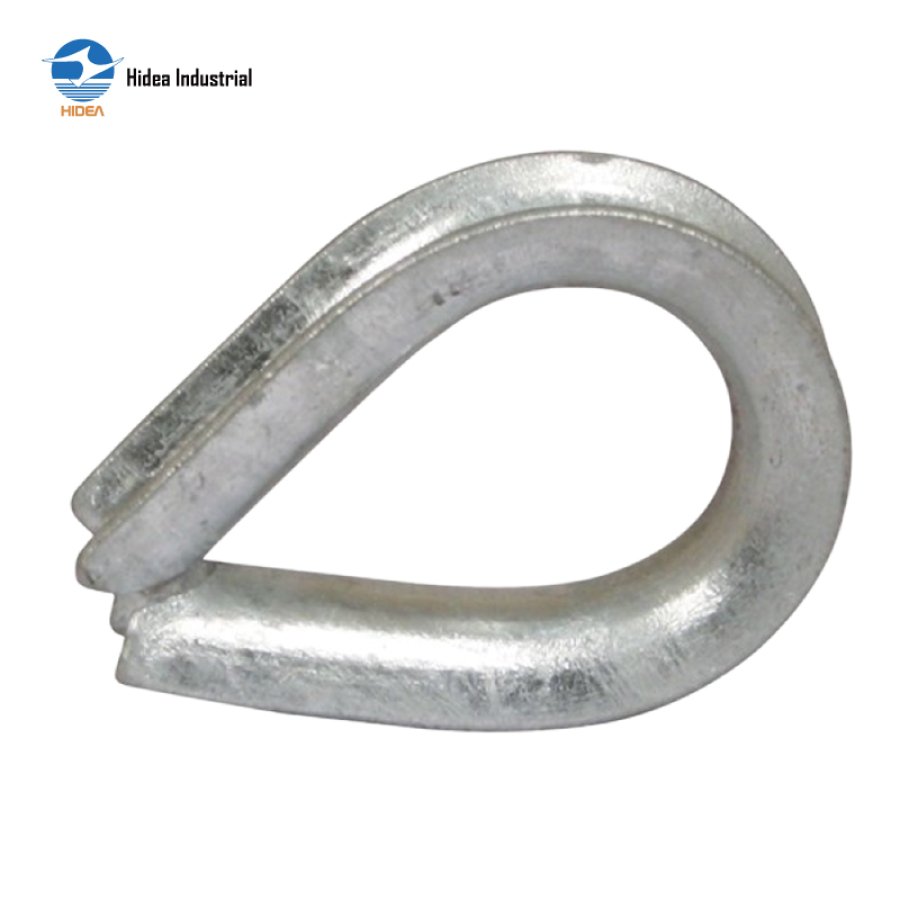

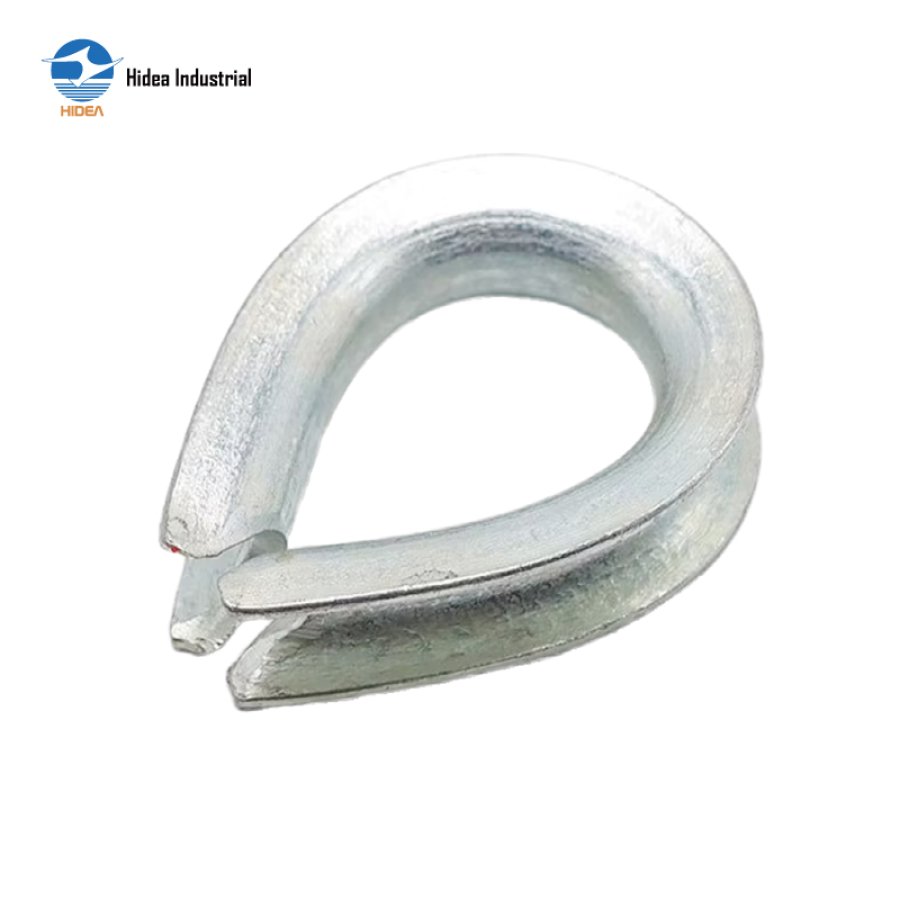

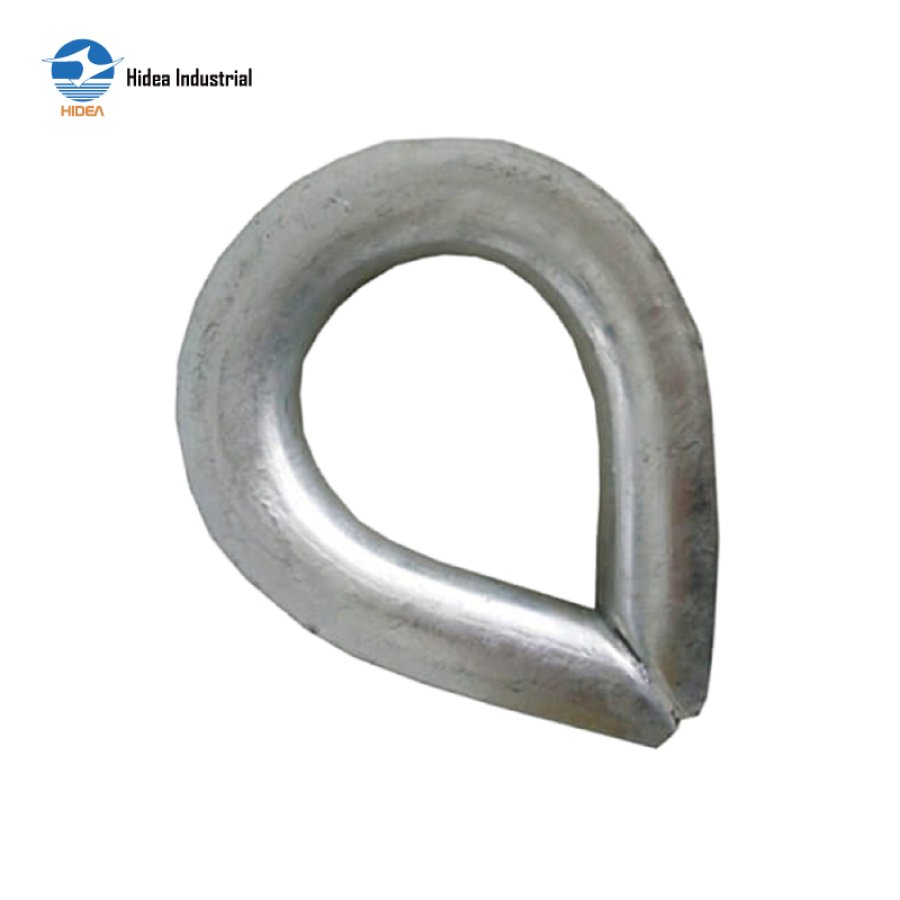

HIDEA BS464 Heavy-Duty Steel Thimble – Maximum Protection for Wire Rope Eyelets

WIRE ROPE THIMBLE BS464

Material Mild Steel Profile
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv. OR as requested
Meets or exceeds performances & properties of BS464 : 1958
Reinforced Heavy duty BS464 Heart Shaped wire rope thimbles

Inquire Now

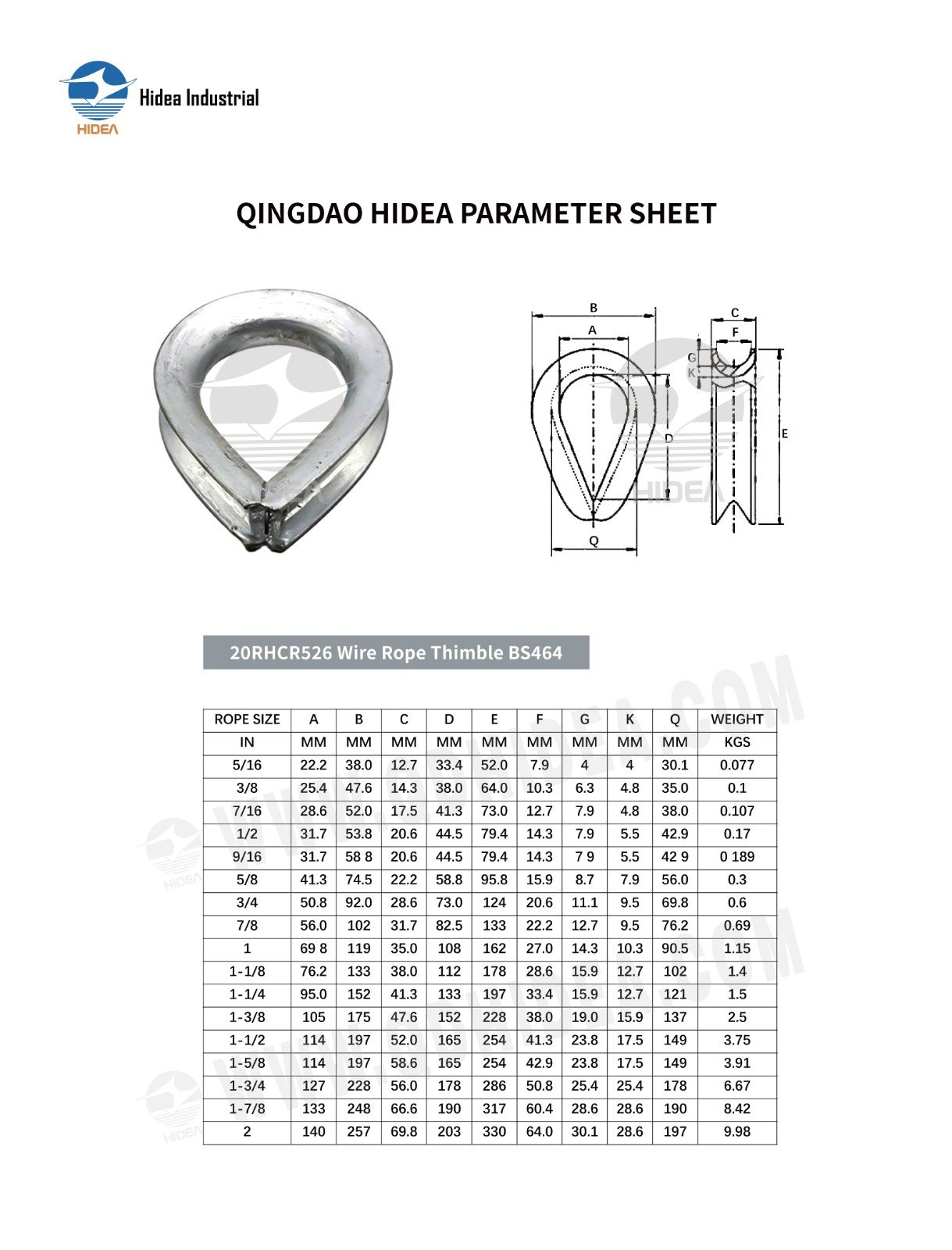

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR526 Wire Rope Thimble BS464

ROPE SIZE	A	B	C	D	E	F	G	K	Q	WEIGHT
IN	MM	MM	MM	MM	MM	MM	MM	MM	MM	KGS
5/16	22.2	38.0	12.7	33.4	52.0	7.9	4	4	30.1	0.077
3/8	25.4	47.6	14.3	38.0	64.0	10.3	6.3	4.8	35.0	0.1
7/16	28.6	52.0	17.5	41.3	73.0	12.7	7.9	4.8	38.0	0.107
1/2	31.7	53.8	20.6	44.5	79.4	14.3	7.9	5.5	42.9	0.17
9/16	31.7	588	20.6	44.5	79.4	14.3	79	5.5	429	0189
5/8	41.3	74.5	22.2	58.8	95.8	15.9	8.7	7.9	56.0	0.3
3/4	50.8	92.0	28.6	73.0	124	20.6	11.1	9.5	69.8	0.6
7/8	56.0	102	31.7	82.5	133	22.2	12.7	9.5	76.2	0.69
1	698	119	35.0	108	162	27.0	14.3	10.3	90.5	1.15
1-1/8	76.2	133	38.0	112	178	28.6	15.9	12.7	102	1.4
1-1/4	95.0	152	41.3	133	197	33.4	15.9	12.7	121	1.5
1-3/8	105	175	47.6	152	228	38.0	19.0	15.9	137	2.5
1-1/2	114	197	52.0	165	254	41.3	23.8	17.5	149	3.75
1-5/8	114	197	58.6	165	254	42.9	23.8	17.5	149	3.91
1-3/4	127	228	56.0	178	286	50.8	25.4	25.4	178	6.67
1-7/8	133	248	66.6	190	317	60.4	28.6	28.6	190	8.42
2	140	257	69.8	203	330	64.0	30.1	28.6	197	9.98
