Hidea Round Wire Rope Thimble – Ensures Safe and Secure Rope Connections

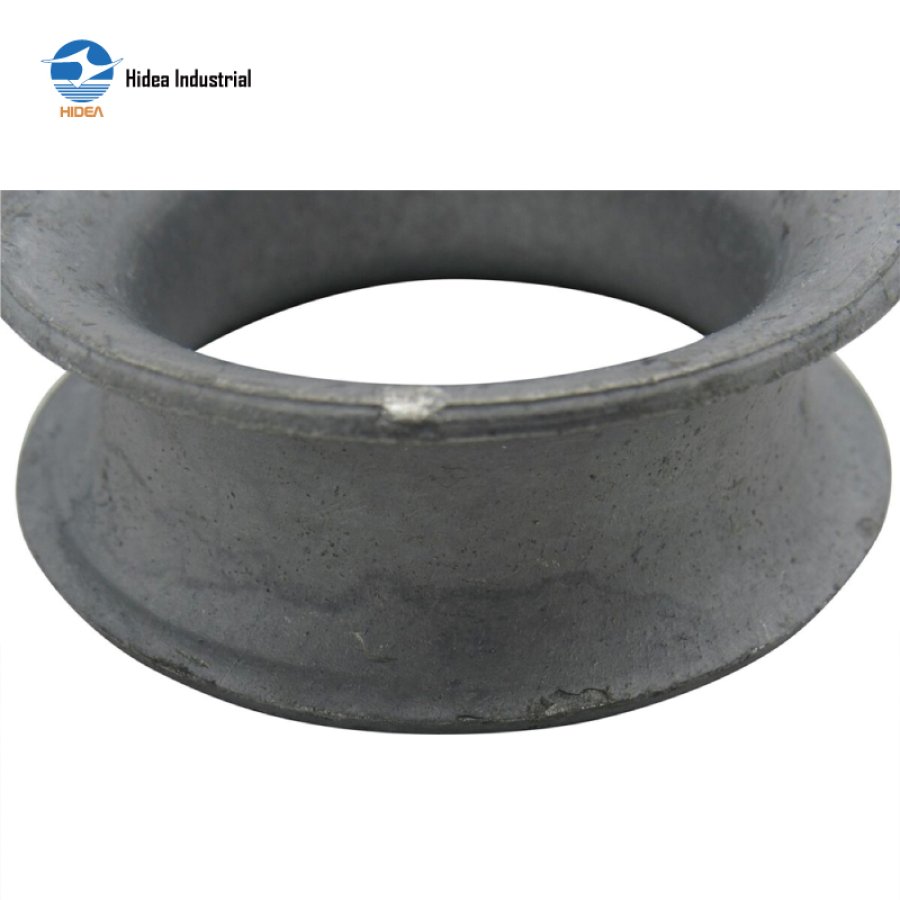

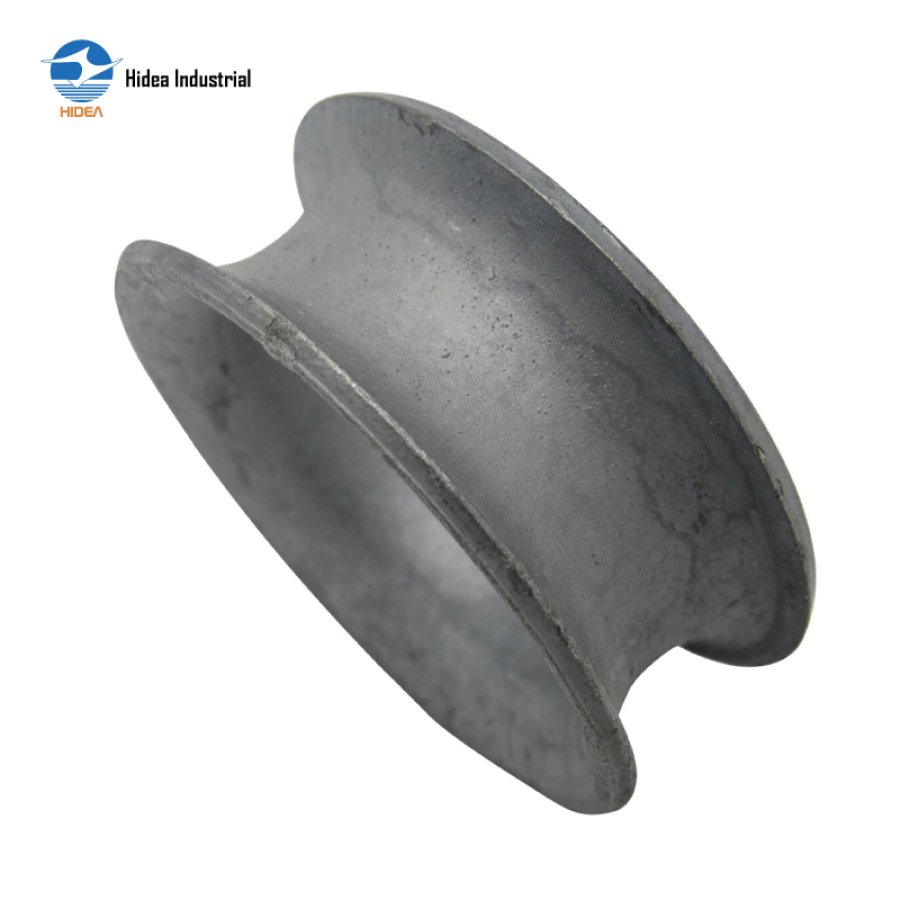

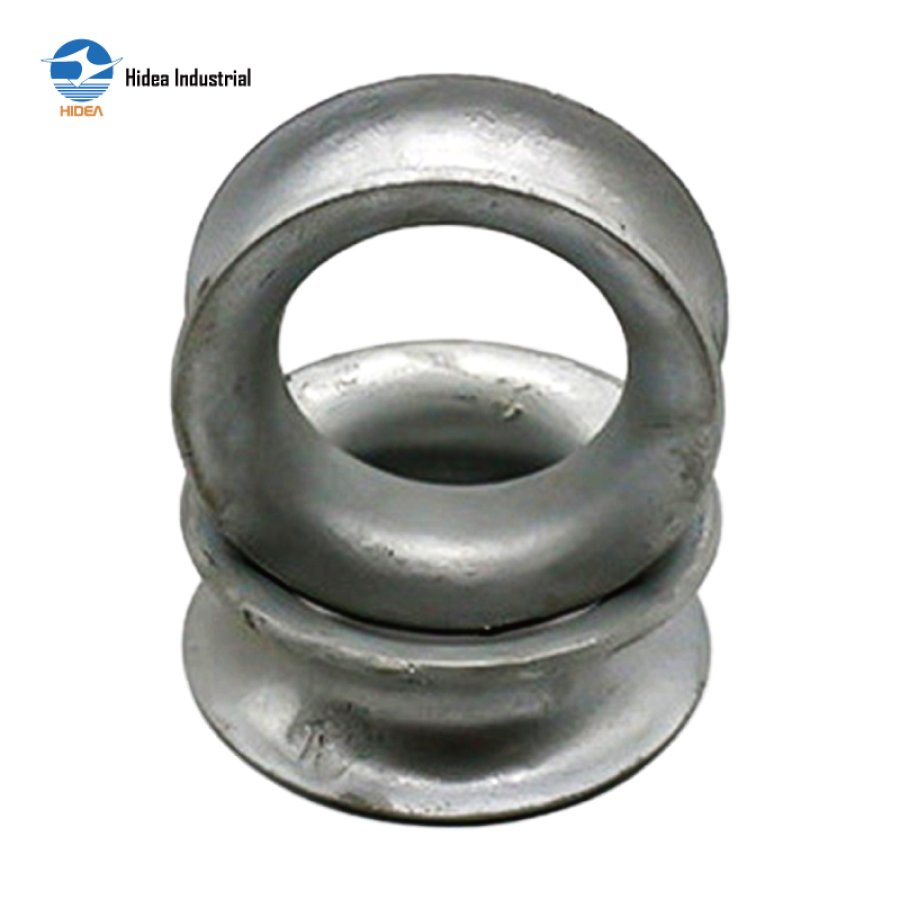

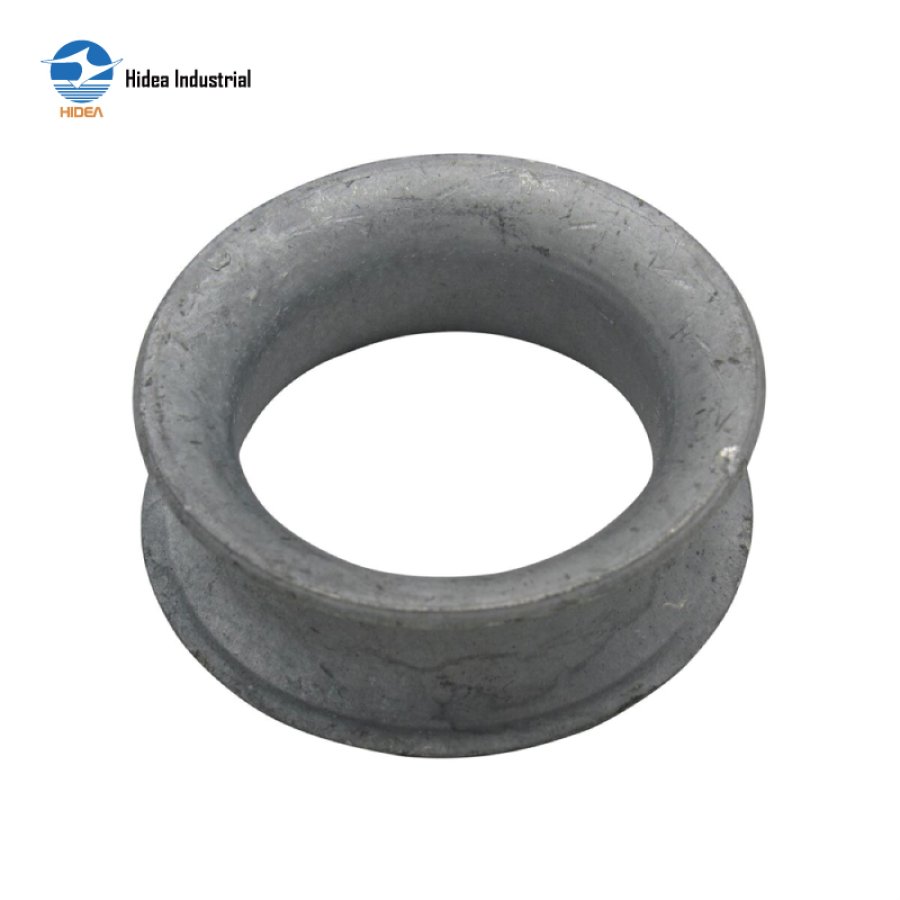

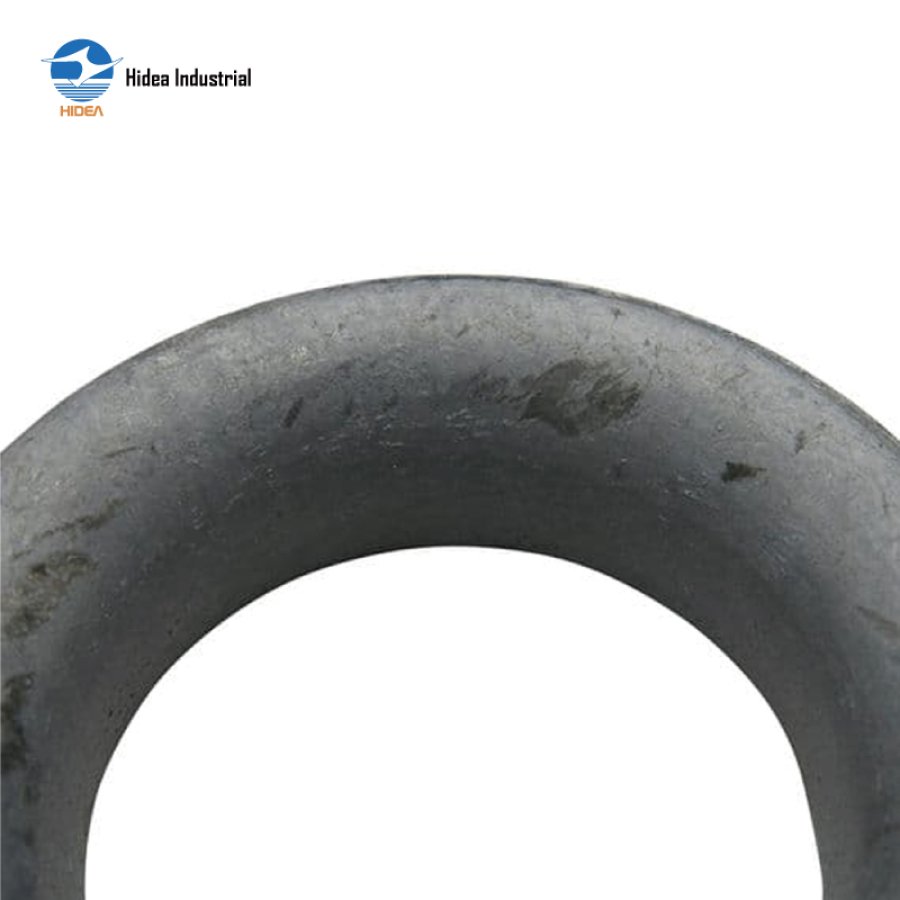

ENDLESS ROUND WIRE ROPE THIMBLE

Material Mild Steel Profile
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K4 Container Thimble Round or Egg Shaped, Round Endless wire rope thimbles

Inquire Now

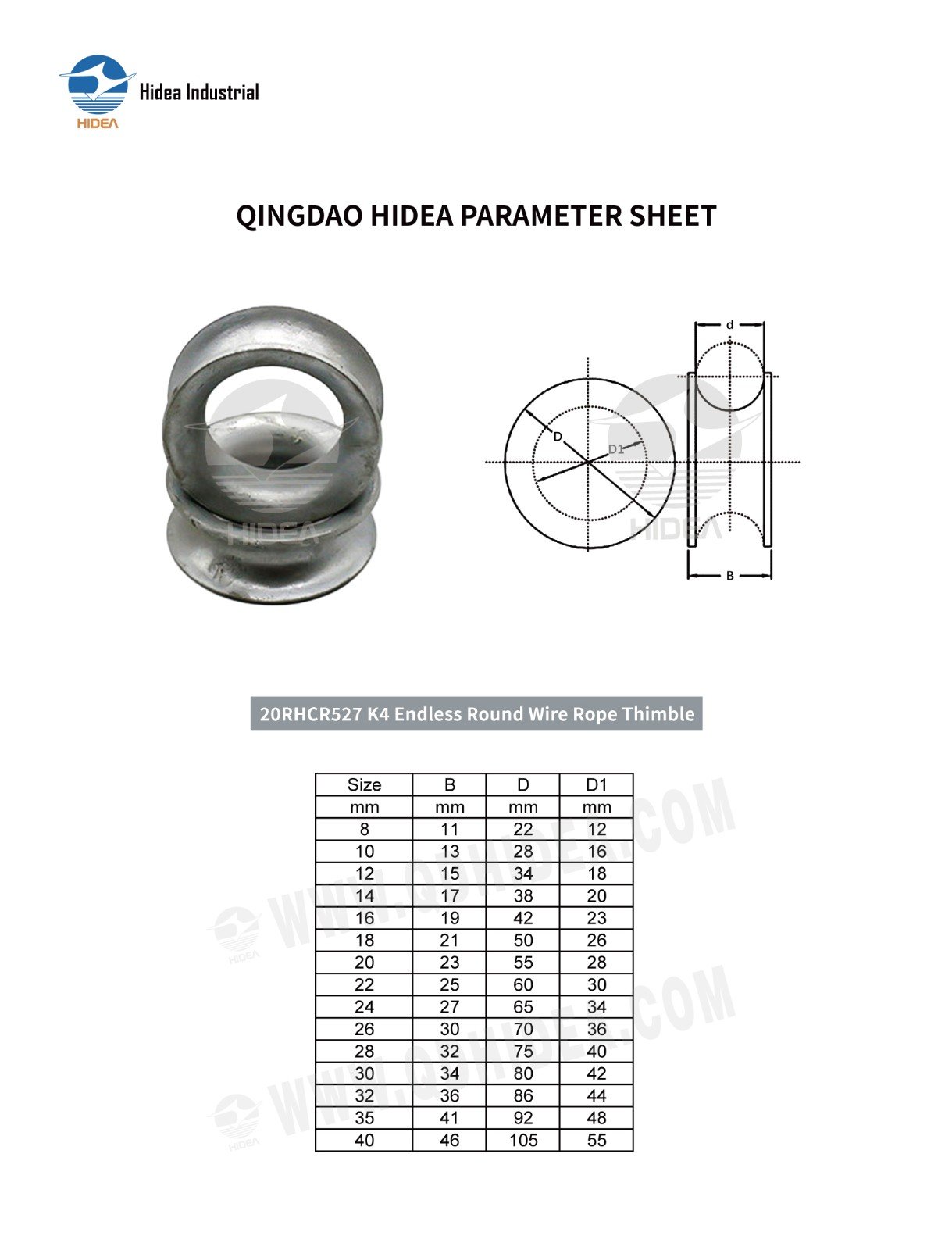

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR527 K4 Endless Round Wire Rope Thimble

Size	B	D	D1
mm	mm	mm	mm
8	11	22	12
10	13	28	16
12	15	34	18
14	17	38	20
16	19	42	23
18	21	50	26
20	23	55	28
22	25	60	30
24	27	65	34
26	30	70	36
28	32	75	40
30	34	80	42
32	36	86	44
35	41	92	48
40	46	105	55
