Premium Hidea Round Link Chains for Trawling: Engineered for Tough Marine Environments

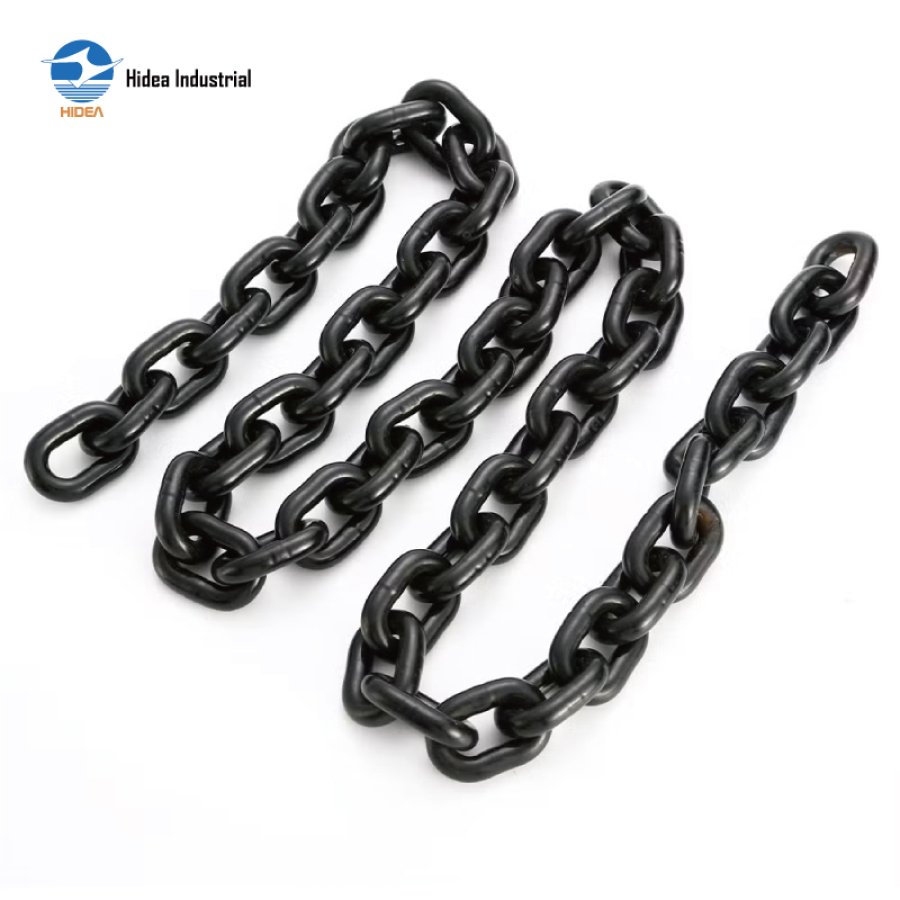

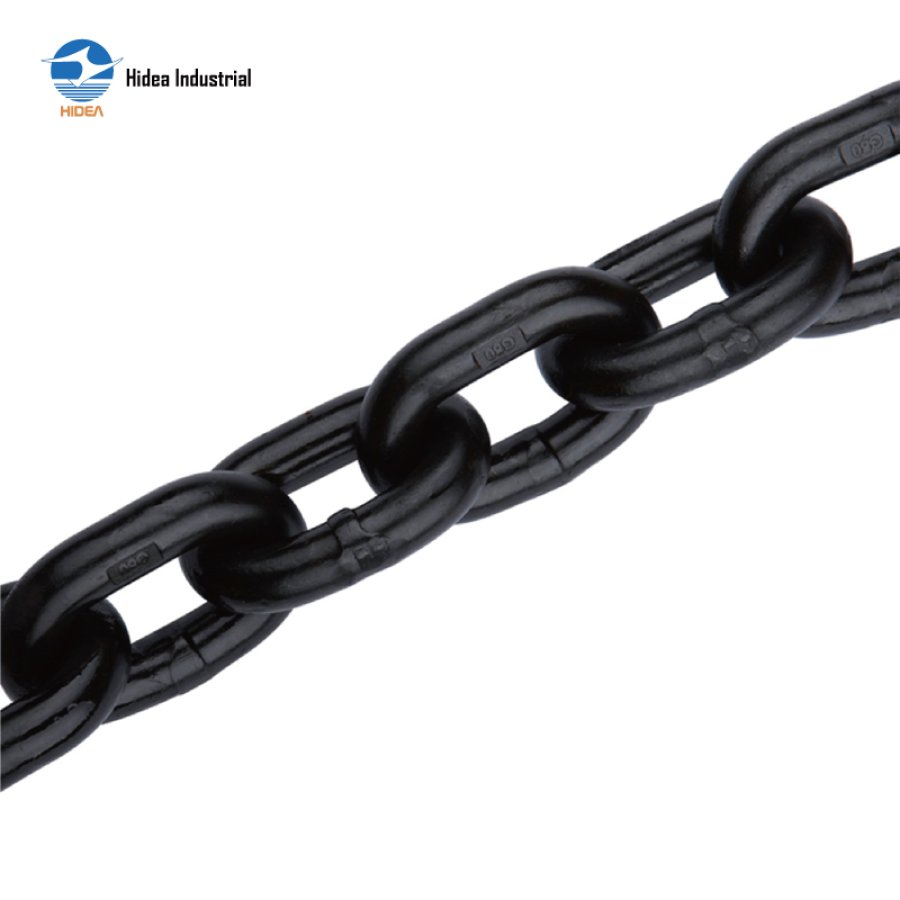

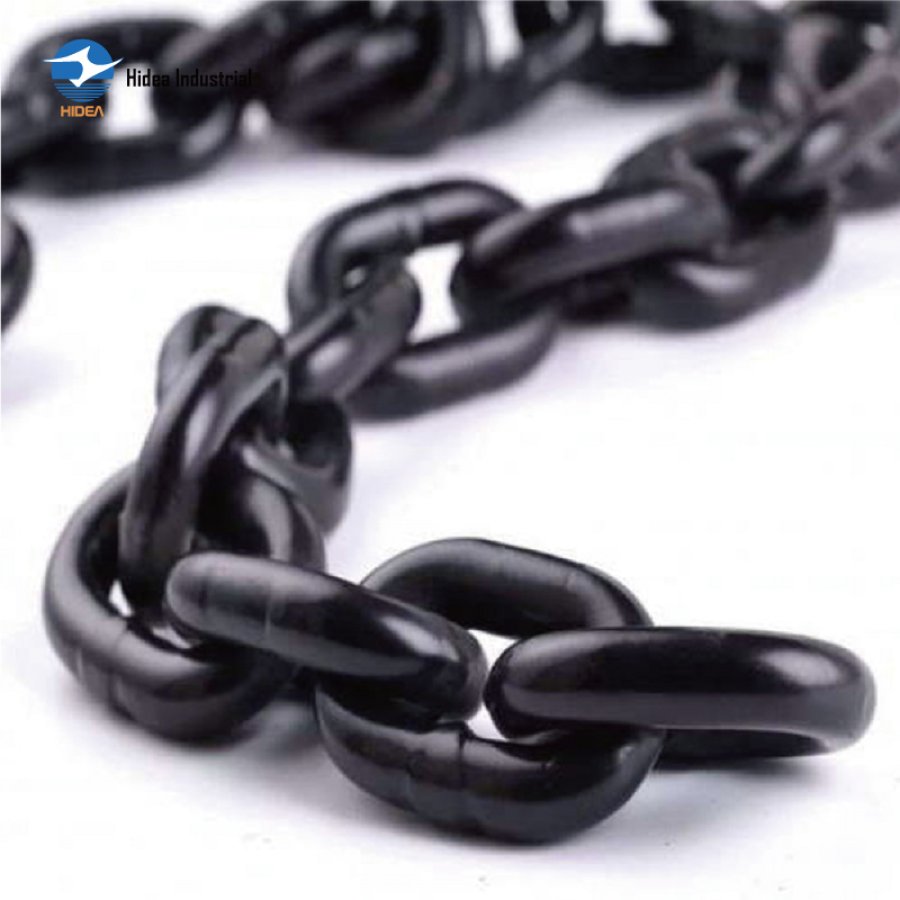

TRAWLING CHAIN

Material: High-Quality Alloy Steel
Trawling chain long link, measurements per DIN22252 or similar, hardenedand tempered, breaking elongation 8%, free twists and tested, calibrated
Trawling chain short link, breaking elongation 10%, free twists, tested and calibrated

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC114 Trawling Chains

Size dxp		Width(mm)		Weight	Breaking Load Min	Kinds Of Chain
mm	in	Inside Min.a	Outside Max.b	kg/m	kn	Short Link Chain
7×21	1/4"	10.0	25.5	1.10	61.6
10×30	3/8"	14.0	36	2.20	126
13×39	1/2"	18.1	47.1	3.80	212
16×48	5/8"	22.4	57.4	5.70	322
19×57	3/4"	27.8	68.8	8.00	454
20×60	3/4"	29.0	72	9.00	503
10×40	3/8"	15.0	37	2.00	126	Medium Link Chain
13×52	1/2"	19.5	48.5	3.40	212
14×50	1/2"	18.5	49.5	4.04	250
16×64	5/8"	24.0	59	5.04	322
19×76	3/4"	28.5	69.5	7.12	454
22×86	7/8"	27.0	74	9.40	608
26×92	1"	31.0	86	13.70	849
7×45	1/4"	10.0	25.5	0.83	61.6	Long Link Chain
9×53	11/32"	15.0	35	1.40	101.7
11×63	7/16"	18.0	43	2.18	151.9
13×80	1/2"	22.0	51	2.97	212
16×100	5/8"	26.0	61	4.44	322
19×100	3/4"	27.0	68	6.50	454
22×120	7/8"	37.0	84	8.76	608
28×150	11/8"	44.0	103	14.13	984.7
