Hidea G80 Lifting Clutch: The Ultimate Solution for Concrete Precast Lifting

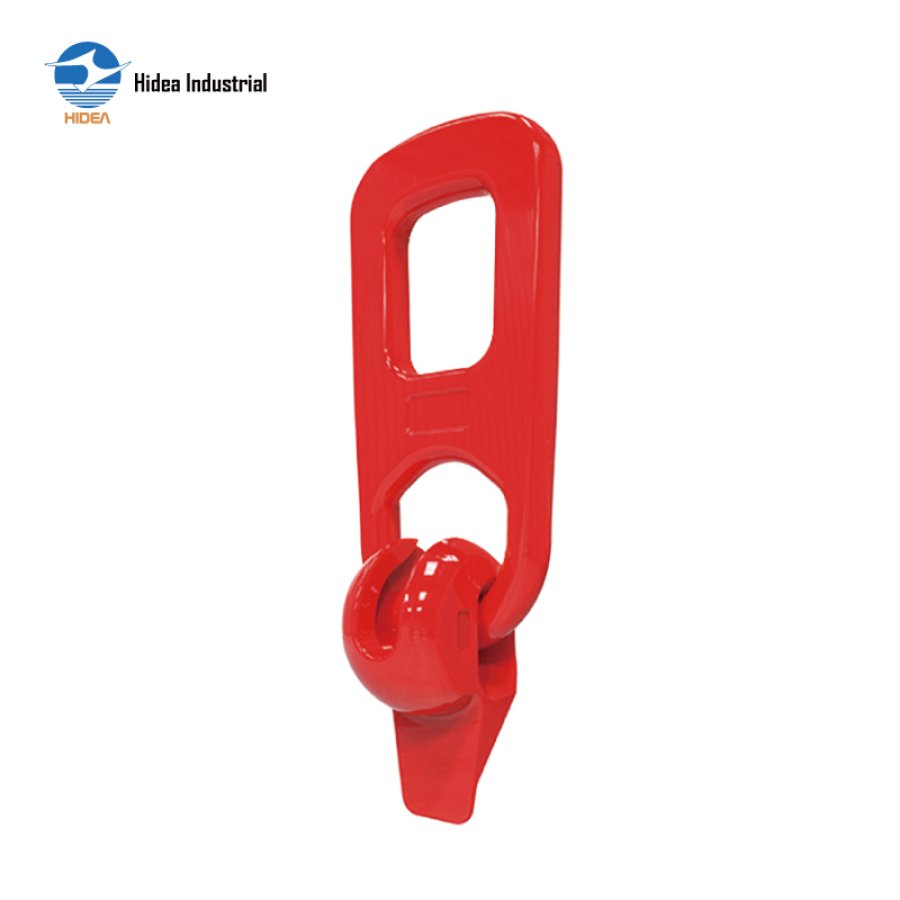

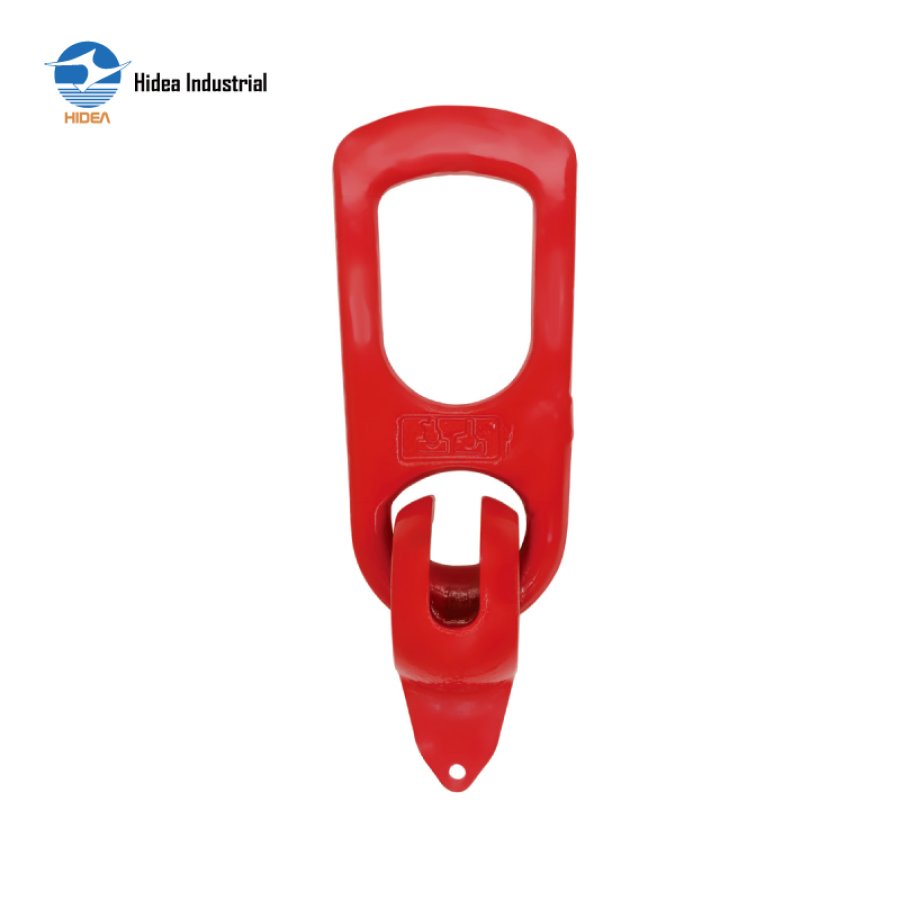

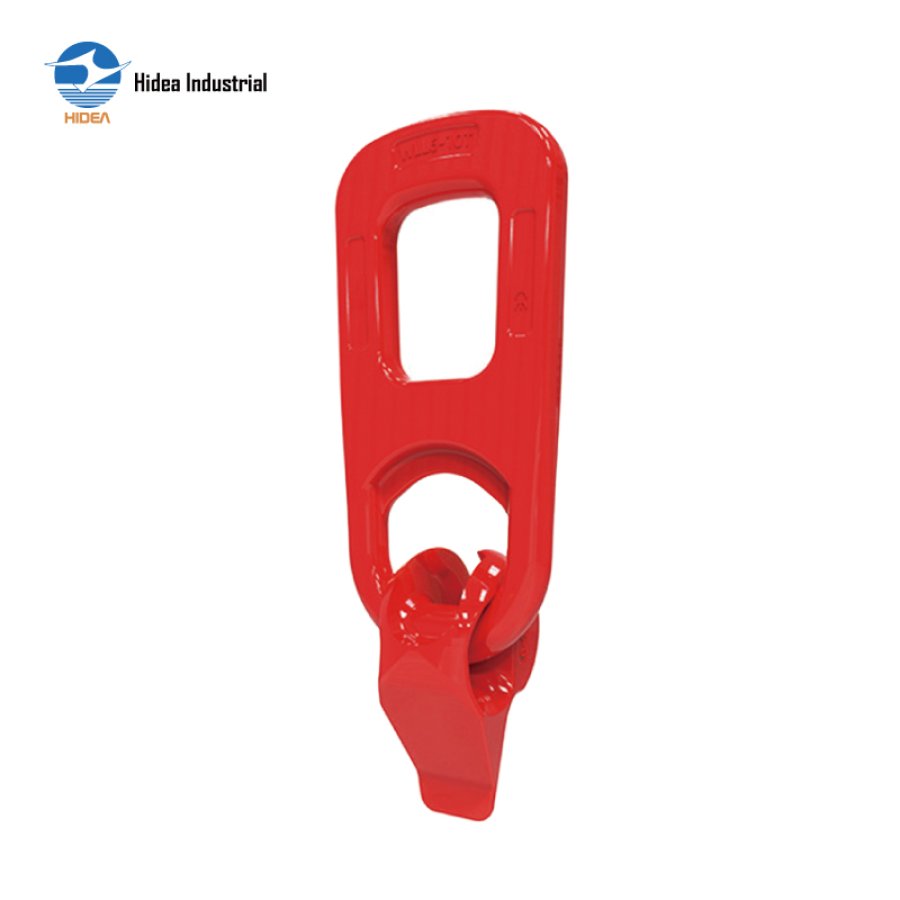

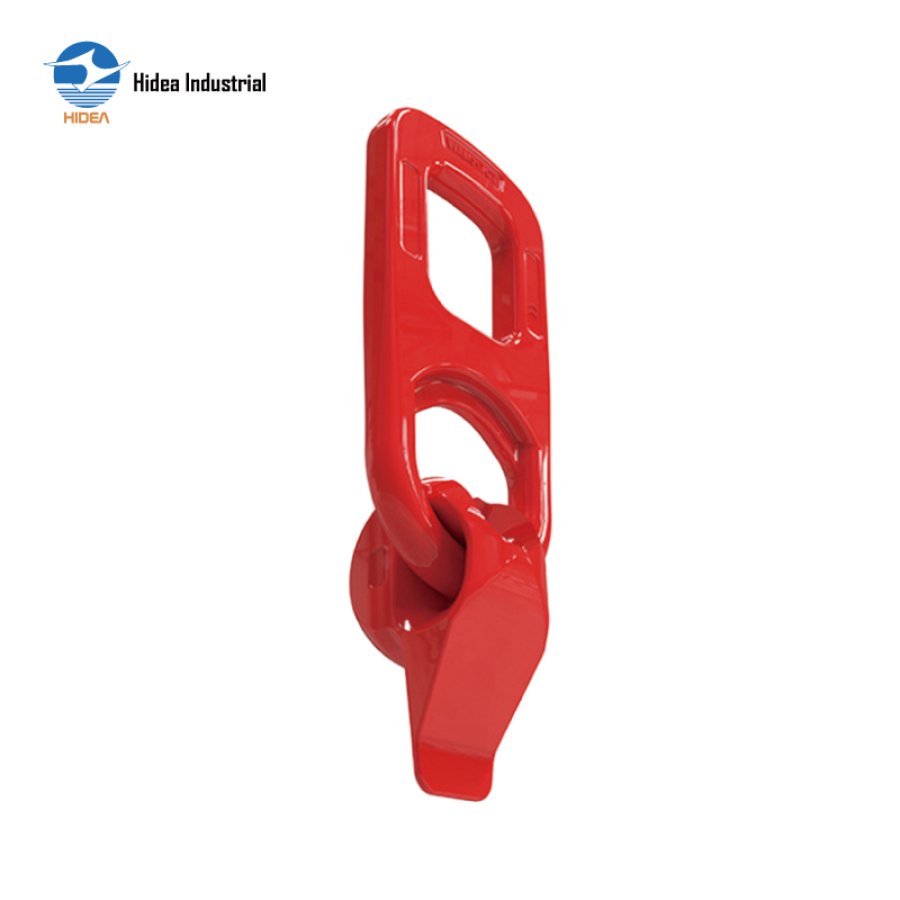

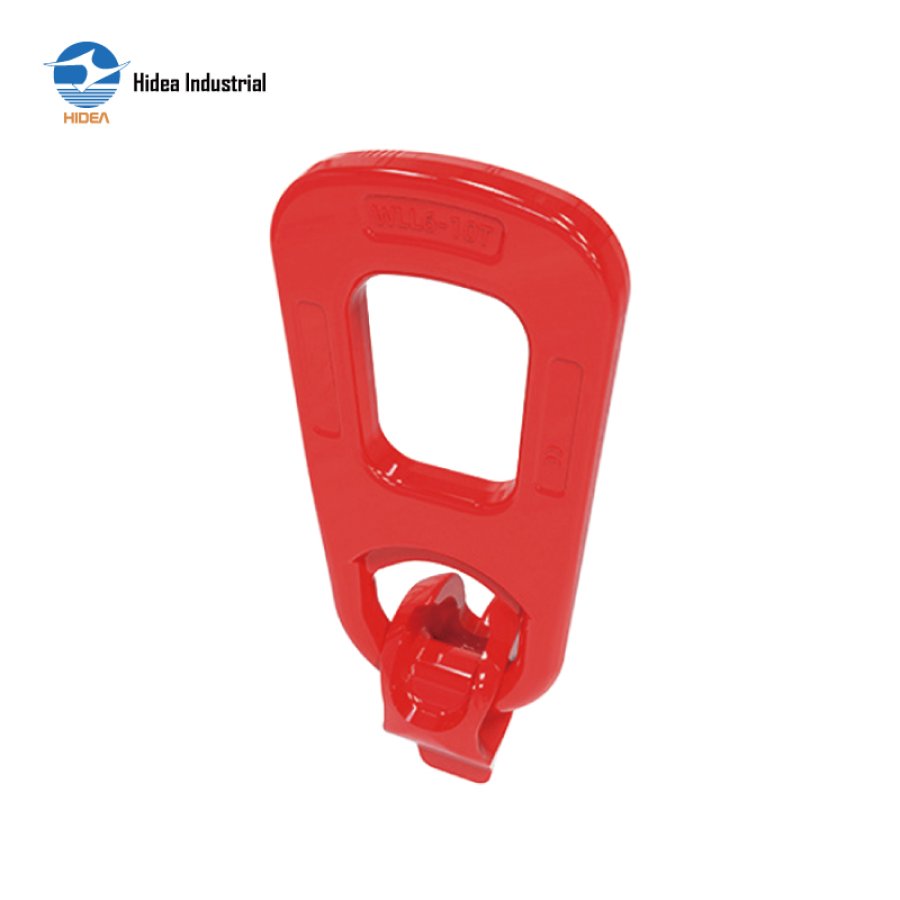

G80 LIFTING CLUTCH FOR CONCRETE PRECAST ELEMENT

Component A: Cast super alloy
Component B: Forged alloy steel
100% Magnaflux crack detection
Breakage test
Surface finish: powder plastifed
Electro-galvanizing/Powder plastified
Safety factor: 4:1

Inquire Now

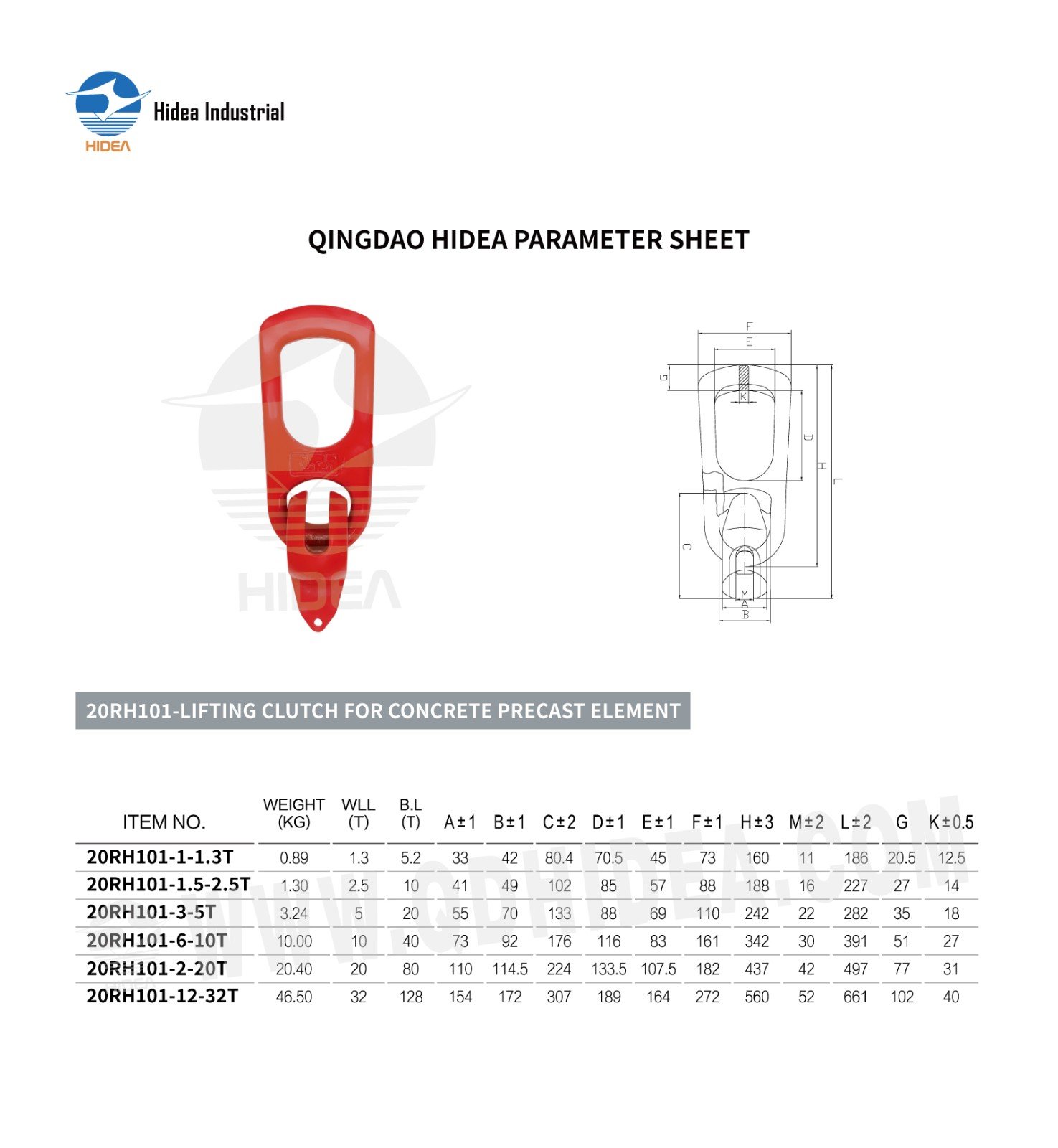

QINGDAO HIDEA PARAMETER SHEET FOR

20RH101-LIFTING CLUTCH FOR CONCRETE PRECAST ELEMENT

ITEM NO.

WEIGHT
(KG)

WLL
(T)

B.L
(T)

A±1

B±1

C±2

D±1

E±1

F±1

H±3

M±2

L±2

G

K±0.5

20RH101-1-1.3T

0.89

1.3

5.2

33

42

80.4

70.5

45

73

160

11

186

20.5

12.5

20RH101-1.5-2.5T

1.30

2.5

10

41

49

102

85

57

88

188

16

227

27

14

20RH101-3-5T

3.24

5

20

55

70

133

88

69

110

242

22

282

35

18

20RH101-6-10T

10.00

10

40

73

92

176

116

83

161

342

30

391

51

27

20RH101-2-20T

20.40

20

80

110

114.5

224

133.5

107.5

182

437

42

497

77

31

20RH101-12-32T

46.50

32

128

154

172

307

189

164

272

560

52

661

102

40
