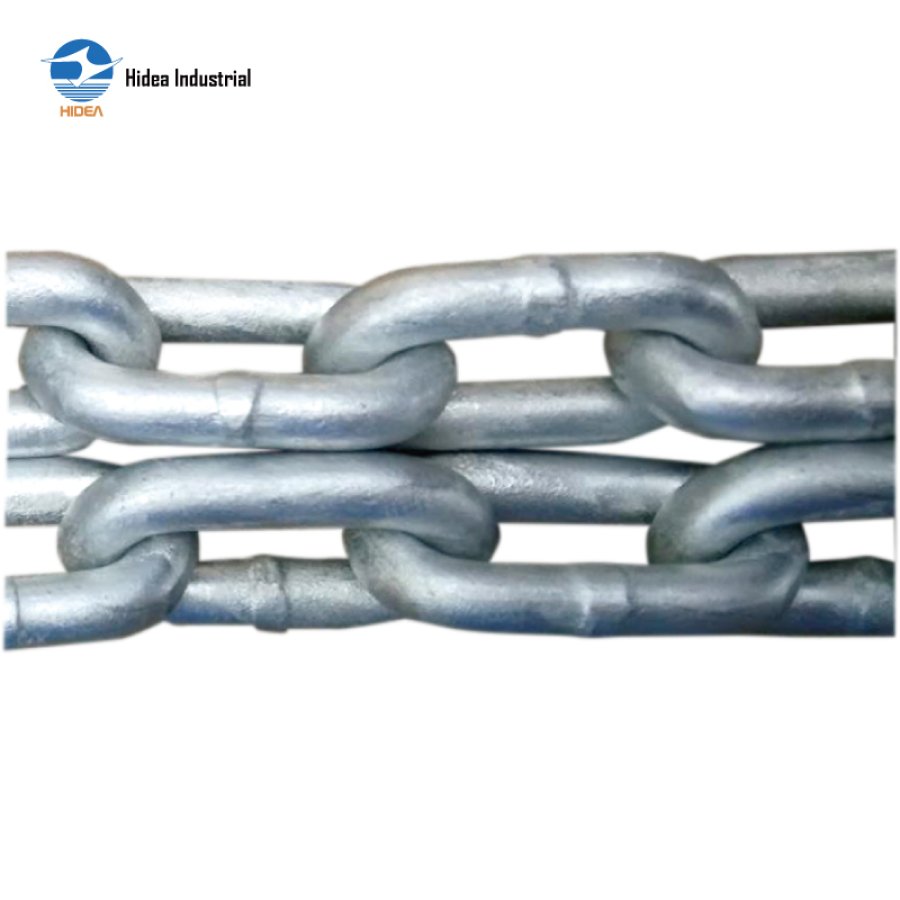

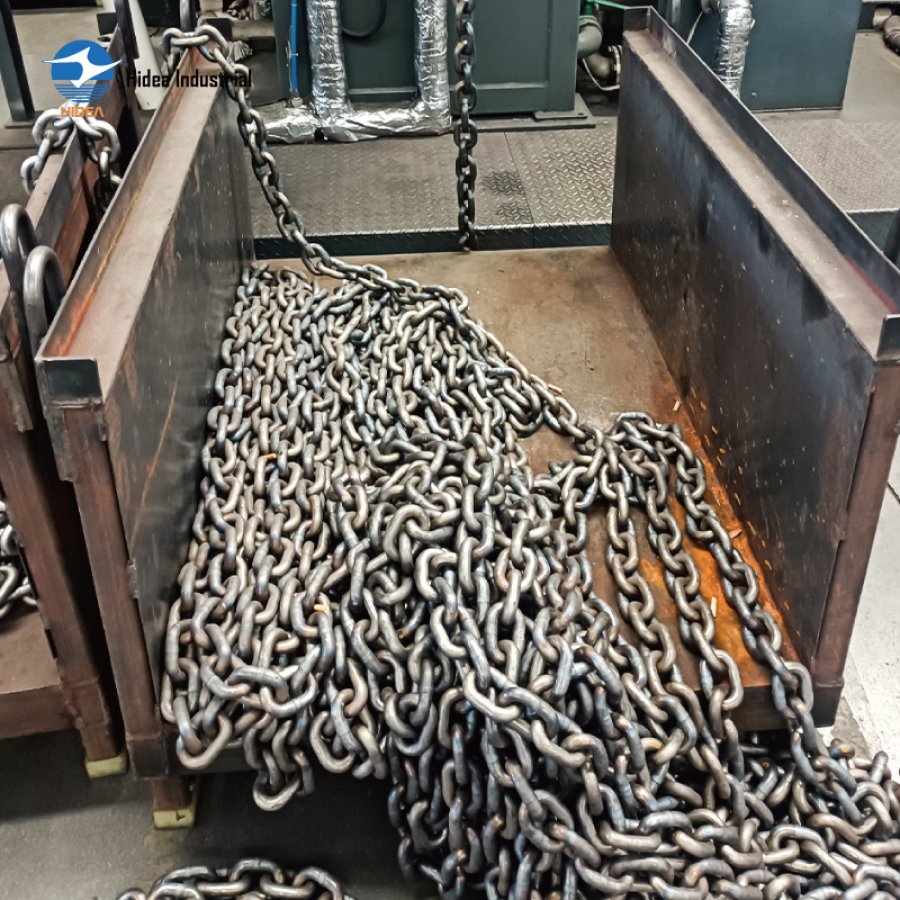

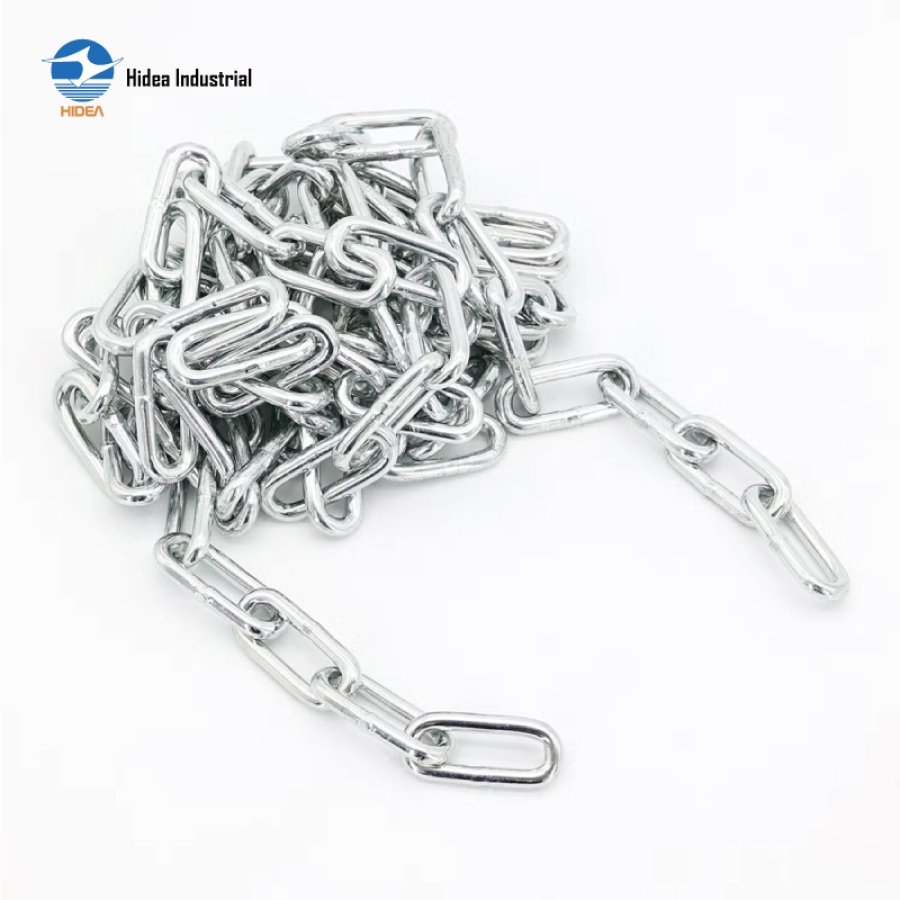

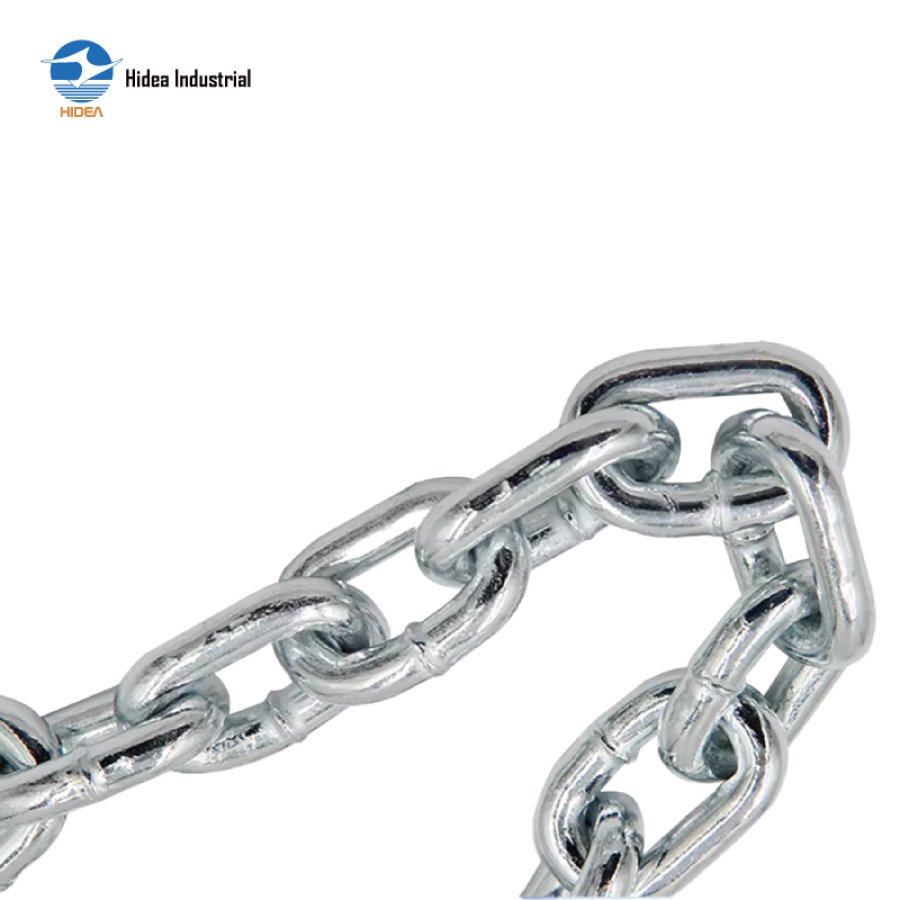

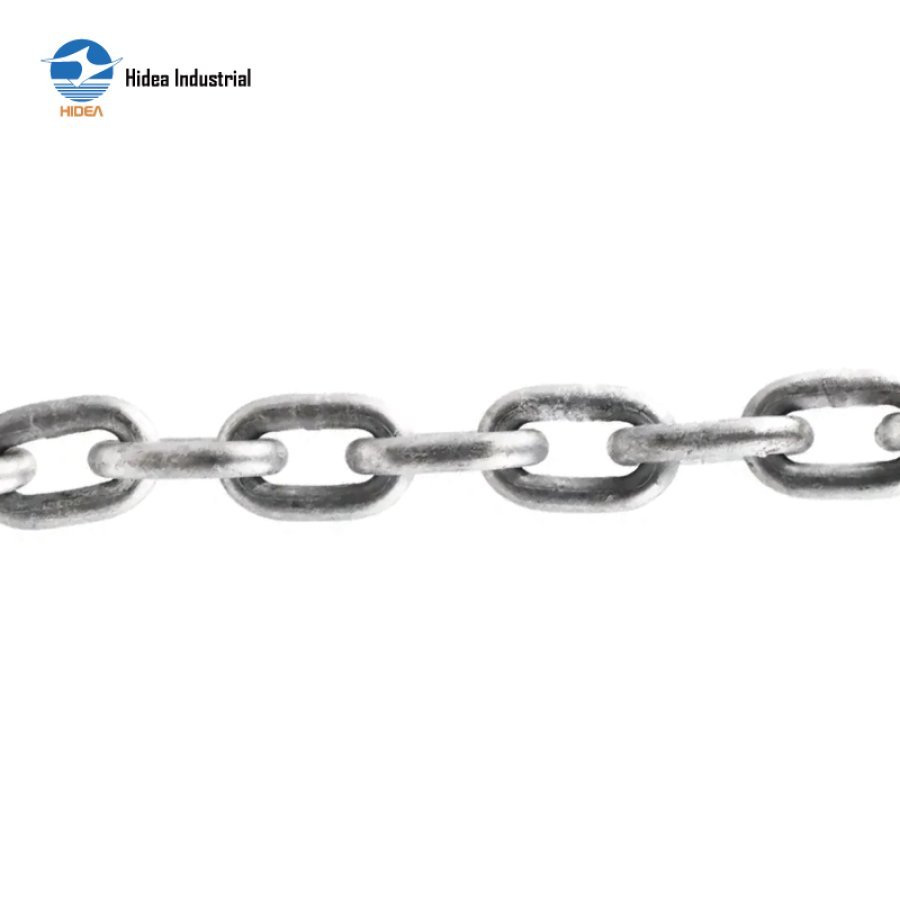

HIDEA G80 Fishing Chain: Japanese Standard Chain for Commercial Fishing

JAPANESE STANDARD FISHING CHAIN G80

Material Super Alloy Steel
Surface Treatment: Hot Dip OR Electro galvanized, Blackened or as requested
Japanese Standard Fishing Chain G80

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC133 Japanese Standard Fishing Chain G80

Size	Inside Length	Inside Width	Outside Width	Weight	Proof Test	Breaking Load
mm	mm	mm	mm	kg	kg	kg
7.9	23	9.9	26	1.38	4000	8000
9.5	28.6	12	31.3	1.96	6000	12000
11.1	33.3	14	36.4	2.69	8000	16000
12.7	36	15.5	41.4	3.59	10000	20000
14	49	20	49	3.98	12500	25000
16	56	24	56	5.22	16000	32000
