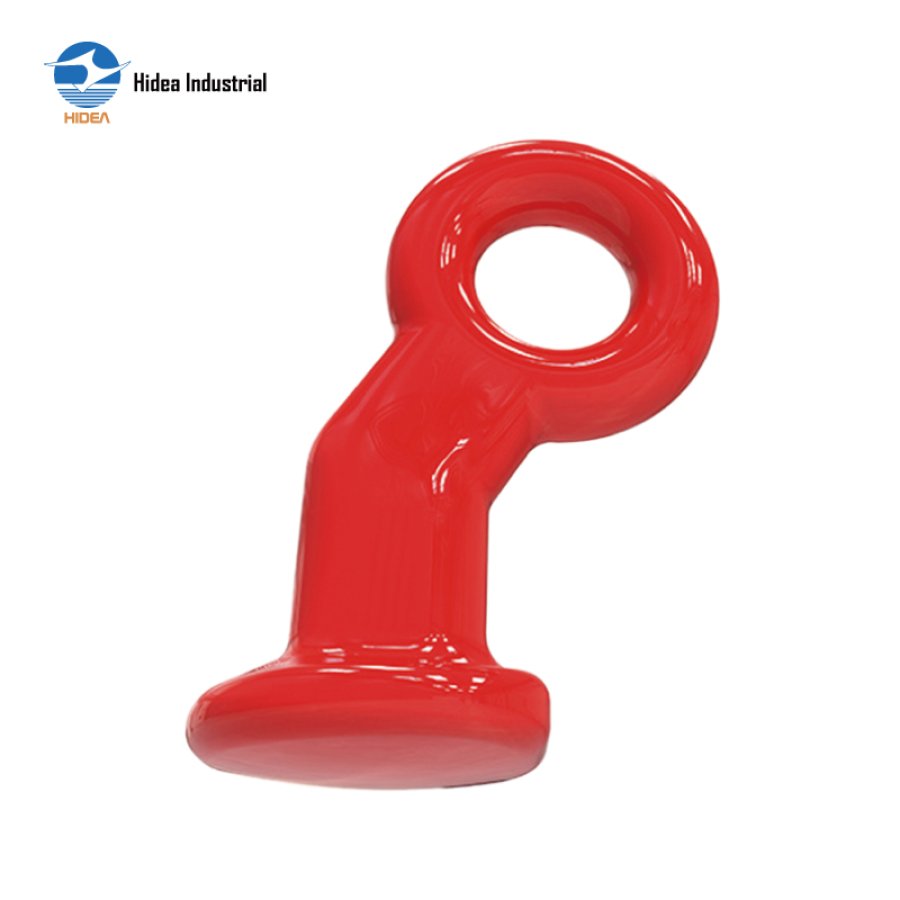

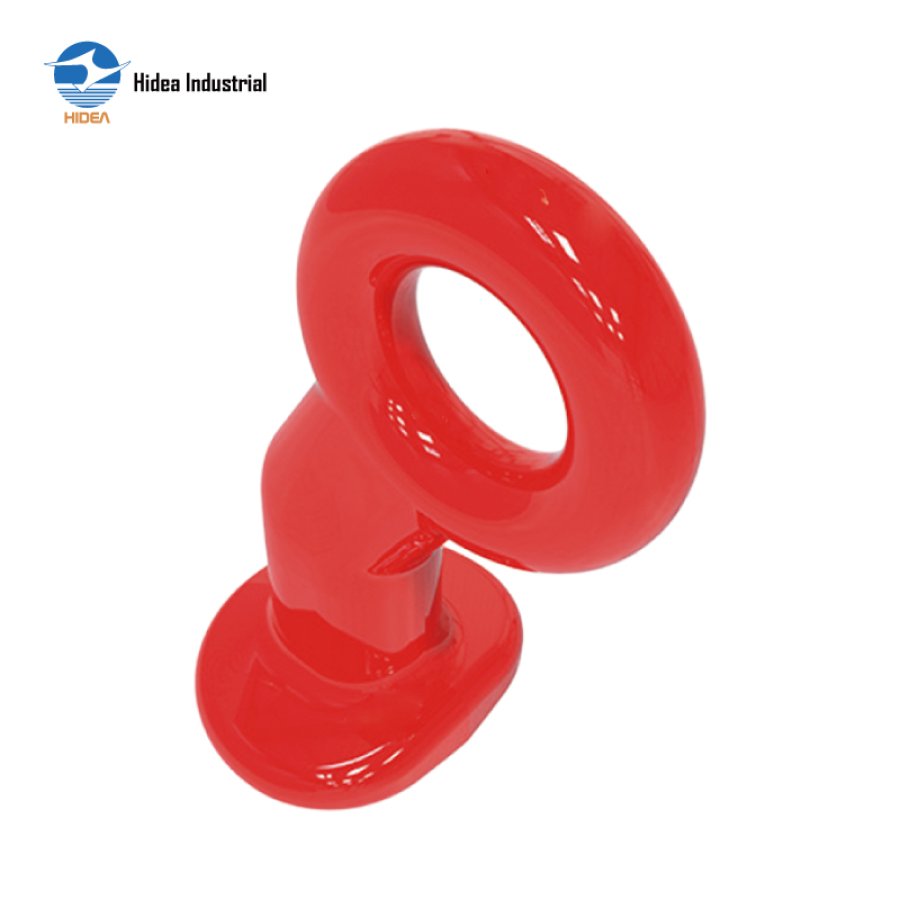

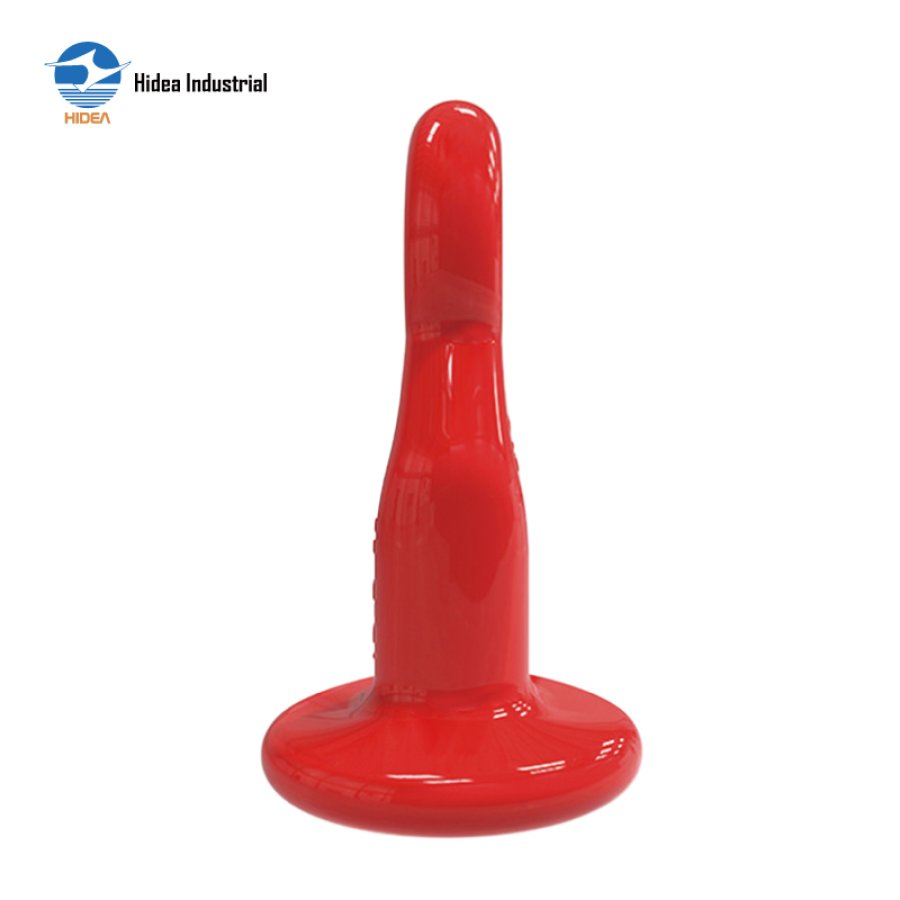

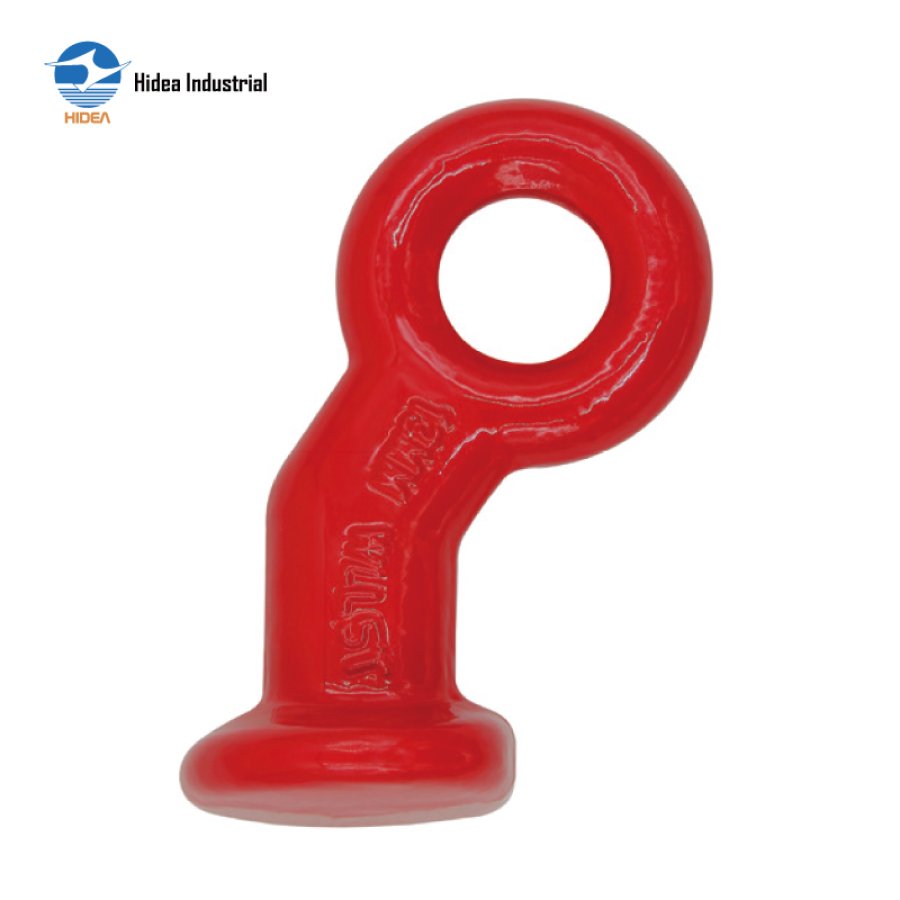

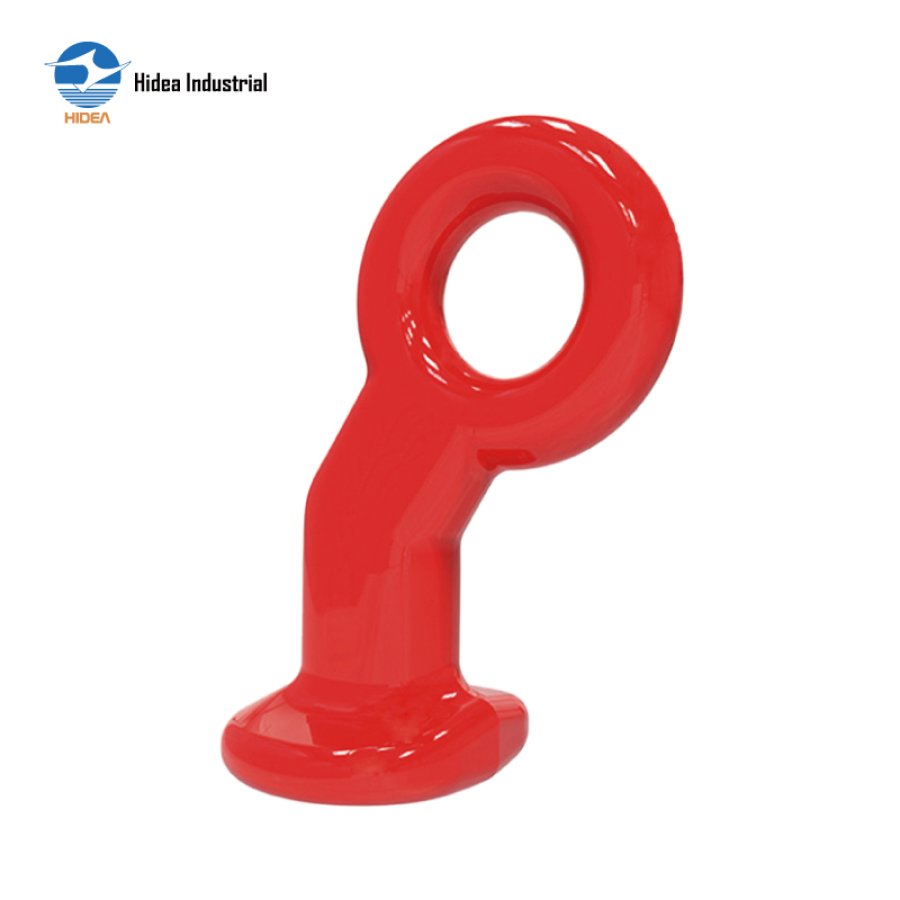

Heavy-Duty and Secure Hidea G80 Elephant Foot Eye

G80 EYE ELEPHANT FOOT

Forged alloy steel
Suitable for G80 lashing chain
Regular mark: 13-8 WLL5.3T

Inquire Now

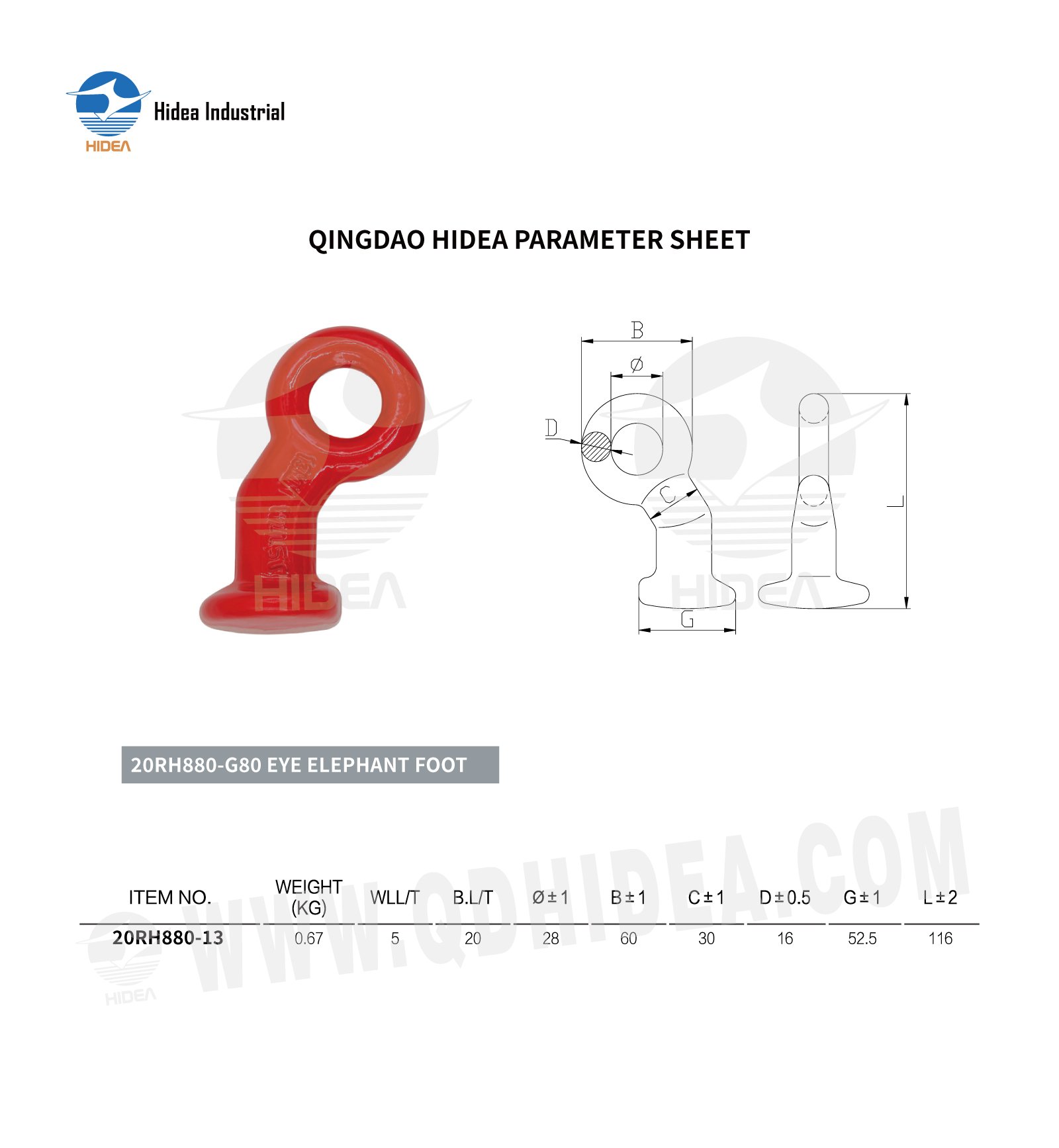

QINGDAO HIDEA PARAMETER SHEET FOR

20RH880-G80 EYE ELEPHANT FOOT

ITEM NO.	WEIGHT (KG)	WLL/T	B.L/T	Ø±1	B±1	C±1	D±0.5	G±1	L±2
20RH880-13	0.67	5	20	28	60	30	16	52.5	116
