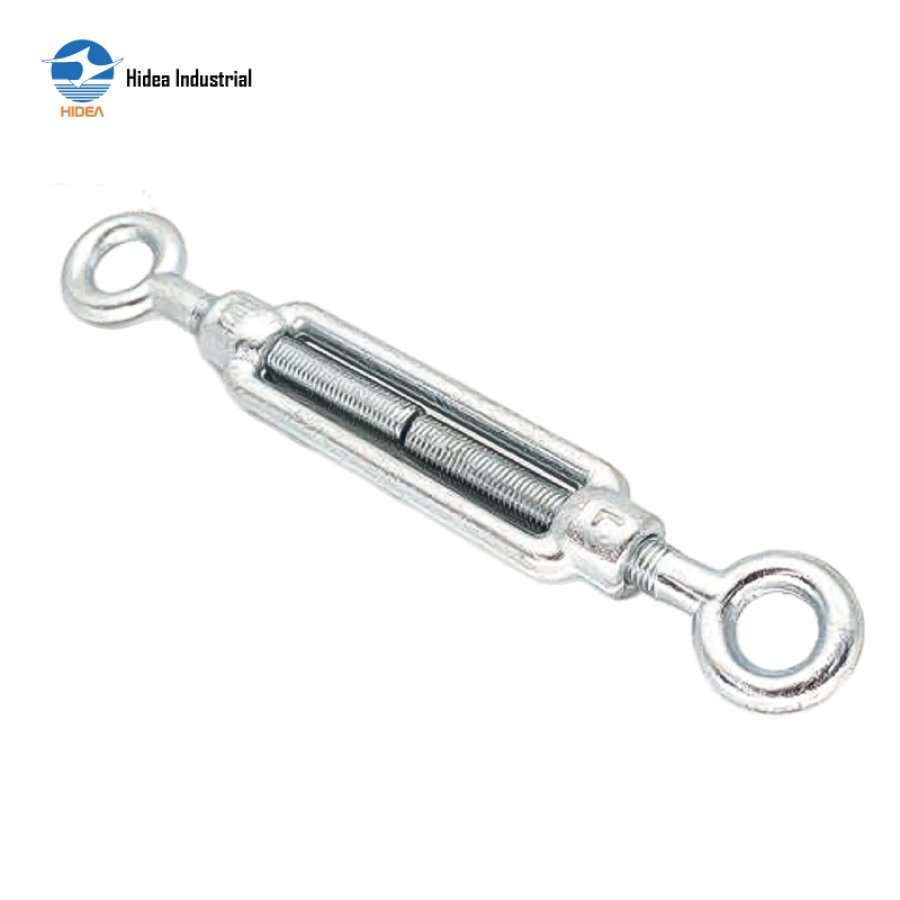

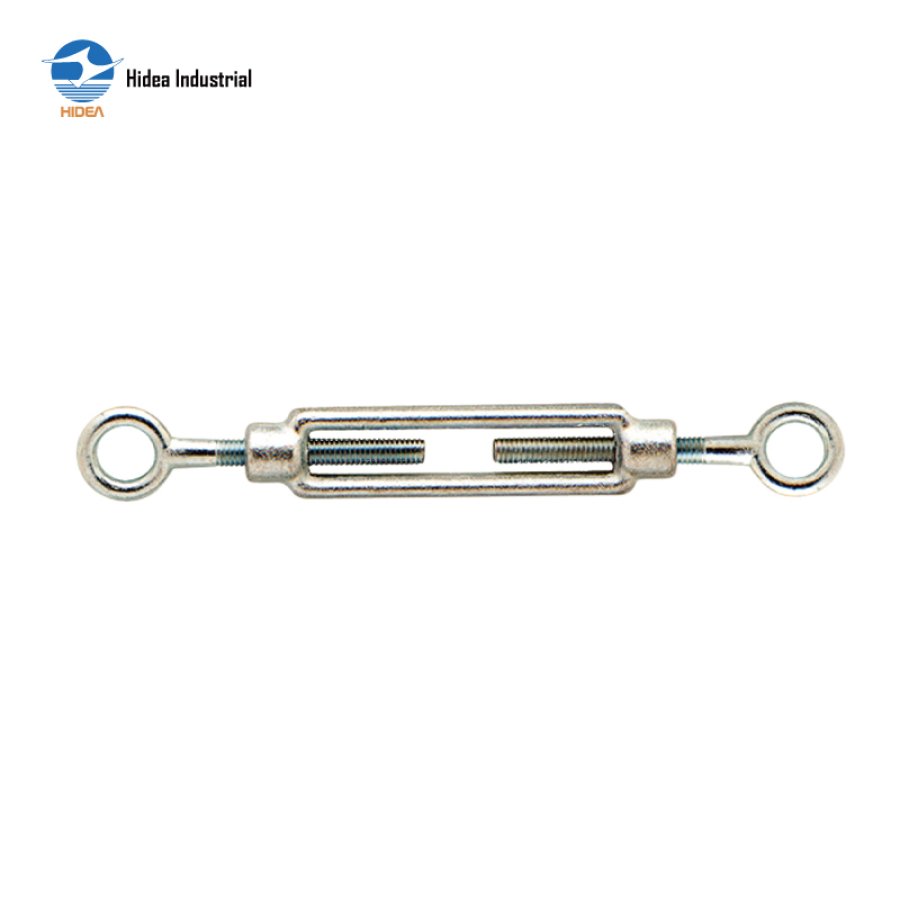

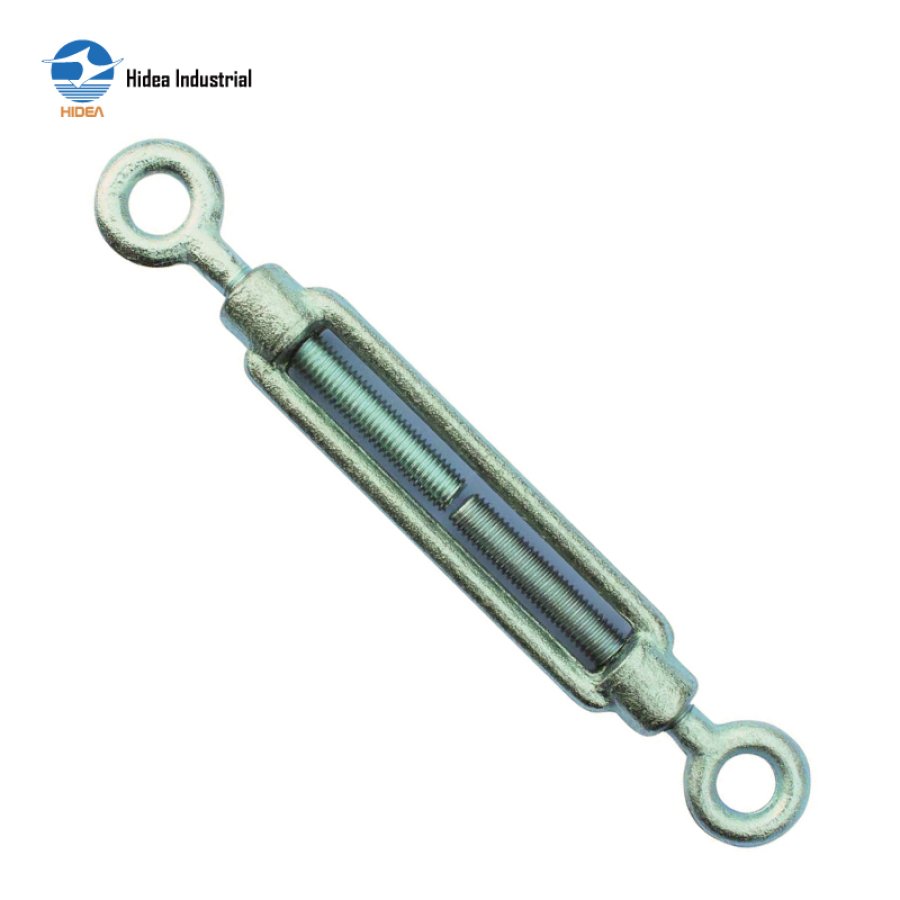

DIN1480 Open Body Turnbuckle Eye to Eye by Hidea – Secure Adjustable Tensioning

DIN1480 TURNBUCKLES WITH EYE/EYE

Material High tensile Carbon Steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1480 eye & eye open body type turnbuckles

Inquire Now

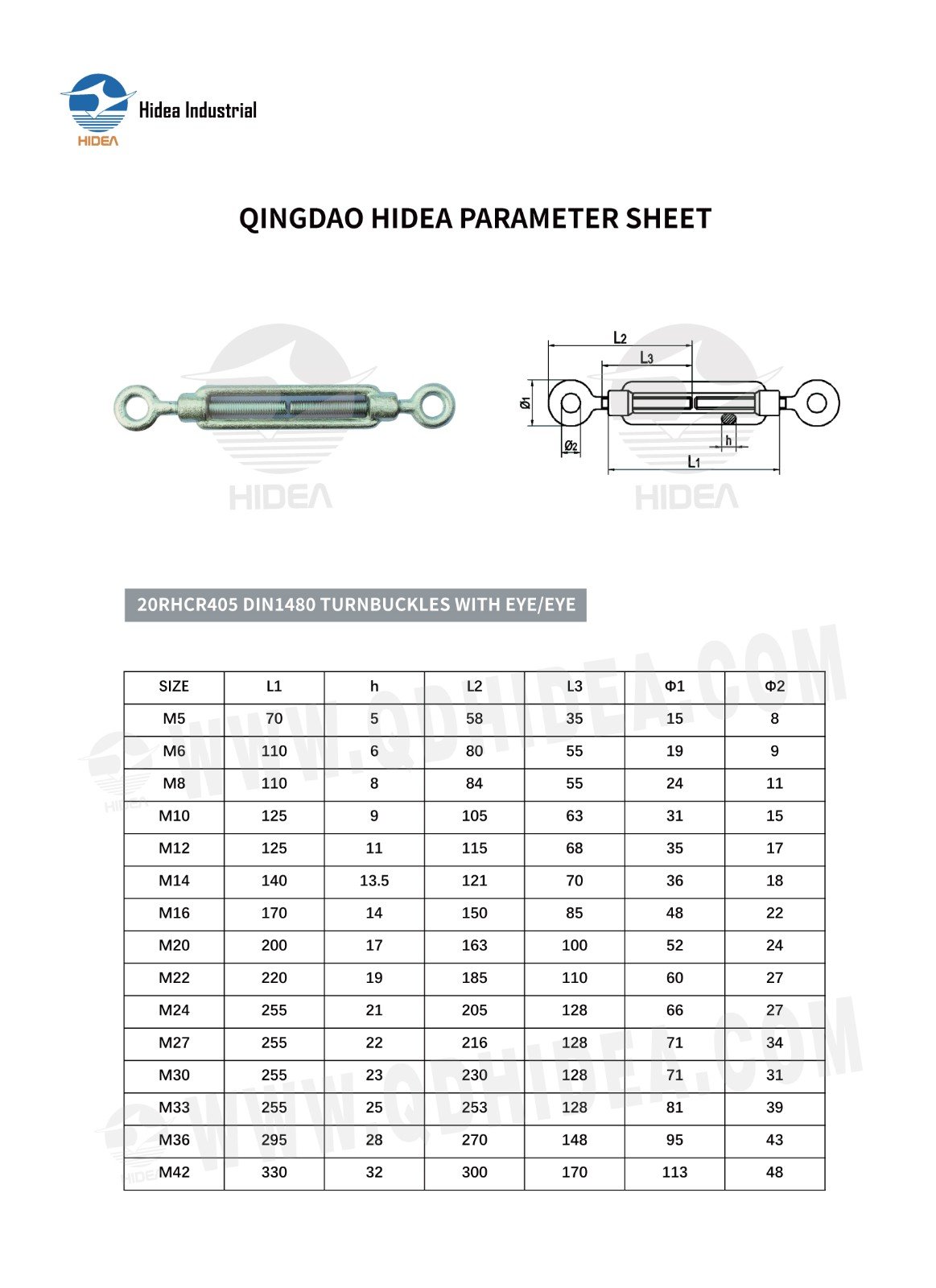

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR405 DIN1480 TURNBUCKLES WITH EYE/EYE

SIZE	L1	h	L2	L3	Ф1	Ф2
M5	70	5	58	35	15	8
M6	110	6	80	55	19	9
M8	110	8	84	55	24	11
M10	125	9	105	63	31	15
M12	125	11	115	68	35	17
M14	140	13.5	121	70	36	18
M16	170	14	150	85	48	22
M20	200	17	163	100	52	24
M22	220	19	185	110	60	27
M24	255	21	205	128	66	27
M27	255	22	216	128	71	34
M30	255	23	230	128	71	31
M33	255	25	253	128	81	39
M36	295	28	270	148	95	43
M42	330	32	300	170	113	48
