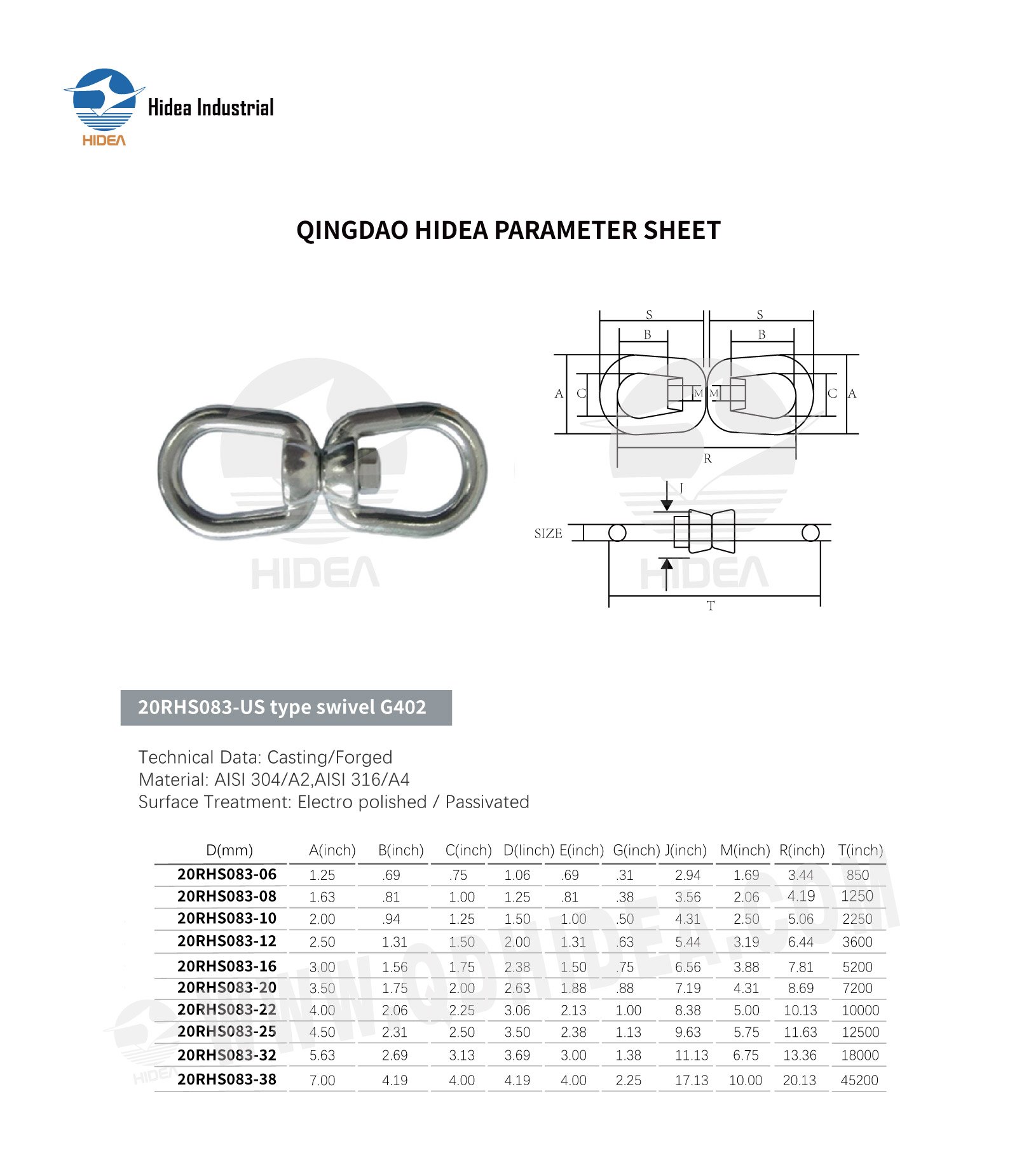

QINGDAO HIDEA PARAMETER SHEET FOR

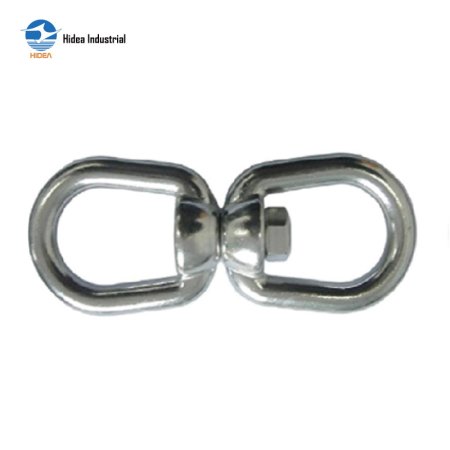

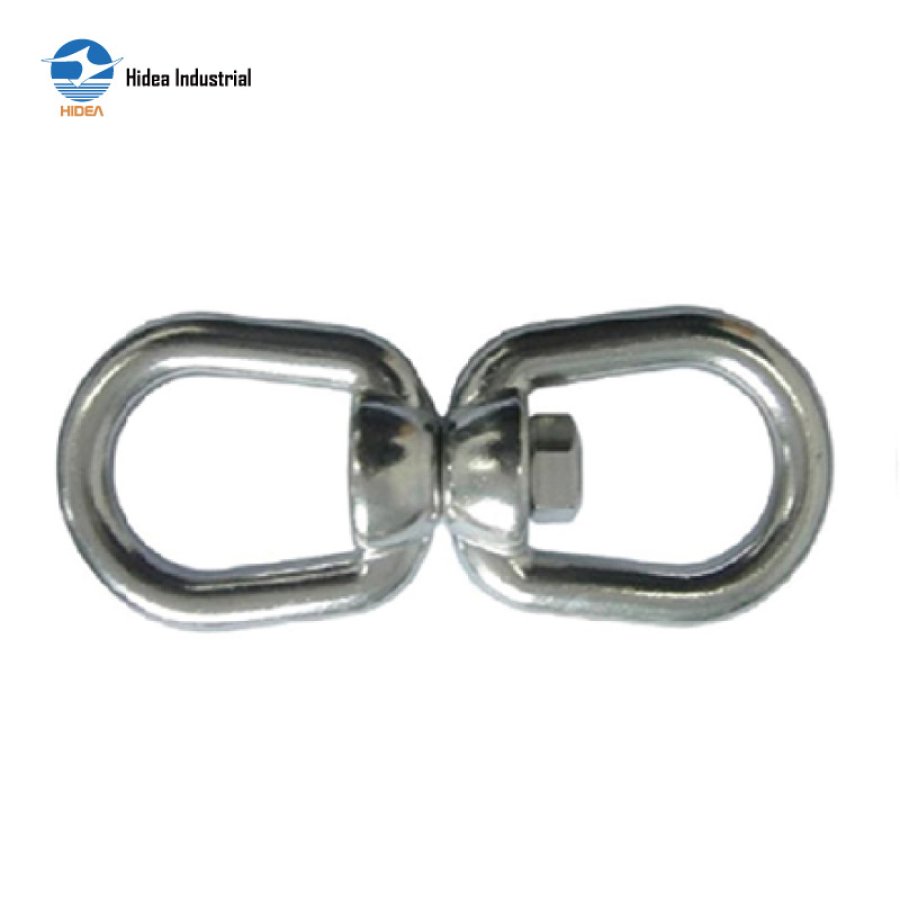

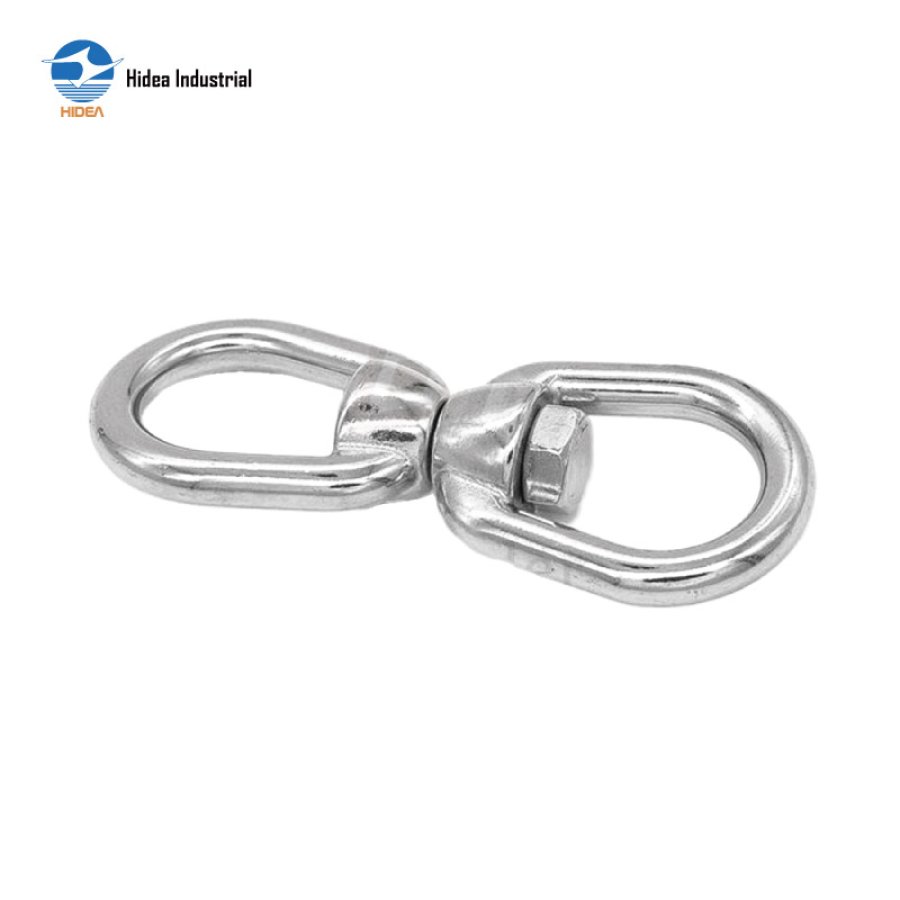

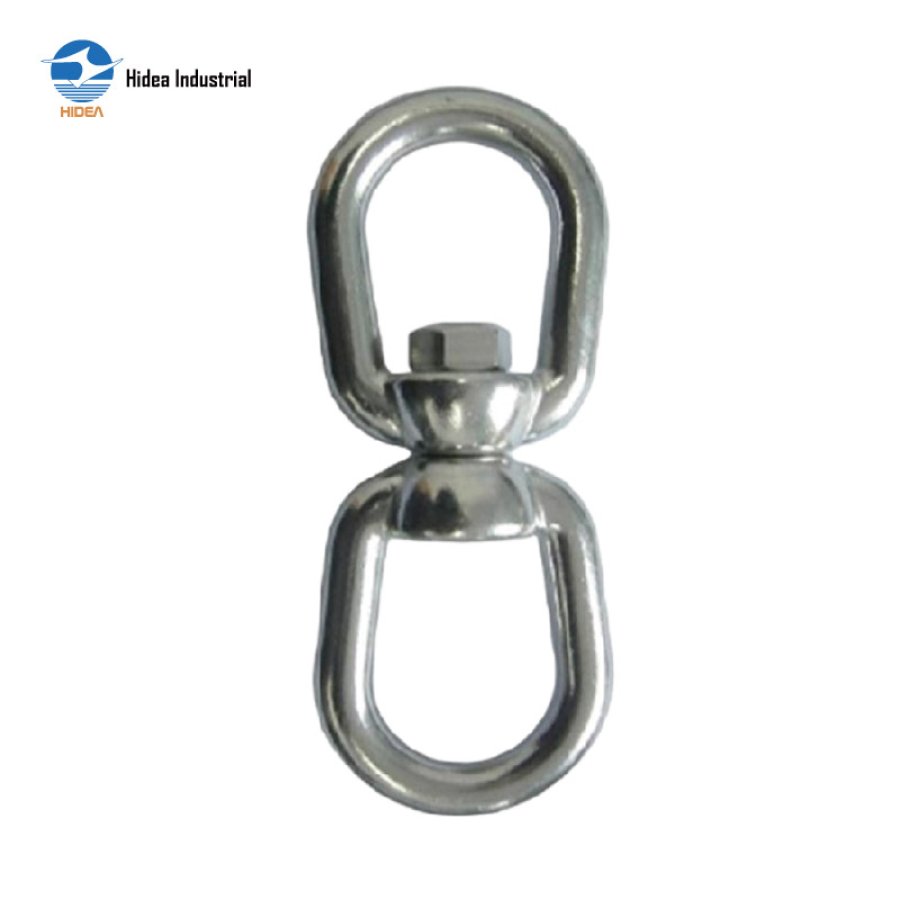

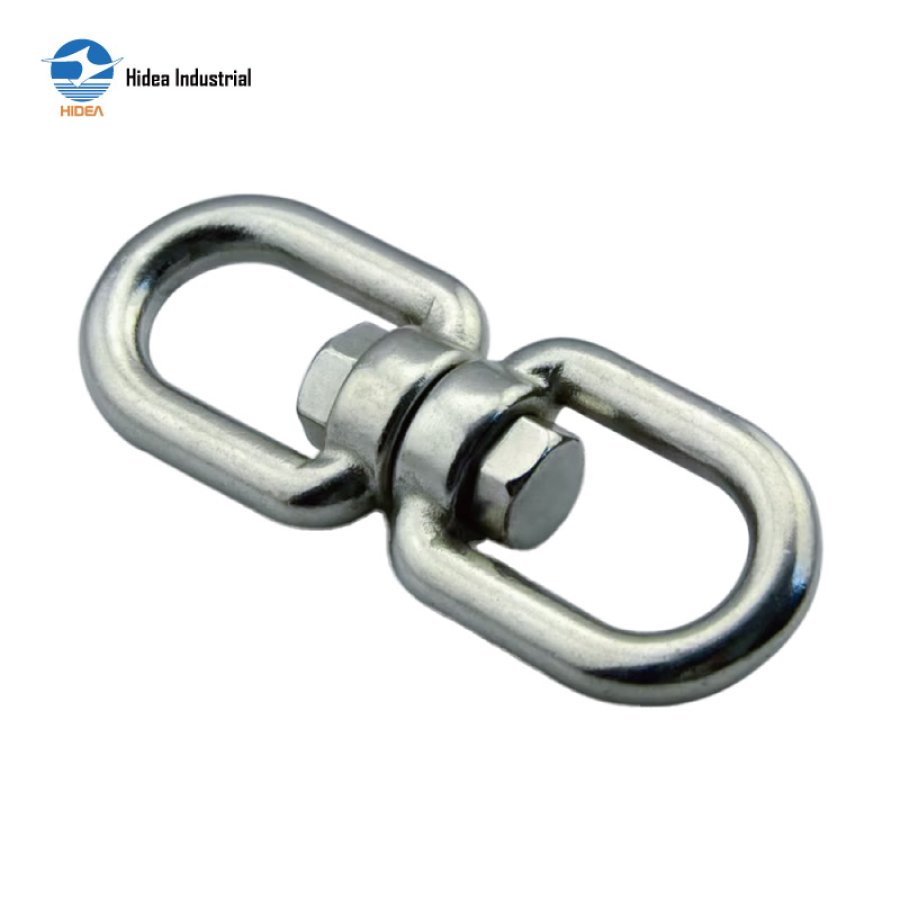

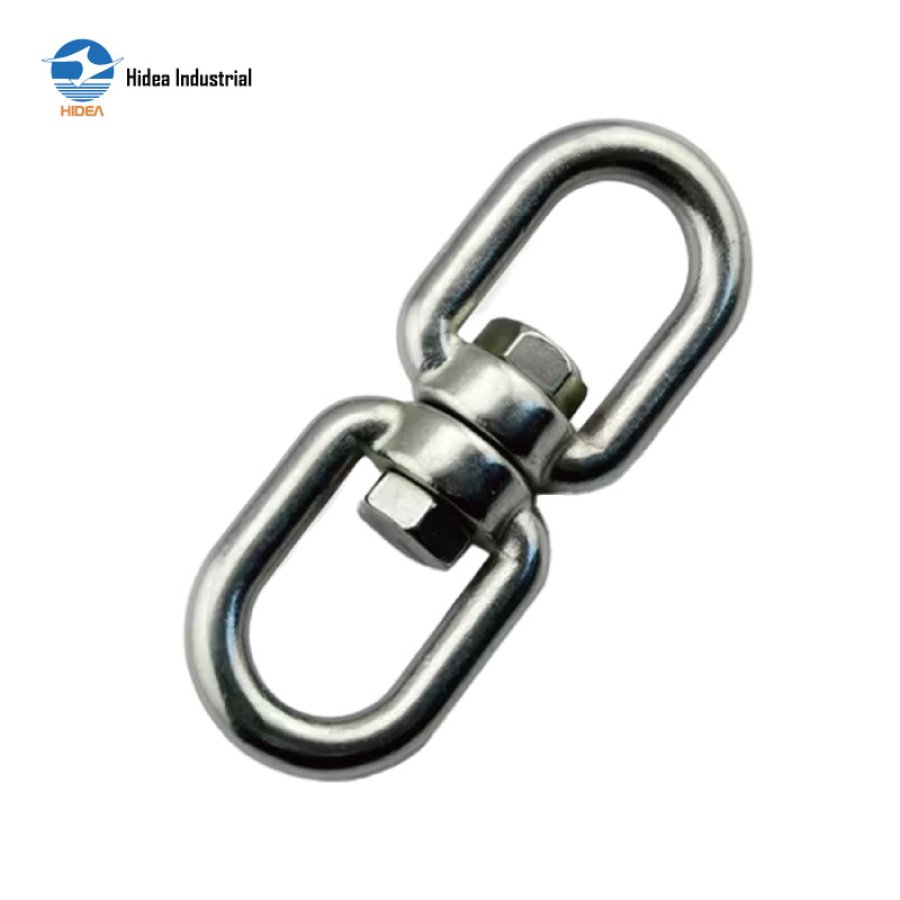

20RHS083-US type swivel G402
| D(mm) | A(inch) | B(inch) | C(inch) | D(linch) E(inch) | G(inch) J(inch) | M(inch) | R(inch) | T(inch) | ||
| 20RHS083-06 | 1.25 | .69 | .75 | 1.06 | 69 | 31 | 2.94 | 1.69 | 3.44 | 850 |
| 20RHS083-08 | 1.63 | 81 | 1.00 | 1.25 | .81 | 38 | 3.56 | 2.06 | 4.19 | 1250 |
| 20RHS083-10 | 2.00 | 94 | 1.25 | 1.50 | 1.00 | 50 | 4.31 | 2.50 | 5.06 | 2250 |
| 20RHS083-12 | 2.50 | 1.31 | 1.50 | 2.00 | 1.31 | 63 | 5.44 | 3.19 | 6.44 | 3600 |
| 20RHS083-16 | 3.00 | 1.56 | 1.75 | 2.38 | 1.50 | 75 | 6.56 | 3.88 | 7.81 | 5200 |
| 20RHS083-20 | 3.50 | 1.75 | 2.00 | 2.63 | 1.88 | 88 | 7.19 | 4.31 | 8.69 | 7200 |
| 20RHS083-22 | 4.00 | 2.06 | 2.25 | 3.06 | 2.13 | 1.00 | 8.38 | 5.00 | 10.13 | 10000 |
| 20RHS083-25 | 4.50 | 2.31 | 2.50 | 3.50 | 2.38 | 1.13 | 9.63 | 5.75 | 11.63 | 12500 |
| 20RHS083-32 | 5.63 | 2.69 | 3.13 | 3.69 | 3.00 | 1.38 | 11.13 | 6.75 | 13.36 | 18000 |
| 20RHS083-38 | 7.00 | 4.19 | 4.00 | 4.19 | 4.00 | 2.25 | 17.13 | 10.00 | 20.13 | 45200 |
